Investigation number
AO-2020-004
Occurrence date
Location
Tooloom National Park, 53 km ENE from Stanthorpe
State
New South Wales
Report release date
Report status
Final
Investigation level
Defined
Investigation type
Occurrence Investigation
Investigation phase
Final report: Dissemination
Investigation status
Completed
Aviation occurrence type
VFR into IMC
Occurrence category
Accident
Highest injury level
Fatal

Safety summary

What happened

On the afternoon of 12 January 2020, the pilot of an amateur-built Wittman Tailwind aircraft, registered VH-TWQ (TWQ), departed Evans Head Airport, New South Wales, with one passenger on board. The pilot was conducting a private flight under the visual flight rules from Evans Head, to Boonah, Queensland.

The pilot flew in a north-north-westerly direction towards Boonah via the Richmond River valley. At 1353, the pilot commenced a 180° turn overhead the township of Kyogle and diverted, due to the weather, south back down the valley to Casino Aerodrome, landing at 1406.

At 1454, the pilot took off from Casino and flew in a west-north-westerly direction. At 1512 TWQ commenced a series of rapid descents and climbs followed by a descending left turn. The turn and descent continued until TWQ collided with terrain. The pilot and passenger were fatally injured, and the aircraft was destroyed.

What the ATSB found

The ATSB found that the pilot departed an interim landing site for Boonah under the visual flight rules with a high risk of encountering forecast cloud. En route to Boonah, the aircraft entered an area of reduced visibility and the pilot likely became spatially disorientated resulting in a loss of control and collision with terrain.

Safety message

Weather-related accidents remain one of the most significant causes of fatal accidents in general aviation and continues to be a focus of the ATSB’s SafetyWatch initiative. SafetyWatch highlights the broad safety concerns that come out of our investigation findings and from the occurrence data reported to us by industry. One of the safety concerns relates to inflight decision making, particularly involving pilots flying with reduced visual reference. SafetyWatch provides information about each safety concern, and strategies to help manage risk areas, along with links to safety resources. In relation to visual flight rules (VFR) pilots flying into areas of reduced visibility, some key messages are:

  • Pilots should avoid deteriorating weather by conducting thorough pre-flight planning. They should ensure they have alternate plans in case of an unexpected deterioration in the weather and make timely decisions to turn back, divert or hold in an area of good weather.
  • VFR pilots should use a ‘personal minimums’ checklist to help control and manage flight risks through identifying risk factors that include marginal weather conditions and only fly in environments that do not exceed their capabilities.
  • Pilot’s should consider reducing speed and/or altering the configuration of the aircraft to allow more time for decision making and maneuvering in areas of deteriorating or marginal weather conditions
  • Pressing on into instrument meteorological conditions without a current instrument rating carries a significant risk of severe spatial disorientation due to powerful and misleading orientation sensations with reduced visual cues. Disorientation can affect any pilot, no matter what their level of experience.
  • If VFR pilots find themselves in marginal weather and becoming disoriented or lost, they should seek whatever help is available. Air Traffic Services (ATS) may be able to provide assistance, especially if the aircraft is in ATS surveillance coverage. There have been a number of reported occurrences where this simple action has averted potential disaster.
The occurrence

On Friday, 10 January 2020 the pilot of an amateur-built Wittman Tailwind aircraft, registered VH‑TWQ (TWQ), departed Toowoomba, Queensland, and flew via Boonah, to Evans Head, New South Wales. The purpose of the flight was to pick up a passenger at Boonah and then attend the Great Eastern Fly-In (Fly-In) at Evans Head. The Fly-In was planned for the weekend of 11‑12 January. However, due to poor weather, the event program was significantly disrupted.

On the morning of 12 January 2020, the pilot attended the Fly-In event briefing which included the meteorology for the day. The event was cancelled at 0830 due to the cloud base at Evans Head being approximately 1,000 ft above ground level (AGL) with a reduction to 600 ft AGL forecast during the day. Due to the cancellation of the event the pilot elected to return to Toowoomba and contacted relatives there for an update on the weather. They sent photos of the local conditions and said the cloud at Toowoomba was not really low, there was no wind and there had been some rain. At 1336 Eastern Daylight-saving Time,[1] the pilot departed Evans Head Airport , with one passenger on board. The pilot was conducting a private flight under the visual flight rules[2] to Toowoomba via Boonah (Figure 1).

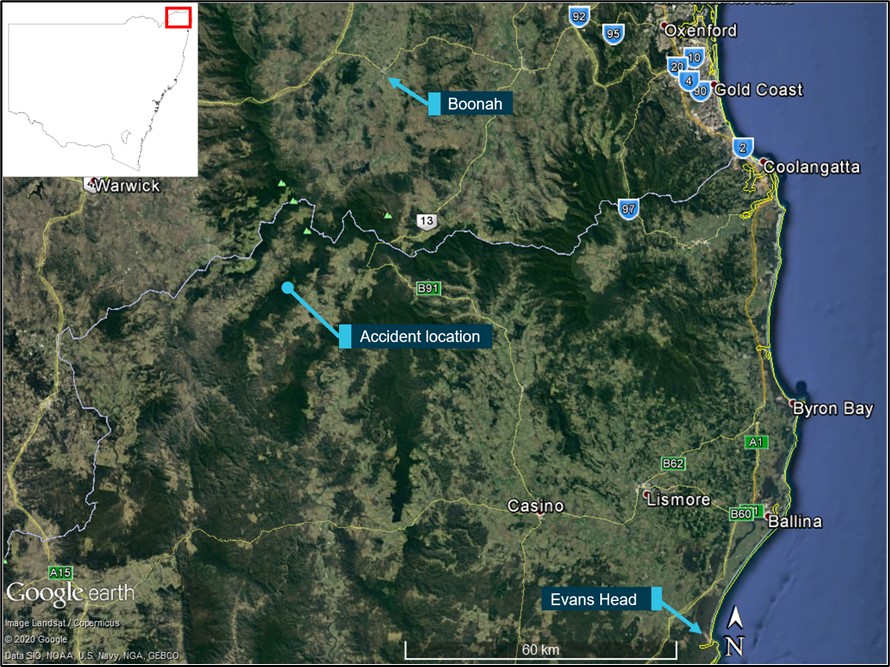

Figure 1 - Accident flight departure, destination and accident locations

Figure 1 - Accident flight departure, destination and accident locations

 Source: Google Earth, annotated by the ATSB

The pilot flew in a north-north-westerly direction towards Boonah via the Richmond River valley (Figure 2). The aircraft reached a maximum altitude of 1,950 ft above mean sea level[3] just prior to reaching Kyogle. At 1353, the pilot commenced a 180° turn overhead the township of Kyogle and diverted, likely due to low cloud on their intended flight path. At 1357 a family member contacted the passenger as they had seen the turnaround overhead Kyogle on OzRunways.[4] The passenger replied to say they were ‘going home due low cloud’. The pilot flew south back down the valley to Casino Aerodrome, landing at 1406.

During the time on the ground at Casino, the pilot contacted a friend in the area and left a voice message. The message stated they could not get past Kyogle due to the weather, so they had landed at Casino. (refer to the section titled Meteorological information below.)

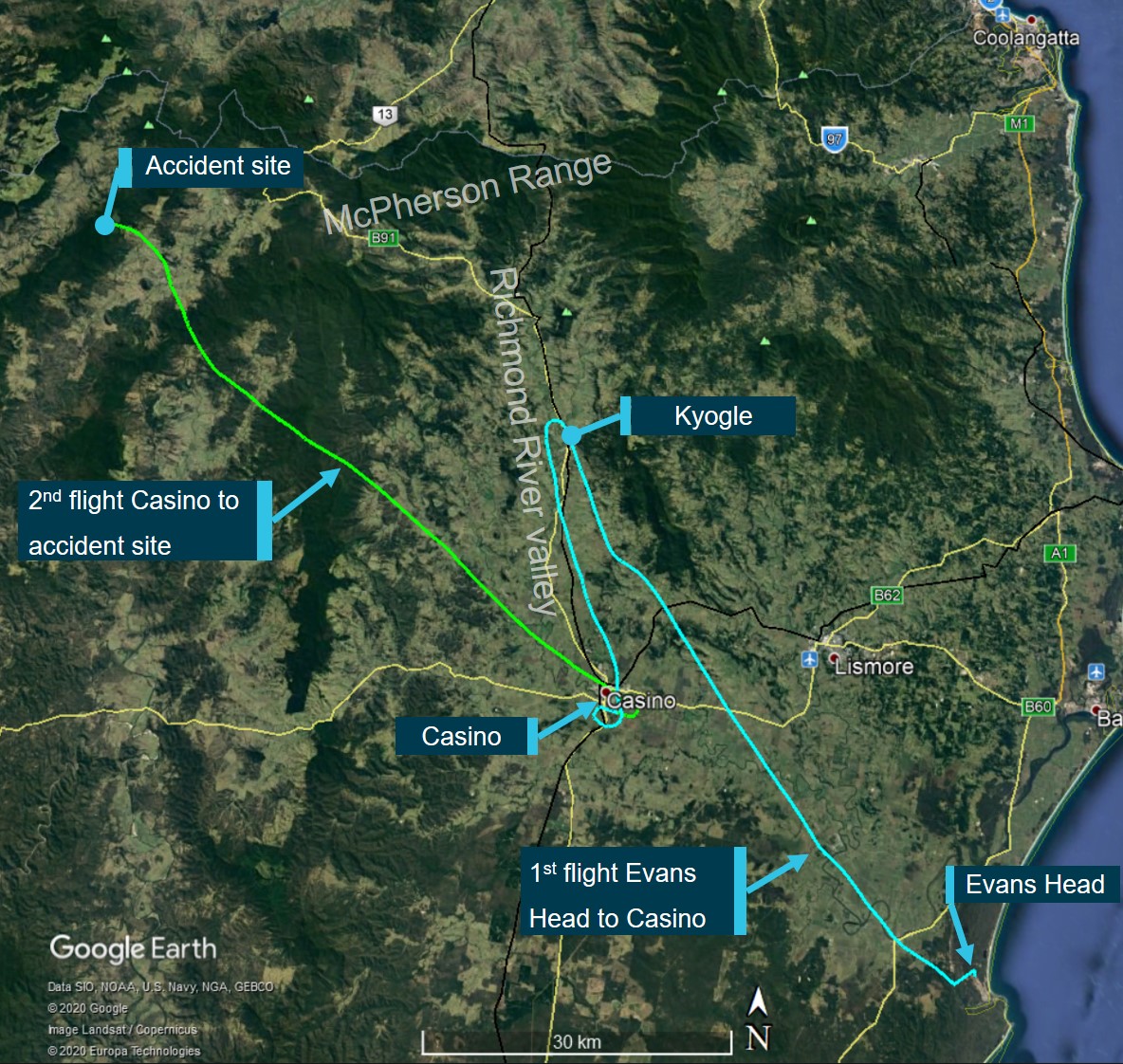

Figure 2 - Flight tracks for VH-TWQ on 12 January 2020Figure 2 - Flight tracks for VH-TWQ on 12 January 2020

Source: Flightradar24 and Google Earth, annotated by the ATSB

At 1454, the pilot took off from Casino and flew in a west-north-westerly direction. At 1510 TWQ commenced a series of rapid descents and climbs, between 3,100 and 4,000 ft, followed by a left descending turn. Shortly afterwards TWQ collided with terrain. The pilot and passenger were fatally injured, and the aircraft was destroyed. There were no witnesses to the accident.

__________

  1. Eastern Daylight-saving Time (EDT): Coordinated Universal Time (UTC) +11 hours.
  2. Visual flight rules (VFR): a set of regulations that permit a pilot to operate an aircraft only in weather conditions generally clear enough to allow the pilot to see where the aircraft is going.
  3. Above mean sea level (AMSL): All altitudes and heights will be referenced to AMSL unless otherwise stated.
  4. The OzRunways application is an electronic flight bag. An electronic flight bag is a portable information system for flight deck crew members which allows storing, updating, delivering, displaying and/or computing digital data to support flight operations or duties. It provides the option for live flight tracking by transmitting the device’s position and altitude
Context

Pilot information

General information

The pilot held a Private Pilot Licence (Aeroplane) issued in July 1982 and was qualified to fly by day under the visual flight rules. The pilot also held a single-engine aeroplane class rating. The pilot last conducted a single-engine aeroplane flight review in June 2018 that was valid until June 2020. The pilot had about 1,200 hours flying experience recorded in the pilot’s logbook with a total of about 140 hours on the Wittman Tailwind. In the 90 days prior to the accident, the pilot had flown 12.4 hours total, of which 11.2 hours were in TWQ.

The pilot’s logbook showed a total of 8.4 hours instrument flying experience. Of these, 5 hours were accumulated between 1982 and 1983. The remaining 3.4 hours were accumulated from 1986 to 2015. The pilot did not hold an instrument rating.

Medical information

The pilot held a Class 2 aviation medical certificate that was valid until October 2021 with two restrictions noted. One restriction required distance vision correction be worn and the other required reading correction to be available during flight.

The pilot was reported to be in good health and not taking any medications at the time of the accident.

Due to the pilot being away from home for the days preceding the accident, a detailed 72-hour history could not be obtained. From the limited information available there were no fatigue‑related concerns identified.

A limited post-mortem examination and toxicological screening was performed. There was nothing found to support incapacitation.

Aircraft information

Overview

VH-TWQ (TWQ) was a Wittman Tailwind, an amateur-built aircraft in the experimental category. TWQ had a two seat, side-by-side seating arrangement. The structure was a combination of tubular steel frames and fabric covering on the fuselage. Wooden wing ribs had a bonded plywood skin covering. The flight controls consisted of push-pull type control tubes. All flight controls and flaps were fabric covered. The Wittman had a fixed undercarriage in a taildragger configuration.

TWQ was fitted with a Lycoming XIO-320[5] four cylinder, horizontally opposed piston engine and was fitted with a ground adjustable Whirlwind two-bladed composite propeller.

Entries in the logbook indicated that the owner-pilot commenced construction of the aircraft as an amateur builder in January 2006. The aircraft was completed in August 2018. A CASA authorised person issued a special certificate of airworthiness in the experimental category on 25 December 2018.

On 28 June 2019, the pilot issued a maintenance release that was valid for 12 months. This allowed the aircraft to be operated privately under the day visual flight rules. The aircraft flew for 33.3 hours between 28 June 2019 and the day of the accident. No defects or unserviceable equipment endorsements were recorded on the maintenance release.

The last entry in the aircraft’s maintenance records was the change, by the pilot, of the engine oil and filter in October 2019. The pilot changed the engine oil filter in accordance with the maintenance schedule.

Operating limitations

Aircraft operating limitations were contained within the flight manual for the aircraft and relevant limitations are detailed in Table 1 and Table 2.

Table 1 – Airspeed limitations

Speed Knots indicated airspeed (KIAS) Remarks
Vne – Never exceed 174 Do not exceed this speed in any operation
Vno – Max structural cruising 155 Do not exceed this speed except in smooth air, then only with caution
Va – Manoeuvring 155 Do not make full or abrupt control movement above this speed, because under certain conditions the aircraft may be overstressed.

Table 2 - Stall speeds

Configuration Power off (KIAS) Power on (KIAS)
Clean 52 49
Flaps Land 47 40

Navigation / cockpit instruments

The aircraft was fitted with a Garmin G3X (G3X) flight display, capable of displaying the engine monitoring instruments, primary flight instruments and navigation information.

The pilot was reported to navigate primarily by using paper maps, using the main Garmin screen to display attitude and heading information as well as engine parameters. The pilot had an iPad mounted beside the G3X unit running the OzRunways application. It was reported that the pilot’s use of OzRunways navigation and flight planning features was limited to using the direct to function which plotted a track from the aircraft’s current location to a desired destination. The pilot was also reported to use the weather radar overlay function on OzRunways. This overlay displayed rain when detected by radar but did not display the presence of clouds.

Wreckage and accident site information

Accident site

The accident site was located in dense rainforest, about 72 km west-north-west of Casino, within the Tooloom National Park (Figure 2). The New South Wales Police Rescue and Bomb Disposal Unit assisted ATSB investigators to access the site on foot.

The accident site was on the eastern side of a ridgeline at an elevation of 3,170 ft. The highest ground in the immediate area of the accident site was approximately 3,200 ft.

Wreckage examination

The aircraft’s structure was substantially disrupted (Figure 3). The wreckage trail was about 120 m long on a bearing of approximately 270°. All major aircraft components were located at the accident site. ATSB investigators did not identify any signs of pre-existing airframe damage. Due to the disruption of the airframe, the aircraft’s attitude when it entered the tree canopy could not be determined. There was no evidence of fire. Site and wreckage examination did not identify any defects or anomalies that might have contributed to the accident.

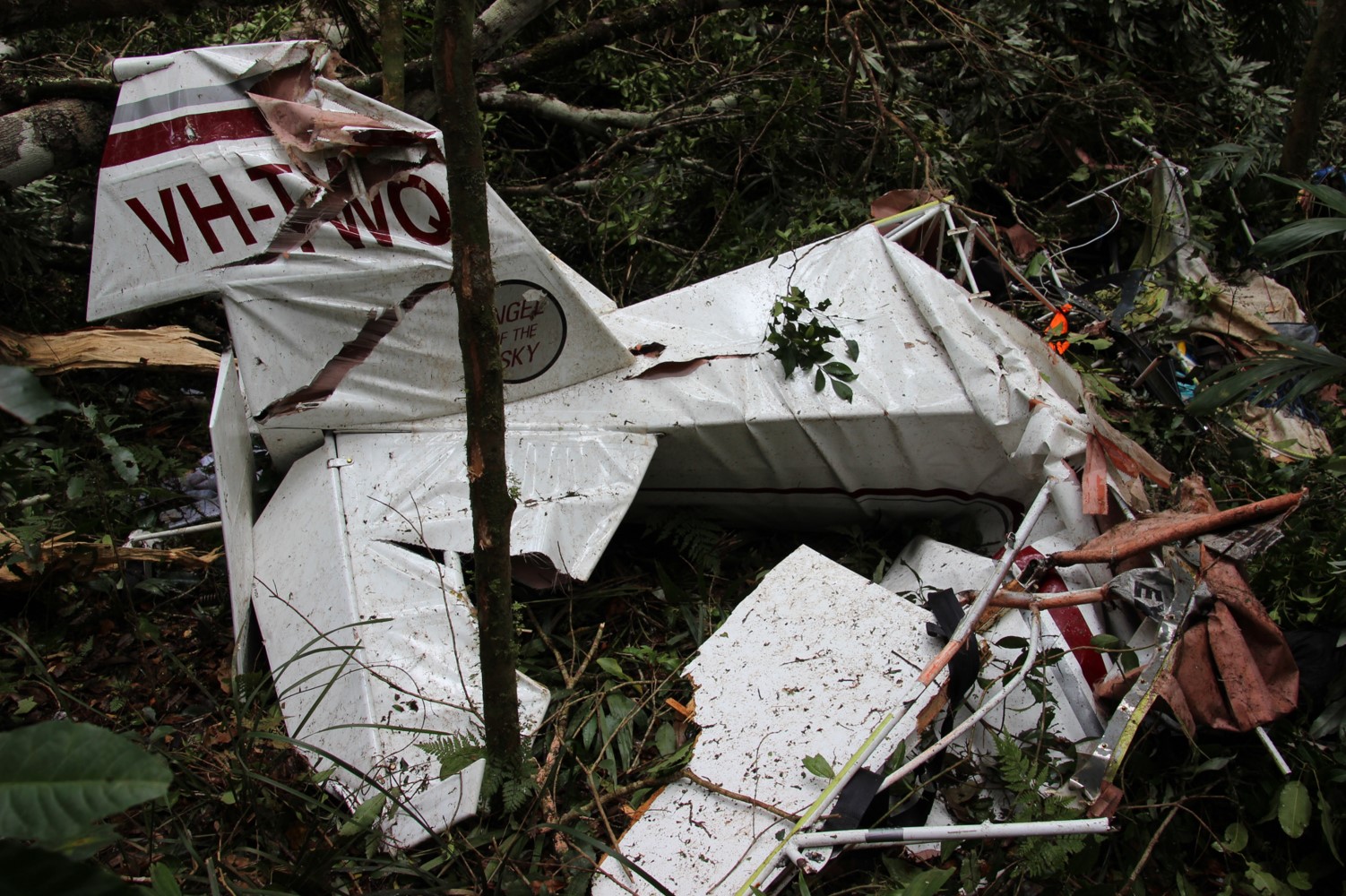

Figure 3 - VH-TWQ’s empennage at the accident site

Figure 3 - VH-TWQ’s empennage at the accident site

Source: ATSB

Engine and propeller

On-site examination of the engine and propeller did not identify any defects that could have contributed to the accident. Damage noted to the propeller, during this examination, were consistent with the engine producing significant power at the time of the accident.

Flight control system

All primary and secondary flight controls were located on-site. An examination of the flight control systems did not identify any faults that could have contributed to the accident.

Fuel

The fuel tank was located toward the end of the wreckage trail. It was torn from the fuselage and had ruptured. Rain had entered the tank post-accident, therefore the fuel that remained in the tank was not tested.

Weight and balance

The on-site examination found a small amount of lightweight cargo. It was reported that the occupants took minimal cargo with them when they departed for the weekend. Weight and balance was calculated using full fuel and maximum baggage on departure out of Toowoomba and was calculated to be within limits. The aircraft did not refuel again after departing Toowoomba. Weight and balance was also calculated for the expected fuel remaining at the time of the accident and was also within limits.

Emergency locator transmitter

The aircraft was not fitted with an ELT, nor was it required to be. An Emergency Position Indicating Radio Beacon was located in the wreckage and had not been activated. This unit was tested on-site and functioned as required.

Operational Information

The flight from Evans Head to Boonah required the pilot to cross the McPherson Range (Figure 4). The McPherson Range is a spur of the Great Dividing Range, heading in an easterly direction from near Wallangarra, Queensland, to the coast. It also forms part of the border between New South Wales and Queensland.

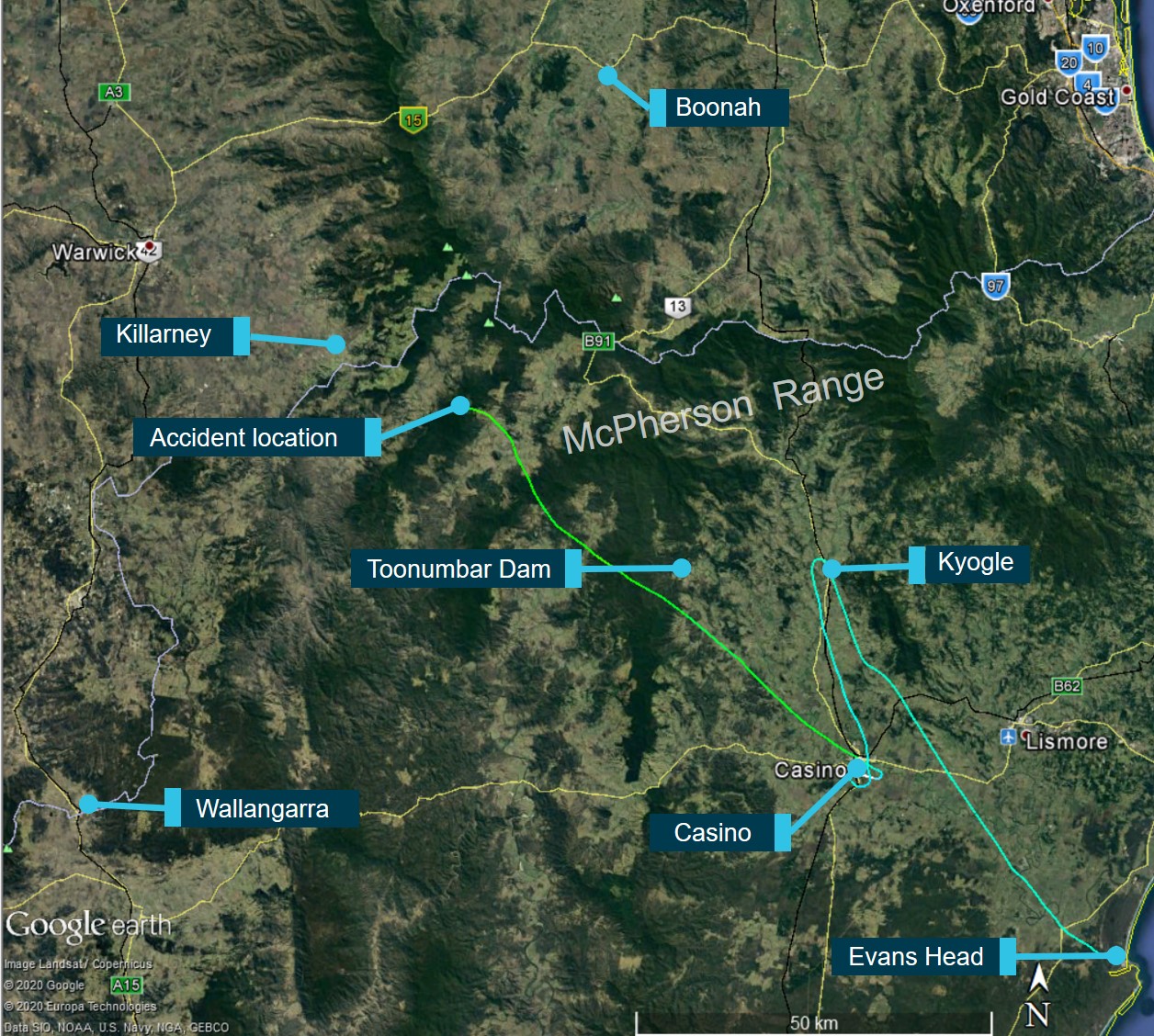

Figure 4 - Accident site and McPherson Range

Figure 4 - Accident site and McPherson Range

 Source: Google Earth and Flightradar24, annotated by the ATSB

Terrain across the range varies in altitude with several areas above 3,000 ft and some peaks above 4,000 ft.

The initial flight from Evans Head to Casino, indicated that the aircraft was attempting to cross the ranges via a route known as the ‘border loop’. The border loop is a route commonly used by VFR pilots to transit the range. Tracking is north up the Richmond River valley, past the town of Kyogle, then over the ranges where the railway cuts through the high ground.

Another common route over the ranges is to fly via the Toonumbar Dam, then Killarney to Warwick, which is similar to the track of the second flight. Another pilot who attended the Fly‑In reported that when attempting to fly over the ranges they use a minimum of 4,000 ft, and normally fly over the range at about 5,000 ft.

Meteorological information

Bureau of Meteorology forecast

The planned flight from Evans Head to Boonah traversed two Graphical Area Forecast (GAF)[6] areas. The accident site was located on the border of the GAF NSW East (NSW-E) and the GAF QLD South (QLD-S).

Forecast weather conditions in the GAF for NSW-E, valid from 1000 to 1600 on 12 January 2020, that potentially affected the flight included:

  • Average conditions of greater than 10 km visibility with areas of broken[7] stratocumulus clouds between 3,000 and 6,000 ft
  • Widespread smoke reducing visibility to 8,000 m
  • Isolated showers of rain reducing visibility to 4,000 m with associated cloud including broken stratus 1,000 to 2,000 ft and broken cumulus, stratocumulus 2,000 to 8,000 ft
  • Isolated thunderstorms and rain reducing visibility to 2,000 m with associated cloud including isolated cumulonimbus 6,000 to above 10,000 ft, broken stratus 500 to 2,000 ft and broken stratocumulus 2,000 to 6,000 ft
  • Isolated smoke over land reducing visibility to 1,000 m
  • Moderate turbulence is implied in cumulous, stratocumulus and altocumulus cloud. Severe turbulence is implied in thunderstorms, cumulonimbus and towering cumulus

The GAF for QLD-S was valid from 0900 to 1500. Forecast conditions that potentially affected the flight included:

  • Average conditions of greater than 10 km visibility with areas of scattered stratus 1,500 to 3,000 ft, scattered cumulus and stratocumulus 2,500 to 7,000 ft, and further cloud layers above 8,000 ft
  • Isolated dust and smoke reducing visibility to 7,000 m and 5,000 m respectively
  • Scattered rain reducing visibility to 5,000 m with associated broken stratus 1,200 to 4,000 ft, broken stratocumulus 5,000 to 8,000 ft and broken altocumulus and altostratus 8,000 to above 10,000 ft
  • Scattered showers of rain reducing visibility to 3,000 m with associated occasional towering cumulus 5,000 to above 10,000 ft and broken stratus 1,200 to 3,000 ft
  • Isolated thunderstorms and rain reducing visibility to 2,000 m with associated isolated cumulonimbus 4,000 to above 10,000 ft, broken stratus 1,500 to 4,000 ft and broken stratocumulus 4,000 to 6,000 ft
  • Moderate turbulence is implied in cumulous, stratocumulus and altocumulus cloud. Severe turbulence is implied in thunderstorms, cumulonimbus and towering cumulus

Neither of the GAFs were corrected and no SIGMETs or AIRMETs affecting the QLD-S area were issued during the validity period. An AIRMET was issued for the NSW-E GAF region, however this was for an area to the west of the flight path and did not affect the conduct of this flight.

The Bureau of Meteorology (BoM) Grid Point Wind and Temperature forecast valid at the time of the flight, forecast the wind to be 20 kt from 160° at 2,000 ft and 19 kt from 130° at 5,000 ft.

The BoM also provided an aerodrome forecast (TAF)[8] for Ballina and Lismore. Lismore Aerodrome was the closest aerodrome to the flight path with a TAF available. TWQ flew within 9.7 km of Lismore aerodrome on the flight from Evans Head to Casino. Lismore is located 20 km east north east of Casino with an elevation of 35 ft. The amended Lismore TAF, issued at 1145 on 12 January 2020, was valid from 1300 on the day of the accident. The TAF forecast 14 kt winds from 160°, visibility greater than 10 km and light showers of rain. Cloud was forecast to be scattered with a base of 2,000 ft above the aerodrome and broken with a base 3,000 ft above the aerodrome. The forecast indicated that between 1300 and 1700 there would be temporary periods, greater than 30 minutes but less than 60 minutes in duration, of deteriorating weather conditions. These conditions included visibility reducing to 4,000 m, showers of rain and broken cloud with a base of 1,000 ft above the aerodrome.

Great Eastern Fly-In event meteorology

On the morning of 12 January 2020, the pilot of TWQ attended the Fly-In pilot’s briefing which included the meteorology for the day. The briefing, delivered by event staff, included weather information based on forecasts available from the BoM for Evans Head, the surrounding airfields and the GAF NSW-E. The display was cancelled at 0830 during the briefing due to the cloud base at Evans Head being approximately 1,000 ft above ground level (AGL) with a reduction to 600 ft AGL forecast during the day.

Bureau of Meteorology observations and analysis

The BoM reported that there were no observations of the actual conditions at the location of the accident. The BoM commented that the winds south of the McPherson Range, below 5,000 ft, would have been south-west to south-easterly. The generally southerly wind flow, heading towards the range, would be consistent with orographic cloud[9] formation. The BoM noted that the forecast broken cloud at 3,000 ft was likely to be a reasonable representation of the conditions. The BoM also stated that the summits of Wilsons Peak at 4,030 ft and Mount Barney 4,430 ft are higher than the bases of the cloud forecast in this area. No thunderstorm activity was detected near the flight path from Casino.

Lismore airport observations

Half hourly observations[10] were recorded at Lismore Airport on the day of the accident. At 1500, the wind was from 170° at an average speed of 11.1 kt, with a gust of 15.9 kt recorded. The temperature was 23.2 °C and the mean seal level pressure was 1014.4 hectopascals (hPa). Cloud was overcast with a base of 3,300 ft.

Casino aerodrome weather recordings

The Casino Automatic Weather Station (AWS) recorded several weather parameters on the day of the accident. At 1500, the wind at Casino Aerodrome was from 170° at an average speed of 6 kt and the temperature was 23.6 °C. No cloud data is available for Casino AWS, as no ceilometer is installed at this location.

Witness observations of weather

Local residents

Residents in the vicinity of the accident location confirmed that the top of the ridgeline, where the accident site was located, was in cloud on the afternoon of the accident. Several of the witnesses commented they could see about three quarters of the way up the ridgeline, which was calculated to be approximately 2,800 ft. These residents commented that it was an overcast day and it had been raining on and off throughout the day.

Tooloom fire tower weather observations

The Forestry Corporation of New South Wales has several observation towers positioned in the region of the flight. The Tooloom tower is located closest to the flight path from Casino, at an elevation of 2,619 ft (Figure 5).

An observer was positioned in the tower on 12 January from 0900 to 1500 and recorded weather conditions on the hour. Throughout the day, visibility remained at 0 km, with the cloud recorded as 8 oktas. In addition, the relative humidity was recorded at 98 per cent or above throughout the day. The wind was from the south-south-east around 9 kt with an average gust of 19 kt.

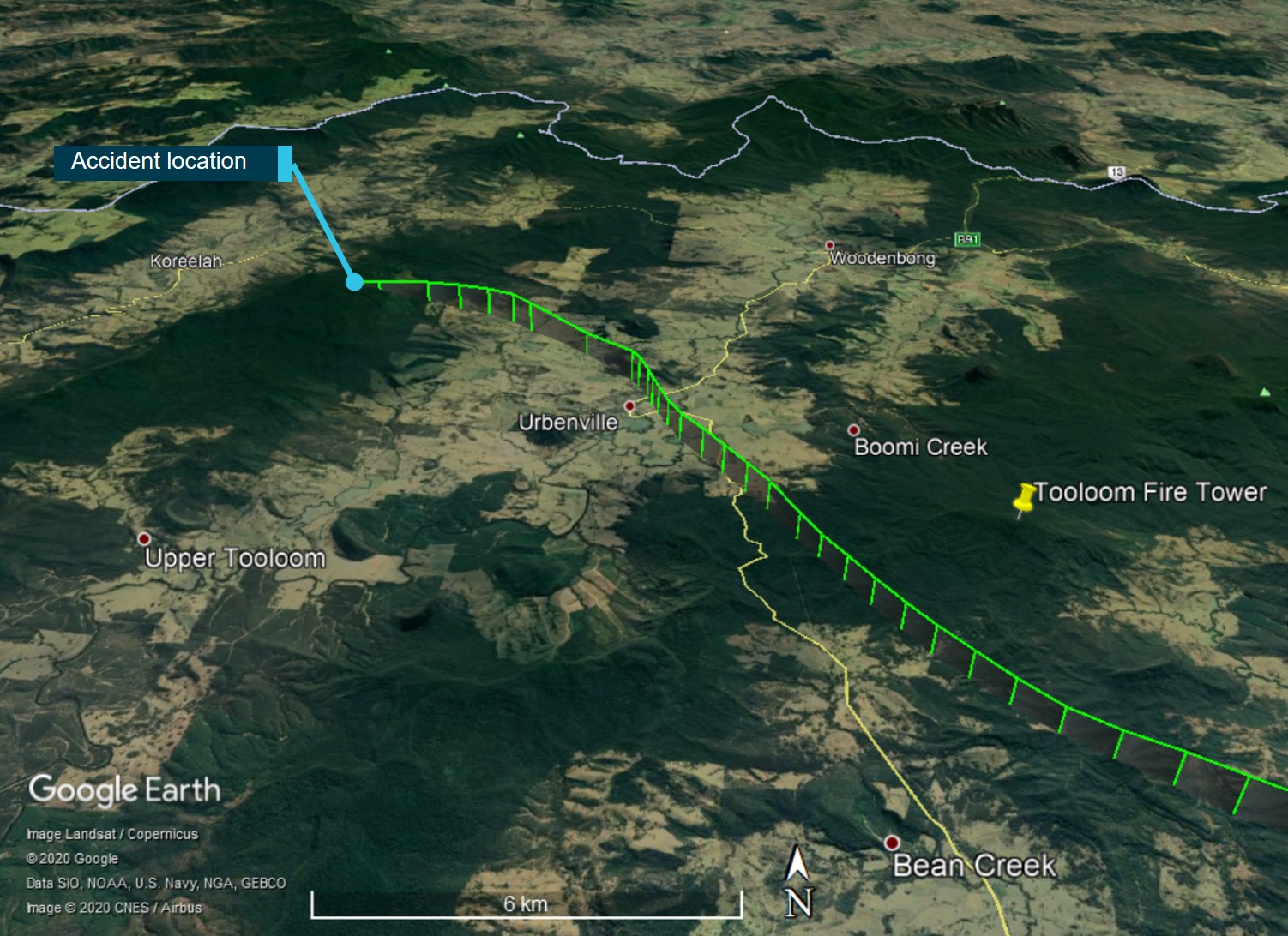

Figure 5 – Tooloom fire tower location and proximity to flight track

Figure 5 – Tooloom fire tower location and proximity to flight track

Source: Google Earth and Flightradar24, annotated by the ATSB

Flight track proximity to Tooloom Fire Tower

At 1509, TWQ, at its closest, passed 4.23 km to the west-south-west of the Tooloom Fire Tower (Figure 5). The aircraft was tracking from the south-east to the north-west. At 1509 the aircraft was at 3,575 ft, with a ground speed of 141 kt and tracking 332°. Tooloom Fire Tower has an elevation of 2,619 ft, and was in cloud at 1500, as it had been since 0900.

Pilot access to weather information

On the morning of the accident, the pilot attended the Fly-In event briefing which included weather for the event and the area. There was no log recorded indicating that the pilot accessed the weather information through the National Aeronautical Information Processing System (NAIPS) on the day of the accident. However, it is possible that the pilot obtained additional weather information from other sources.

Recorded data

Overview

The aircraft was fitted with a Mode S transponder that broadcast ADS-B[11] data which included the position and altitude of the aircraft. The data was received by Flightradar24 and provided to the ATSB. Also on-board was a mobile device with the OzRunways electronic flight bag (EFB) application installed. The application had an option enabled for live flight tracking by transmitting the device’s position and altitude. OzRunways information was also obtained by the ATSB. This data had a sampling rate of every 5 seconds.

The ATSB compared the data from both sources and they were found to be consistent. The flight data from OzRunways was plotted for the accident flight along with the terrain elevation. (Figure 6).

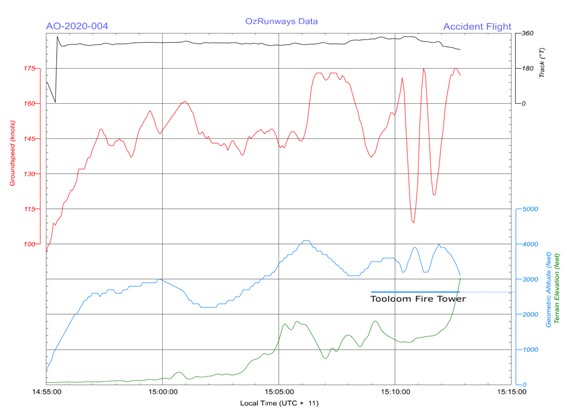

Figure 6 - OzRunways data and terrain elevations for the final flight of TWQ

Figure 6 - OzRunways data and terrain elevations for the final flight of TWQ

Figure 5 shows the aircraft’s flight data from OzRunways. Groundspeed is annotated in red, altitude in light blue and track in black. The altitude of Tooloom fire tower is also marked in blue. This line starts from the time where TWQ was abeam the fire tower. Terrain directly underneath the flight path is marked in green.

Source: OzRunways, US National Aeronautics and Space Administration Shuttle Radar Topography Mission data and ATSB

The first climb on the graph is part of the departure from Casino aerodrome. On a track generally to the north-west. The aircraft reached 3,000 ft and then descended to 2,200 ft.

The climb that commenced at approximately 1502 corresponded with the first range of high ground en route. A groundspeed of about 145 kt was maintained during this climb. The climb commenced at 2,200 ft and reached a peak of 4,100 ft.

The following descent from 4,100 ft to 3,100 ft, corresponded to a ground speed increase from 145 kt to 173 kt and a rate of descent of about 600 feet per minute. The altitude of TWQ at the bottom of this descent was above the altitude of Tooloom Fire Tower (Figure 6).

Over the last 4 minutes of the flight, the aircraft’s recorded groundspeed, rate of climb/descent and altitude oscillated significantly over short periods with the aircraft’s:

  • ground speed varying rapidly between 109 and 175 kt,
  • rate of climb and descent being between maximum values of +2,400 ft per minute and -2,400 ft per minute,
  • altitude oscillating between 4,000 and 3,100 ft.

At approximately 1512 the final descent and turn towards the high ground commenced. The descent commenced from 4,000 feet with the aircraft travelling at 133 kt groundspeed and tracking 316°.

The last data point was recorded at 1512:49. The aircraft was passing 3,100 ft with an 1,800 feet per minute rate of descent. It was travelling at 172 kt groundspeed and tracking 276°.

Of note, during the last few minutes of flight, prior to the collision with terrain, TWQ maintained more than 1,000 ft clearance with the ground and in most places more than 2,000 ft above the ground.

G3X flight display

The G3X unit can log flight and engine data on a removable SD card, or additionally to an internal Flight Log. The G3X unit was badly damaged in the accident sequence. The SD card and a number of circuit boards from the G3X unit were recovered from the accident site. The SD card was found in the read only mode and therefore did not contain any data from the accident flight. While some flight data was able to be recovered from the internal memory, the last recovered flight data was from 30 December 2019.

Air Traffic Control

TWQ was operating outside controlled airspace at the time of the accident. The Brisbane Centre audio recording was obtained from Airservices for the New England area, which covered the accident flight path. There were no radio calls recorded from TWQ, however, they were not required to make any routine radio calls on this frequency.

Additional information

Visual Flight Rules

The CASA Visual Flight Rules Guide outlined that flight under the visual flight rules (VFR) can only be conducted in Visual Meteorological Conditions (VMC).[12] Additionally, when operating at or below 2,000 ft above the ground or water, the pilot must be able to navigate by visual reference to the ground or water.

The flight, and the location of the accident, were in (non‑controlled) Class G airspace. The following conditions were stipulated for flight under the VFR in Class G airspace when below 10,000 ft and above 3,000 ft or 1,000 ft above ground level (whichever is higher):

  • a flight visibility of 5,000 m
  • a minimum vertical distance of 1,000 ft and horizontal distance of 1,500 m from cloud.

In the case of aeroplane operations in Class G at or below 3,000 ft or 1,000 ft above ground level (whichever is higher), the following minimum conditions were stipulated:

  • a flight visibility of 5,000 m
  • that the aeroplane shall be maintained clear of cloud and in sight of the ground or water

In addition to minimum visibility and distance from cloud, a pilot is also required to maintain a minimum height above the ground. CAR 157 details that a pilot in command must not fly the aircraft over:

  • any city, town, or populous area at a height lower than 1,000 ft; or
  • any other area at a height lower than 500 ft.

This does not apply if through stress of weather or any other unavoidable cause it is essential that a lower height be maintained.

Risks of flying in areas of reduced visual cues

The safety risks of VFR pilots flying from VMC conditions into instrument meteorological conditions (IMC)[13] are well documented. This has been the focus of numerous ATSB reports and publications, as VFR pilots flying into IMC represents a significant cause of aircraft accidents and fatalities. In 2013, the ATSB Avoidable Accidents series was re-published. Of these publications, the booklet titled Accidents involving pilots in Instrument Meteorological Conditions outlined that:

In the 5 years 2006–2010, there were 72 occurrences of visual flight rules (VFR) pilots flying in instrument meteorological conditions (IMC) reported to the ATSB…About one in ten VFR into IMC events result in a fatal outcome.

In another occurrence investigation,[14] the ATSB has found that the ‘continuation of flight towards an area of low cloud and rain was likely influenced by the inherent challenges of assessing low visibility conditions, particularly without instrument flying proficiency.’ This finding was based on the following references.

The United States National Transportation Safety Board (NTSB) (2005) found that ‘reduced-visibility weather represents a particularly high risk to [general aviation] operations’ and that ‘weather may…test the limits of pilot knowledge, training, and skill to the point that underlying issues are identified.’ The NTSB study also outlined that historically, about two-thirds of all general aviation (GA) accidents that occur in IMC are fatal, a rate much higher than the overall fatality rate for GA accidents.

Wiegmann and Goh (2000) explained that pilots may make errors in assessing the deteriorating weather conditions and decide to continue to VFR flight into the adverse weather. The previously mentioned NTSB report (2005) added that in these cases, pilots who might appear to intentionally engage in risky behaviour may actually be making choices that they mistakenly believe to be safe by underestimating the risks associated or overestimating their ability to handle the risks.

Wiggins and O’Hare (1995) further explained how errors in assessment can take place, acknowledging that weather-related decision making can be highly complex and therefore more prone to errors:

Because of the variable nature of operations in the aviation environment, weather-related decision making is often considered a skill that cannot be prescribed during training. Rather it is expected to develop gradually through practical experience. However, in developing this type of experience, relatively inexperienced pilots may be exposed to hazardous situations with which they are ill‑equipped to cope.

ATSB Aviation Research and Analysis Report B20070063, An overview of spatial disorientation as a factor in aviation accidents and incidents, stated that pilots should not attempt to fly into instrument meteorological conditions under the VFR. Pilots should develop a plan prior to take-off on what to do if the weather en route is different from that expected or deteriorates. This plan should consider a requirement to divert or turn back prior to entering instrument meteorological conditions. However, this depends on a pilot correctly assessing the weather conditions. The NTSB (2005) noted that targeted weather-related training programs have had some success in teaching pilots to recognise and respond to deteriorating weather conditions.

A cue-based training system called Weatherwise, was made available to pilots by the Civil Aviation Safety Authority (CASA). Additionally, CASA produced a Weather to Fly education program which focuses on topics such as the importance of pre-flight preparation, making decisions early, and talking to ATC.

One of the ATSB’s SafetyWatch priorities concerns in-flight decision making in relation to VFR flight in environments with reduced visual references. One of the key messages is for pilots to avoid deteriorating weather by conducting thorough pre-flight planning and to have alternate plans in case of an unexpected deterioration in the weather and making timely decisions to turn back or divert.

Spatial disorientation

Spatial disorientation is a type of loss of situation awareness, and is different to geographical disorientation, or incorrectly perceiving the aircraft’s distance or bearing from a fixed location. Spatial disorientation occurs when pilots do not correctly sense their aircraft’s attitude, airspeed or altitude in relation to the earth’s surface. In terms of an aircraft’s attitude, spatial disorientation is often described simply as the inability to determine ‘which way is up’, although the effects can often be more subtle than implied by that description.

Spatial disorientation occurs when the brain receives conflicting or ambiguous information from the sensory systems. It is likely to happen in conditions in which visual cues are poor or absent, such as in adverse weather or at night.[15] Spatial disorientation presents a danger to pilots, as the resulting confusion can often lead to incorrect control inputs and resultant loss of aircraft control.

Research on spatial disorientation indicates that, for pilots who are not instrument rated, loss of control will likely occur between about 60 seconds (Benson, 1988 in Gibb, Gray and Scharff, 2010) and 178 seconds on average (Bryan, Stonecipher, & Aron, 1954) after the loss of visual reference. These studies led to the FAAs and CASA’s ‘178 seconds to live’ educational campaigns. Gibb, Gray and Scharff (2010) also stated that ‘spatial disorientation accidents have fatality rates of 90–91 percent, which indicates how compelling the misperceptions can be.’

Related Occurrences

There have been a number of accidents relating to VFR pilots flying into reduced visibility conditions. Many of these occurrences have been summarised in the research reports previously mentioned (B2005/0127 and AR-2011-050) as well as in ATSB accident reports (for example, AO‑2015-131 and AO-2016-006). Of particular interest are those occurrences where pilots have avoided an accident outcome by seeking assistance from other aircraft or from ATC. Of note are two occurrences that occurred on the same day in a similar location but with a very different outcome. See below for details.

ATSB Investigation AO-2017-061

On 16 June 2017, a Cessna Aircraft Company C172M, registered VH-FYN, was being operated on a private flight from Southport Mason Field, Queensland to Ballina Airport, New South Wales. The purpose of the flight was to ferry the aircraft to Ballina for scheduled maintenance. Enroute, near the town of Bangalow New South Wales, the aircraft entered an area of reduced visibility, including low cloud, fog and drizzle. The aircraft diverted off the initial track and was last seen disappearing into cloud heading inland. A short time later the aircraft collided with terrain and the pilot was fatally injured.

ATSB occurrence 201702740

On 16 June 2017, the pilot of a light aircraft was flying under VFR from Taree, New South Wales, to Southport, Queensland. While near Ballina, New South Wales the weather suddenly deteriorated and the pilot attempted to turn back to land at Coffs Harbor, New South Wales. However, the weather continued to close in, at which point the pilot reported to ATC that he was now flying in instrument meteorological conditions (IMC). ATC observed a sporadic radar return in the position described by the pilot and advised that the pilot gain altitude, which assisted with radar identification. ATC then guided the aircraft to Evans Head, New South Wales where the weather had cleared sufficiently for the aircraft to land safely.

__________

  1. The X designation is added to the engine model when used in the amateur built or experimental aircraft category.
  2. TGraphical Area Forecast (GAF) provides information on weather, cloud, visibility, icing, turbulence and freezing level in a graphical layout with supporting text. These are produced for 10 areas across Australia, broadly State-based.
  3. Broken cloud: used to describe an amount of cloud covering the sky of between five and seven oktas (eighths).
  4. Aerodrome Forecast (TAF): a statement of meteorological conditions expected for a specific period of time in the airspace within a radius of 5 NM (9 km) of the aerodrome reference point. The heights referenced in TAFs are heights above the aerodrome reference point (ground).
  5. Orographic cloud forms when airflow encounters a mountain or hill and is forced to rise. If the flow (air) is sufficiently humid, clouds form on the windward side of mountains and are called orographic clouds
  6. Observations for Lismore Airport, including for cloud, are automated using information from sensors only.
  7. ADS-B: Automatic Dependent Surveillance–Broadcast is a surveillance technology in which an aircraft determines its position via satellite navigation and periodically broadcasts it, enabling it to be tracked.
  8. Visual Meteorological Conditions (VMC): a meteorological condition in which visual flight rules (VFR) flight is permitted – that is, conditions in which pilots have sufficient visibility to fly the aircraft while maintaining visual separation from terrain and other aircraft.
  9. Instrument meteorological conditions (IMC): weather conditions that require pilots to fly primarily by reference to instruments, and therefore under Instrument Flight Rules (IFR), rather than by outside visual reference. Typically, this means flying in cloud or limited visibility.
  10. AO-2016-006 Loss of control and collision with water involving Piper Aircraft Corp PA-28-235, VH-PXD. A copy of this report is available from www.atsb.gov.au
  11. More information about spatial disorientation can be found in the ATSB aviation research and analysis report:
    B2007/0063, An overview of spatial disorientation as a factor in aviation accidents and incidents.
Safety analysis

Introduction

While en route from Evans Head, New South Wales, to Boonah, Queensland, the pilot of amateur-built Wittman Tailwind aircraft, registered VH-TWQ (TWQ), diverted to Casino, New South Wales, due to low cloud on the McPherson range. The pilot then took off after approximately fifty minutes on the ground and attempted to reach Boonah via a different route across the range. During the flight TWQ entered an area of reduced visibility. Approximately fifteen minutes after take-off TWQ commenced a series of rapid climbs and descents followed by a descending left turn which continued until TWQ collided with terrain.

Site and wreckage examination did not identify any defects or anomalies that might have contributed to the accident. Additionally, there was no evidence to support the pilot being incapacitated. Therefore, this analysis will focus on the examination of the factors that led to a visual flight rules (VFR) pilot entering an area of reduced visibility and losing control of the aircraft.

Decisions to depart Evans Head and Casino

After the Fly-In was called off due to the poor forecast weather the pilot and passenger elected to fly home to Boonah and Toowoomba. The pilot had attended the Fly-In event briefing that morning and was therefore aware of the local weather conditions and forecast. Neither the pilot’s nor the passenger’s family could identify a time pressure for the aircraft to return to Boonah and Toowoomba that day.

The relevant Graphical Area Forecasts did not preclude a departure under the VFR from Evans Head via Boonah to Toowoomba. However, they indicated the possibility of encountering areas of cloud, dust and rain in which visibility would reduce below that required for VFR flight. The inland route to Boonah, required the aircraft fly across the McPherson Range. Several of the peaks along this range are greater than 3,000 ft and a few are greater than 4,000 ft.

The generally south-south-easterly wind flow, heading towards the range, would have had the effect of pushing the weather up against the McPherson Range and reducing the visibility. So, while it was possible to depart under the VFR, the forecast conditions would have indicated that it was likely there would have been cloud on the ranges and have necessitated planning for an alternate route or diversion to avoid the area if the actual conditions reflected the forecast.

The pilot’s decision to depart the interim landing site can be interpreted as likely taking advantage of acceptable conditions at Casino with the notion that the weather further inland may have allowed for VFR flight over the ranges.

Once airborne, the pilot would have been in a position to assess the in-flight visibility and cloud and rain in the intended direction of travel. However, as discussed in the United States National Transportation Safety Board report (2005), it is possible that the continuation of flight towards the area of low cloud was influenced by the inherent challenges of assessing low visibility conditions.

The ATSB was unable to determine the pilot’s understanding of the weather conditions ahead of the aircraft prior to entering an area of low visibility conditions. However, the pilot had demonstrated an awareness of the risk posed by the weather and the need to maintain visual reference by diverting from the original track and turning back from the first attempt to cross the Ranges.

Development of the accident

Flying into an area of reduced visibility

The majority of the flight from Casino was conducted between 2,000 and 4,000 ft. Approximately 30 km north-west of Casino the aircraft began a climb over the first area of high ground. Terrain in this area is approximately 1,800 ft high. At about 1506, the aircraft reached a maximum altitude of 4,100 ft then entered a 600 ft/min descent where the groundspeed rapidly increased from 145 kt to 173 kt. It is likely that the pilot initiated the climb to clear terrain and then descended when the cloud conditions became unsuitable. This climb took TWQ above the forecast and observed cloud heights in the area, which indicated a cloud base of around 2,600 - 2,800 ft. The descent levelled out at 3,100 ft, and the terrain underneath was about 1,430 ft, allowing the pilot to continue the descent a further 1,670 ft and remain clear of the terrain, if the pilot was visual with terrain. It is possible that the pilot entered an area of deteriorating visibility at this time leading to the rapid descent and level off well above terrain.

From this point on, the pilot flew no lower than 3,100 ft, which was around the height of the some of the ridge lines in the area. It is therefore possible that the pilot was aware of the spot heights of terrain in the area and was attempting to stay above them.

At about 1508, in the vicinity of the Tooloom Fire Tower, the pilot commenced another climb. As the fire tower was in cloud, it is likely that the pilot entered an area of cloud during this climb. Flight data showed that the final turn and descent of TWQ was towards the high ground. The accident site was located near the top of the ridgeline. Either side of this ridgeline were areas of low ground, which the pilot could have manoeuvred towards if visual with terrain. The direction of turn as well as the descent and acceleration towards the terrain indicate the pilot was not visual with terrain at the time of the accident.

Spatial disorientation resulting from a loss of visual cues

Flight data from the last 4 minutes of the flight recorded the aircraft’s groundspeed speed varying between 109 and 175 kt. The aircraft’s rate of climb and descent varied between +2,400 ft/min and -2,400 ft/min. The aircraft’s altitude varied between 4,000 and 3,100 ft.

Of note, the speed recorded by the data is ground speed. Forecast winds for the area were up to 20 kt in the direction of travel of TWQ and could be considered all tail wind. If the actual winds were as forecast, the aircraft was being operated above the published manoeuvring speed limit of 130 kt indicated airspeed KIAS and likely up to the maximum structural cruising speed at some points.

The final data point showed the aircraft descending through 3,100 ft and travelling at 172 kt groundspeed. The aircraft was descending at 1,800 ft/min and was tracking towards the high ground.

The flight data from the last 4 minutes of flight was not consistent with normal operations of a Wittman Tailwind. The abrupt speed and altitude reversals and the operation of the aircraft over and near these speed limitations are indicative of a loss of control.

It is therefore likely that within 4 minutes of flying into conditions of reduced visibility, without adequate visual reference to the horizon, the pilot of TWQ became spatially disorientated leading to a loss of control and collision with terrain. It is possible that the pilot of TWQ was able to maintain some control initially upon entering cloud due to the pilot’s previous instrument flying experience. However, without recent experience and the training and qualification of an instrument rating the pilot was unlikely to have been able to maintain control in cloud for an extended period of time.

Findings

ATSB investigation report findings focus on safety factors (that is, events and conditions that increase risk). Safety factors include ‘contributing factors’ and ‘other factors that increased risk’ (that is, factors that did not meet the definition of a contributing factor for this occurrence but were still considered important to include in the report for the purpose of increasing awareness and enhancing safety). In addition ‘other findings’ may be included to provide important information about topics other than safety factors.

These findings should not be read as apportioning blame or liability to any particular organisation or individual.

From the evidence available, the following findings are made with respect to the loss of control and collision with terrain involving Wittman Tailwind, VH-TWQ, which occurred in Tooloom National Park, New South Wales, 12 January 2020.

Contributing factors

  • The pilot departed an interim landing site for Boonah under the visual flight rules with a high risk of encountering forecast cloud that reduced conditions below that required for visual flight.
  • It is likely the pilot encountered conditions of reduced visual cues and became spatially disorientated which led to a loss of control and collision with terrain.
Sources and submissions

Sources of information

The sources of information during the investigation included the:

  • Bureau of Meteorology
  • Civil Aviation Safety Authority
  • Airservices Australia
  • A number of witnesses
  • recorded data from Flightradar24 and OzRunways

References

Australian Transport Safety Bureau, 2011, Avoidable Accidents No. 4 Accidents involving Visual Flight Rules pilots in Instrument Meteorological Conditions, Aviation Research and Analysis publication AR-2011-050.

Australian Transport Safety Bureau, 2017, Loss of control and collision with water involving Piper Aircraft Corporation, PA-28-235, VH-PXD, AO-2016-006.

Benson, AJ, 1999a, “Spatial disorientation – general aspects”, in J Ernsting, AN Nicholson & DJ Rainford (Eds.), Aviation Medicine (3rd ed.), Oxford, England, Butterworth Heinemann, pp. 419-436.

Gibb, R, Gray, R and Scharff, L, 2010, Aviation Visual Perception: Research, Misperceptions and Mishaps, Ashgate Publishing Limited, Surrey, United Kingdom.

Newman, DG, 2007, An overview of spatial disorientation as a factor in aviation accidents and incidents, Australian Transport Safety Bureau, Aviation Research and Analysis Report B2007/0063.

National Transportation Safety Board 2005, Risk Factors Associated with Weather-Related General Aviation Accidents, National Transportation Safety Board Safety Study NTSB/SS-05/01, Washington DC, United States.

Wiegmann, D and Goh, J, 2000, Visual Flight Rules (VFR) Flight into Adverse Weather: An Empirical Investigation of Factors Affecting Pilot Decision Making, Federal Aviation Administration research DTFA 00-G-010, Illinois, United States.

Wiggins, M and O’Hare, D, 1995, “Expertise in Aeronautical Weather-Related Decision Making: A Cross-Sectional Analysis of General Aviation Pilots”, Journal of Experimental Psychology: Applied Vol. 1 No. 4, pp. 305-320.

Submissions

Under section 26 of the Transport Safety Investigation Act 2003, the ATSB may provide a draft report, on a confidential basis, to any person whom the ATSB considers appropriate. That section allows a person receiving a draft report to make submissions to the ATSB about the draft report.

A draft of this report was provided to the following directly involved parties:

  • Family of the pilot
  • Civil Aviation Safety Authority
  • Fly-In Event Organiser
  • Fly-In Chief Marshall
  • Bureau of Meteorology
  • Coroner’s representative

Submissions were received from:

  • Bureau of Meteorology.

The submission was reviewed and, where considered appropriate, the text of the report was amended accordingly.

Purpose of safety investigations & publishing information

Purpose of safety investigations

The objective of a safety investigation is to enhance transport safety. This is done through:

  • identifying safety issues and facilitating safety action to address those issues
  • providing information about occurrences and their associated safety factors to facilitate learning within the transport industry.

It is not a function of the ATSB to apportion blame or provide a means for determining liability. At the same time, an investigation report must include factual material of sufficient weight to support the analysis and findings. At all times the ATSB endeavours to balance the use of material that could imply adverse comment with the need to properly explain what happened, and why, in a fair and unbiased manner. The ATSB does not investigate for the purpose of taking administrative, regulatory or criminal action.

Terminology

An explanation of terminology used in ATSB investigation reports is available here. This includes terms such as occurrence, contributing factor, other factor that increased risk, and safety issue.

Publishing information

Released in accordance with section 25 of the Transport Safety Investigation Act 2003

Published by: Australian Transport Safety Bureau

© Commonwealth of Australia 2021

Ownership of intellectual property rights in this publication

Unless otherwise noted, copyright (and any other intellectual property rights, if any) in this report publication is owned by the Commonwealth of Australia.

Creative Commons licence

With the exception of the Coat of Arms, ATSB logo, and photos and graphics in which a third party holds copyright, this publication is licensed under a Creative Commons Attribution 3.0 Australia licence.

Creative Commons Attribution 3.0 Australia Licence is a standard form licence agreement that allows you to copy, distribute, transmit and adapt this publication provided that you attribute the work.

The ATSB’s preference is that you attribute this publication (and any material sourced from it) using the following wording: Source: Australian Transport Safety Bureau

Copyright in material obtained from other agencies, private individuals or organisations, belongs to those agencies, individuals or organisations. Where you wish to use their material, you will need to contact them directly.

Aircraft Details
Manufacturer
Amateur Built Aircraft
Model
Wittman Tailwind W10
Registration
VH-TWQ
Serial number
05-1305
Operation type
Private
Sector
Piston
Departure point
Casino, New South Wales
Destination
Boonah, Queensland
Damage
Destroyed
