Pilot information
Qualifications and experience
The pilot held a Commercial Pilot Licence (Helicopter) and a Private Pilot Licence (Aeroplane) issued under Civil Aviation Safety Regulations Part 61 on 10 February 2015, granted on the basis of Civil Aviation Regulations Part 5 licences issued in 2010. The pilot held the following helicopter ratings: single engine class, aerial application, low level, sling and aerial mustering.
The pilot’s Class 1 Medical Certificate was valid to 27 August 2020. At the pilot’s last medical examination with a Civil Aviation Safety Authority (CASA) Designated Aviation Medical Examiner in August 2019, no issues were raised by the pilot or apparent to the doctor. Following issue of the medical certificate, there was no further communication between CASA and the pilot.
The pilot was inducted into Riverina Helicopters in July 2015 with about 2,000 hours of aeronautical experience, 1,600 of which was in Robinson R22, and 30 was in R44 helicopters.
The pilot’s Aerial Application Association of Australia (AAAA) Spraysafe accreditation was current and in June 2019, the pilot had successfully completed the association’s Crew resource management, hazards and human factors course. In August 2019, the pilot had completed an annual CASA flight review/proficiency check.
On 27 May 2020, the chief pilot of Riverina Helicopters conducted an (annual) agricultural pilot and air work proficiency check and assessed the pilot ‘competent to carry out Agricultural and Aerial Work operations for Riverina Helicopters’. According to the pilot’s logbook, as of that date the pilot had accrued 3,730.3 hours of aeronautical experience and there were no further entries.
72-hour history
On 29 July, the pilot had left Griffith at about 0700 and driven the loading truck 1.5 hours to the Steam Plains property. That day, the pilot had been performing the loader duties (not flying) from 1138 to 1715. The pilot and chief pilot had stayed in accommodation at the property for the next 2 nights, going to sleep at about 2130 each night.
On 30 July, the pilot woke up at 0700 and conducted the daily inspection on the helicopter. The pilot started the helicopter at 0917 and commenced spraying operations at 0925 on the neighbouring property, finishing there at 1413. The loader then relocated the vehicle, and the pilot ferried the helicopter to Steam Plains, commencing spraying operations there at 1501. The pilot finished the day’s work and shut down the helicopter at 1743.
On the morning of the accident flight, the chief pilot reported that they had woken up at about 0700 and there had been no hurry in getting started as there was dew and they had to wait for the vegetation to dry before spraying.
Obstructive sleep apnoea
On 23 January 2020, the pilot attended a sleep clinic and completed a sleep study. On referral, the pilot had a STOP-Bang score[2] hat indicated a high risk of obstructive sleep apnoea (OSA) and an Epworth Sleepiness Scale[3] score in the higher normal range for daytime sleepiness. At that time, the pilot’s only reported symptom was loud snoring. The resulting polysomnography report identified fragmented sleep with oxygen saturation reducing to a minimum of 81 per cent. The diagnosis was severe OSA, with accompanying moderate oxygen desaturations.
The diagnosis of OSA is made when repetitive pauses in breathing occur during sleep, last at least 10 seconds, and occur due to the airway collapsing. These pauses reduce blood oxygen levels and lead to awakening or shifting into a lighter sleep.
The severity of OSA is based on the number of partial or complete pauses in breathing per hour. Severe OSA is defined as more than 30 events per hour. The pilot recorded 42.5 events per hour on average during the study. In response, the reviewing specialist recommended an urgent trial of a continuous positive airway pressure (CPAP) machine. A CPAP machine provides pressurised air, which opens the airway to ensure adequate delivery of oxygen. However, it does not cure OSA and compliance is a known limitation with CPAP treatment (Caldwell 2006).
CASA’s Obstructive sleep apnoea and aviation safety fact sheet stated that a CPAP should be used at least 5 hours per night for 6 nights per week and ‘must be used during the sleep period just prior to flight’. CASA may issue or reissue medical certification where compliance and effectiveness of CPAP treatment can be used to demonstrate control of OSA.
The ATSB obtained a detailed compliance report of sleep data automatically uploaded from the pilot’s CPAP machine. Between 21 February and 16 July 2020, the pilot had used the CPAP machine for at least 4 hours on 71 per cent of nights. The pilot’s CPAP usage had been frequent in March and April, then decreased. The CPAP had not been used between 8 and 15 July and the last recorded use was 16 July, 15 days prior to the occurrence flight. The pilot had not taken the CPAP machine to the accommodation at Steam Plains.
The effects of sleep apnoea on aviation outlined in the CASA fact sheet included reduced attention and concentration, and degraded cognition.
Fatigue risk
The US Federal Aviation Administration (FAA) pilot safety brochure Fatigue in aviation stated that typically fatigue ‘occurs with someone who does not get sufficient sleep over a prolonged period of time (as with sleep apnoea, jet lag, or shift work) or someone who is involved in ongoing physical or mental activity with insufficient rest’. It further stated:
Any fatigued person will exhibit the same problems: sleepiness, difficulty concentrating, apathy, feeling of isolation, annoyance, increased reaction time to stimulus, slowing of higher-level mental functioning, decreased vigilance, memory problems, task fixation, and increased errors while performing tasks.
Research has also found that sleep deprivation can impair decision making and increase risk-taking behaviour to avoid additional effort (Shingedecker and Holding 1974 as cited in Battelle Memorial Institute 1998; Harrison and Horne 2000; Killgore and others 2006). If a person has 20 or more apnoeas per hour, both health and daytime alertness will suffer (Caldwell 2006). When present, excessive daytime sleepiness is inversely correlated with vigilance, but not all people with OSA display excessive daytime sleepiness (Seda and Han 2020).
Circadian rhythms are the body’s internal clock that regulates the sleep-wake cycle and repeats roughly every 24 hours. An individual’s alertness, sleep tendency and human error have been shown to follow this 24-hour pattern (CASA 2016). According to the International Civil Aviation Organization’s Fatigue management guide for airline operators (ICAO 2015), there are two times of peak sleepiness within 24-hour cycle. The main peak is in the early morning between 0300-0500 known as the window of circadian low, another smaller peak is around 1500-1700 known as the afternoon nap window. During the afternoon nap window, someone who has had restricted or disturbed sleep can find it harder to stay awake.
Other factors that can increase the fatigue risk level include early shift start times (before 0600), when regular breaks have not been taken, and when shifts are longer than 8 hours (CASA 2012). Twenty per cent of accidents where fatigue was attributed were in the 10th or more hour of duty (Goode 2003).
Effects of sleep apnoea
Sleep apnoea can have significant physiological, neurological, cognitive and psychological impacts, and can affect multiple cognitive domains (Seda and Han, 2020). Several studies have shown that OSA has an adverse effect on inductive and deductive reasoning, attention, vigilance, learning, and memory (Lal and others 2012). These impairments are measurable in neurological and cognitive assessments, but they may not be readily evident during flying operations or medical examinations. Deficits in neurocognitive functioning have been shown to occur with a high frequency in OSA sufferers, but the exact prevalence is unknown.
Investigation findings regarding sleep apnoea
A search of the US National Transportation Safety Board database revealed 29 aviation accidents between 1997 and 2019 with ‘sleep apnea’ included in the analysis text, with 9 accidents where it was concluded that OSA had some contribution.
There were 8 accidents in which a pilot had OSA, and the OSA itself or in combination with other diseases and medications contributed to the accident. A further accident involved a fuel truck driver with OSA who fell asleep and the truck collided with an aircraft.
In one investigation there was no evidence that the pilot suffered sleep apnoea, in another it was unlikely that the pilot’s effectively-treated OSA contributed to the accident. For the other 17, the pilot either had, or was at risk of, OSA but it could not be determined whether the pilot was suffering from any effects of OSA and/or whether these contributed to the accident.
The Transportation Safety Board of Canada published a list of all their investigations with fatigue‑related findings from 1990 to 2018. One of 34 aviation occurrences where fatigue was listed as a causal or contributory factor or a source of risk, mentioned OSA. Following diagnosis of OSA and initial effective CPAP treatment, the pilot subsequently rarely used CPAP therapy. The investigation found that although the pilot was therefore at risk of fatigue, there was no indication that fatigue contributed to the occurrence.
One ATSB investigation report into a fatal accident involving a collision with terrain during landing practice in a solo training flight (AO-2016-112) identified that the pilot had ‘a history of health and chronic pain issues including sleep apnoea’. The investigation found that:
Fatigue and level of experience likely affected the pilot's ability to respond to the demands required to correct the aircraft's departure from controlled flight during the landing attempt and subsequent go‑around.
Post-mortem and toxicology results
The post-mortem report documented multiple impact-related injuries, including spinal fractures, with the cause of death identified as severe traumatic head injury. This was as a result of diffuse cerebral injuries, while only relatively superficial contact injuries to the head were noted. These included bruising consistent with a left-side impact to the head. There was also bruising consistent with the pilot being restrained during the accident by the lap belt, but not from the accompanying shoulder sash.
The only substance identified in toxicological examination was almost certainly administered by emergency/hospital personnel.
Aircraft information
VH-HNF was a Robinson Helicopter Company R44 Raven I helicopter, powered by a six-cylinder Lycoming O-540-F1B5 engine, manufactured in 2018 and first registered in Australia in April 2018.
The helicopter’s current maintenance release was issued on 21 January 2020 and was valid for 12 months or 100 hours, whichever occurred sooner. A 50-hourly inspection had been conducted on 26 March 2020, at 353.8 hours, and no defects were recorded on the maintenance release. Prior to the commencement of flying on 31 July 2020, the aircraft had accrued 388.5 hours total time in service.
The helicopter was fitted with a Helipod III Agricultural Spray System, which included a single fibreglass belly tank attached to the landing gear and a spray boom and nozzle arrangement located towards the front of the helicopter. Pilot control of the system was via a cyclic-mounted switch. For the system fitted, the maximum chemical tank load was 285 L or 285 kg. With the Helipod system installed, the helicopter was to be operated in the Restricted category and in accordance with a special certificate of airworthiness.
The exact quantity of fuel and chemical on board at the time of the accident was unable to be determined. However, the helicopter would have been within the weight and balance limitations through the range of empty to full fuel and spray tanks.
The R44 helicopter was not fitted with wirestrike protection. The most common aircraft-mounted wirestrike protection systems (WSPS) are passive and comprise deflectors to guide a struck wire to a fixed wire cutter consisting of sharpened blades. They are designed to reduce the likelihood of adverse outcomes resulting from a wirestrike, including entanglement, damage to flight controls, the airframe and injuries to occupants. To be effective, the system relies on the wire entering the cutter with sufficient force and at a suitable angle to cut it. ATSB research report Wire-strike accidents in general aviation: Data analysis 1994 to 2004 stated that smaller rotary-wing aircraft including Robinson (R22 and R44) helicopters ‘generally have no structural hard points to fit a WSPS and are generally too light and, in many instances, travel too slowly for WSPS to be effective’.
Meteorological information
Witness reports indicated the weather was fine and sunny with calm to mild winds. Bureau of Meteorology observations at 1100, from the nearest recorded weather stations, indicated the temperature was between 10 °C and 12 °C and the wind 0 to 4 kt.
Site and wreckage examination
Powerline
The 19.1 kV single wire earth return powerline spanned 305 m and was supported by two power poles, one located 144 m north-west and the other 161 m south-east of the fence. It crossed the fence line at a gate. Between the poles, the wire drooped parabolically from about 10 m at the pole to 6 m mid span when new, but had likely stretched due to its age and was therefore about 5 m above the ground mid span, where it was struck. The wire was pulled off several poles and broken in two places.
The powerline was not marked and was not required to be, according to Australian Standards 3891.1 and 3891.2.[4] Following a wirestrike of a powerline owned by Essential Energy, field workers assess the risk of another strike. If it is considered likely, at least one aerial marker (Figure 2) is fitted to the wire. It was assessed at the time that a subsequent wirestrike was unlikely to occur due to the remoteness of the location and because the helicopter was spraying weeds along the perimeter fence rather than crop spraying. As a result, no markers were fitted to the wire when it was restrung or subsequently.

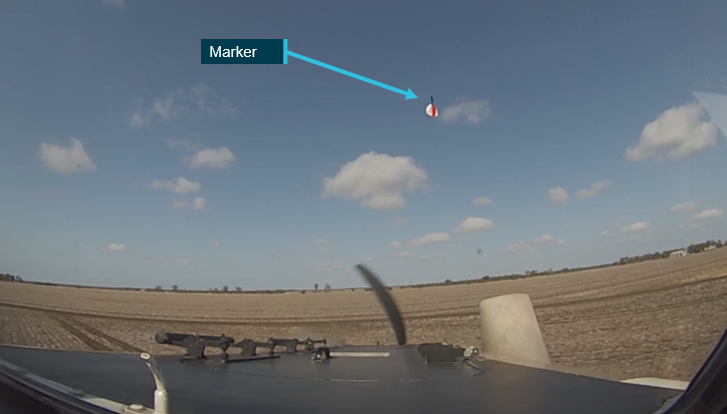

Figure 2: Example of a wire aerial marker
Source: Balmoral Engineering
Accident site
The accident site was in flat, open farmland, about 7 km north-east of the loading vehicle. The main fuselage was located about 120 m beyond the powerline, in the direction of travel.
Wire abrasion marks were evident down the front of the forward left strut and along the top of the left skid, ending with a distinct friction mark near the tip of the skid (Figure 3). The powerline remained entangled in the wreckage.
Examination of the ground scars, damage and distribution of the wreckage indicated:
- the main rotor had impacted the tail boom during the accident sequence, resulting in loss of control of the helicopter
- the helicopter collided with the ground on its left side in a nose-down attitude of about 30°
- the main rotor blade and landing gear dug into the ground, resulting in the helicopter bouncing, rotating about 180°, and coming to rest on the right side.

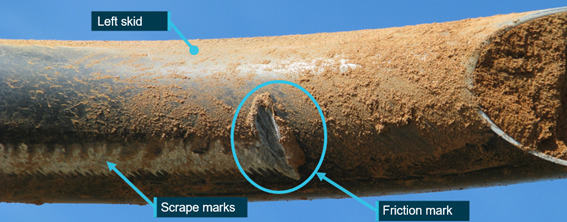

Figure 3: Wire marks on VH-HNF’s left skid
Source: ATSB
The ATSB examined the helicopter and did not identify any evidence of in-flight breakup, birdstrike, or pre-existing defects that may have contributed to the wirestrike. Consistent with normal agricultural operations, the pilot door was not fitted at the time of the accident. Significant structural deformation of the helicopter’s left front quarter and seat was consistent with a heavy impact on that side, to the extent that there was no occupiable space for the front left seat. On the right (pilot’s) side, there was crushing of the seat lower box section (as designed, to absorb vertical impact loads) and some right-side roof deformation, associated with the left-front impact. Although compromised, occupiable space on the right side of the fuselage remained.
There were no issues identified with the flight controls, and examination of the engine found no anomalies that would have affected the engine’s performance. Evidence that the main rotor was being driven under power included that one of the main rotor blades showed significant chordwise bending and, from the other blade, a section of blade tip, measuring 850 mm and weighing 5.3 kg had fractured as a result of ground impact and was thrown approximately 300 m from the accident site.
The loader had recorded uplift of 40 L of Avgas prior to the start of the fifth load. A large quantity of fuel remained in the left fuel tank, and testing indicated no evidence of water or contaminants. There was no post-impact fire.
The chemical holding tank had been compromised and no visible herbicide remained, but a strong odour indicated that a quantity had leaked and soaked into the ground where the aircraft had come to rest. The pilot-controlled spray switch was in the on position.
Operational information
Helicopter operator
Riverina Rotor Work, trading as Riverina Helicopters, was the registered owner and operator of VH-HNF. Riverina Helicopters held a CASA-issued Air Operator’s Certificate to conduct aerial work and aircraft charter operations. Of relevance to this occurrence, the Riverina Helicopters Operations Manual included:
Specialised operations [including aerial spraying]
Protective helmets shall be worn for all specialised operations.
Low level operations
Before descending to conduct low level operations, the pilot in command shall conduct a reconnaissance of the area and identify the hazards noted from the study of the charts and to make a note of other hazards not indicated on the charts.
Agricultural operations – helicopters
The Company shall be responsible for supplying pilots with up to date maps and charts of the various treatment areas, clearly displaying all hazards associated with those areas. However, prior to the commencement of operations, the pilot in command shall become familiar with the task by personal inspection and briefing by drawing a ‘field map’ of each area to be treated. Pilots should be aware that any locally supplied information is often incorrect but it does at least provide a guide and can be verified during aerial inspection of the area. A copy of the applicable field map(s) should be taken by the pilot on each sortie…agricultural pilots are required to carry out a preliminary aerial inspection of the area to be treated including the adjacent manoeuvring areas in all directions, paying particular attention to the location of obstructions including those, if any, outside the actual treatment area.
In addition, the operator’s Management System procedure – Conduct an application, included that:
The pilot will conduct a pre-application aerial inspection of the target ensuring that they have confirmed the following with their work order:
iii. Power Lines, Towers, Aerials, moisture probes & other obstacles are located and identified
Steam Plains task
The station manager had previously engaged Riverina Helicopters for aerial work in 2010, 2012, 2016 and March 2020. Commencing on 29 July 2020, the station manager had contracted Riverina Helicopters to spray weeds along the fence and adjacent track at Steam Plains and a neighbouring property as a firebreak. The pilot conducted the same task during the 2016 engagement.
Pre-flight planning
On the morning of 29 July (day 1 of the 3-day task), the chief pilot was delayed leaving Griffith in the helicopter due to fog. The pilot drove the loading truck and the station manager reported that it arrived at about 0800. The station manager met the pilot at the truck and gave the pilot a briefing of the task. This briefing included discussing the chemicals that would be used for spraying, the application rate of the chemicals, areas to be sprayed, flight path and hazards. The station manager provided the pilot with maps of Steam Plains and the adjacent property. The maps had been provided to the property owner on purchase in 2008, at which time the property owner had assessed by ground vehicle that the markings on the maps appeared to be correct.
The spray application path had been drawn on the map in red marker pen by the station manager. Using the map, the station manager briefed the pilot about the location of crops, stock and people working in the area. The pilot used a blue pen to over-mark the powerlines (Figure 4). When the chief pilot arrived later that morning, the pilot passed on the details from the briefing, including the powerlines.
The station manager met with the pilot and chief pilot on the morning of 31 July, at about 0650. They discussed the day’s plan including reviewing the map. Before commencing operations, the pilot and chief pilot briefed on the day’s operation again, including the task, map and powerline location.
Prior to the fifth (accident) load, the pilot fuelled the helicopter and discussed with the chief pilot the shape of the boundary fence to be sprayed on the next sortie and the location of the powerline.

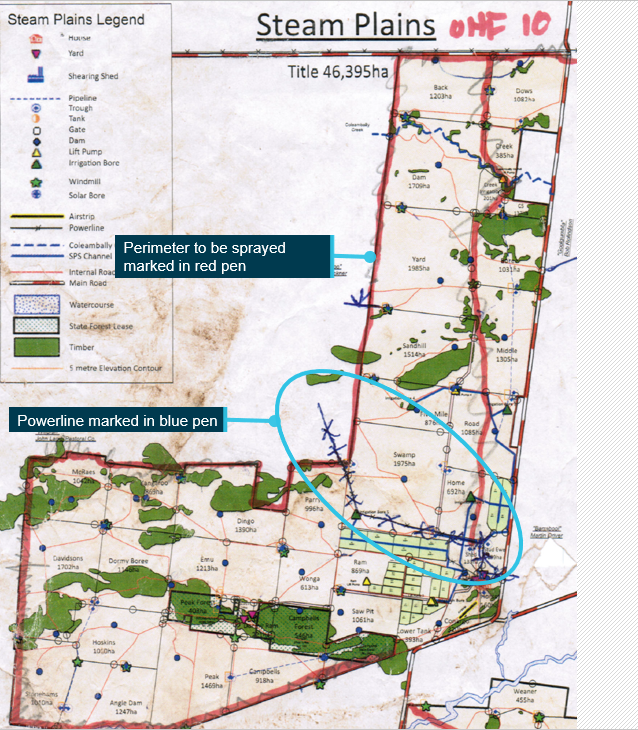

Figure 4: Map of Steam Plains Station showing spray path (red) and powerline (blue)
![Source: ATSB The ATSB examined the helicopter and did not identify any evidence of in-flight breakup, birdstrike, or pre-existing defects that may have contributed to the wirestrike. Consistent with normal agricultural operations, the pilot door was not fitted at the time of the accident. Significant structural deformation of the helicopter’s left front quarter and seat was consistent with a heavy impact on that side, to the extent that there was no occupiable space for the front left seat. On the right (pilot’s) side, there was crushing of the seat lower box section (as designed, to absorb vertical impact loads) and some right-side roof deformation, associated with the left-front impact. Although compromised, occupiable space on the right side of the fuselage remained. There were no issues identified with the flight controls, and examination of the engine found no anomalies that would have affected the engine’s performance. Evidence that the main rotor was being driven under power included that one of the main rotor blades showed significant chordwise bending and, from the other blade, a section of blade tip, measuring 850 mm and weighing 5.3 kg had fractured as a result of ground impact and was thrown approximately 300 m from the accident site. The loader had recorded uplift of 40 L of Avgas prior to the start of the fifth load. A large quantity of fuel remained in the left fuel tank, and testing indicated no evidence of water or contaminants. There was no post-impact fire. The chemical holding tank had been compromised and no visible herbicide remained, but a strong odour indicated that a quantity had leaked and soaked into the ground where the aircraft had come to rest. The pilot-controlled spray switch was in the on position. Operational information Helicopter operator Riverina Rotor Work, trading as Riverina Helicopters, was the registered owner and operator of VH-HNF. Riverina Helicopters held a CASA-issued Air Operator’s Certificate to conduct aerial work and aircraft charter operations. Of relevance to this occurrence, the Riverina Helicopters Operations Manual included: Specialised operations [including aerial spraying] Protective helmets shall be worn for all specialised operations. Low level operations Before descending to conduct low level operations, the pilot in command shall conduct a reconnaissance of the area and identify the hazards noted from the study of the charts and to make a note of other hazards not indicated on the charts. Agricultural operations – helicopters The Company shall be responsible for supplying pilots with up to date maps and charts of the various treatment areas, clearly displaying all hazards associated with those areas. However, prior to the commencement of operations, the pilot in command shall become familiar with the task by personal inspection and briefing by drawing a ‘field map’ of each area to be treated. Pilots should be aware that any locally supplied information is often incorrect but it does at least provide a guide and can be verified during aerial inspection of the area. A copy of the applicable field map(s) should be taken by the pilot on each sortie…agricultural pilots are required to carry out a preliminary aerial inspection of the area to be treated including the adjacent manoeuvring areas in all directions, paying particular attention to the location of obstructions including those, if any, outside the actual treatment area. In addition, the operator’s Management System procedure – Conduct an application, included that: The pilot will conduct a pre-application aerial inspection of the target ensuring that they have confirmed the following with their work order: iii. Power Lines, Towers, Aerials, moisture probes & other obstacles are located and identified Steam Plains task The station manager had previously engaged Riverina Helicopters for aerial work in 2010, 2012, 2016 and March 2020. Commencing on 29 July 2020, the station manager had contracted Riverina Helicopters to spray weeds along the fence and adjacent track at Steam Plains and a neighbouring property as a firebreak. The pilot conducted the same task during the 2016 engagement. Pre-flight planning On the morning of 29 July (day 1 of the 3-day task), the chief pilot was delayed leaving Griffith in the helicopter due to fog. The pilot drove the loading truck and the station manager reported that it arrived at about 0800. The station manager met the pilot at the truck and gave the pilot a briefing of the task. This briefing included discussing the chemicals that would be used for spraying, the application rate of the chemicals, areas to be sprayed, flight path and hazards. The station manager provided the pilot with maps of Steam Plains and the adjacent property. The maps had been provided to the property owner on purchase in 2008, at which time the property owner had assessed by ground vehicle that the markings on the maps appeared to be correct. The spray application path had been drawn on the map in red marker pen by the station manager. Using the map, the station manager briefed the pilot about the location of crops, stock and people working in the area. The pilot used a blue pen to over-mark the powerlines (Figure 4). When the chief pilot arrived later that morning, the pilot passed on the details from the briefing, including the powerlines. The station manager met with the pilot and chief pilot on the morning of 31 July, at about 0650. They discussed the day’s plan including reviewing the map. Before commencing operations, the pilot and chief pilot briefed on the day’s operation again, including the task, map and powerline location. Prior to the fifth (accident) load, the pilot fuelled the helicopter and discussed with the chief pilot the shape of the boundary fence to be sprayed on the next sortie and the location of the powerline. Figure 4: Map of Steam Plains Station showing spray path (red) and powerline (blue)](/media/5780783/fig-4.png?width=585.5616438356165&height=670)
Source: Station owner, marked by the station manager and pilot, and annotated by the ATSB
Mapped powerline location
Figure 5 shows a comparison between the powerline marked on the pilot’s map and its actual location taken from Essential Energy’s Look-up-and-live app. On the pilot’s map (left image), the powerline is depicted close to the fence corner and beyond the (marked) gate. The powerline’s actual location was exactly overhead the gate and about 300 m further west of the fence corner than depicted on the pilot’s map.
In addition to the commentary in the Riverina Helicopters Operations Manual about the possibility of incorrect locally-supplied information, training also emphasised possible inaccuracies. The instructor who conducted the pilot’s annual flight review and proficiency check in 2019 commented that pilots are trained to expect that planning information may be inaccurate, and reinforced the importance of verifying it by conducting an aerial inspection.

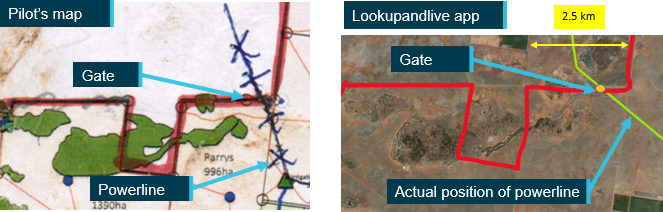

Figure 5: Map location compared with actual powerline location
Source: Helicopter operator, Google earth and Essential Energy, annotated by the ATSB
Spraying procedures
The AAAA Aerial Application Pilots Manual (AAAA 2011:166) advised that:
all application pilots should be trained to carry out an extra “wind and wires” check before commencing each run, to refresh short-term memory and refocus on any wires.
When spraying a crop or paddock, hazards in the whole area are identified before spraying and the hazards then generally remain fixed. However, the operator reported that, to retain identified hazards in working memory when spraying along a fence line on a large property, a pilot may conduct an aerial reconnaissance of a section of the target spray path before spraying that section, then repeat as the helicopter progresses along the fence line.
In addition, the AAAA Aerial Application Pilots Manual (AAAA 2011:151) stated:
Recollection of precise locations of power lines based on the [application management plan] AMP and a confirming aerial survey is critical to safe application. High situational awareness and an accurate mental map of the treatment area must remain front of mind for the pilot throughout the application…The aerial inspection is the last chance for the pilot to build defences and manage risk.
Aerial inspection and GPS data

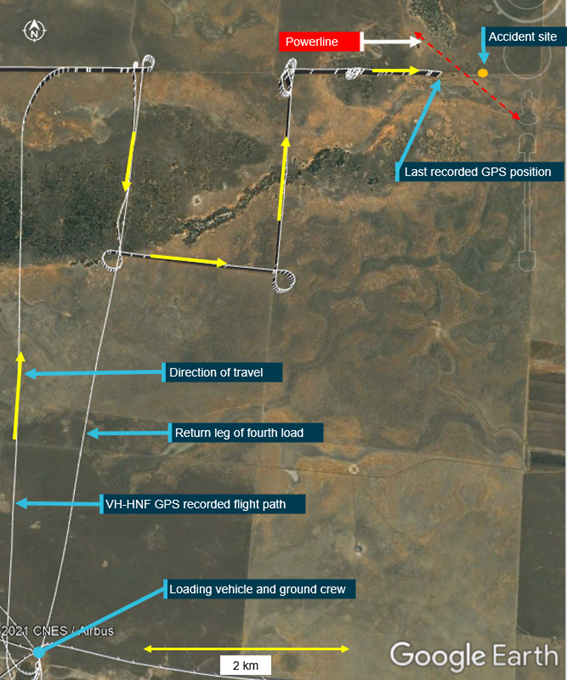

Two GPS systems recorded data from the helicopter for the accident flight: Spidertracks and TracMap. Spidertracks data was recorded at 2-minute intervals. The TracMap GPS data associated with the spraying system included speed, altitude and whether the spray system was on or off. Due to buffering from incomplete shutdown associated with the collision, the last TracMap data that was recorded was above the trees with the spray off, before the helicopter descended and about 300 m before it struck the wire.
The TracMap data was compared for the 3 days of the task.
On the first day, the chief pilot reported conducting short inspection flights in the target area ahead, then spraying that section with a good understanding of the hazards present. This was evident in the GPS data for the day, where most tracks were flown twice – once 50 to 100 ft higher with the spray off, then from a lower height with the spray on. Where the intended spray path was along or across a powerline, the helicopter tracked to the wire with the spray off before descending and commencing spraying.
On the day prior to the accident, the pilot was operating on the property neighbouring Steam Plains and the chief pilot was performing loader duties. The GPS data showed that on that day, the helicopter had overflown a powerline several times, including before descending to spray along the wire and perpendicular to it. This was consistent with what the chief pilot observed when the helicopter was operating in sight of the loading truck – short inspection flights conducted before spraying.
On the accident day, the GPS data showed only one small segment of the southern perimeter was flown twice – at the end of the first and start of the second loads. There was no further duplication of any of the tracks and no aerial inspection conducted. The helicopter had not overflown the powerline before the wirestrike.
Previous wirestrike
In 2018, the pilot was operating a helicopter that struck a powerline during spraying operations. The pilot conducted an aerial inspection prior to commencing the task and was aware of the powerline. However, a moisture probe that stood above the crop canopy momentarily distracted the pilot’s awareness of the powerline.
The day after that occurrence, the chief pilot had a debrief with the pilot and recalled discussing the sequence of events leading up to the accident, the wirestrike and the post-accident period. A subsequent follow-up discussion with the pilot included techniques to remain situationally aware and understanding the danger of distraction. Following the accident, the pilot completed an AAAA course in cockpit resource management and wire awareness, and a Robinson Helicopter Safety course.
Survivability aspects
The following section is largely based on a report provided by The Royal Australian Air Force Institute of Aviation Medicine. The report included advice regarding the use of helmets and restraints in helicopter accidents and their role in reducing the risk of fatal injuries in an otherwise survivable accident, as well as analysis specific to this accident.
Survivability and injuries
The FAA report Analysis of rotorcraft crash dynamics for development of improved crashworthiness design criteria (Coltman and others 1985) defined a survivable accident as one in which the acceleration forces were within the limits of human tolerance and sufficient occupiable space remained for well-restrained occupants. Accidents in which impact injuries of the head or upper torso resulted from striking a surface, and could have been prevented by proper restraint, were deemed potentially survivable.
Injuries from aircraft accidents arise from three distinct sources:
- excessive acceleration forces (internal injuries)
- direct trauma from contact with hard surfaces
- exposure to environmental factors such as fire, smoke, water, and chemicals.
Acceleration forces
Significant research has been conducted into human tolerance of impact forces. Survivable velocity/acceleration envelopes have been determined based on analyses of helicopter accidents, including the injuries sustained by occupants, and the vertical, longitudinal and lateral impact forces (Coltman and others 1989, Coltman and others 1985). A large proportion of the studied US civilian helicopter wirestrike accidents (1974–1978) were classified as non-survivable due to the uncontrolled flight that followed the strike, and 65 per cent of the wirestrike accidents resulted in serious or fatal injuries.
Due to the compound forces on the helicopter (VH-HNF) when it impacted the ground, including a vertical component that resulted in seat crushing (as designed), lateral impact on the left front side and rotational forces, the ATSB was unable to accurately determine the velocities in each plane, to assess whether the acceleration forces were survivable.
Trauma injuries
In US Army helicopter accidents from 1979 to 1985, trauma injuries from striking the aircraft structure occurred at least five times more frequently than acceleration injuries (Shanahan and Shanahan 1989). The potential for trauma injuries can be reduced by using restraint systems that decrease the area the body can move around in. That is, by reducing the ‘flail zone’ or ‘strike envelope’.
Restraints
The Australian Civil Aviation Safety Order 20.16.3 required at least one pilot crew member to wear a seat belt or safety harness at all times during flight. Civil Aviation Safety Regulation Part 137.225 required fitment of a 4-point harness to fixed-wing aeroplanes operating in the Restricted category – for example, when fitted with ‘role equipment’ such as a spray system – however, this requirement did not apply to helicopters operating in the Restricted category. CASA advised that a proposal to amend Part 137 to include Rotorcraft was expected to commence by the end of 2022. Civil Aviation Safety Regulations Part 90.105 required helicopters to be fitted with a safety harness that ‘must consist of a lap belt and at least 1 shoulder strap’ (3-point harness). Figure 6 illustrates 2-, 3-, 4- and 5-point harnesses.

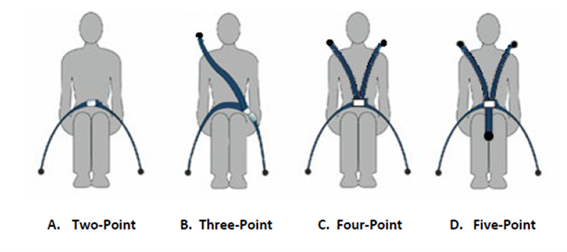

Figure 6: Aviation restraint types
Source: Aircraft Crash Survival Design Guide, US Army Aeromedical Research Laboratory, annotated by the ATSB
The US Federal Aviation Regulation 137.31 for helicopters conducting aerial application was consistent with Australian regulations in requiring a minimum of a lap belt and shoulder harness for pilots. Some operators have higher standards to reflect their risk associated with their type of operation. For example, the US Department of the Interior, responsible for a large fleet of aircraft conducting land-management-related tasks, required the use of a 4-point restraint (with an inertia reel) for front seat occupants of helicopters. Military standards in the US and Australia mandate the use of a 5-point harness,[5] due to the risks associated with their requirement to fly at low altitudes, in close proximity to obstacles and hazards.
Upper torso restraints serve two purposes: to reduce upper body flailing and subsequent contact with aircraft structures and strike hazards, and to distribute acceleration forces across a larger body area to reduce local transmission of force. Although the shoulder sash of a 3-point harness (the design basis for the common seat belt in cars) provides restraint in a forward direction, it provides lateral restraint in only one direction. If the occupant moves in a lateral or diagonal direction away from the shoulder restraint, it is possible to slip out of the shoulder sash.
The limited aviation research for occupants in 3-point restraint systems subjected to oblique impact forces, indicates a risk of head and abdominal injuries from deceleration forces (Snyder and others 1969). Automotive accident research indicates the potential for greater flailing in oblique (60°) impacts compared to completely lateral (90°) impacts due to torso rotation and reduced engagement of the shoulder (Forman and others 2013). Therefore, if deceleration forces have large lateral or oblique components on the opposite side of the 3-point harness, there would likely be reduced protection provided to the upper torso and head in that direction. In a helicopter accident, crash deceleration forces on the occupant may be from multiple directions as the helicopter impacts the ground and rotates.
The front seats of VH-HNF were fitted with 3-point harnesses. The pilot’s shoulder sash was installed to cover the right shoulder. After the initial front-left impact, the helicopter rotated and came to rest on its right side. The pilot was found in the right seat, with the lap belt still attached across the waist, but the pilot’s upper body was outside the right side of the cabin, in front of (unrestrained by) the shoulder sash. The seat and seat belt were intact. This suggests the pilot may not have been wearing the shoulder sash at the time of the accident. Alternatively, the pilot may have slipped out of it during the uncontrolled flight following the wirestrike or during the crash sequence. In the latter case, the pilot would also have had to slip back underneath the sash to end up in front of it. The operator reported that the company pilots always wore the fitted restraint and specifically that they had observed this pilot to always wear the restraint correctly. However, it could not be determined whether the pilot was wearing the shoulder sash at the time of the accident.
A comparison between the flail zone for an occupant wearing a lap belt only (2-point harness) and a 4-point harness is depicted in Figure 7. These images show that the maximum head strike distance is reduced to 50 per cent with the 4-point restraint. Reducing the flail zone significantly reduces injury risk by reducing the number of objects that could cause strike injuries. In particular, this reduces the risk of potentially fatal head injuries, which was the most common cause of death in aircraft accidents (Crowley and others 1992).

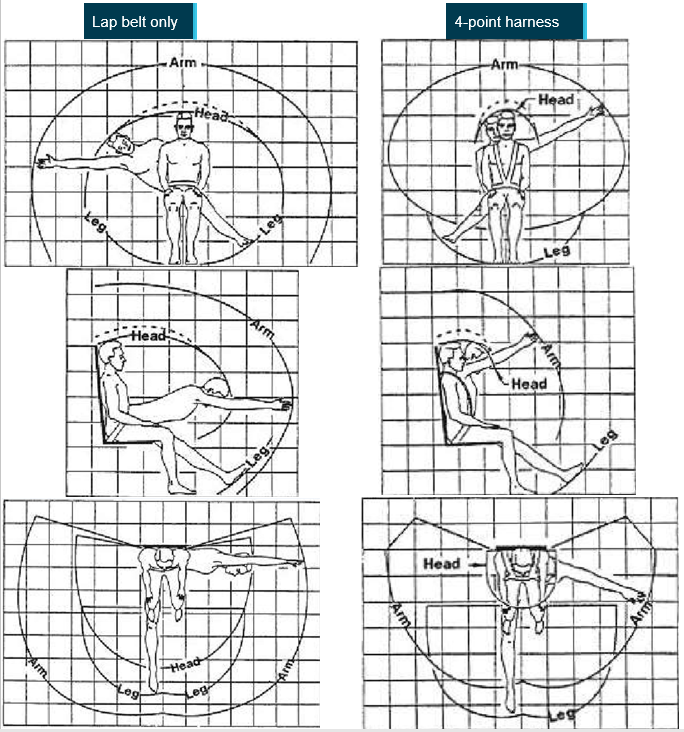

Figure 7: Lap belt only (2-point harness) and 4-point harness flail zone
Source: Aircraft Crash Survival Design Guide, US Army Aeromedical Research Laboratory, annotated by the ATSB
Flight helmets
Benefits and requirements
Helicopter accident investigations conducted by the US Army in the 1980s determined that aircrew lives were being lost to head injury in otherwise survivable accidents (where the deceleration forces were within human tolerance). The outcome of this was the introduction and ongoing development of helmet standards. In an analysis of ‘severe accidents’, it was determined that occupants not wearing a helmet were significantly more likely to sustain severe and fatal head injuries (Crowley and others 1992). This finding was also consistent in civilian flying studies (Taneja and Wiegmann 2003). The introduction of protective helmets into military aviation has significantly reduced the incidence of head injury (Lewis 2006).
The Civil Aviation Safety Regulations did not require pilots to wear flight helmets. However, it was often mandated by aircraft operators for pilots engaged in aerial work, and necessary to meet federal- and state-legislated workplace, health and safety requirements. The AAAA code of conduct required a commitment to wear suitable personal protection equipment including a flight helmet. The pilot of VH-HNF was a member of AAAA and the company operations manual required a flight helmet to be worn.
Standards
Helmets are designed primarily to provide impact protection – attenuating force and distributing it over a larger surface area – and penetration resistance. Helmets primarily consist of a composite shell that encases an ‘impact cap’, made from a layer of rigid foam that crushes on impact, and an inner liner/padding for fitment and additional energy absorption. The helmet should also include support for the retention system (including chin strap), visor(s) and communication equipment, as well as noise attenuation. The helmet must be retained on the head following an impact to protect against injury in subsequent impact/s.
There are specific standards for each of these domains and many commercially available helmets for civilian helicopter operators meet these to varying degrees. There was no Australian Standard for flight helmets, however helmet manufacturers used relevant standards that included the US Department of the Interior (DOI)/US Forest Service (USFS) Aviation Helmet Standard, US Military Standard and the European Standard (EN-966) Helmets for Airborne Sports.
The pilot of VH-HNF wore a MSA LH250 helmet (Figure 8). The manufacturer’s brochure indicated that the helmet was for pilots/flight crew of helicopters, transport and training aircraft without ejection seats. The helmet was reported to meet or exceed:
- impact resistance to US Air Force (USAF) MIL-DTL-87174A, DOI/USFS Aviation Helmet Standard
- penetration resistance to USAF MIL-DTL-87174A EN-966, DOI/USFS Aviation Helmet Standard
- retention to EN-966:2012 and EN-966:2006, DOI/USFS Aviation Helmet Standard.
The US military standards had different requirements for helmets used in helicopters and aeroplanes. Helicopter and aeroplane helmets were required to be impact tested at five sites (front, rear, left and right sides, crown), but helicopter helmets also required impact testing at two additional sites: the left and right ear cups. The MIL-DTL-87174A standard described helmet performance for use in fixed wing aircraft (aeroplanes) and therefore helmets qualified to that standard may not provide adequate protection for helicopter occupants.
Figure 8: MSA LH250 helmet
Source: Flight Helmets Australia
To meet the specifications a helmet is designed for, it must be fitted correctly, worn properly and maintained in accordance with the manufacturer’s requirements. The manufacturer of the pilot’s MSA LH250 helmet advised wearers of the following.
- To provide sufficient protection, the helmet must be fitted and adjusted to the head size of its wearer.
- The helmet is made in such a way that any energy received during an impact is absorbed by the destruction of or partial damage to the shell and impact cap; even if this damage is not immediately apparent, replacement of the whole helmet is recommended after a major impact.
- The helmet must be inspected for damage after obvious or suspected impact, or where routine maintenance reveals indications that suggest impact damage may have occurred. Helmet users are responsible for reporting known or suspected damage to helmets and to arrange further assessment, including if the helmet had sustained any impact in a previous accident. If the helmet has sustained a major impact, it should be replaced even if damage is not apparent.
Fitment and maintenance
The pilot purchased the helmet new in 2010. The shell was within its 15-year warranty period at the time of the accident. The pilot had purchased a new chin strap and edge roll (padding) in 2015, and earcup pieces and edge roll in 2017. There was no evidence of the helmet having been serviced by the distributor from which it was purchased.
The LH250 helmet comes in two shell sizes, which can be personalised with pads to fit the wearer’s head. The manufacturer advised that the pads degrade over time and should be replaced to ensure optimum fit. The fit of the helmet was not able to be assessed in this instance. The helmet was fitted with a chin strap and locking buckle, which met US DOI and US Military standards. The chin strap was noted by the ATSB to be worn and frayed (Figure 9). This was indicative of the chin strap being worn securely fastened over a long time.
The pilot had very likely been wearing the same helmet during a helicopter accident in 2018, in which the pilot sustained facial injuries. It could not be determined whether the helmet sustained an impact in that accident, or whether any subsequent inspection or maintenance was conducted, although it was confirmed that the helmet had not been sent to the distributor from which it was purchased.

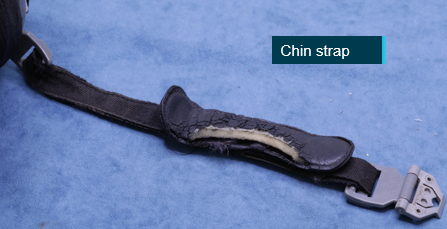

Figure 9: Helmet chin strap
Source: ATSB
Effectiveness
The helmet was found at the accident site, on the ground on the left side of the helicopter, the opposite side to the final resting position of the helicopter on its right side and the pilot in the right seat. The helmet sustained extensive structural damage, with significant cracking of the shell on the top and on the left side. The structure around the left ear and visor attachment was crushed and there was a dent in the shell above the left eye. Most of the outer visor and track had broken off from the right side, and there was paint transfer and scrape marks on the top of the helmet.
The chin strap was found undone with dirt lodged in the clasp. The chin strap fastened on the right-hand side of the helmet (Figure 10). The post-mortem report did not identify chin injuries to indicate that the helmet had been forcibly removed with the chin strap properly adjusted and secured. However, any such injuries may have been obscured by facial hair. Post-accident testing of the helmet by the ATSB found it was possible to undo the clasp with a relatively small ‘bump’ applied to the clasp. As the clasp was on the right side, this force needed to be applied opposite the (left) side of the initial impact. Although there was no evidence of damage to the clasp or scuff marks near the latch to indicate contact, the damage to the right side of the helmet was consistent with a secondary impact on that side. There was also no documented history of this latch coming undone in accidents.

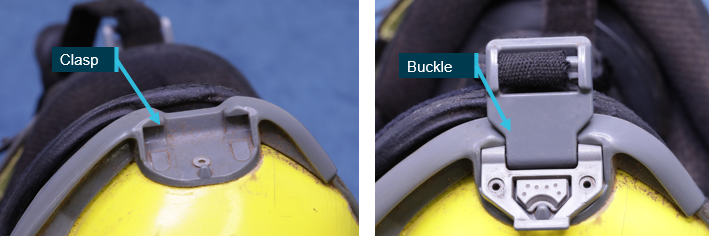

Figure 10: Helmet clasp and buckle
Source: ATSB
Risk of injuries
The ATSB considered whether wearing a helmet may increase the risk of cervical spine injury, given those sustained by the pilot in this accident. The Royal Australian Air Force Institute of Aviation Medicine indicated that there was limited data on this specific risk from helicopter accidents, however the considerable data from motorcycle and all-terrain vehicle accidents demonstrated clear benefits for helmet use in reducing head injury and no difference in regard to neck injuries.
Wirestrikes
Visibility of wires and poles
Powerlines, particularly unmarked wires, may be impossible to see due to the size of the wire, camouflage with the background and limitations of the eye.
Imagery taken from the ATSB’s remotely piloted aircraft (RPA), while following the helicopter’s estimated flight path at about the same time on a subsequent day, found that the wire would have been extremely difficult to see (Figure 11 and Figure 12).

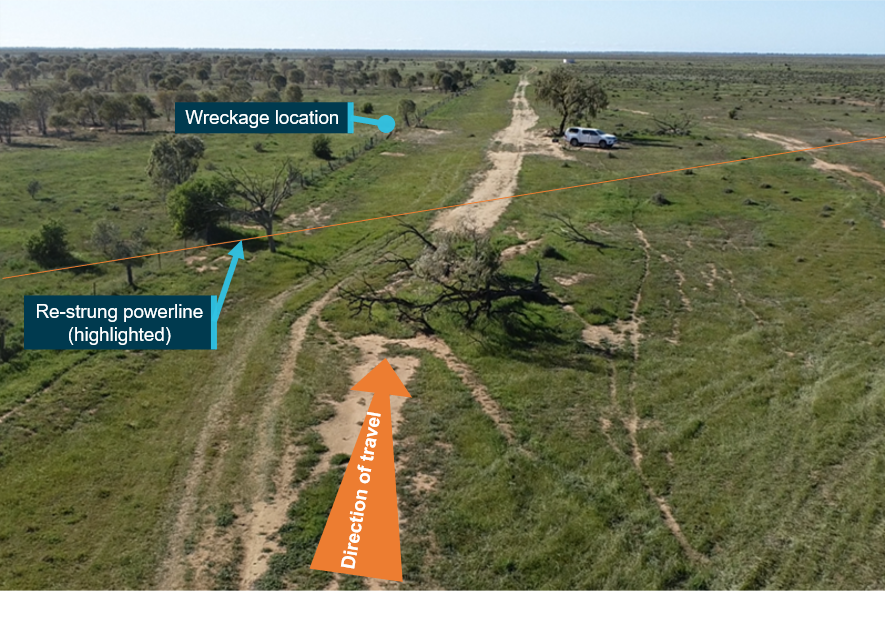

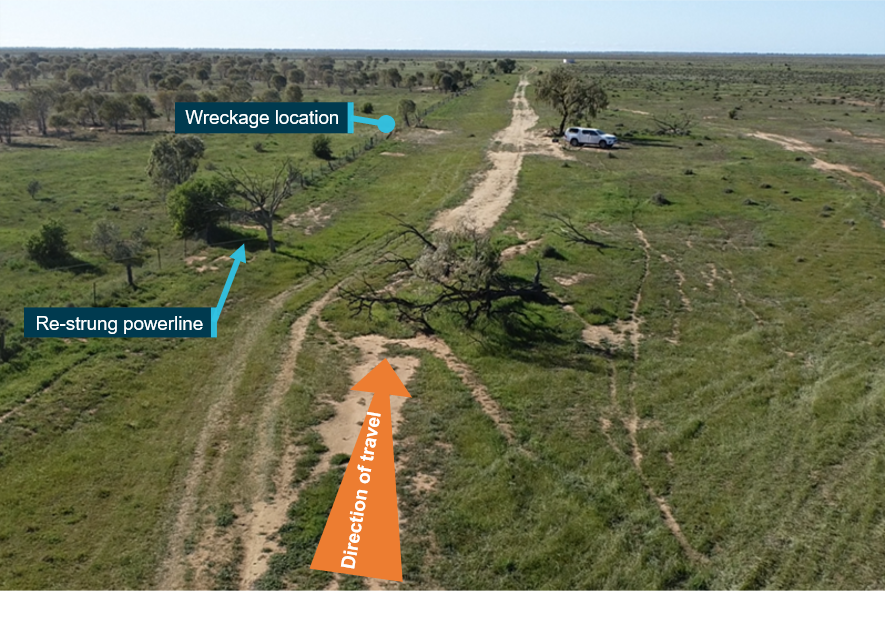

Figure 11: RPA image 50–75 m prior to the powerline showing the accident location, taken at 1028 on 4 August 2020, with powerline highlighted
Source: ATSB

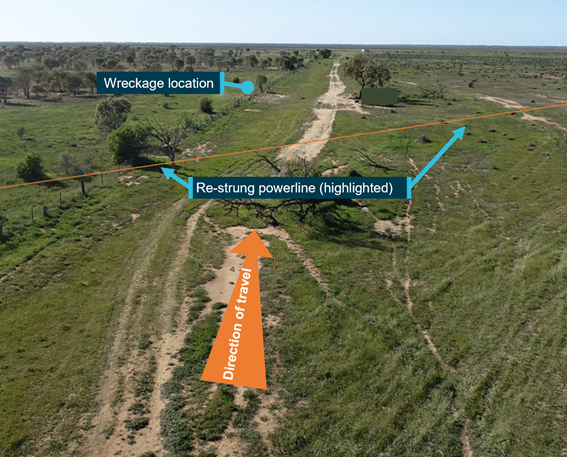

Figure 12: RPA image 50–75 m prior to the powerline showing the accident location, taken at 1028 on 4 August 2020, noting powerline visibility
Source: ATSB
During agricultural operations, pilots must retain the position of a powerline in their memory, and are taught to use other visual indications of the presence of a wire, such as a group of trees, power pole, building or feature. The AAAA Aerial Application Pilot’s Manual (AAAA 2011:151) stated:
…the background to the wires – trees, hills etc. – may often provide a poor contrast. Poles may be concealed by intervening obstacles or by being located so far towards the periphery of the pilot’s visual field that they are not noticed.
Figure 13 shows the two closest power poles located either side of the helicopter’s flight path. From ATSB RPA footage taken along the estimated flight path, at times, both poles were obscured by trees and lacked contrast and texture variation from their background (Figure 14 and Figure 15). The two power poles should have been visible within the pilot’s peripheral vision, however it is likely that the pilot’s visual acuity was affected by contrast sensitivity, resulting in the pilot being unable to discriminate the poles from their background. Additionally, based on the powerline’s location on the pilot’s map, the pilot may not have been looking for cues at that time.

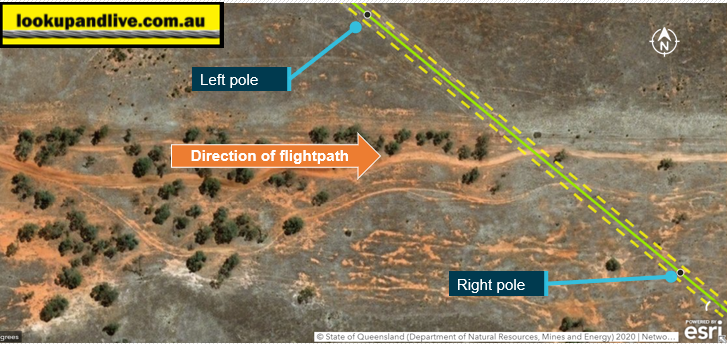

Figure 13: Power poles either side of flight path
Source: lookupandlive app annotated by the ATSB

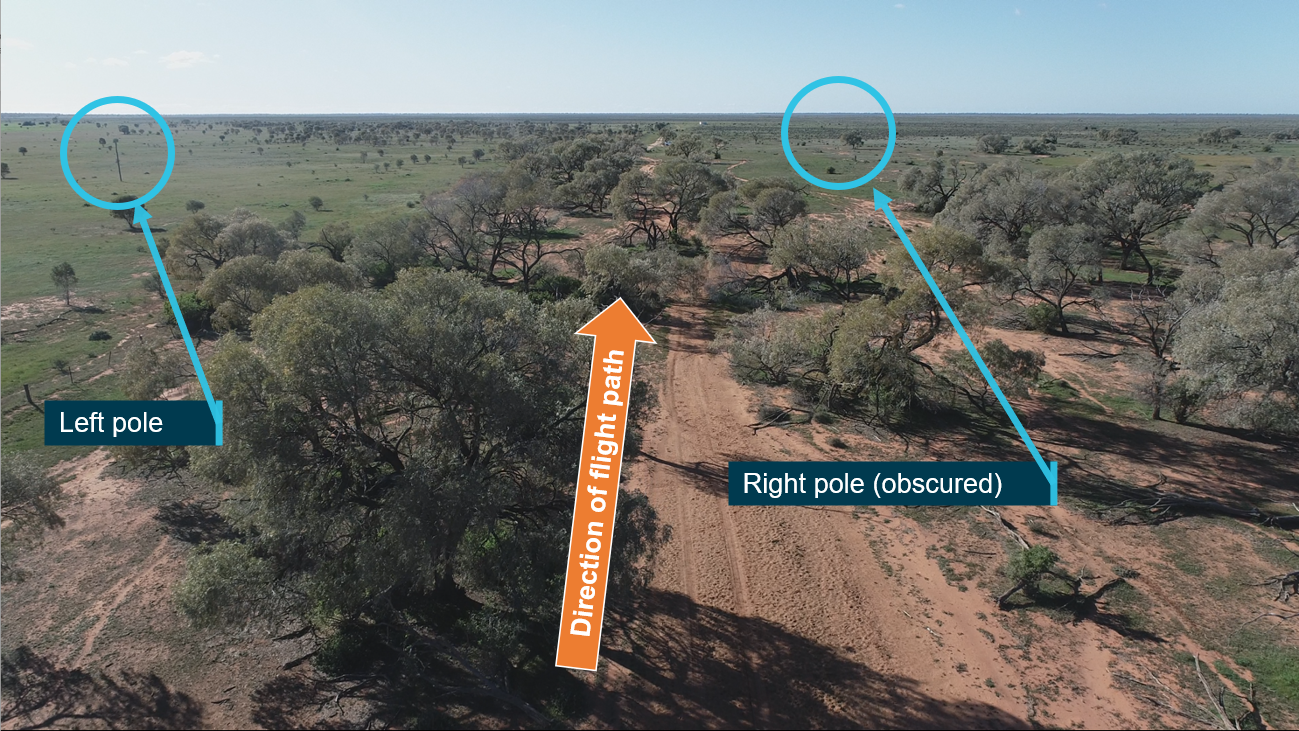

Figure 14: RPA footage of reconstructed flight path showing location of poles left and right of track from about 160 and 350 m respectively
Source: ATSB

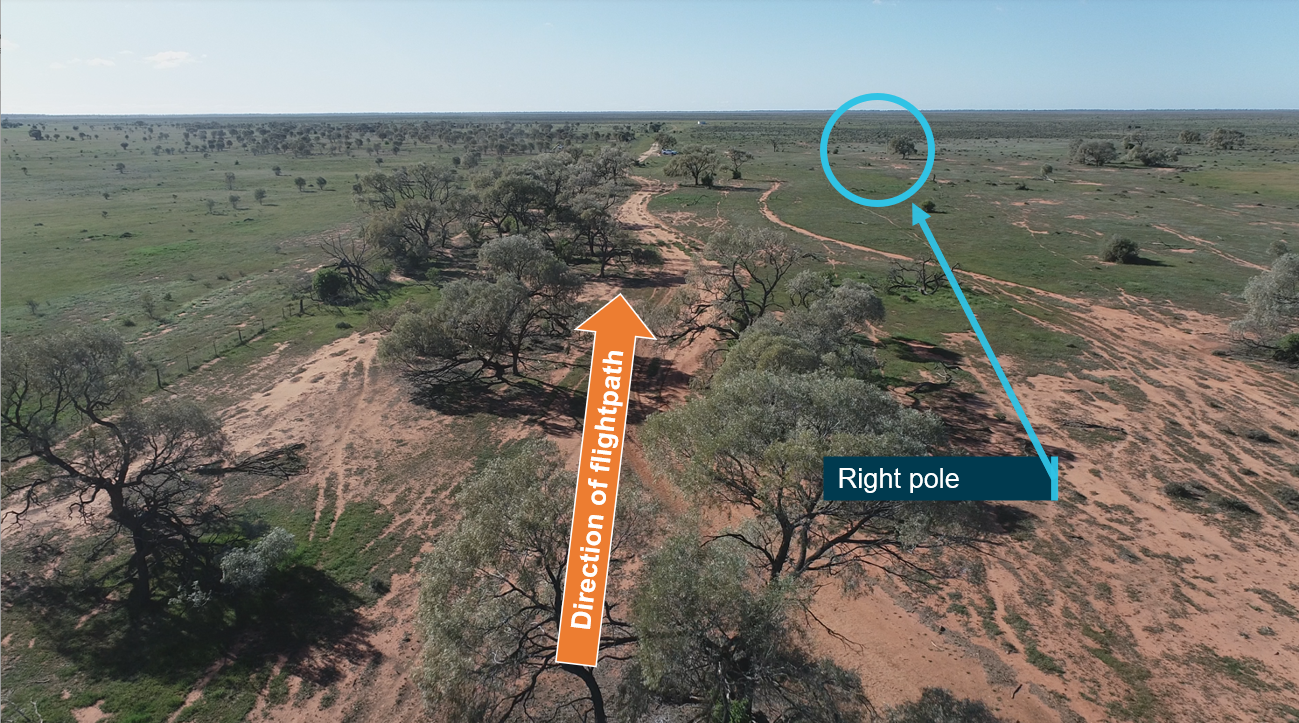

Figure 15: RPA footage of reconstructed flight path showing right pole from about 240 m
Source: ATSB
Similar occurrences
Research conducted for the ATSB publication Wirestrikes involving known wires: A manageable aerial agriculture hazard found that there were 180 wirestrike accidents in the ATSB database for the period between 2001 and 2010. During that period, 55 wirestrikes involved helicopters, 30 of which resulted in an accident and 25 were serious incidents. Of the 55 helicopter wirestrikes, 20 occurred during aerial agricultural operations. Particularly relevant to this accident, the report reminded pilots to:
- have an up-to-date and detailed map with powerlines and other hazards clearly marked
- obtain network maps from the power company if available
- not rely solely on maps and pre-flight briefing
- always conduct an aerial reconnaissance to confirm wire locations and detect other hazards.
For the 10-year period from 2010 to 2020, there were 67 wirestrikes involving helicopters recorded in the ATSB occurrence database, 54 of which were conducting aerial work – 30 of which were during aerial agricultural operations. Of the aerial work occurrences, 23 were classified as accidents and 9 resulted in serious or fatal injuries to the occupants.
__________
Sources of information
The sources of information during the investigation included the:
- Aerial Application Association of Australia
- Bureau of Meteorology
- Civil Aviation Safety Authority
- New South Wales Police Force
- helicopter maintainer
- helicopter operator and chief pilot of Riverina Helicopters
- recorded data from the GPS units on the helicopter
- Royal Australian Air Force Institute of Aviation Medicine
- Steam Plains Station owner and manager.
References
AAAA (Aerial Application Association of Australia) (2011) Aerial Application Pilots Manual, 3rd edn, Canberra.
ATSB (Australian Transport Safety Bureau) (2014) ‘Avoidable Accidents No. 2, Wirestrikes involving known wires: A manageable aerial agriculture hazard’, Research report AR‑2011‑028, ATSB, Australian Government.
ATSB (Australian Transport Safety Bureau) (2006) ‘Wire-strike accidents in general aviation: Data analysis 1994 to 2004’, Research and Analysis Report B2005/0055, ATSB. Australian Government.
Battelle Memorial Institute (1998) An Overview of the scientific literature concerning fatigue, sleep, and the circadian cycle, prepared for the Office of the Chief Scientific and Technical Advisor for Human Factors, United States Federal Aviation Administration.
Caldwell JL (2006) ‘Physiology of sleep and wakefulness, sleep disorders, and the effects on aircrew’, in Gradwell DP and Rainford DJ (eds) Ernsting’s Aviation Medicine, 5th edn, CRC Press, London, United Kingdom.
CASA (Civil Aviation Safety Authority) (2016) Fatigue – the rules have changed. CASA, Australian Government, accessed 22 August 2021.
CASA (Civil Aviation Safety Authority) (2012) Fatigue Management Strategies for Aviation Workers: A Training & Development Workbook, CASA, Australian Government, accessed 25 September 2021.
CASA (Civil Aviation Safety Authority) (2017) Obstructive sleep apnoea and aviation safety fact sheet, CASA, Australian Government, accessed 22 August 2021.
Coltman JW, Bolukbasi AO, Laananen DH (1985) Analysis of rotorcraft crash dynamics for development of improved crashworthiness design criteria, United States Department of Transportation, Federal Aviation Administration.
Coltman JW, Van Ingen C, Johnson NB and Zimmerman RE (1989) Aircraft crash survival design guide: Volume II – Aircraft design crash impact conditions and human tolerance, United States Army Aviation Applied Technology Directorate.
Crowley JS, Licina JR and Bruckart JE (1992) ‘Flight Helmets: How they work and why you should wear one’, Journal of Air medical Transport, 11(8):19-23.
DOI and USFS (Department of the Interior and United States Forest Service) (2021) Interagency Aviation Life Support Equipment Handbook/Guide, Revision 3.0, United States.
Forman JL, Lopez-Valdes F, Lessley DJ, Riley P, Sochor M, Heltzel S, Ash J, Perz R, Kent RW, Seacrist T, Arbogast KB, Tanji H, Higuchi K (2013) ‘Occupant kinematics and shoulder belt retention in far-side lateral and oblique collisions: a parametric study’, Stapp Car Crash Journal, 57:343-85.
Gibb R, Scharff L and Gray R (2010) Aviation Visual Perception: Research, Misperception and Mishaps (Ashgate Studies in Human Factors for Flight Operations), Ashgate Publishing Group, Routledge, England, United Kingdom.
Goode JH (2003) ‘Are pilots at risk of accidents due to fatigue?’, Journal of Safety Research, 34:309-313.
Harrison Y and Horne JA (2000) ‘The Impact of Sleep Deprivation on Decision Making: A Review’, Journal of Experimental Psychology, 6:236-249.
International Civil Aviation Organisation (2015) Fatigue Management Guide for Airline Operators, 2nd edn, ICAO, accessed 18 November 2021.
Killgore WSS, Balkin TJ and Wesensten NJ (2006) ‘Impaired decision making following 49 h of sleep deprivation’, Journal of Sleep Research, 15:7-13.
Lal C, Strange C and Bachman D (2012) ‘Neurocognitive impairment in obstructive sleep apnea’. Chest, 141(6):1601–1610.
Lewis, ME (2016) ‘Head injury and protection’, in Gradwell DP and Rainford DJ (eds) Ernsting’s Aviation Medicine, 5th edn, CRC Press, London, United Kingdom.
Royal Australian Air Force Institute of Aviation Medicine (unpublished), Support to ATSB AO-2020-040 Accident involving R44 helicopter, vicinity Steam Plains, NSW 31 July 2020, Royal Australian Air Force Institute of Aviation Medicine, Australia.
Seda G, Han TS (2020) ‘Effect of Obstructive Sleep Apnea on Neurocognitive Performance’. Sleep Med Clin. March 15(1):77-85. doi: 10.1016/j.jsmc.2019.10.001. Epub 2019 Nov 26. PMID: 32005352.
Shanahan DF (1993) Basic Principles of Helicopter Crashworthiness, United States Army Aeromedical Research Laboratory (USAARL 93-15), United States.
Shanahan DF and Shanahan M (1989) ‘Injury in U.S. Army helicopter crashes October 1979 –September 1985’, Journal of trauma, 29(4):415–423.
Snyder RG, Snow CC, Young JW, Crosby WM and Price GT (1969) Pathology of trauma attributed to restraint systems in crash impacts, US Federal Aviation Administration Civil Aerospace Medical Institute (DOT/FAA/AM-69/3), United States.
Szczecinski G and Cable G (n.d.), Aviation Medicine for Aircrew, Royal Australian Air Force Institute of Aviation Medicine, Australia.
Taneja N and Wiegmann DA (2003) ‘Analysis of injuries among pilots killed in fatal helicopter accidents’, Aviation Space and Environmental Medicine, 74(4):337–41.
US FAA (Federal Aviation Administration) Pilot safety brochure Fatigue in aviation, FAA, United States, accessed 22 August 2021.
US FAA (Federal Aviation Administration) Sleep apnoea in aviation, FAA, United States, accessed 29 December 2021.
Veillette P (2015) ‘Wire wary: what you don't see can kill, and does’, Business and commercial aviation, October pp.24–28.
Submissions
Under section 26 of the Transport Safety Investigation Act 2003, the ATSB may provide a draft report, on a confidential basis, to any person whom the ATSB considers appropriate. That section allows a person receiving a draft report to make submissions to the ATSB about the draft report.
A draft of this report was provided to the following directly involved parties:
- Riverina Helicopters
- Steam Plains station manager and owner
- the Civil Aviation Safety Authority
- Essential Energy
- the helicopter maintainer
- Royal Australian Air Force Institute of Aviation Medicine.
Submissions were received from
- Riverina Helicopters
- the Civil Aviation Safety Authority.
The submissions were reviewed and, where considered appropriate, the text of the report was amended accordingly.
