Investigation number
AO-2019-026
Occurrence date
Location
25 km north east of Mount Isa Airport
State
Queensland
Report release date
Report status
Final
Investigation level
Systemic
Investigation type
Occurrence Investigation
Investigation phase
Final report: Dissemination
Investigation status
Completed
Aviation occurrence type
In-flight break-up
Occurrence category
Accident
Highest injury level
Fatal

Safety summary

What happened

On the afternoon of 26 May 2019, a Cessna Aircraft Company T210M, registered VH-SUX and operated by Thomson Aviation, departed Mount Isa Airport for an aerial geophysical survey flight with a pilot and observer on board.

One hour and 40 minutes later, as the aircraft was flown west along a survey line about 25 km north‑east of Mount Isa Airport, the right wing separated from the aircraft. The structural failure led to a rapid loss of control and a collision with terrain. Both crewmembers were fatally injured, and the aircraft was destroyed.

What the ATSB found

The ATSB found that a pre-existing fatigue crack in the aircraft’s wing spar carry-through structure propagated to a critical size resulting in an overstress fracture of the structure and separation of the right wing.

Detailed examination of the structure found that relatively minor corrosion near a highly stressed location on the lower surface of the wing spar carry-through progressed into the aluminium alloy structure. This increased stress concentration in this area and led to initiation and growth of a fatigue crack, significantly reducing the strength of the structure.

In 1992, the aircraft manufacturer introduced a recommended continued airworthiness program, including a flight hour‑based repetitive eddy current inspection for cracking of the carry-through structure. This program included more stringent requirements for aircraft being used for low-level survey flights. However, following an assessment of historical data in 2011, the manufacturer replaced this inspection with a three-yearly visual corrosion inspection for all operation types, which was mandatory in Australia. This inspection variation significantly limited the opportunity to identify fatigue cracking within the carry-through structure of low-level survey aircraft prior to failure.

The ATSB also found that the cyclic loads induced by the low-level survey flight profile were significantly greater than those associated with the higher-level flight profile originally intended for the aircraft type. This probably increased the risk of a fatigue related structural failure.

Additionally, while not contributory to this accident and not applicable to the Cessna 210, the ATSB identified that the current guidance to determine fatigue damage for survey aircraft designed in accordance with United States Federal Aviation Regulation Part 23 probably underrepresents the rate of damage accumulated by aircraft intended to be used for low‑level terrain following. This may reduce the airworthiness assurance for survey aircraft designed under Part 23.

Finally, the ATSB determined that the airframe and system modifications incorporated into the aircraft did not significantly increase the fatigue damage accumulated by the wing spar carry-through structure.

What has been done as a result

Four weeks after the accident, on 24 June 2019, the manufacturer, Textron Aviation (Textron), released service letters SEL‑57-06 for the Cessna 210 (C210) and SEL-57-07 for the Cessna 177 (C177), which incorporates a similar carry-through and wing structure. These service letters instructed a one-off inspection of the structure and communication of inspection findings to the manufacturer.

The United States Federal Aviation Administration (FAA) supported these service letters with the release of an Airworthiness Concern sheet that also requested further information from aircraft operators. In addition, the Civil Aviation Safety Authority released an Airworthiness Bulletin providing additional information to assist in managing the airworthiness of C210 and C177 wing spar carry-though structures.

On 4 November 2019, following the receipt and analysis of results from the previously released service letters, Textron released updates to the service letters. These were further revised on 19 November 2019.

Textron subsequently advised the ATSB that it was undertaking a fatigue analysis for the C210 wing spar carry-through in its original configuration. This analysis included information from the VH-SUX accident and inspections of other aircraft and aimed to determine whether a modified inspection program or life limit was necessary. Textron also advised that work on a certification program to install a new spar in the C210 with an updated configuration and material was ongoing.

The ATSB acknowledged the safety action taken by Textron and welcomed its ongoing efforts to address the risk of cracking in wing spar carry-through structure of C210 aircraft used for low-level geophysical survey operations. However, the ATSB remained concerned by the indefinite nature of the proposed analysis and certification program. As such, the ATSB issued a recommendation to Textron that further action be taken to address this safety issue.

Other significant safety action included FAA airworthiness directive (AD) AD 2020-03-16 for C210 models G through M. This AD, adopted on 21 February 2020, required visual and eddy current inspections of the carry-through spar lower cap and application of a protective coating and corrosion inhibiting compound. On 11 May 2021, the FAA also issued a notice of proposed rulemaking for a one-time inspection for C210 N and R, and C177 models.

Safety message

Maintenance inspections are often the sole opportunity to detect damage within an aircraft structure. When designing or altering maintenance inspections and their schedules, it is important to ensure that appropriate engineering judgment is applied to safeguard the ongoing airworthiness of the aircraft type. In this instance, had the previous eddy current inspection remained in place, it is almost certain that the fatigue crack within the wing spar carry‑through would have been detected prior to the accident.

This accident also shows that even when flying within operational limits, if an aircraft is operated in a flight profile for which it was not originally intended, its structure can fatigue more rapidly. The ATSB cautions geophysical survey aircraft operators that the terrain following flight profile may significantly increase aircraft fatigue damage accumulation.

The occurrence

At 1407 Eastern Standard Time[1] on 26 May 2019, a Cessna Aircraft Company T210M (C210), registered VH-SUX (SUX) and operated by Thomson Aviation, departed Mount Isa Airport for an aerial geophysical survey flight with a pilot and observer on board. The survey segment of the flight commenced about 14 km to the north‑west of the airport and was conducted at a height of about 200 ft above ground level (AGL) along parallel east and west lines (Figure 1).

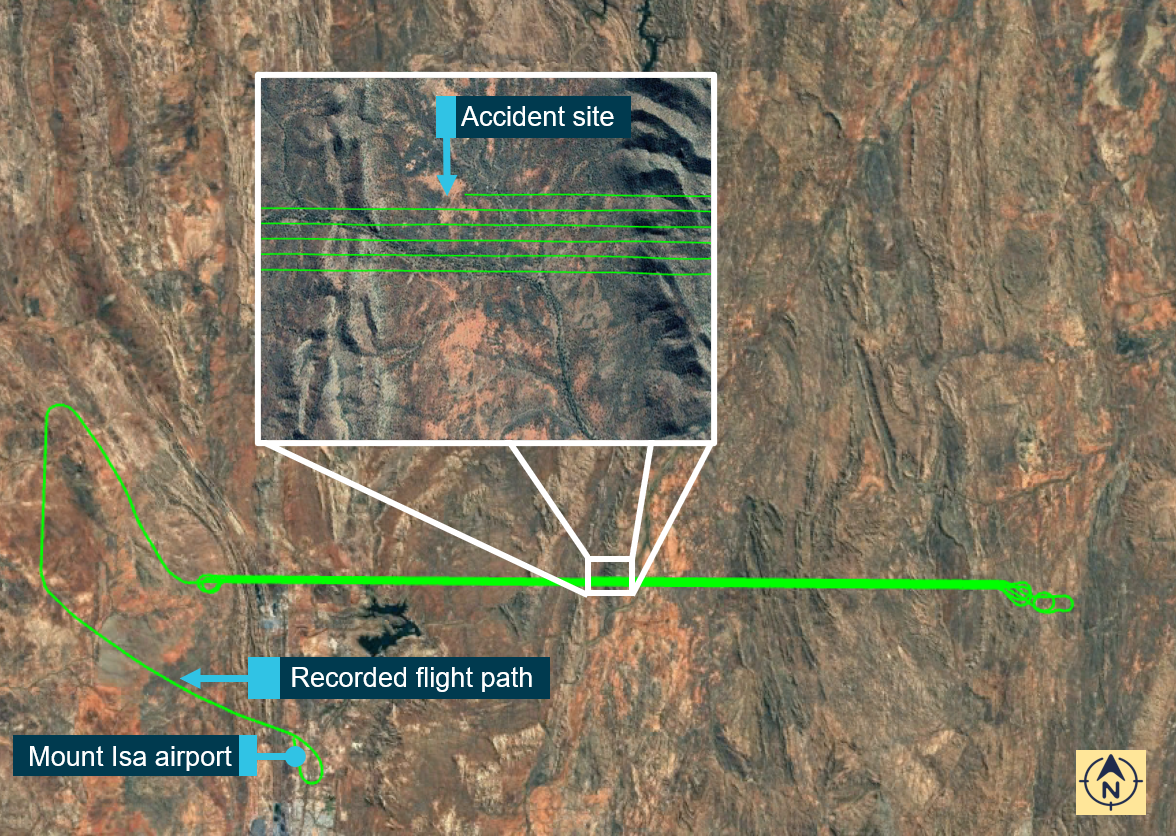

Figure 1: Accident flight overview with the accident site location (inset)

Accident flight overview with the accident site location (inset)

Source: Recovered survey computer data and Google Earth

At 1422, the flight crew commenced surveying in an easterly direction and then progressed northward with each subsequent survey line. One hour and 25 minutes later, at 1547, as the aircraft was flown west along the sixth survey line at a speed of 147 kt and a height of 193 ft AGL, the right wing separated from the aircraft. The structural failure led to a rapid loss of control and collision with terrain.

The accident occurred about 25 km north‑east of Mount Isa Airport. Both crewmembers were fatally injured, and the aircraft was destroyed.

__________

  1. Eastern Standard Time (EST): Universal Coordinated Time (UTC) + 10 hours.
Context

Personnel information

Pilot

The pilot held a Commercial Pilot Licence (Aeroplane), a current Class 1 medical certificate and had accumulated about 3,955 hours of aeronautical experience. In the 90 days preceding the occurrence, the pilot had flown about 105 hours, all of which were in the C210 aircraft type.

Observer

The observer also held a Commercial Pilot Licence (Aeroplane), a current Class 1 medical certificate and had accumulated about 1,565 hours of aeronautical experience. In the 90 days preceding the occurrence, the observer had flown 3 hours (none of which were in a C210) and completed a gas turbine engine endorsement.

Meteorological data

A meteorological report for Mount Isa Airport, recorded at 1600, (13 minutes after the accident) included a south-easterly wind of 8 kt, visibility greater than 10 km, broken cloud[2] at 9,221 ft above mean sea level (AMSL) and a temperature of 28 °C.

Aircraft details

Cessna 210

The Cessna Aircraft Company (Cessna) 210 is a high cantilever wing, piston-engine aircraft with a three-blade variable-pitch propeller and retractable tricycle landing gear (Figure 2). While suitable for the operation, the aircraft was not designed for dedicated low-level survey operations and was normally fitted with six seats for the transportation role.

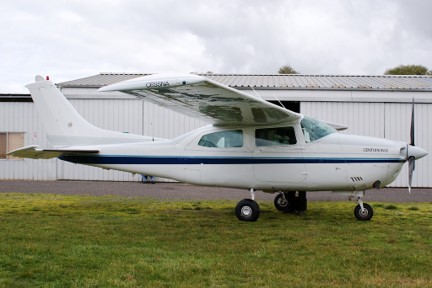

Figure 2: An unmodified Cessna T210M

Figure 2: An unmodified Cessna T210M

Source: Phil Vabre

The aircraft type was produced and certified under United States Civil Air Regulations Part 3, effective 15 May 1956. Part 3 of the Civil Air Regulations did not require the calculation or provision of a defined fatigue life (see the section titled Airframe fatigue). The regulations required the aircraft designer to:

‘…avoid points of stress concentration where variable stresses above the fatigue limit are likely to occur in normal service’.

During the period the aircraft type was manufactured, it underwent many variations and improvements. Often, when the manufacturer incorporated a variation, this was denoted by a change in the suffix letter of the aircraft designator. This commenced with the C210 and C210A, progressing alphabetically until the last manufactured model, the C210R which was released in 1985. Turbocharged and pressurised models were prefixed as T210 and P210, respectively.

Early C210 models incorporated a strut-braced wing design. Commencing with the manufacture of the C210G model, the wing design was changed to a cantilever design removing the supporting struts of earlier models (Figure 3). The C210G was the first model to incorporate a carry-through structure, similar to that of SUX. The cantilever wing design continued through all subsequent models of the C210 until production concluded in 1986. In all, about 9,300 C210 type aircraft were produced by Cessna of which 7,225 had the cantilever wing design. Of these, 4,296 (models G through to M) had the same wing carry-through section as SUX.

In 1992, the Textron industrial conglomerate purchased Cessna. At the time of the accident, Textron Aviation provided support for the aircraft type.

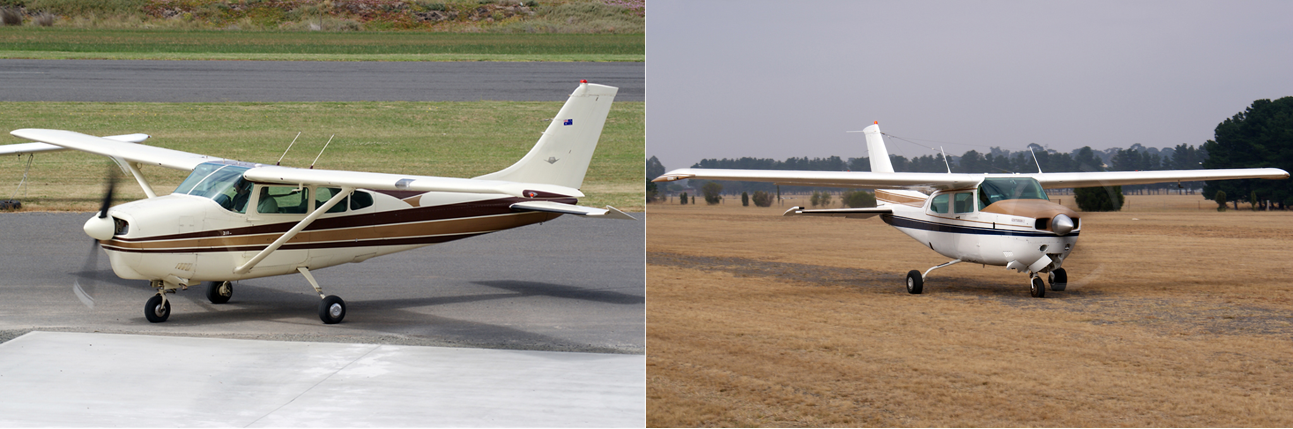

Figure 3: A 1960 C210A with wing struts (left) and a 1980, cantilever winged, C210N (right)

Figure 3: A 1960 C210A with wing struts (left) and a 1980, cantilever winged, C210N (right)

Source: Phil Vabre

Wing spar carry-through structure

The wing spar carry-through is the primary structural element for carrying cantilever wing design lateral and bending loads. It comprises a single-piece forging fixed within the roof cavity, straddled directly overhead the front seats within the cabin region (Figure 4). The forging incorporates an I-beam shaped cross-section, with integral lugs at each end for wing attachment. Lugs integral to the forging ends also attached the wing spar carry‑through to the root rib of the upper fuselage.

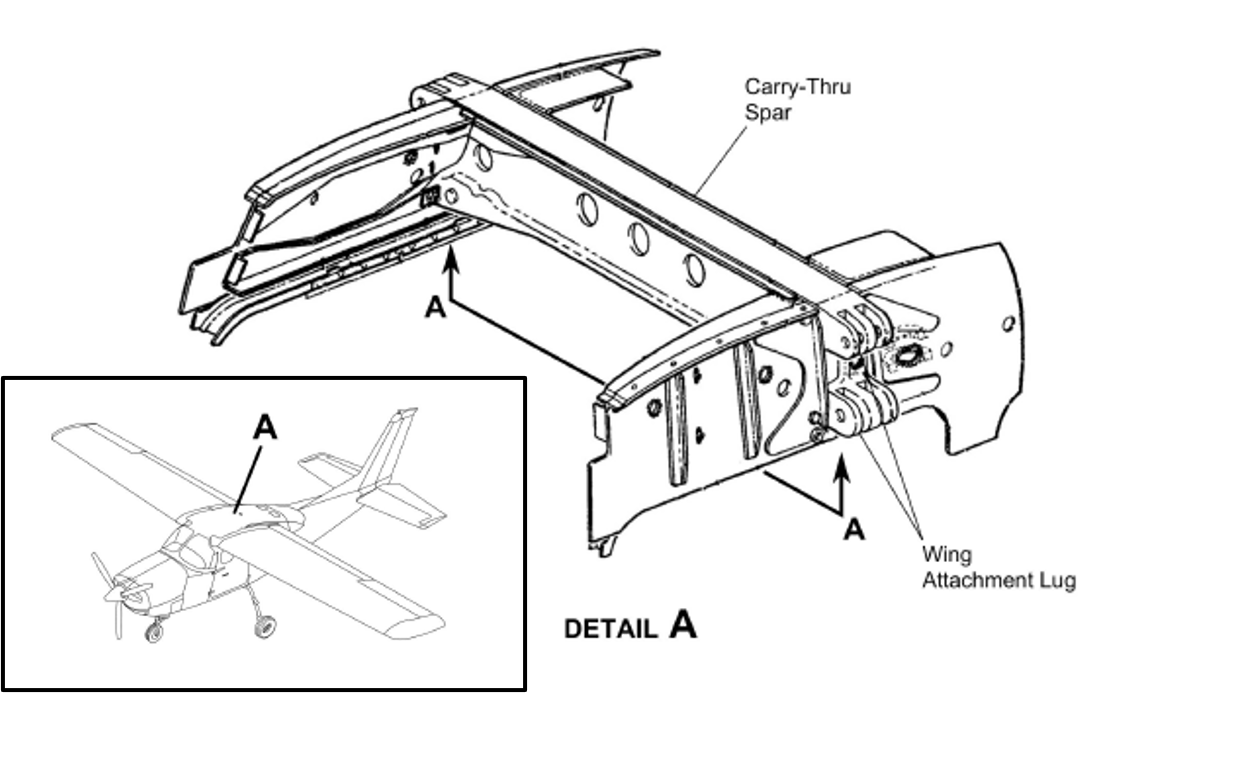

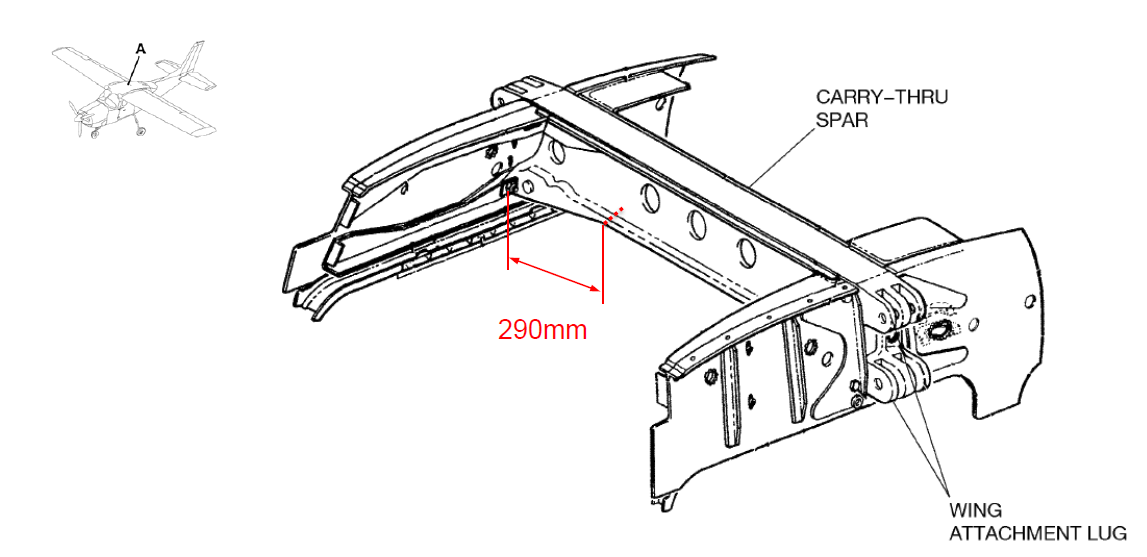

Figure 4: Carry-through structure showing the left-wing attachment points

Figure 4: Carry-through structure showing the left-wing attachment points

Source: Textron, modified by the ATSB

For the C210G to C210M models, the carry-through structure was not painted with corrosion‑inhibiting primer during manufacture and remained either bare metal or coated with a corrosion‑inhibiting (non-primer) coating. For these models, the upper surface of the carry-through structure also formed part of the external top surface of the fuselage to which adjoining external skins were abutted. A foam section was glued to the underside surface of the carry-through structure to provide padding for the cabin headliner.

In service experience showed that in these C210 models, the top surface design allowed moisture ingress and the foam section also absorbed and retained moisture. This led to the carry-through underside surface being susceptible to corrosion damage, particularly in the region of the foam pad. Therefore, beginning with the C210N model, the design was changed to reduce corrosion susceptibility. These changes included the outer metal skin passing over and enclosing the carry‑through top surface. The structure was also coated during manufacture with a corrosion inhibiting primer paint.

Material

Technical documentation supplied by the aircraft manufacturer for the construction of the carry‑through spar specified a 2014-T6-series aluminium alloy, die forged and machined-finished to final dimensional tolerance. The 2014-series wrought aluminium alloys can be precipitation hardened.[3]

Cessna 177

The Cessna 177 (C177) is a four-seat high cantilever wing, piston-engine aircraft built by the Cessna Aircraft Corporation between 1968 and 1978. The C177 incorporated a similar wing spar carry-through structure as the C210.

VH-SUX

The aircraft (serial number 21061042) was manufactured in the United States in 1976 as a turbocharged T210L model which was updated to a T210M model prior to entry into service.[4]

History

From 13 January 1976 until 31 August 1981, the aircraft was owned by the manufacturer, Cessna (Figure 5) and undertook flight testing and transport flights. Excluding the origin and destination of the transport flights, their purpose was unknown. Similarly, the specific nature of the flight testing was for the most part unknown. Flight records listed some as engine test, ice flight test or were referenced simply as ‘flight test’.

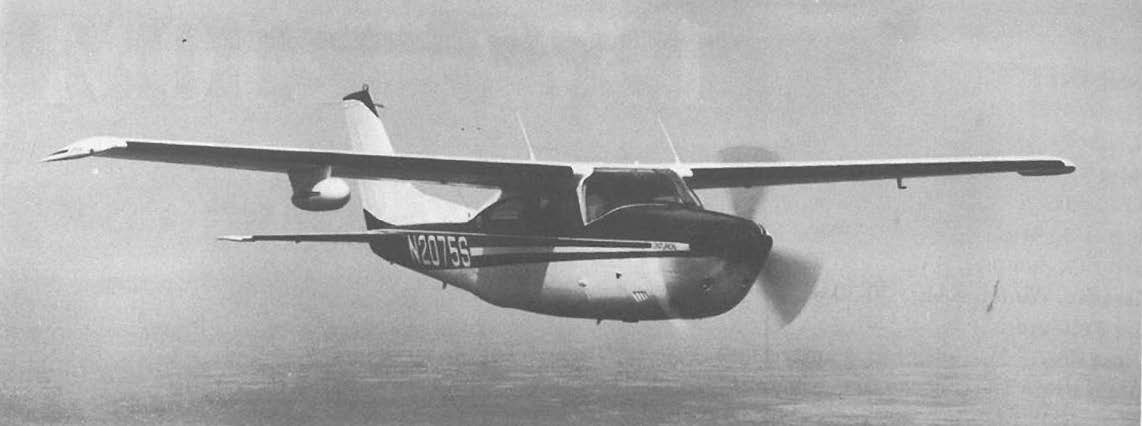

Figure 5: VH-SUX (US registration N2075S) in service with Cessna

Figure 5: VH-SUX (US registration N2075S) in service with Cessna

Source: Cavanagh J & Shields K 1995, Standard catalog of Cessna single engine aircraft p748, Jones publishing, Wisconsin USA

In August 1981, the aircraft was sold by Cessna. At that time, the aircraft had accrued 1,180.3 hours in service. Detailed records of the subsequent use of the aircraft while in the United States were not available.

In 2011 the aircraft was purchased by Thomson Aviation and imported into Australia. At that time, the aircraft had 5,933.8 flight hours in service. After arriving in Australia, the aircraft was modified for geophysical survey work. This included the removal of the passenger seats and the installation of specialised equipment.

In June 2013, the aircraft commenced survey operations. The aircraft conducted 1,739 flights and accumulated 6,241.1 flight hours in the 6 years it was on the Australian register (an average of 3.59 hours per flight). It was operated exclusively as a geophysical survey aircraft during that time.

The maintenance release was recovered from the wreckage and showed that:

  • There were no outstanding defects or maintenance requirements.
  • The last scheduled maintenance was a 110 hourly inspection conducted on 17 May 2019, 9 days prior to the accident, at 12,117.2 hours in service.
  • The total time in service before the accident flight was 12,174.9 flight hours.

Suitability for operation

The aircraft was used in the geophysical survey role as the C210 provided an economical platform which combined good speed, manoeuvrability, and its design provided maximum magnetic sensor performance. At the time of the accident, Thomson Aviation utilised five C210 aircraft for geophysical survey operations.

Modifications

Numerous modifications were incorporated into the aircraft during its service life as shown in Tables 1 and 2:

Table 1: Modifications incorporated in the United States.

Date

Modification

Note

1979

Conversion from L to M model



August 1981

Complete de-ice system installation

Removed June 2013

August 1981

Fuel system modification



March 2001

Increase in maximum gross weight from 1,723 kg to 1,814 kg

At 4,662 hours in service

July 2010

Turbo-charged Continental TSIO-520 engine replaced with a naturally-aspirated Continental IO-550-P3B engine and matched propeller



Table 2: Modifications incorporated in Australia

Date

Modification

Note

June 2013

·      auxiliary fuel tanks installed in the left and right wing tips

·      radio altimeter installed

·      weather radar removed

·      satellite telephone system installed

·      survey equipment, including tail magnetometer, installed

·      four-point harnesses installed in pilot and observer positions



Figure 6 shows SUX in its modified configuration for geophysical survey flights, including the magnetometer boom.

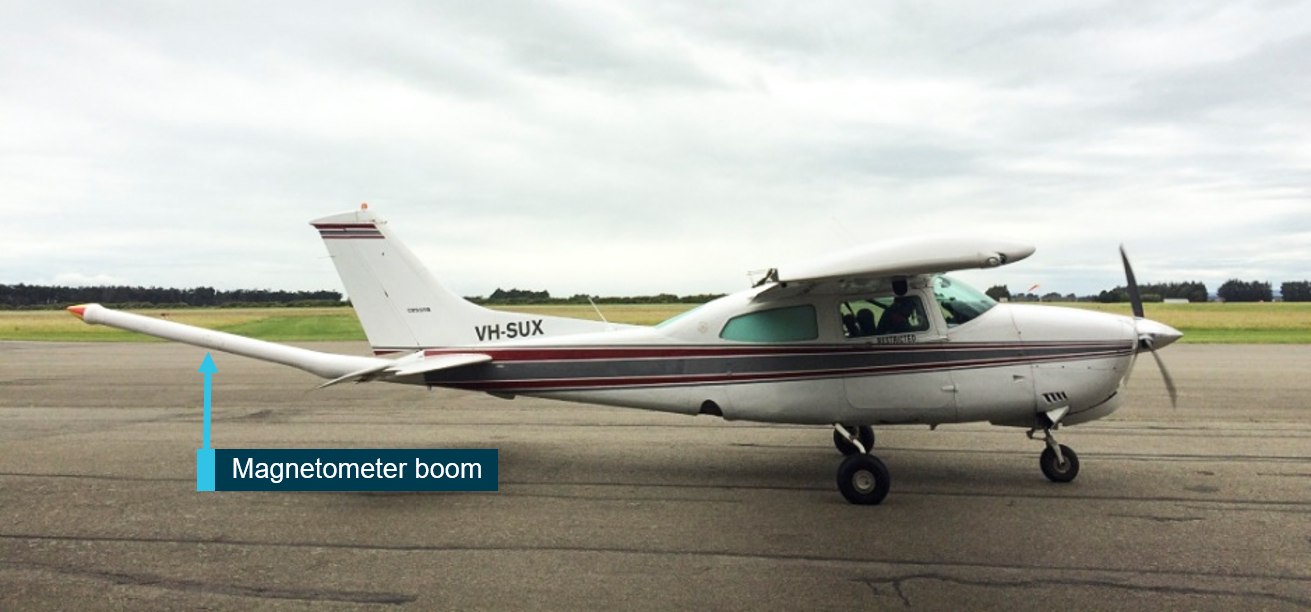

Figure 6: VH-SUX (as configured at the time of the accident)

Figure 6: VH-SUX (as configured at the time of the accident)

Source: Aircraft operator, annotated by the ATSB

Auxiliary fuel tanks

The aircraft was fitted with auxiliary fuel tanks providing an additional 125 litres of fuel capacity under a United States Federal Aviation Administration (FAA) supplemental type certificate (STC).[5] These comprised an additional fuel tank in each wing tip from which the pilot could transfer fuel to the main fuel tanks using selectable electric pumps.

This installation included the following operational limitation:

For Models 210K, T210K, 210L, T210L, 210M, T210M, and 210N: “Design weights 3,800 lbs (1,723 kg). max. provided each wing tip contains 7 gallons (26.5 L) or more fuel and main tanks are 2/3 full or more. 3530 lbs (1,601 kg). max. with no fuel in wing tips.”

The 1,723 kg maximum weight limitation of the auxiliary fuel tank installation conflicted with a previous FAA STC modification increasing maximum weight to 1,814 kg. The operational documentation provided for the aircraft did not provide a resolution to this conflict. The operator’s documentation for the aircraft listed the maximum take-off weight of 1,723 kg. The operator also advised that it was not aware of the modification increasing maximum gross weight to 1,814 kg and that all Australian operations had been undertaken with 1,723 kg as the assumed maximum allowable gross weight.

Aircraft loading

Standard loading for survey operations was one crewmember and full main and tip fuel tanks. This resulted in a take-off weight of about 1,672 kg and ensured the centre of gravity remained within balance limits.

For the accident flight, the main fuel tanks were reportedly filled but the wing tip tanks were left empty. This was done to ensure the total weight remained below 1,723 kg while allowing for the increased weight of the observer.

The weight and balance of the accident flight was estimated using:

  • recorded aircraft weight and balance data
  • the estimated weights of the pilot, the observer, and their personal belongings
  • the weight of the fuel reported to have been on board.

The aircraft was calculated to have been inside balance limits with a take-off weight of 1,644 kg. This was 43 kg above the 1,601 kg maximum allowable weight for operations with the wing tip fuel tanks empty

The maximum weight limitation for operation with tip tanks empty is intended to maintain similar bending loads for the wing and carry-through structure as those of an unmodified aircraft. Operations exceeding this weight without fuel in the tip tanks will increase fatigue damage accumulation within the carry‑through structure (see the section titled Accident flight weight limit exceedance).

Operational information

Geophysical survey

The operation was a geophysical survey of a large area of land surrounding Mount Isa (Figure 7). The flight was to be conducted at a target height of 60 m (200 ft) AGL and the normal C210 cruise speed of about 150 kt along parallel east and west lines, spaced about 90 m apart. These were supplemented by north and south data quality assurance survey lines spaced about 200 m apart (Figure 8).

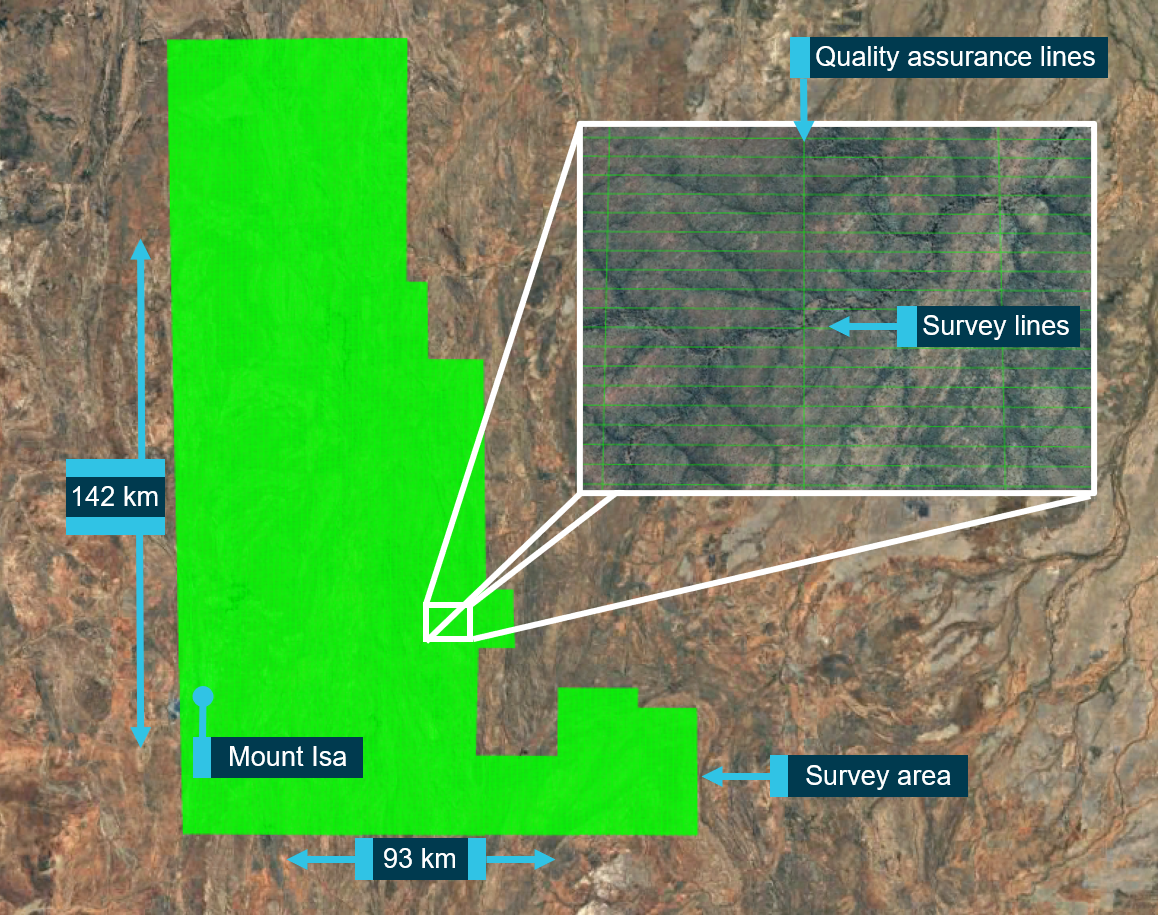

Figure 7: Overview of Mount Isa survey area with a close-up of the survey pattern (inset)

Figure 7: Overview of Mount Isa survey area with a close-up of the survey pattern (inset)

Source: Operator and Google Earth, annotated by the ATSB

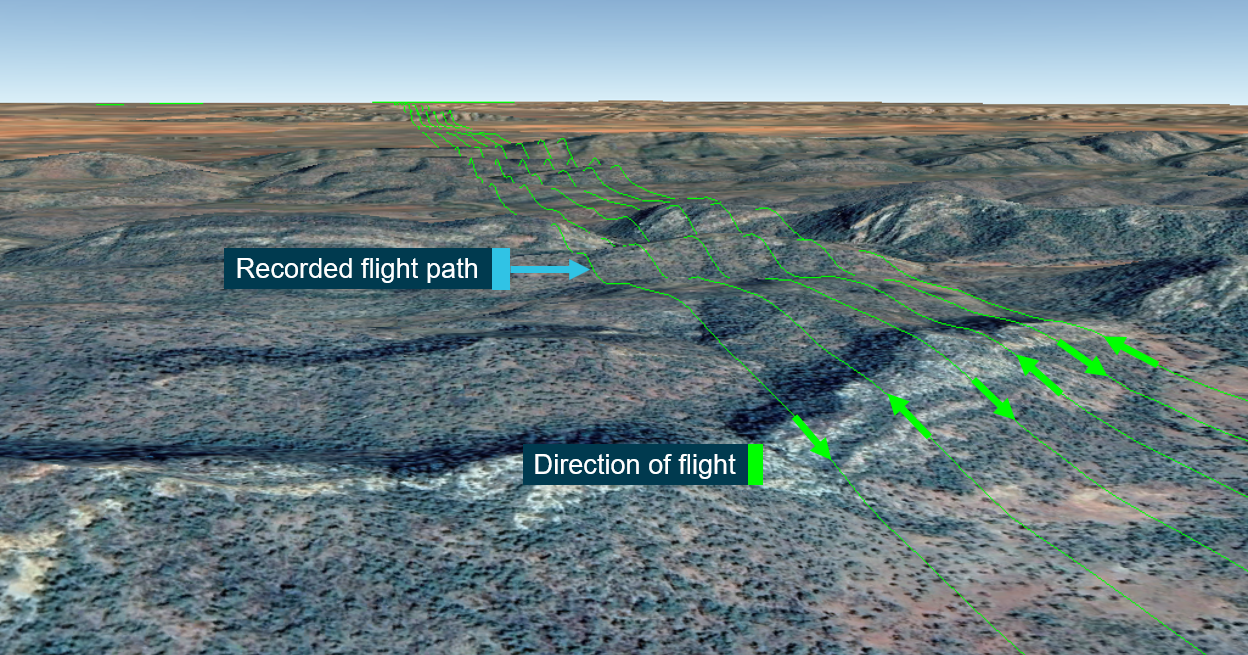

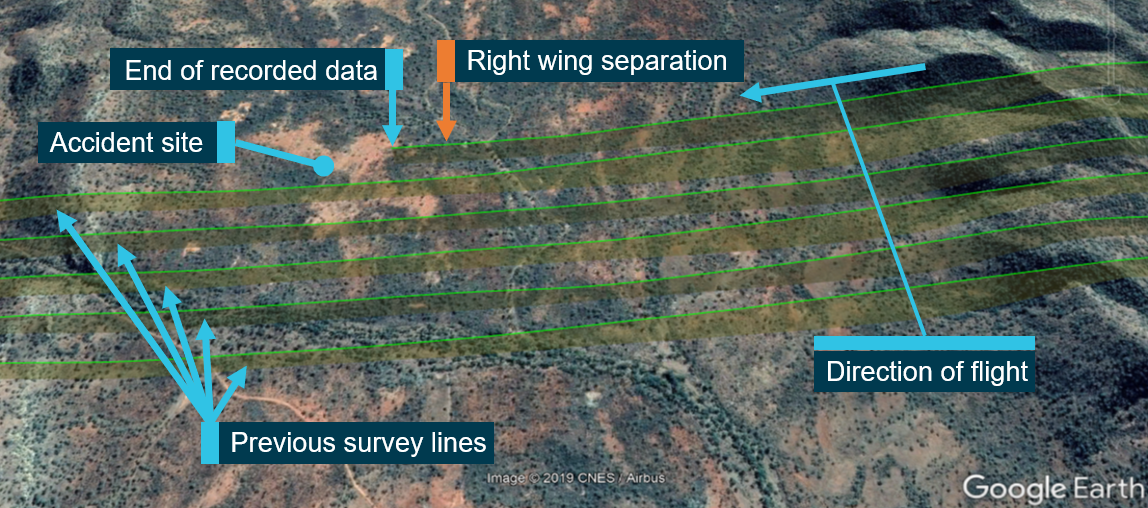

Figure 8: Recorded GPS flight path of accident flight

Figure 8: Recorded GPS flight path of accident flight

Source: Recovered survey computer data and Google Earth, annotated by ATSB

Topography

The topography of the survey area included rugged hills separated by undulating valleys. The predominant vegetation was low open woodland over spinifex hummock grassland. The elevation range of the survey area varied from 1,000 ft to 1,700 ft AMSL.

Flight profile and maneuvering

As the survey flight path encountered terrain or obstacles along a survey line, the pilot climbed and descended the aircraft within the operational and performance limitations of the aircraft to maintain the target height as closely as possible. This resulted in a ‘draping’[6] flight profile (Figure 9). At the completion of each survey line, the pilot climbed the aircraft to about 500 ft AGL and performed a turn at about 45° angle of bank to commence the next survey line in the opposite direction.

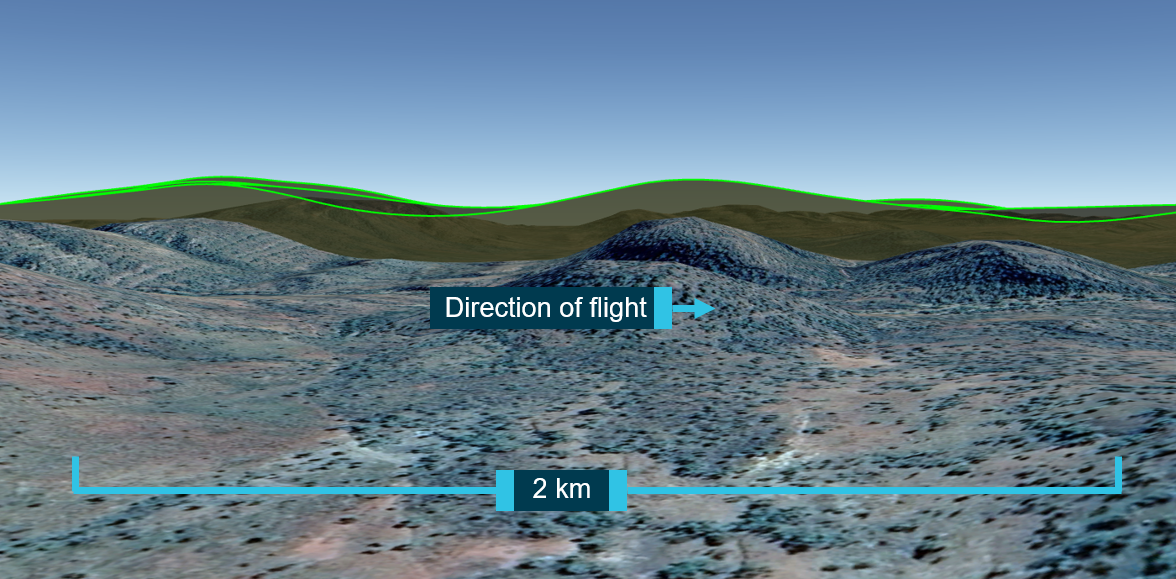

Figure 9: Depiction of the accident flight recorded GPS data showing the terrain following (‘draping’) profile

Source: Recovered survey computer data and Google Earth, annotated by ATSB Topography The topography of the survey area included rugged hills separated by undulating valleys. The predominant vegetation was low open woodland over spinifex hummock grassland. The elevation range of the survey area varied from 1,000 ft to 1,700 ft AMSL.  Flight profile and maneuvering As the survey flight path encountered terrain or obstacles along a survey line, the pilot climbed and descended the aircraft within the operational and performance limitations of the aircraft to maintain the target height as closely as possible. This resulted in a ‘draping’  flight profile (Figure 9). At the completion of each survey line, the pilot climbed the aircraft to about 500 ft AGL and performed a turn at about 45° angle of bank to commence the next survey line in the opposite direction. Figure 9: Depiction of the accident flight recorded GPS data showing the terrain following (‘draping’) profile

Gust loading (turbulence)

At the low levels of the survey flight profile, the survey aircraft were often affected by mechanical and thermal turbulence.[7] Other survey pilots reported that turbulence experienced during survey flights was often severe. The operator had instructed the survey pilots to use their judgement to determine when the turbulence became too severe to continue survey operations.

Crewing

Normal crewing for a survey flight was one pilot.

In addition to the pilot, the accident flight also carried an observer. The observer was a pilot for the operator and had recently arrived in Mount Isa to join the ongoing survey as an operating pilot. As was the operator’s normal practice, prior to commencing survey operations, a flight was operated with the new pilot in an observer role. The purpose of the observation was to familiarise this incoming pilot with the survey area including the pattern, airport, and topography.

Wreckage and site information

The accident site was located about 25 km north-east of Mount Isa Airport in flat, arid scrub land (Figure 10). The wreckage trail was on an approximate east to west heading, in line with the survey flight path. The right wing (Figure 11) was the first major component in the wreckage trail and was located about 130 m from the main wreckage. The aircraft impacted terrain about 90 m from the right wing, coming to rest a further 40 m away.

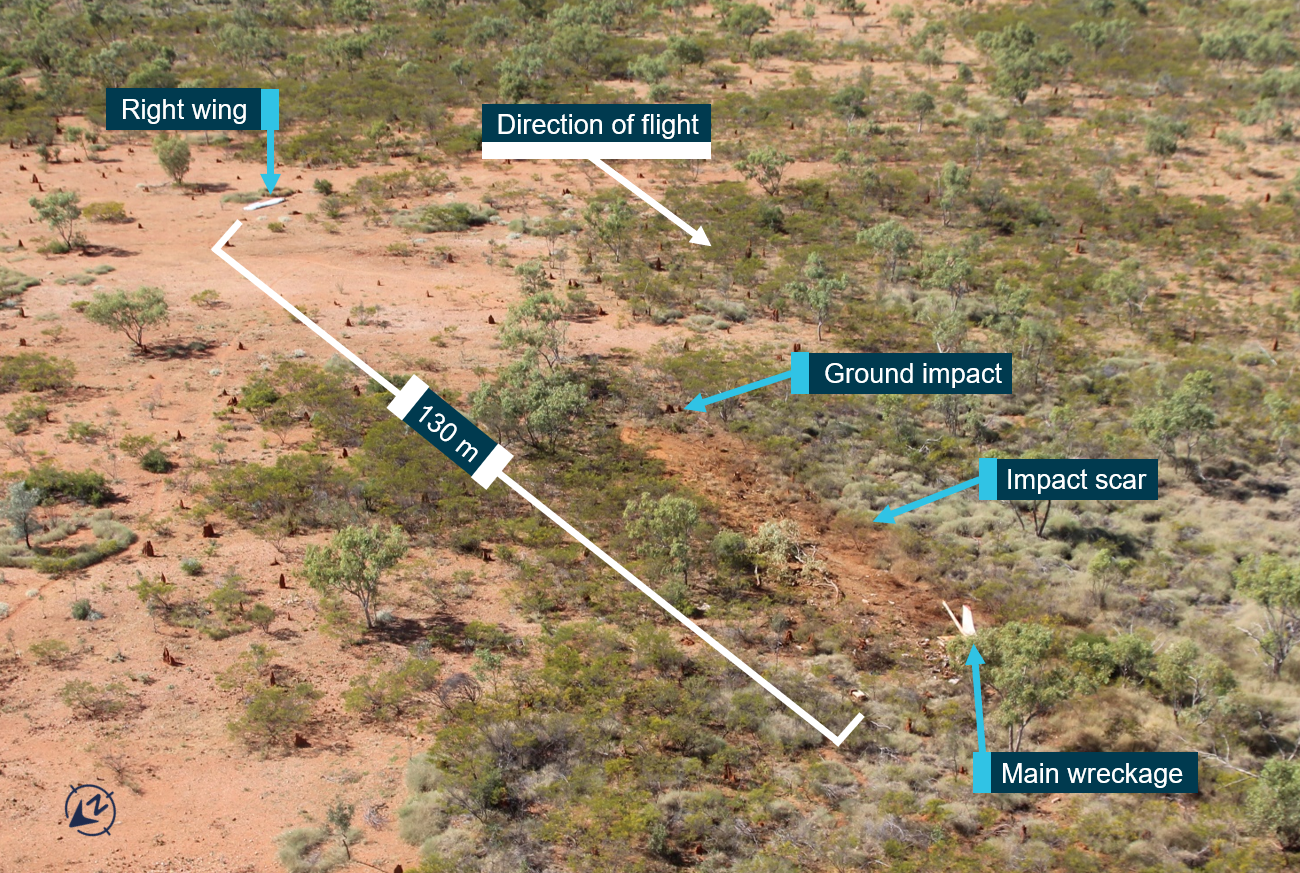

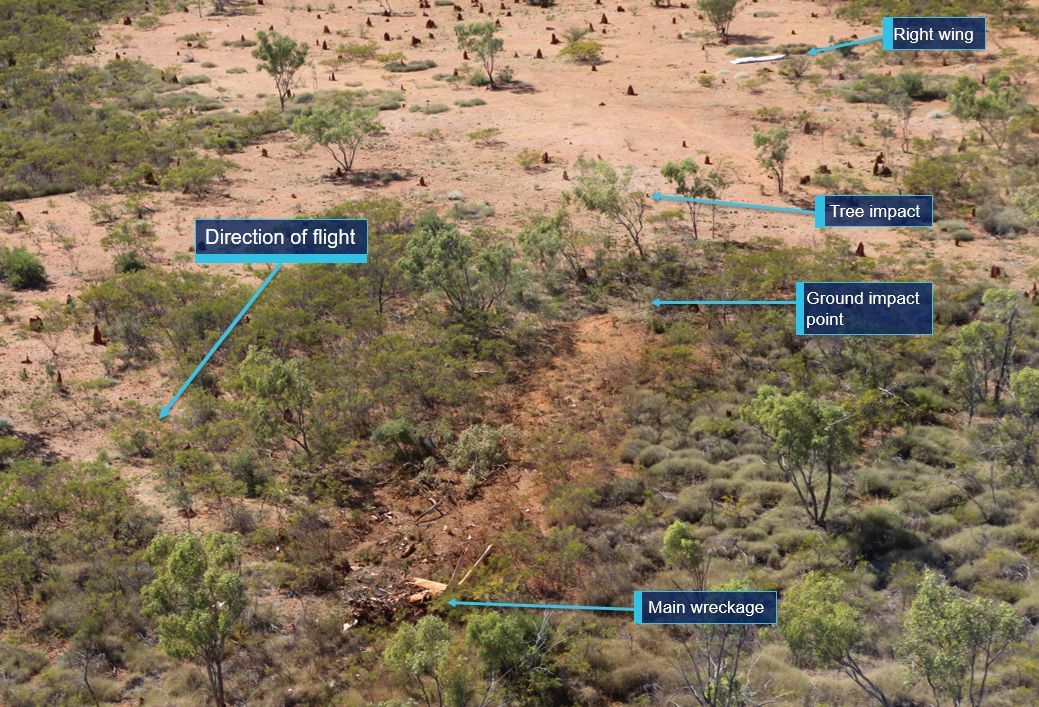

Figure 10: Accident site overview looking south‑east

Figure 10: Accident site overview looking south east

Source: ATSB

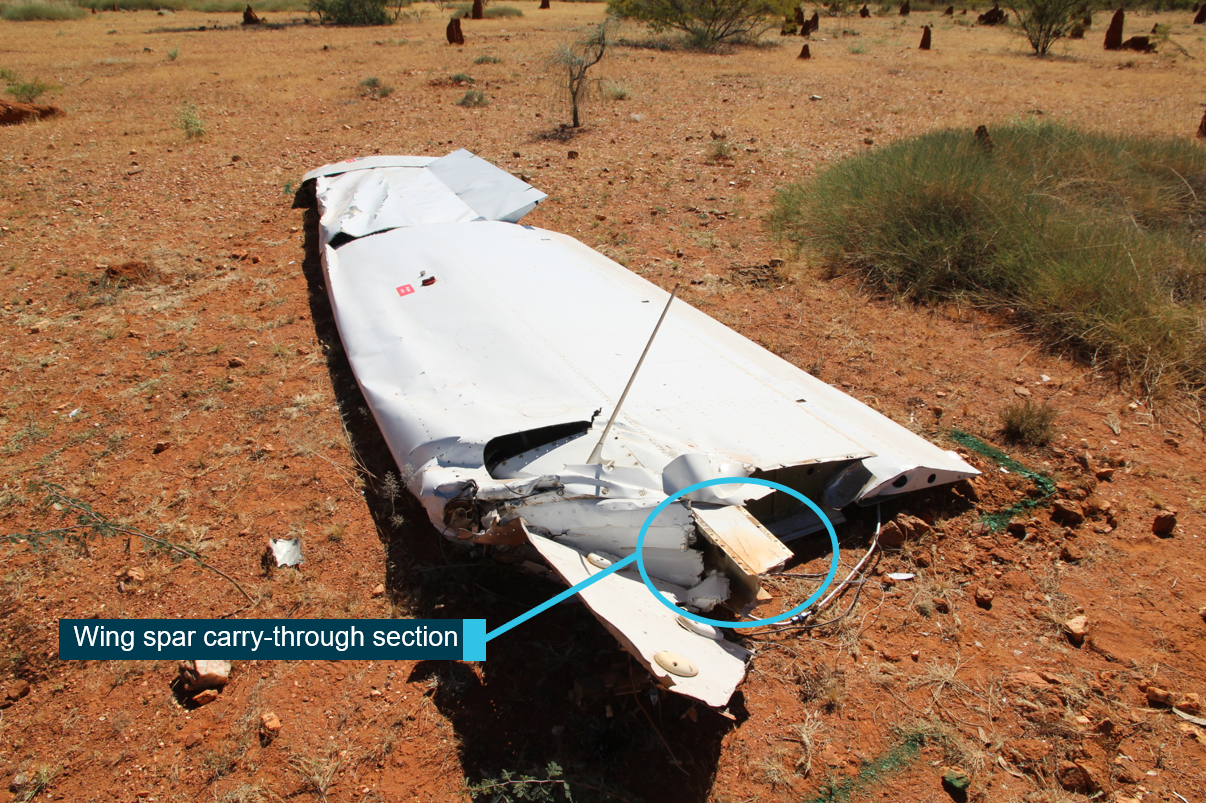

Figure 11: Separated right wing viewed from the inboard end

Figure 11: Separated right wing viewed from the inboard end

Source: ATSB

All major aircraft components were accounted for at the site. The structure was significantly disrupted with the aircraft fuselage, tail, and left wing located towards the end of the wreckage trail. The left wing was fractured into two pieces, resting upside down and in the opposite direction to flight. The wing spar carry-through structure attached to the left wing showed a fracture surface that corresponded with the remaining carry-through section from the right wing (Figure 12).

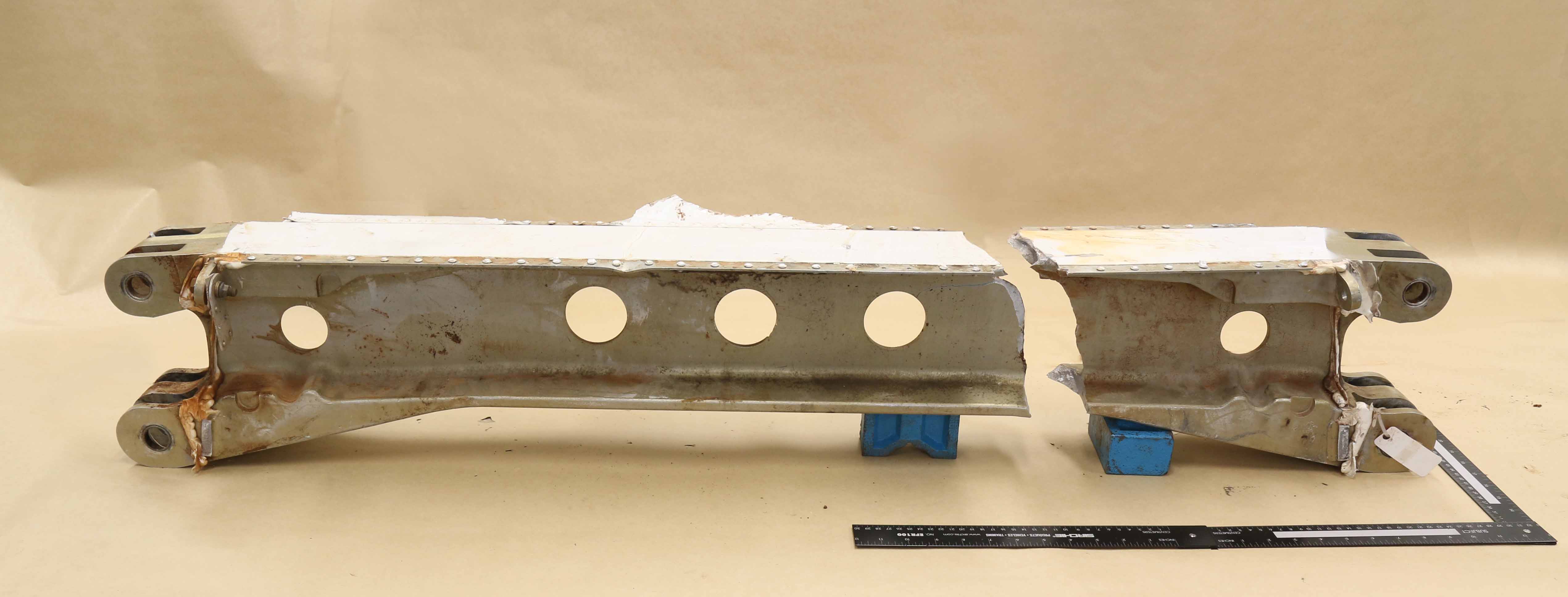

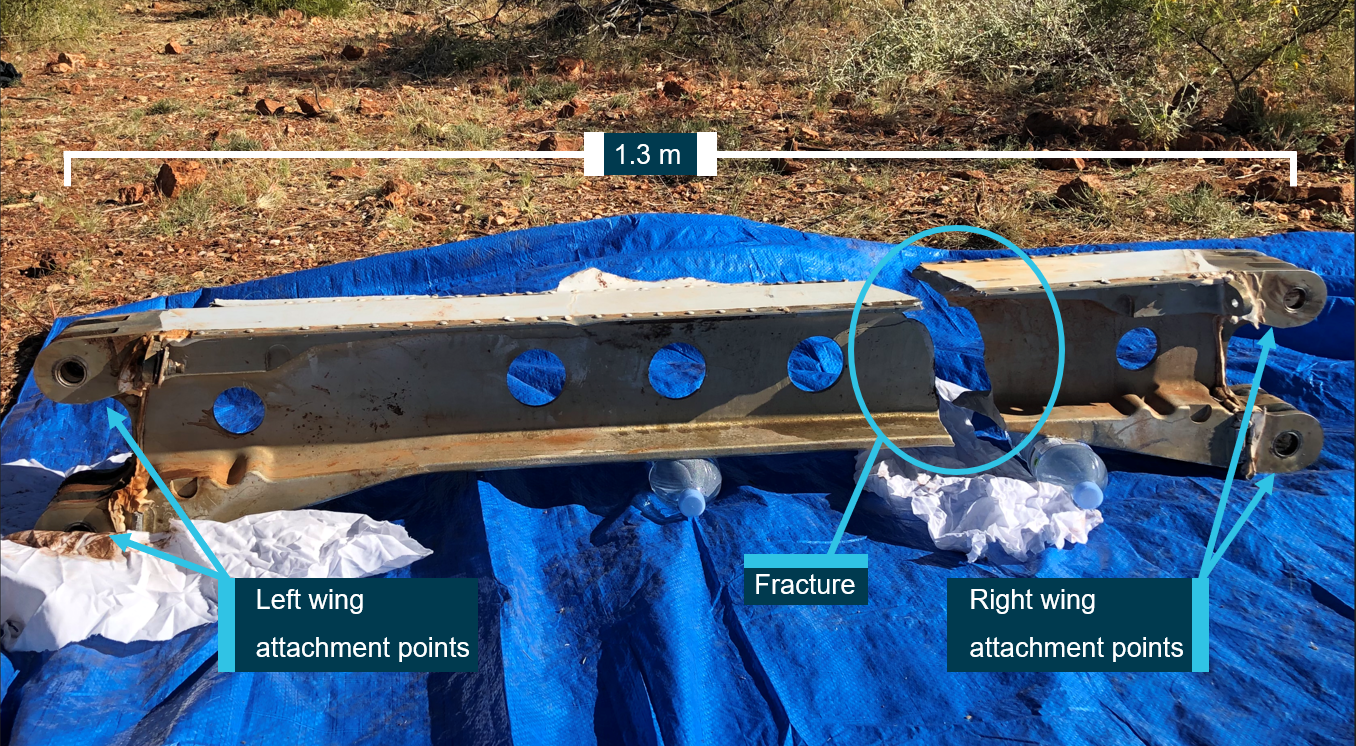

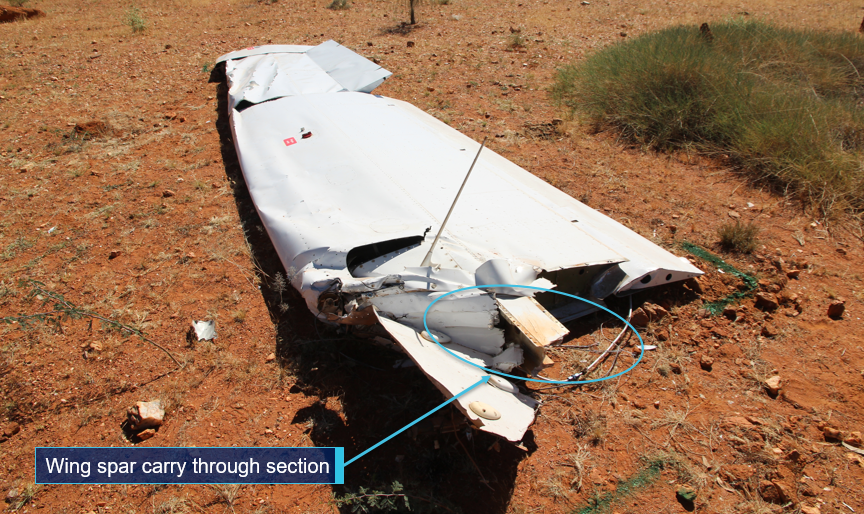

Figure 12: The fractured carry-through structure as removed from the wreckage viewed from the rear

Figure 12: The fractured carry-through structure as removed from the wreckage viewed from the rear

Source: ATSB

On-site site examination of the wreckage indicated the right wing and part of the wing spar carry‑through (see the section titled Wing spar carry-through structure) had separated from the aircraft. Preliminary examination of the carry-through spar identified that it had fractured through an area of pre-existing fatigue cracking inboard of the wing attachment lugs (Figure 13).

The carry-through structure was removed from the accident site and transported to the ATSB technical facilities in Canberra for detailed metallurgical examination.

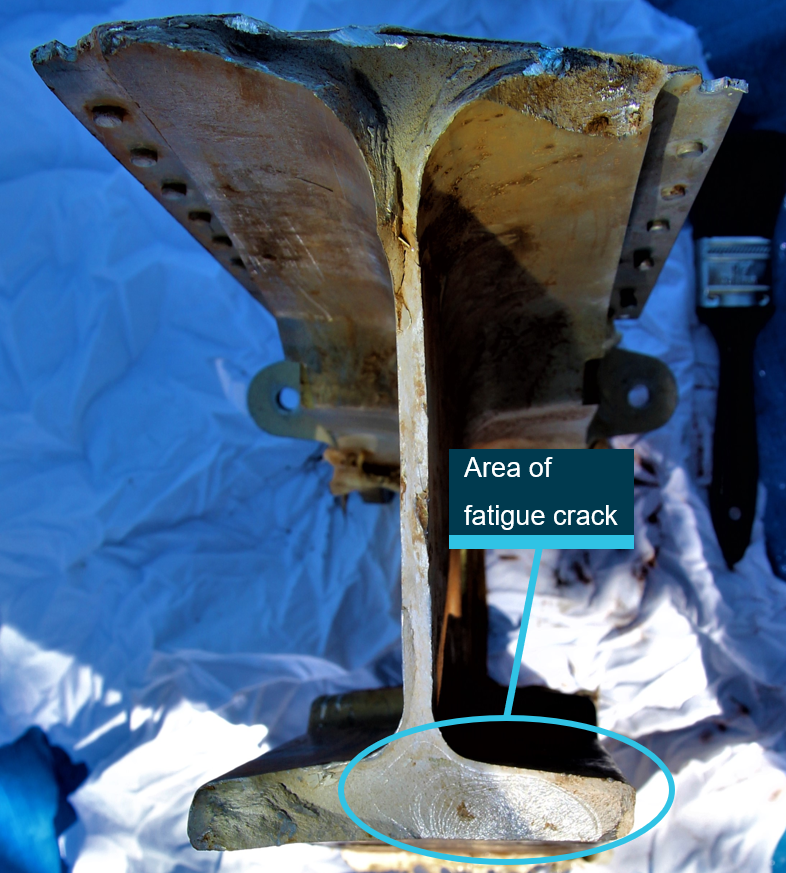

Figure 13: Main spar carry-through fracture surface showing area of fatigue cracking on the lower spar cap

Figure 13: Main spar carry-through fracture surface showing area of fatigue cracking on the lower spar cap

Note: The two brown blemishes in the area of fatigue cracking were substances deposited onto the fracture surfaces during the accident.

Source: ATSB

Further examination of the wreckage was limited by the extensive damage to the aircraft. However, the evidence indicated that the engine was driving the propeller at impact. Other than the wing spar carry-through structure cracking, no pre-existing defects were identified.

Metallurgical examination

Visual examination

A visual inspection of the carry-through structure showed that it had fractured just outboard of a thickness transition between the wing lug base region and the central beam; approximately 290 mm from the right root rib attachment lug (Figure 14).

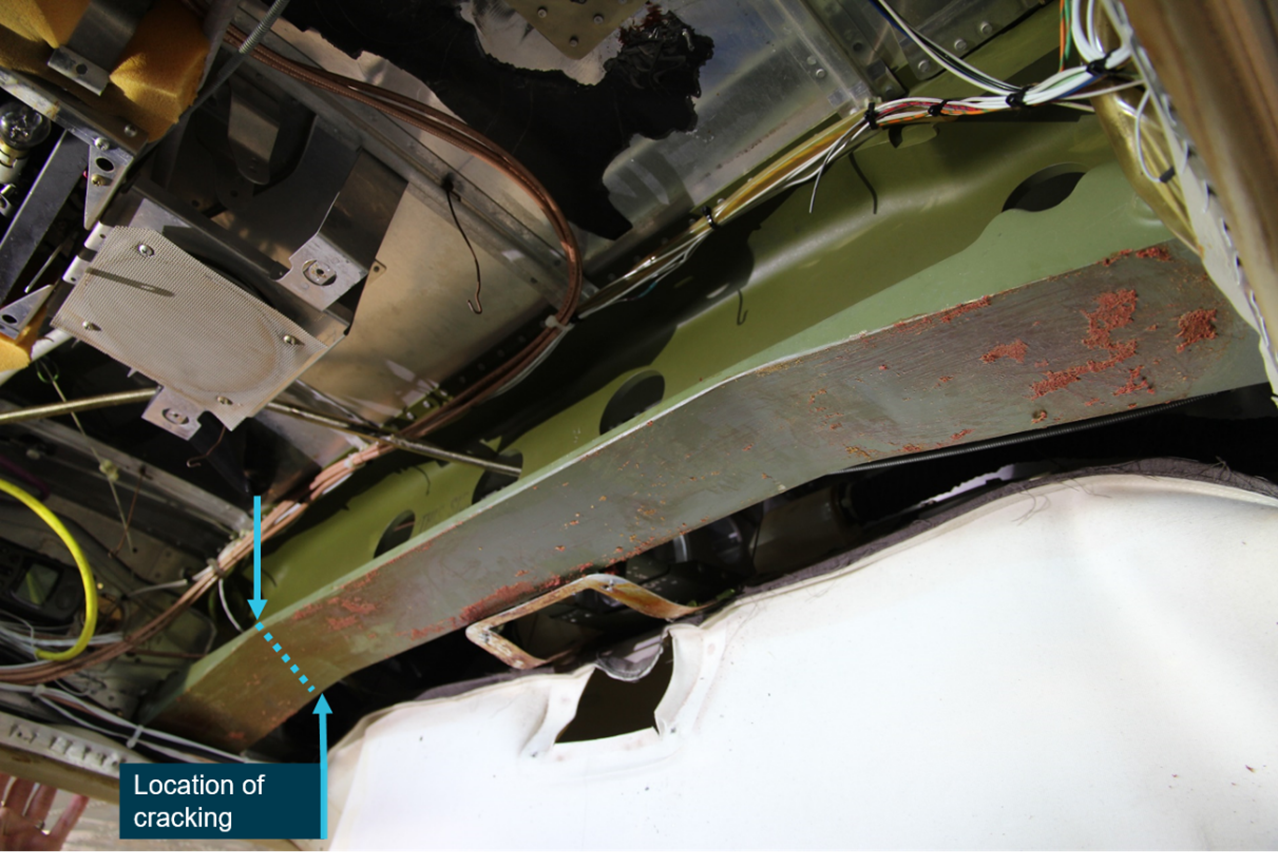

Figure 14: An exemplar Cessna 210N wing spar showing the approximate location where cracking had developed on the carry-through from SUX

Figure 14: An exemplar Cessna 210N wing spar showing the approximate location where cracking had developed on the carry-through from SUX

Note: This C210N wing spar carry through was coated during manufacture with a corrosion inhibiting primer paint.

Source: Civil Aviation Safety Authority, annotated by the ATSB

Almost the entirety of the spar was a light yellow/green colour, which was consistent with the application of the specified corrosion inhibiting chromate surface film. No evidence was found to indicate the chromate had been reapplied since manufacture. The foam section normally glued to the underside surface of the carry-through structure was absent. The uppermost portion of the spar had been painted white, consistent with the C210M design where that portion of the spar formed a segment adjoining the external roof skin panels of the aircraft (Figure 15).

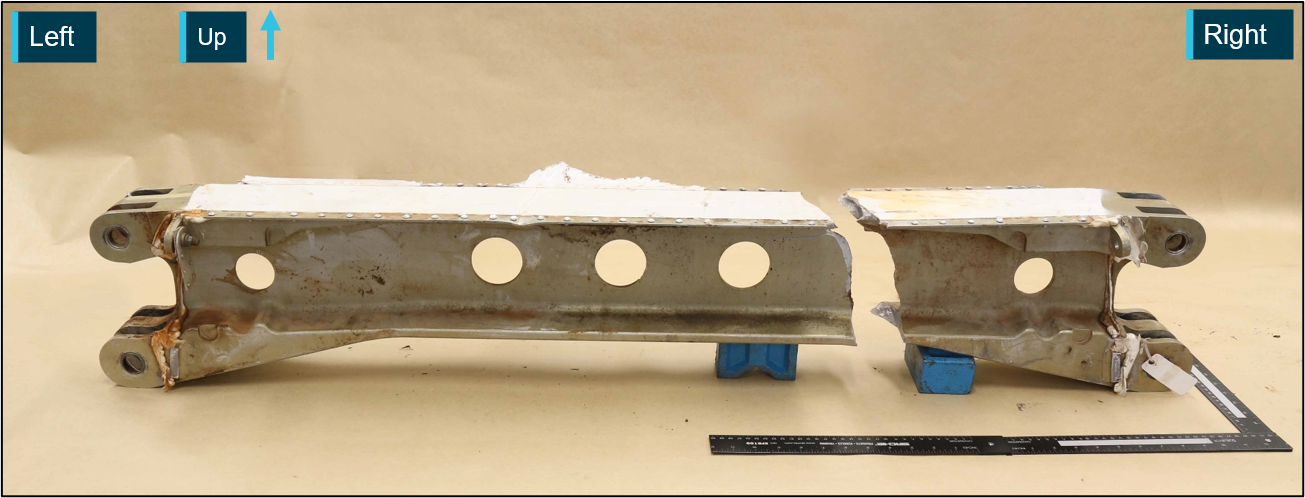

Figure 15: The carry-through spar in the ATSB laboratory

Figure 15: The carry-through spar in the ATSB laboratory

Source: ATSB

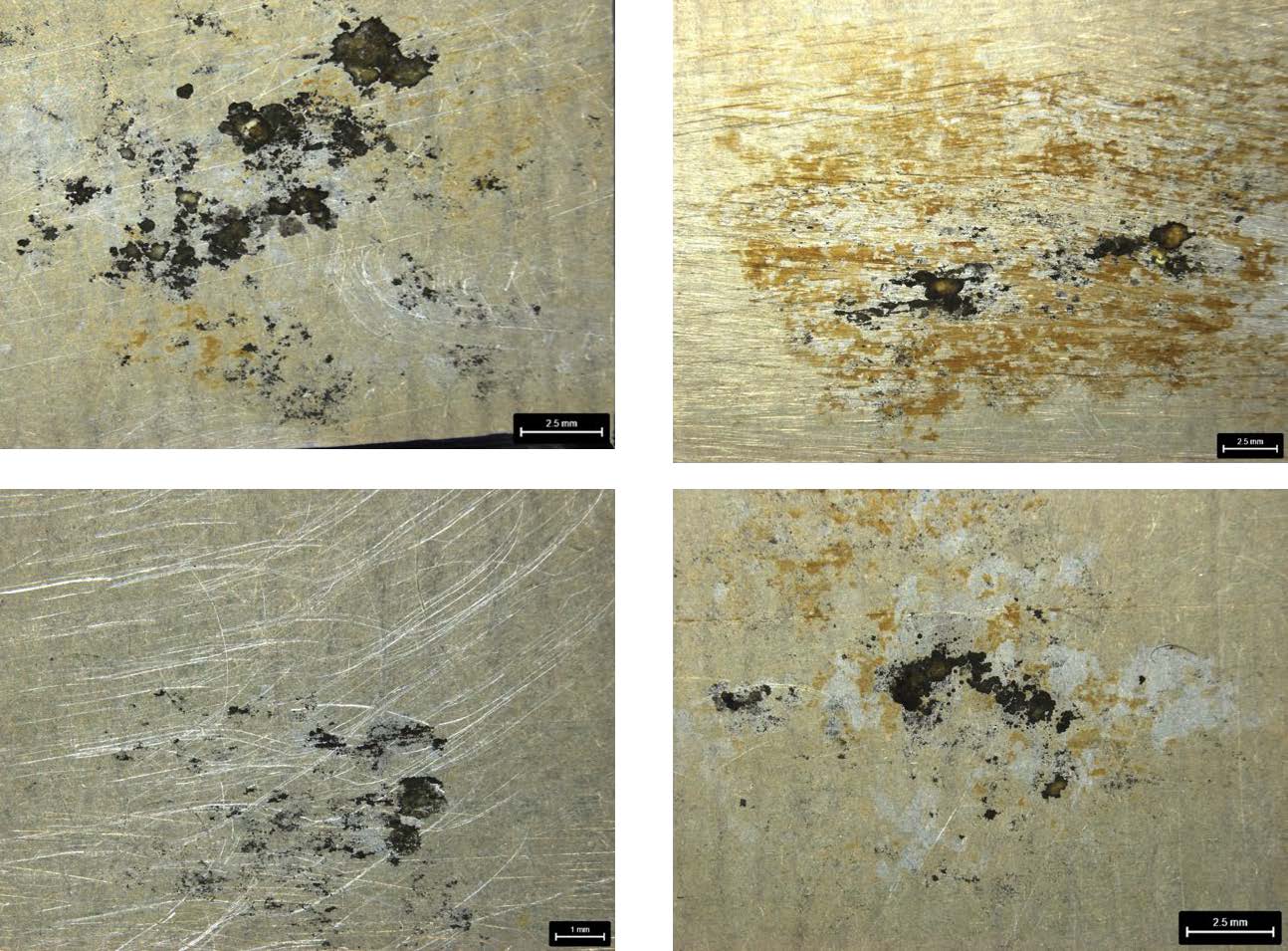

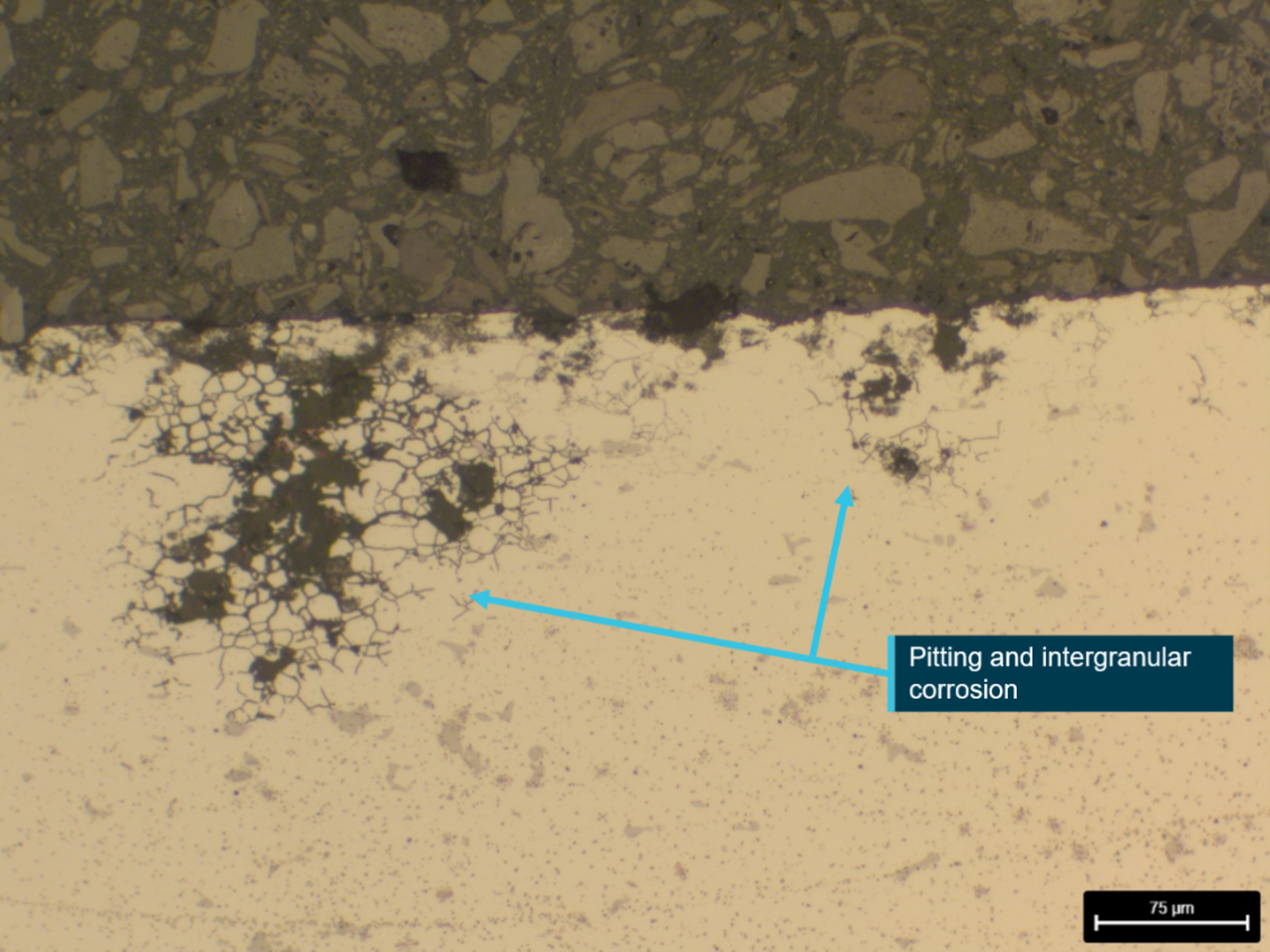

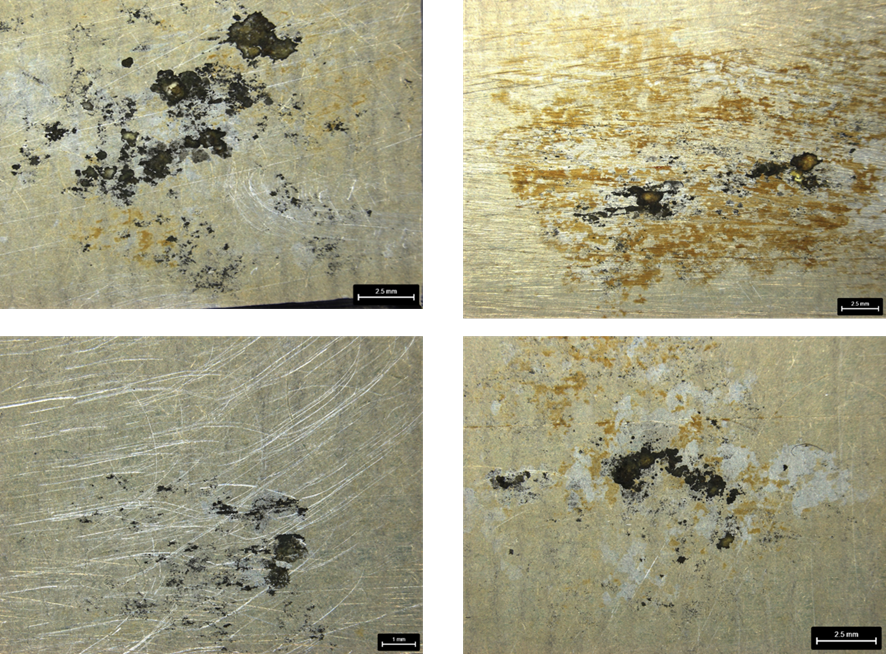

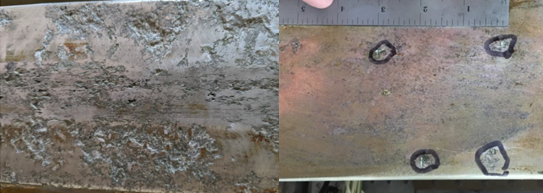

The visual examination also identified that pitting corrosion damage had developed at multiple discrete locations along the underside surface of the spar (Figure 16). The corrosion damage was also identified adjacent to the fracture plane and confined to the underside surface with no evidence of corrosion on other parts of the structure.

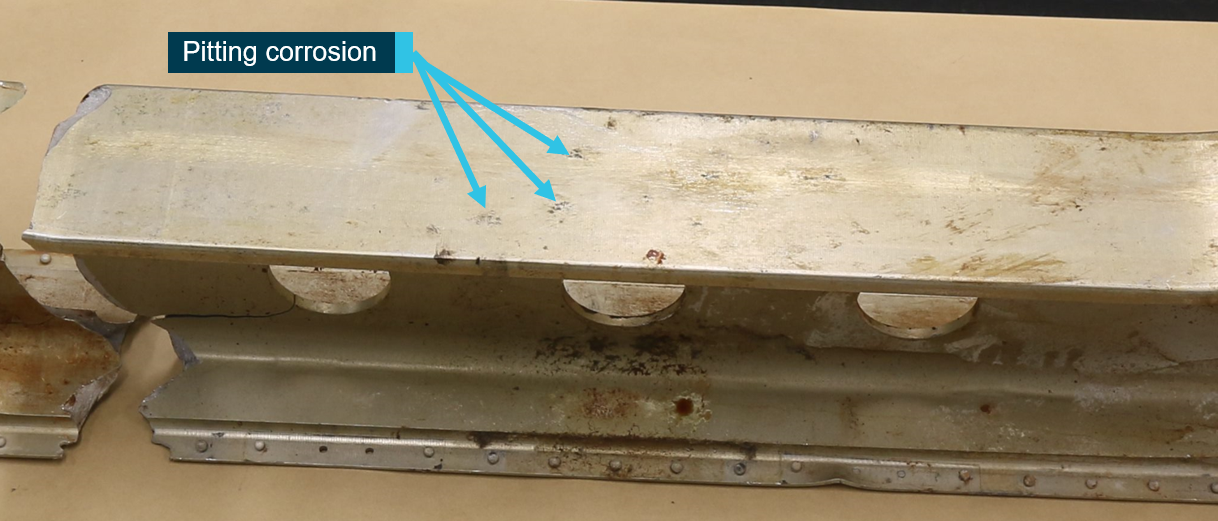

Figure 16: Carry-through underside surface showing pitting corrosion.

Figure 16: Carry-through underside surface showing pitting corrosion

Source: ATSB

Fracture surfaces

The fractured section of the carry-through spar was examined at varying magnifications using a binocular microscope. The lowermost section of the carry-through spar contained two separate failure mechanisms. Most obvious, was a region of generally flat fracture containing a series of concentric marks (beach marks), consistent with the typical appearance of fatigue cracking (Figure 17). The remaining regions on the fractured spar presented a dull, fibrous and angular appearance consistent with ductile fracture from overstress conditions (Figure 18).

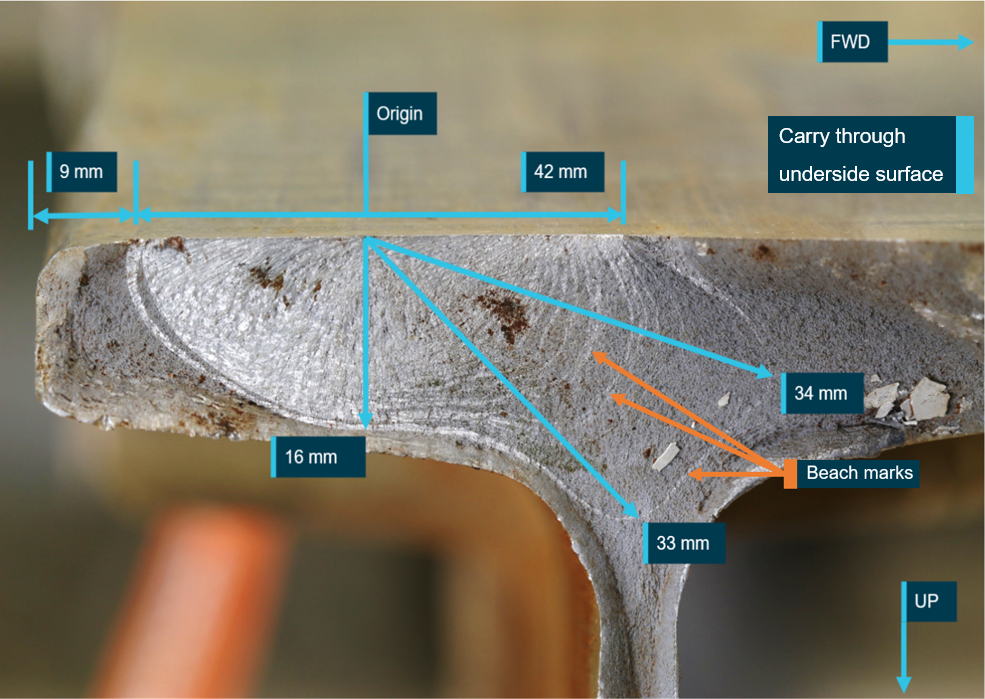

Figure 17: Key measurements of the fatigue portion along the fracture surface

Figure 17: Key measurements of the fatigue portion along the fracture surface

Note that cracking has commenced on the underside surface (inverted in figure) of the carry-through spar.

Source: ATSB

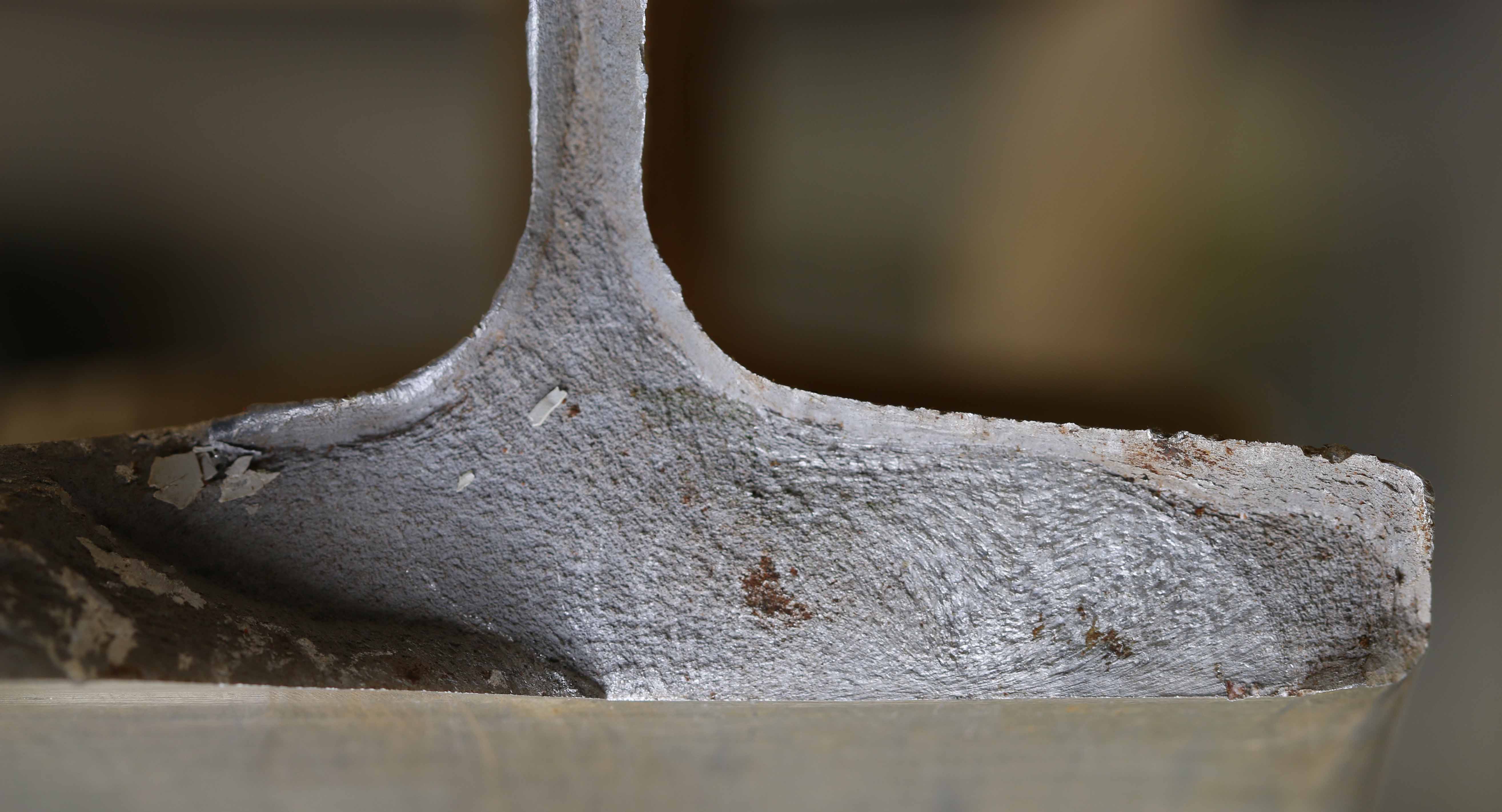

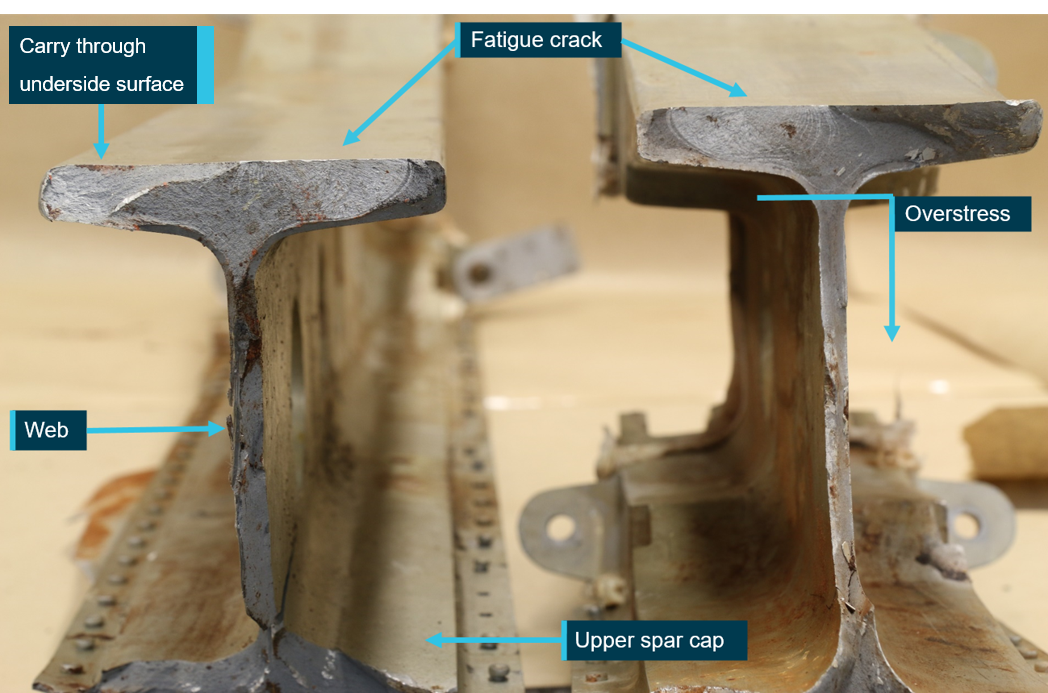

Figure 18: The spar fracture surfaces showing a side-by-side comparison

Figure 18: The spar fracture surfaces showing a side-by-side comparison

Source: ATSB

The concentric radiating features present on the fracture showed that fatigue cracking had initiated at a localised underside surface position. A series of ridges (river lines) across the fracture plane at the intersection with the underside surface indicated that fatigue cracking had initiated from a discrete origin (Figure 19). Further inspection revealed that the crack origin was associated with the presence of pitting corrosion that had penetrated and damaged the spar (Figure 20).

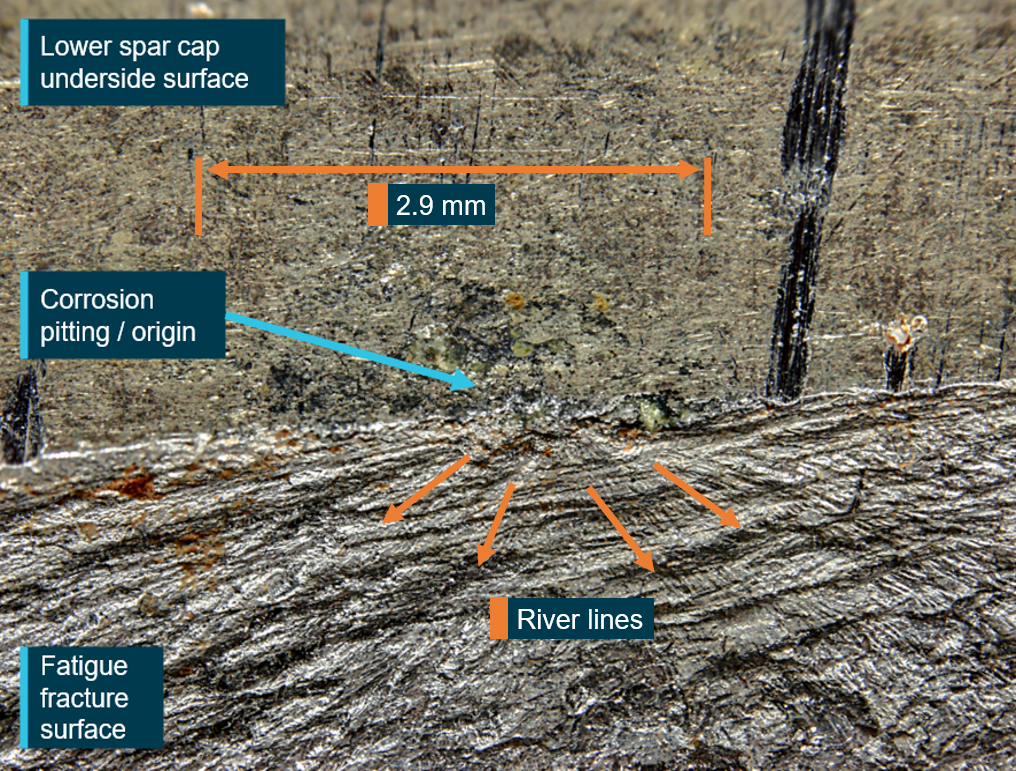

Figure 19: Close-up view of the fracture surface surrounding the corrosion pit cluster at the fatigue crack origin

Figure 19: Close-up view of the fracture surface surrounding the corrosion pit cluster at the fatigue crack origin

The fracture surface shown was located on the inboard portion of the carry-through structure.
Source: ATSB

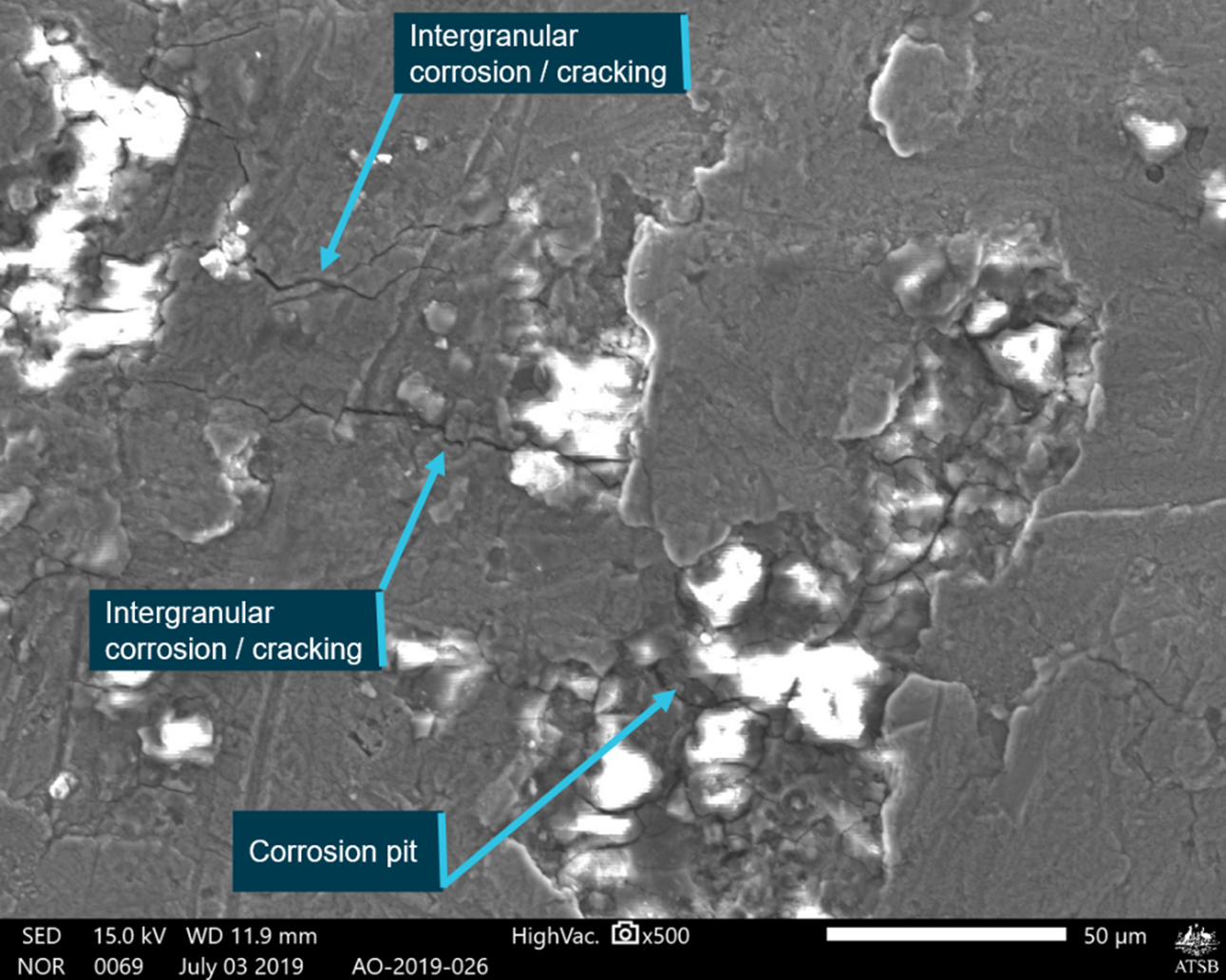

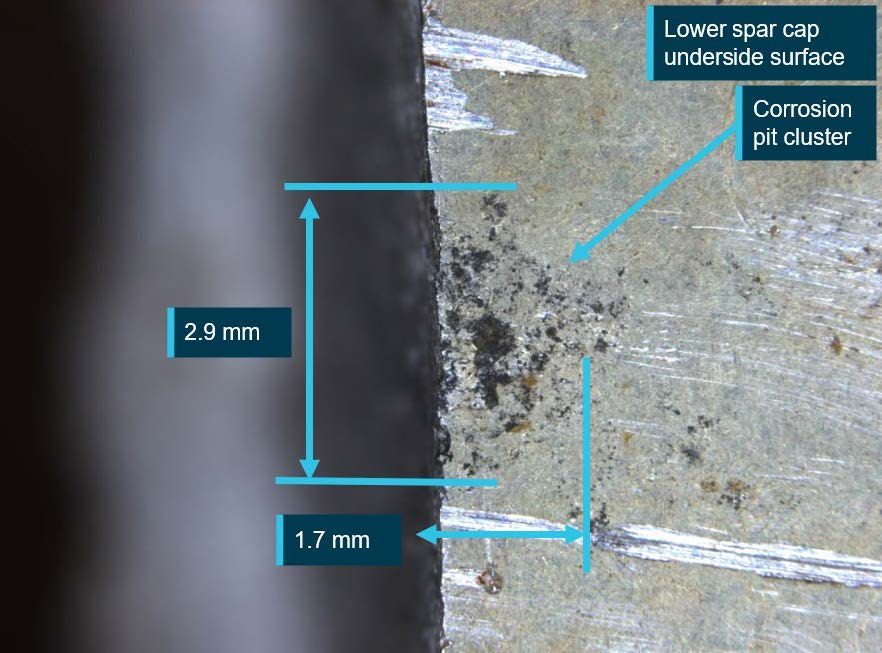

Figure 20: View of the underside surface showing a corrosion pit cluster at the fatigue crack origin

Figure 20: View of the underside surface showing a corrosion pit cluster at the fatigue crack origin

The surface shown was located on the inboard portion of the carry-through structure.
Source: ATSB

As the fatigue crack had grown and approached a critical size,[8] 10 to 12 outer bands of crack progression were linked by bands of tearing (or overstress). These bands were an indicator of accelerating, rapid crack growth that developed in the final period of operation prior to the accident. Detailed measurement of the final band prior to the fatigue-overstress indicated a length of between 0.4 to 0.5 mm. The optical examination did not identify any evidence of finer fatigue striations that might have been associated with an individual load cycle, or a discrete event such as a ground-air-ground cycle (take-off and landing).

Crack measurements

Measurements of the significant features from the fractured spar structure showed that the fatigue cracking grew transversely in a vertical plane before reaching a critical depth of approximately 16 mm toward the web. When measured from the underside surface, the crack had a surface length of approximately 42 mm. The extent of fatigue cracking in the critical section of lower flange was calculated to represent close to 38 per cent of the cross-sectional area of the spar that was in tension (during positive-G flight).

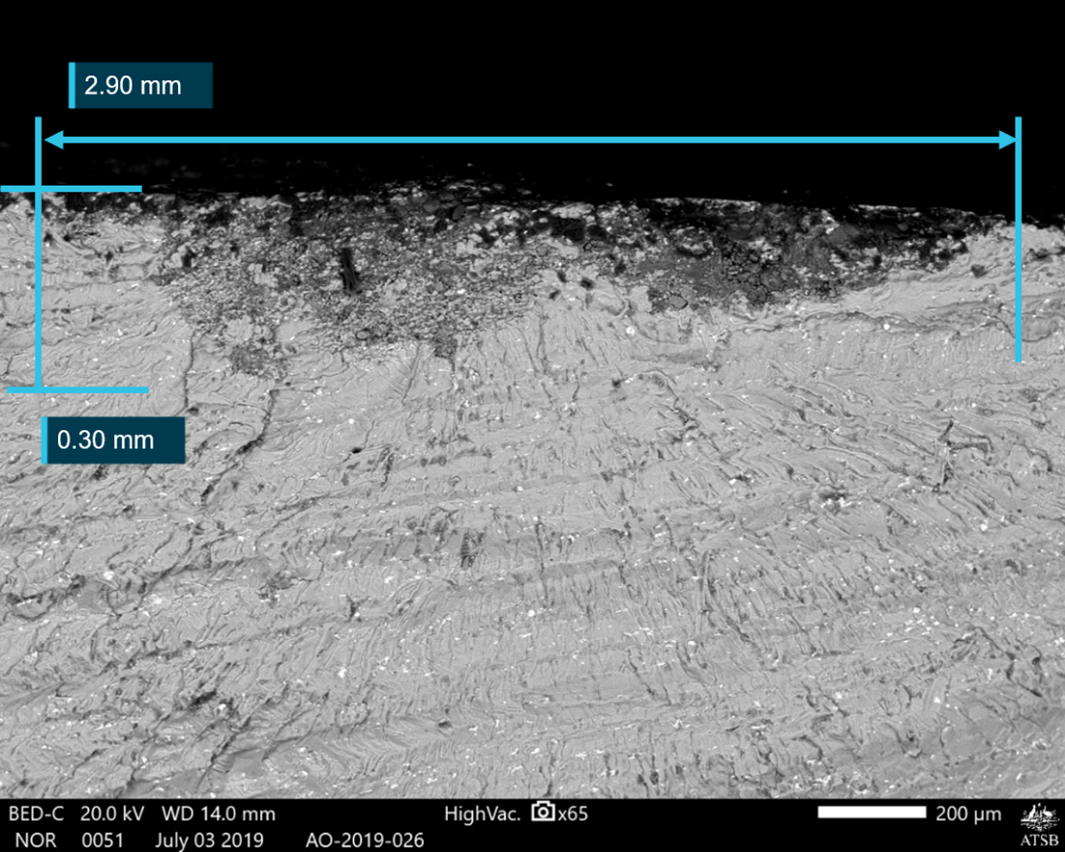

Scanning electron microscopy

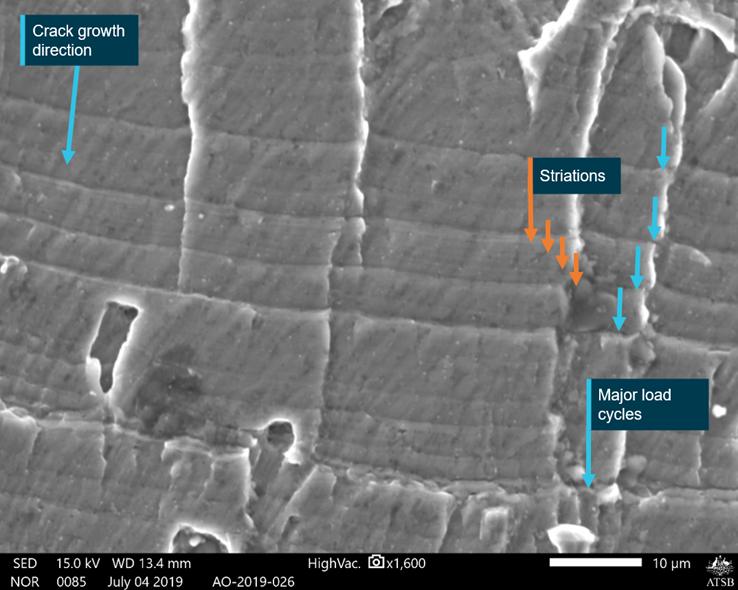

Scanning electron microscopy (SEM) techniques were used to closely examine and characterise the surfaces of the fractured carry-through spar and to further support the visual assessment.

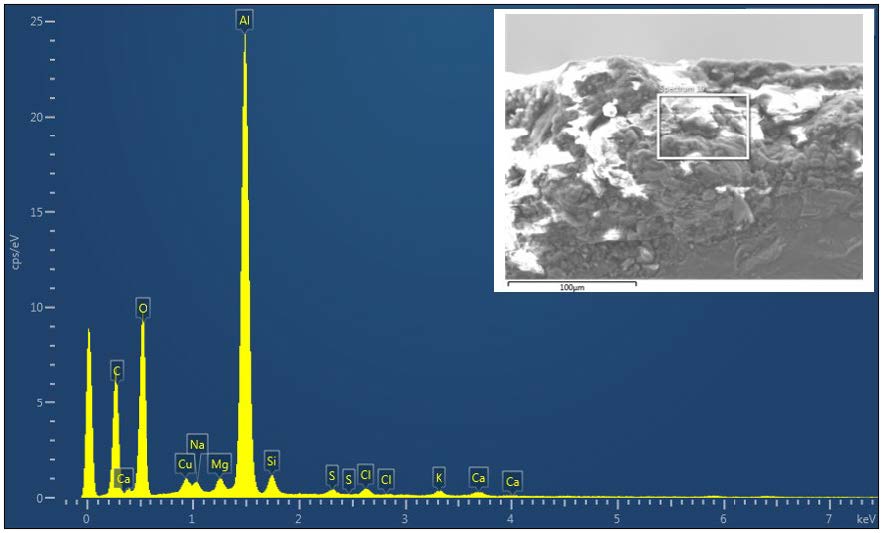

Semi-quantitative energy dispersive x-ray spectroscopy was also used to assist in analysis of the products that had formed within the corrosion pits (refer to Appendix A for additional detail).

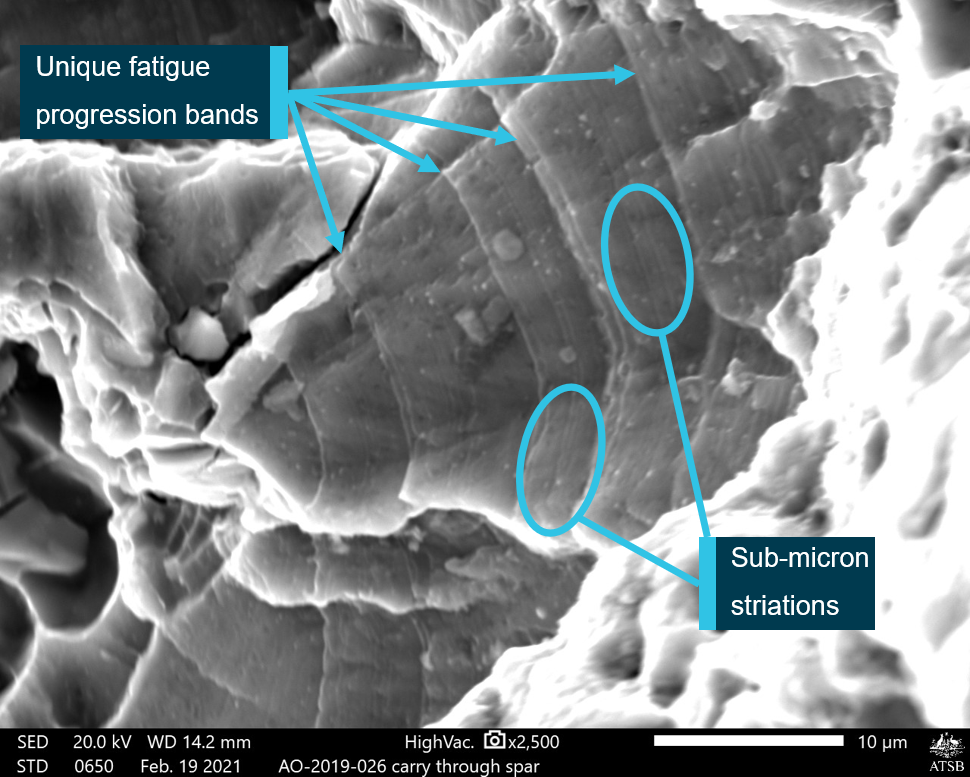

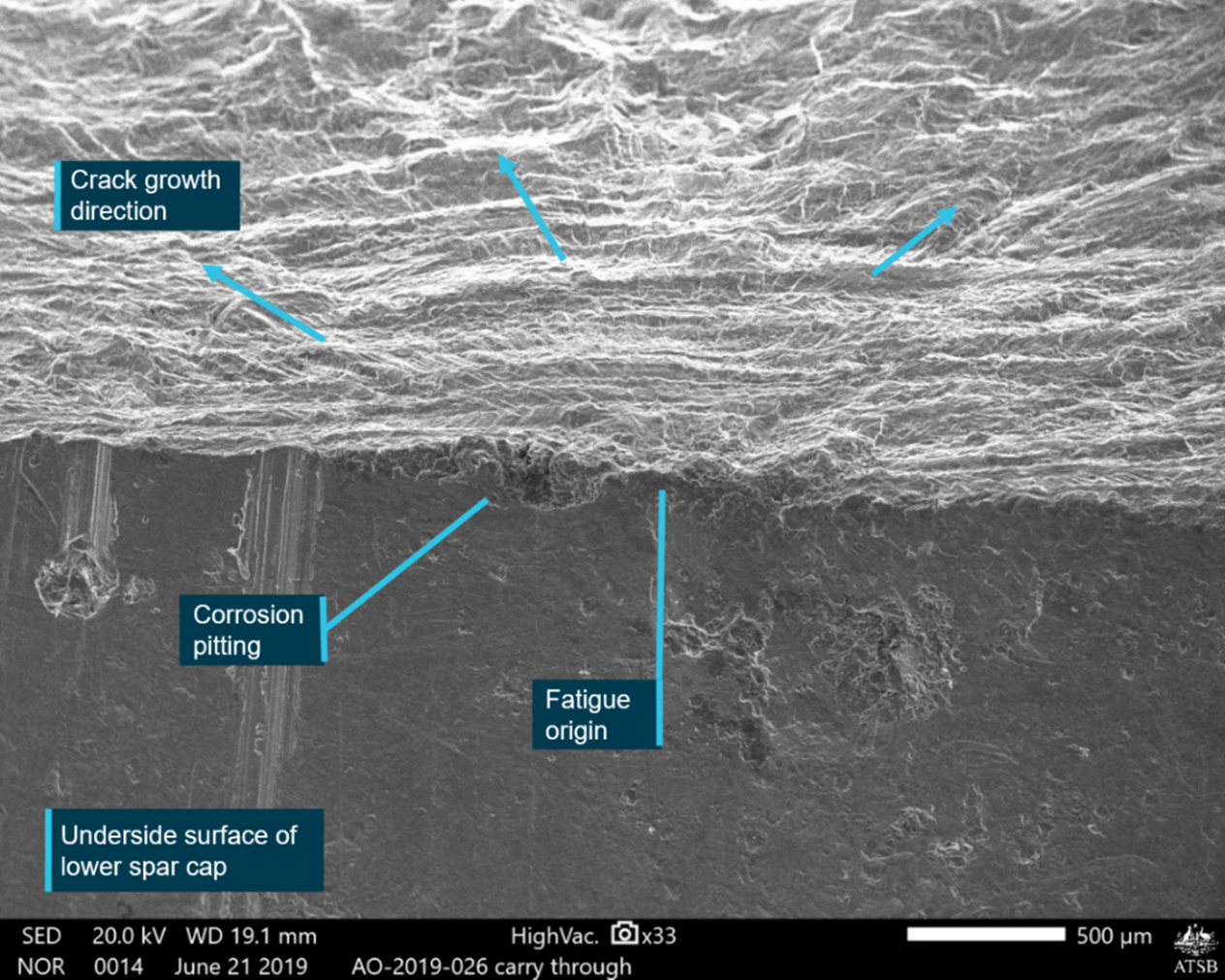

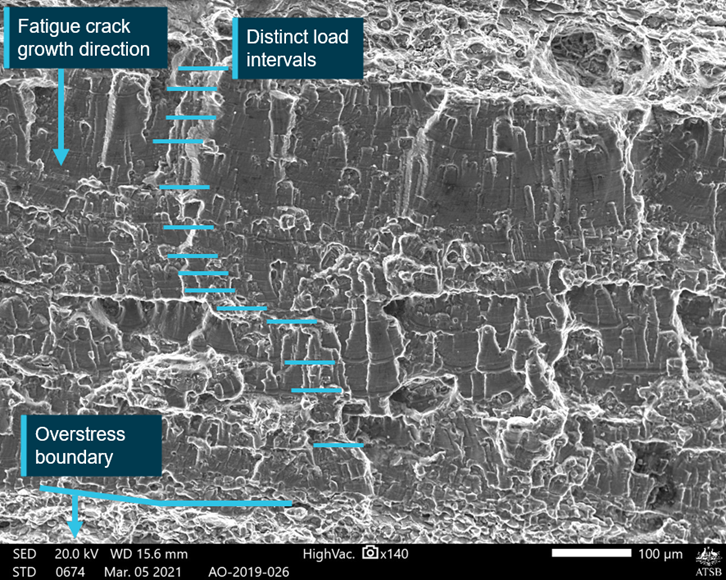

SEM of fractured lower carry-through spar

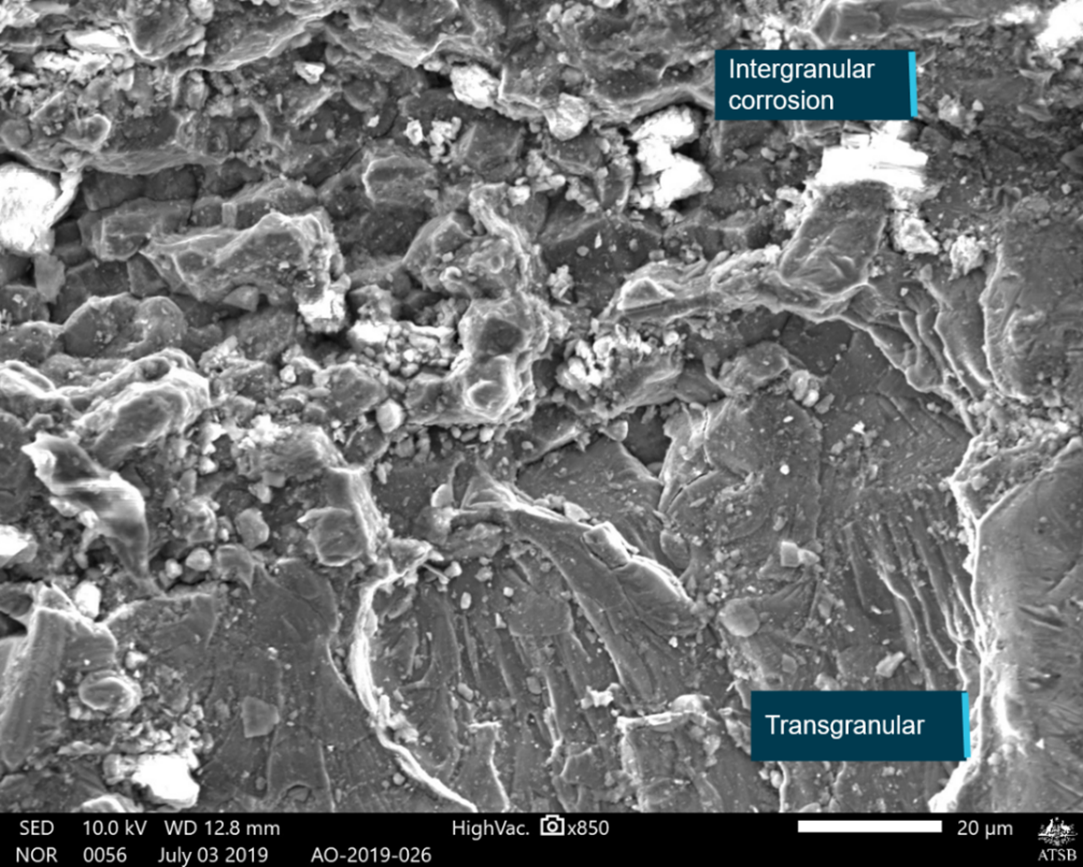

Distinct fracture morphologies (origin, fatigue and overstress) from the section of lower carry-through spar were confirmed via examination in the scanning electron microscope. SEM of the fracture origin identified that the corrosion pit damage that initiated the cracking was characterised by an amorphous corrosion product. The corrosion damage transitioned into an underlying zone of intergranular cracking at the base of the pit, before transitioning toward fatigue cracking. Other corrosion pits that were examined on the underside surface of the carry-through spar were also identified to have generated fine intergranular corrosion cracks that penetrated into the base alloy.

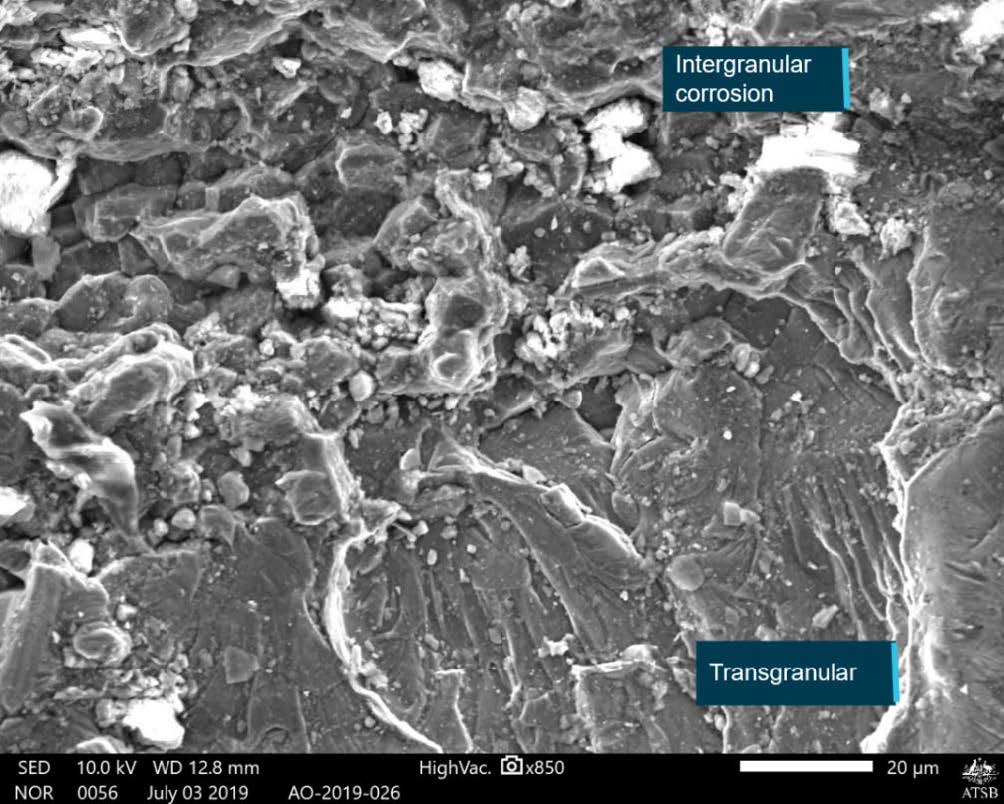

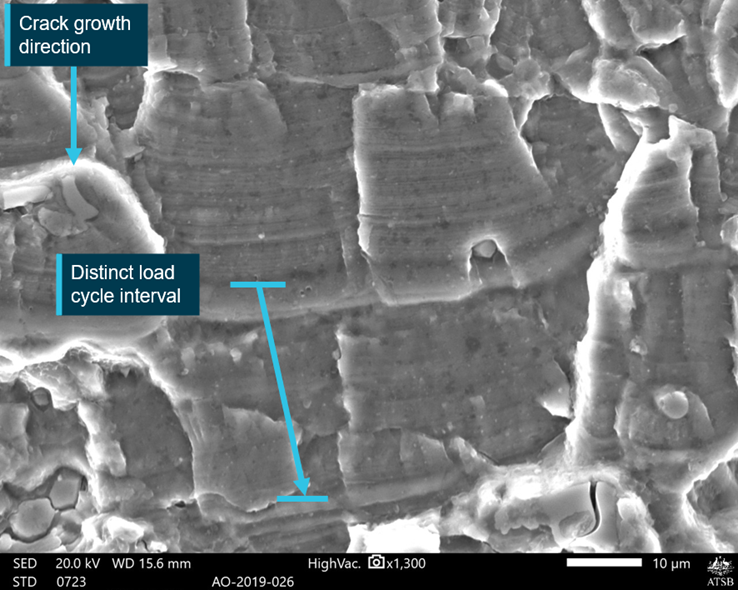

The fatigue portion of the fracture was a mixture of predominantly transgranular striations interspersed with some ductile tearing. The fatigue cracking was clearly identifiable through the presence of ‘river’ lines that were directed from a single region of corrosion pitting on the underside surface.

The overstress region was defined almost entirely by micro-void coalescence, features that confirmed that the final fracture was ductile in nature.

Crack analysis

The fatigue crack that had initiated within the lower spar cap reached a critical depth of about 16 mm (measuring 42 mm in length along the underside surface), at which point structural failure occurred. Tear bands developed as the crack increased in depth as it progressed through the structure toward the web. The tear bands showed that the stresses within the structure were increasing and further indicated that the rate of crack growth was accelerating as it progressed.

Crack growth rate

In-service exposure to stresses within the wing spar carry-through are variable and their magnitude is affected by factors such as aircraft weight, take-off and landing cycles, speed and the type and severity of operations being flown. Gusts and manoeuvres of varying magnitudes are the typical in-flight loads affecting wing structure fatigue life.

The load regime imparted though the wings to the carry-through structure during the service life of the aircraft throughout the period of crack growth was normalised to the following load types.

  • gust loads/aerodynamic buffeting (short interval, less than 2 seconds, both negative- and positive-G
  • manoeuvre loads (longer interval, typically greater than 2 seconds, both negative-G and positive-G)
  • taxiing loads
  • take-off and landing loads (ground-air-ground cycles)

Each load type varied in magnitude; however, it was the take-off and landing loads (ground-air-ground cycles) that were most likely to impart an identifiable, unique and repeatable signature on the fatigue fracture surfaces. This was due to the equivalent loading sequence imparted as the lower spar cap transitions from tension (during flight) to compression (during landing).

The SEM examination also revealed a very high number of striations present throughout the fatigue fracture surface (Figure 21). These were only evident and able to be identified when viewed at very high magnifications (1,400 to 2,500 times magnification) and were less than 1‑micron in spacing. It is probable that the very fine sub-micron striations leading to crack growth were produced from lesser loads as the aircraft was manoeuvred and affected by gust loads.

Separating the very fine striations were regions identified as ‘unique’ progression bands. In this case, the ‘unique’ progression bands were identified across almost the entirety of the fatigue fracture surface and consisted of regularly repeating units. Due to the regularity of the progression marks, in combination with their identifiable and consistent features, it was probable that these bands represented ground-air-ground cycles.

Figure 21: Scanning electron microscopy of the fracture surface

Figure 21: Scanning electron microscopy of the fracture surface

The fracture surface shown was located on the inboard portion of the carry-through structure.
Source: ATSB

Measurement of the unique features was performed across the fatigue crack front. The number of unique progression bands during this period of crack growth was estimated by taking the average spacing between each measurement interval and dividing this striation spacing into the interval, then summating the numbers for each interval.

The distance between each ‘unique’ progression band was one flight cycle. A quantitative assessment of the fracture established that fatigue cracking had probably developed over a sustained period of operation of about 3,300 hours of time in service.

Corrosion

Pitting corrosion

Pitting corrosion, (Figure 22) as found in the carry-through underside surface on SUX, was described in the Cessna C210 service manual as:

The most common effect of corrosion on polished aluminium parts is called pitting. It is first noticeable as a white or grey powdery deposit, similar to dust, which blotches the surface.

When the deposit is cleaned away, tiny pits can be seen in the surface.

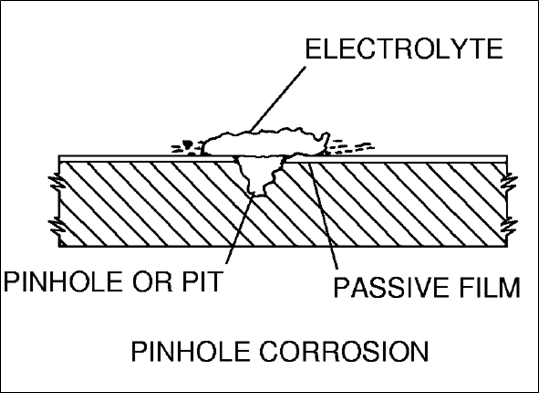

Figure 22: Pitting corrosion diagram

Figure 22: Pitting corrosion diagram

Source: Textron Aviation

Accident spar corrosion damage

To the unaided eye, the underside surface of the fractured spar appeared in relatively good condition. There were minor amounts of pitting damage along the underside surface, but no significant corrosion products (aluminium oxides), nor any significant scoring, gouging or related mechanical damage present.

Very fine marks were noted on the underside surface, which were consistent with the final-finish machining processes and very likely remnant from original manufacture. The were no indications of rework or blending of the underside surfaces that might have otherwise indicated repair of previously identified corrosion damage.

Inspection of the carry-through spar surfaces at higher magnifications using a binocular microscope identified the extent to which the structure had sustained corrosion damage during its service life, prior to the failure. The corrosion had led to the development of clusters of micro-pits on the underside of the carry-through spar. In the absence of corrosion protection, pitting of that nature is not unusual for the aluminium alloy used in the manufacture of the spar.

Detailed visual inspection of the corrosion damage on the underside surfaces suggested there were no other secondary micro-cracks present in the structure. To confirm that visual assessment, a non‑destructive examination of the spar structure was completed using fluorescent penetrant techniques (Figure 23). No additional cracks were detected on the structure, including the underside surface (where the cracking had initiated) as well as the outboard attachment lugs.

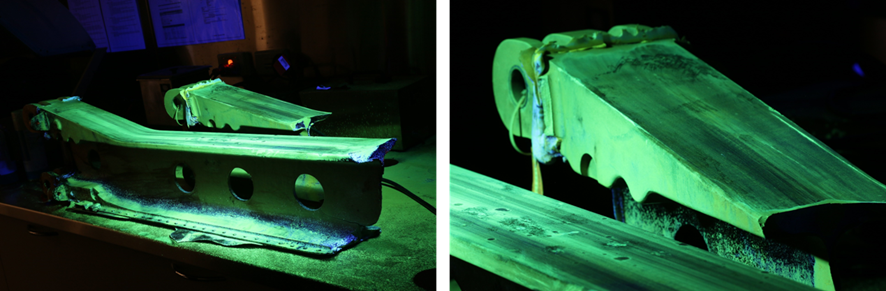

Figure 23: Composite image of the carry-through spar during liquid fluorescent penetrant inspection

Figure 23: Composite image of the carry-through spar during liquid fluorescent penetrant inspection

Source: ATSB

Corrosion assessment and repair

Prior to the accident, Textron Aviation and Civil Aviation Safety Authority (CASA) maintenance inspections stipulated that if corrosion was identified during inspection then either Textron Aviation or another authorised design organisation should be contacted. The authorised organisation (usually Textron Aviation) would assess the damage and either recommend a repair, or in severe cases, replacement of the carry‑through. In the event that a repair scheme was recommended by a design organisation other than Textron, CASA would assess and approve the repair scheme for compliance.

Textron Aviation advised that, prior to the accident and for the level of corrosion found on the structure recovered from SUX (without knowledge of any fatigue cracking), the following repair process would have been provided:

a. Remove any corrosion using a 20:1 blend ratio.

b. Measure remaining thickness of the spar as well as the thickness of both upper and lower caps and web at the blended location.

c. Report measurements to Cessna Customer Service on the Structural Damage Report form

d. Repair engineering would use the measurements to determine if the spar is still serviceable with the noted measurements.

Following the accident, the manufacturer provided the following criteria to assess the damage severity:

Scenario 1: “Nothing to see here”

If the intent of the service letter [see the section titled Service letters and airworthiness directive] is complied with, no cracks are noted after non-destructive inspection (NDI), and the corrosion is surface corrosion only, the customer will just send us the Carry-thru Inspection Report and no further input is needed from us.

Scenario 2: “Superficial corrosion”

If the intent of the SEL is complied with, no cracks are noted after NDI, but more than minor surface corrosion is noted and removed, than any material removal less than 0.010” (0.254 mm) deep may be considered minor provided a thorough review of the aircraft’s maintenance records/logbook indicates no prior blending to the carry-thru spar has occurred.

If no prior blending is discovered, a Minor repair memo can be issued…if a detailed damage report all pertinent repair data is provided.

Scenario 3: “Material removed and needs engineering review”

If the intent of the SEL is complied with, no cracks are noted after NDI, and the removal is in excess of 0.010” (0.254 mm) deep than a detailed damage report (same as Scenario 2 above) must be sent to Textron Aviation Engineering for specific detailed analysis and review for a FAA approved field repair.

Scenario 4: “Replace the carrythru”

If inspection (visual or NDI) reveals a crack indication, severe intergranular corrosion or material removed in the ‘arm pit’ is in excess of 0.040” (1.016 mm) deep (Models “G” thru “M”) or in excess of 0.030” deep (Models “N” & “R”) the spar carrythru must be replaced and no further flight is permissible.

Based on the manufacturer’s criteria, most of the corrosion identified on the carry-through under surface of SUX was in the scenario 2 ‘superficial corrosion’ (less than 0.010 inches (0.254 mm) deep) which would have required minor repair. However, there were four corrosion pits identified that were in the scenario 3 ‘material removed and needs engineering review’ (exceeding 0.010 inches (0.254 mm) but less than 0.040 inches (1.016 mm) deep).

Corrosion damage growth

The rate of corrosion damage growth to an alloy such as 2014-T6 changes with exposure to external factors such as:

  • oxygen availability
  • presence of electrolytes (e.g. salts)
  • mechanical stress
  • time of exposure

The unknown variations in these factors prevented determination of the rate of corrosion growth for the corrosion identified on the recovered wing spar carry-through structure.

Maintenance

Operator system of maintenance

The operator had their own CASA‑approved system of maintenance. The maintenance schedule incorporated the:

  • generic Civil Aviation Safety Authority system of maintenance (CAAP 42B-1(1))
  • Cessna Supplemental Inspection Documents (SID’s)
  • Cessna corrosion prevention and control program (CPCP).

The addition of geophysical survey equipment resulted in several other inspections also being integrated.

Due to the high hours and low cycles generated by the work undertaken, the system of maintenance allowed for 100 hourly inspections to be extended to 110 hours and 200 hourly inspections to be extended to 220 hours. The frequency of the inspections of the wing carry‑through structure in the area of the fatigue crack was not altered from the normal Cessna maintenance schedule as it was based on calendar time, not flight hours.

For maintenance purposes the operator considered that the aircraft was being operated in a severe[9] environment and severe usage in accordance with the Cessna maintenance schedule.

Wing spar carry-through inspections

Removing the cabin interior roof lining allowed good access to the carry-through structure for inspections (Figure 24).

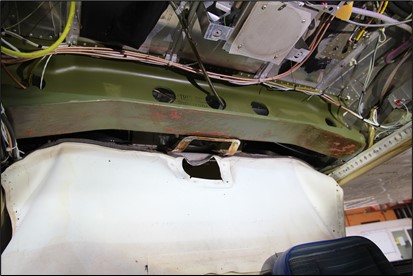

Figure 24: View of the carry-through structure looking aft with the cabin lining removed

Figure 24: View of the carry-through structure looking aft with the cabin lining removed

Note: This C210N wing spar carry-through was coated during manufacture with a corrosion inhibiting primer paint.

Source: ATSB

Required inspections

The area of the fatigue crack in SUX was subject to a manufacturer‑directed visual inspection and a similar visual inspection directed by a CASA‑issued airworthiness directive.

It should be noted that all inspections of the underside surface of the structure at the time of the accident were calendar time based. Prior to the accident, the last detailed visual inspections undertaken of the carry-through structure were:

  • Supplemental Inspection (SID) number 53-11-01 – Carry-through spar corrosion inspection, initial interval 10 years with repeat inspections every 3 years. The last inspection was conducted on SUX on 10 November 2017, 1,746.4 flight hours prior to the accident. Maintenance logs recorded no defects were identified.
  • AD/Cessna 210/61 Amdt 2 – Inspection of entire wing carry-through structure for corrosion every 10 years. Thereafter every 6 years, or if the spar carry-through has been subjected to an approved corrosion protection scheme, 12 years. This inspection was last conducted on SUX on 22 December 2017, 1,531.6 flight hours prior to the accident. Maintenance logs recorded no defects were identified.

Cancelled inspection

As a result of fatigue concerns resulting from incidents on other models, on 1 July 1992, the manufacturer introduced Continued Airworthiness Program (CAP) inspection number 57-10-08.

That inspection required a visual and eddy-current[10] inspection of the underside surface of the carry-through. For normal operations, it was to be undertaken initially at 12,000 hours of service and repeated every 6,000 hours. For the low-level overland survey flight profile, the inspection required significantly reduced intervals:

Should any history of low-level overland survey or patrol exist then the initial inspection compliance is 4000 hours with repeat inspections at 400-hour intervals thereafter.

The manufacturer advised that testing of a C210G carry-through structure showed the lower centre wing attachment lug to be a critical area. These test results led to the introduction of the inspection. The manufacturer could not produce any documentation indicating why the underside surface of the carry-through structure was also included in this inspection.

This inspection was subsequently cancelled by the manufacturer in 2012 (1 year before SUX commenced operations in Australia). SUX started low‑level overland survey flights in 2013 at 5,933.8 total hours in service and did not reach the threshold for the initial inspection requirements before the inspection was cancelled.

CAP inspection 57-10-08 was replaced with the visual supplemental inspection number 53-11-01, which was mandatory in Australia. The manufacturer stated that the requirement for an eddy current inspection was removed because:

Cessna decided to develop history based SID documents for the 100 and 200 series fleet… The inspections were intended to be visual for lower time airplanes. Non‐destructive inspections were called out only for high time airplanes or in situations where visual inspections would not reliably find the crack.

There was no field history of the carry‐thru spar cracking. The only cracks were those observed in cyclic testing which were found in the lower lugs [wing attachment points]. The known field issue with the carry‐through is corrosion, and there have been many instances of corrosion being severe enough to require replacement of the carry‐thru. Thus, the SID addressed the history of the part which are the corrosion inspections found in 53‐11‐01.

Post-accident Cessna 210 fleet inspections

Service letters and airworthiness directive

On 24 June 2019, the manufacturer released service letters SEL-57-06 for the C210 and SEL‑57-07 for the C177. These service letters required a one-off inspection of the carry‑through structure and communication of inspection findings to the manufacturer. On 4 November 2019, following the analysis of findings from the previously released service letters, the manufacturer released updated SEL-57-08 for the C210 and SEL-57-09 for the C177. On 19 November 2019, the manufacturer released further minor revisions to these updated service letters.

On 21 February 2020, the United States Federal Aviation Administration (FAA) adopted Airworthiness Directive (AD) AD 2020-03-16 for all Cessna model 210G, T210G, 210H, T210H, 210J, T210J, 210K, T210K, 210L, T210L, 210M, and T210M aircraft. This AD required:

  • visual and eddy current inspections of the carry-through spar lower cap
  • corrective action if necessary
  • application of a protective coating and corrosion inhibiting compound
  • reporting the inspection results to the FAA.

Inspection results

Service letter inspection results

Following the release, Textron Aviation advised that 196 reports had been received regarding SEL-57-06. Of these, 69 (35 per cent) reported that corrosion was identified and 11 carry‑through structures (6 per cent) were removed from service.

FAA AD inspection results

At the time of writing, the FAA had received 923 reports. Of these, 430 (47 per cent) reported corrosion and 57 carry‑through structures (6 per cent) were removed from service.

These inspection results were provided to the ATSB which highlighted a considerable variance across the fleet. Some aircraft displayed significant corrosion damage to the underside surface of the carry-through spar (Figure 25). For those aircraft, there appeared to be major intergranular cracks present. While it was not known how many of these structures were subsequently inspected for fatigue cracking, additional instances of fatigue cracking, as found in SUX, were reported.

Figure 25: Examples of severe carry-through structural corrosion damage identified through SEL 57-06 inspections

Figure 25: Examples of severe carry-through structural corrosion damage identified through SEL 57-06 inspections

Source: Textron Aviation

Airframe fatigue

Aircraft should be designed so that the stresses in their structures from the expected flight loads do not exceed the strength of the materials from which they are constructed. However, the materials used to construct aircraft can be damaged by fluctuations in those stresses, even if they are below the static strength of the material.[11]

The damage from each stress fluctuation is small, but the accumulation of many stresses over time can result in significant damage. The accumulated damage from these fluctuating stresses is referred to as ‘fatigue damage’. Fatigue damage leads to the formation of cracks in the aircraft’s structure. Cracks reduce the load-carrying capability of the structure, which if not managed, can ultimately lead to in‑flight structural failure.

Fatigue management

There are currently three basic design approaches for managing fatigue in aircraft structures: safe-life, fail-safe, and damage tolerance. The FAA document AC 23-13A ‘Fatigue, Fail-Safe, and Damage Tolerance Evaluation of Metallic Structure for Normal, Utility, Acrobatic, and Commuter Category Airplanes’

AC 23-13A ‘Fatigue, Fail-Safe, and Damage Tolerance Evaluation of Metallic Structure for Normal, Utility, Acrobatic, and Commuter Category Airplanes’ (see also the section titled Fatigue damage design guidance) defines these approaches as follows:

The safe-life of a structure is that number of events, such as flights, landings or flight hours, during which there is a low probability that the strength will degrade below its design ultimate value due to fatigue cracking.

Fail-safe is the attribute of the structure that permits it to retain its required residual strength for a period of unrepaired use after the failure or partial failure of a principal structural element.

Damage tolerance is the attribute of the structure that permits it to retain its required residual strength for a period of use after the structure has sustained a given level of fatigue, corrosion, accidental, or discrete source damage.

Safe-life design is intended to have the structure retired before there is a likelihood of fatigue cracks affecting its strength.

Fail-safe means that redundant structure will cope with the failure of major structure until it is discovered during an inspection program.

Damage tolerance relies on detection of cracks through a specifically designed inspection program to ensure that cracks from fatigue, corrosion or accidental damage are identified before they become large enough to sufficiently degrade the remaining strength.

Wing fatigue components

Wing fatigue life calculations break the analysis down into four loading spectra components:

  • flight loads
  • taxi loads
  • landing impact loads
  • ground-air-ground cycles.

Flight loads are further split into gust and manoeuvre components. The fatigue life is split into various components to enable designers to then apply those components of the calculation to their assumed flight load profile. For example, training aircraft will have a more severe manoeuvre loading spectra and ground-air-ground cycles than an executive aircraft. Likewise, low-level survey aircraft will have a more severe gust loading spectra than a personal aircraft.

When determining the fatigue damage endured by a structure, it is straightforward to separate flight loads from landing loads or taxi loads as they are distinct phases of flight. Separating manoeuvres from gusts is more difficult, particularly as they can occur simultaneously at different magnitudes.

Accident flight weight limit exceedance

The aircraft commenced the accident flight with a gross weight about 43 kg above the 1,601 kg maximum allowable weight for operations with the wing tip fuel tanks empty.

The ATSB assessed this exceedance to determine its possible contribution to the accident. As the fatigue crack was well developed prior to the accident flight and the aircraft remained within other weight and balance limitations, this exceedance was determined to not have had a significant effect on fatigue damage accumulation for SUX or otherwise have contributed to the accident.

Fatigue damage design guidance

Flight load fatigue spectra

Regardless of the fatigue management approach used, designers aim to understand how the in‑flight stresses vary within the structure over the life of the aircraft. This will depend on a broad range of factors, from the weight for each flight, the environment in which the aircraft is operated, to the manner the aircraft is operated. The designer cannot know all of these factors in advance for each aircraft, so they typically use an assumed load spectrum that will represent that design.

Flight load spectra for fatigue analysis purposes are typically presented as the distribution of the number of times that a flight load factor would be exceeded for a range of flight load factors within the normal flight envelope. For example, flight load factors of about 1g would be expected to occur often, whereas loads near the limit load factor would be rare.

Since the design of the C210, the FAA has developed and released its own flight load spectra for aircraft operating in various roles. These are contained in FAA Advisory Circular AC 23-13A.

Advisory Circular AC 23-13A

In 2005, the FAA released Advisory Circular AC 23-13A ‘Fatigue, Fail-Safe, and Damage Tolerance Evaluation of Metallic Structure for Normal, Utility, Acrobatic, and Commuter Category Airplanes’. This details an acceptable means of showing compliance with Title 14 Code of Federal Regulations (14 CFR), Part 23. This guidance is applicable to fatigue, fail-safe, and damage tolerance evaluations of metallic structure in normal, utility, acrobatic, and commuter category airplanes.

In developing the Advisory Circular, multiple aircraft in various operational and airworthiness categories were used to record data. This data was manipulated to generate gust and manoeuvre load spectra graphs. These were combined for multiple aircraft in a given category to develop an average load spectrum as defined in the FAA Memorandum associated with AC 23-13A.[12] Assessments were then made with regards to developing curves that would capture an adequate number of aircraft in the fleet and ensure the resulting failure rate would be tolerable.

The FAA chose 1.5 standard deviations above the mean value to ensure a 99.9777 per cent chance of an aircraft meeting its claimed fatigue life without developing a detectable crack. Thus, data in the Advisory Circular is presented against both the design requirements and a mean distribution to give context to the results.

It should be noted that review of technical documentation referenced by the Advisory Circular shows that AC 23-13A spectra for survey aircraft were developed from two sample aircraft conducting pipeline patrol survey[13] work.

Recorded data

Survey acquisition system data

The survey system on board SUX recorded various parameters including laser height, radio height and barometric pressure along with differential GPS positions (Figure 26).[14]

Data was recovered from this system which captured the accident flight until a point 160 m prior to the initial impact point. This included indications consistent with the separation of the right wing commencing about 285 m prior to the initial impact point.

Figure 26: Depiction of the recorded GPS data of the final moments of the accident flight

Figure 26: Depiction of the recorded GPS data of the final moments of the accident flight

Source: Recovered survey computer data and Google Earth

The data showed that immediately prior to the in-flight breakup, the aircraft was in near level flight at a height of 193 ft AGL and a ground speed of 147 kt.

Analysis of differential GPS data

The ATSB further examined the differential GPS data to determine a manoeuvre fatigue load spectrum for the aircraft during the accident flight. However, limitations in the derivation of these loads prevented a robust analysis. The sample rate of the data (2 Hz) was not sufficient to determine gust loads and could only be used to derive a manoeuvre spectrum. Additionally, there was no effective way of validating the accuracy of the derived accelerations.

To address the limitations of the data recovered from SUX, the ATSB, in cooperation with the operator, undertook data gathering to determine in-flight loads associated with the geophysical survey flight profile. To do this, an accelerometer module was fitted to another Thomson Aviation C210N, VH-JEI (JEI).

Survey flight data gathering and analysis

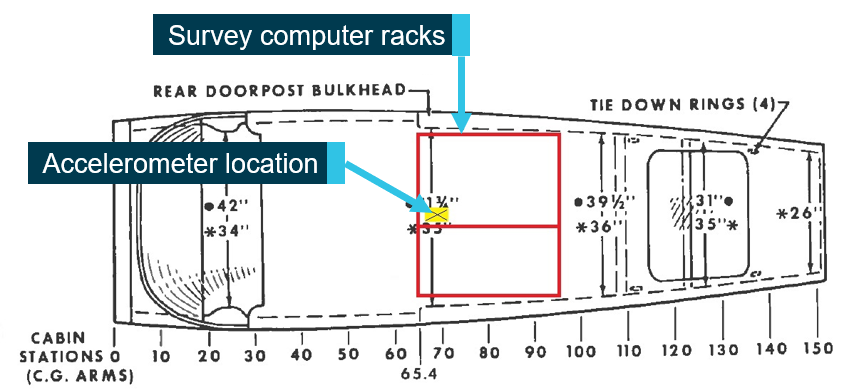

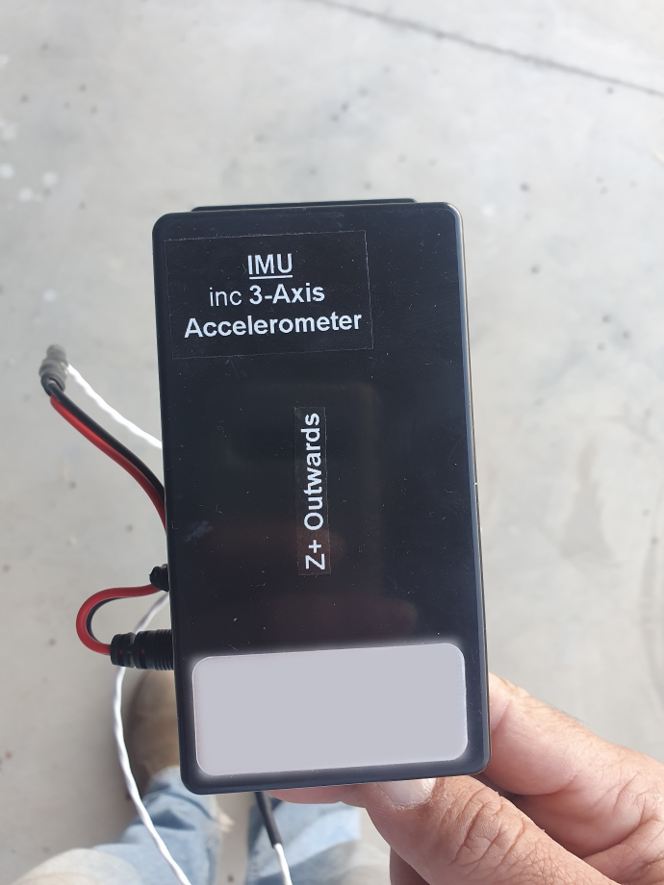

The accelerometer fitted to JEI was rigidly mounted, near the aircraft’s centre of gravity and sampled by the survey computer at 20 Hz. This resolution enabled derivation of both manoeuvre and gust spectra.

Data encompassing 95 flights (374.6 hours and 49,755 NM) over a period of 10 weeks during autumn in 2020 was sampled and analysed. This included the survey commenced by SUX near Mount Isa and a section of another survey area near Parkes, New South Wales.

As the C210 was certified under Part 3 of the United States Civil Air Regulations and has no defined fatigue life, no comparative data was available. Therefore, the aim of the data gathering was to compare results to FAA manoeuvre and gust load spectra for survey work as provided in AC 23-13A. The aircraft was assessed against Advisory Circular flight load spectra for executive usage[15] and survey (pipeline patrol).

The FAA presented data from multiple sources based on sampling flights and aircraft in a similar manner to this project. In fact, in designing this program of data gathering, elements were chosen such that correlation with past data collection would be achievable. However, data collection has changed over the years. The original data collection in the 1970’s used photographic film exposed to light. For this program, completely digital methods were being used.

When differentiating manoeuvres from gusts, the ATSB considered any loading event which deviated from normal acceleration (1g) for more than 2 seconds as a manoeuvre and any less than 2 seconds is a gust. This is the same method as that used in AC23-13A.

Data analysis findings

Manoeuvre loads

Examination of the data from JEI identified that, with respect to manoeuvre loads, the rate of heavier pitch up manoeuvres (above 2g) were about usual for a survey aircraft but lighter pitch up manoeuvres (up to 1.75g) tended to occur much more often, even above the AC 23-13A survey spectra design curve. For pitch down manoeuvres, virtually all manoeuvre counts greatly exceeded the mean and design curves. Only for pitch down manoeuvres below -0.15g did the manoeuvre counts fall below the design criteria.

For the type of survey work being conducted by the operator, quite forceful manoeuvring was required, particularly for pitch down manoeuvres. Additionally, the total number of manoeuvres was high and the balance of pitch up and pitch down manoeuvres was relatively equal. For normal operations (personal, training, executive) pitch up manoeuvres are assumed to outnumber pitch down manoeuvres by a significant margin. In fact, between 0.7g and 1g away from normal acceleration, the number of pitch up manoeuvres will exceed equivalent pitch down manoeuvres by a factor of 30. However, the need for geophysical survey aircraft to ‘terrain follow’ meant pitch down and pitch up manoeuvres were virtually equal. Only manoeuvring at the end of survey runs and away from the survey area slightly increased the number of pitch up manoeuvres.

When assessed against the executive usage profile presented in AC 23-13A (Figure 27) the results showed that the aircraft exceeded usage assumptions for lighter pitch up manoeuvres and far outstripped pitch down manoeuvres. It was up to 50 times the rate for 0.5g pitch up and pitch down manoeuvres (±0.2 acceleration fractions[16].)

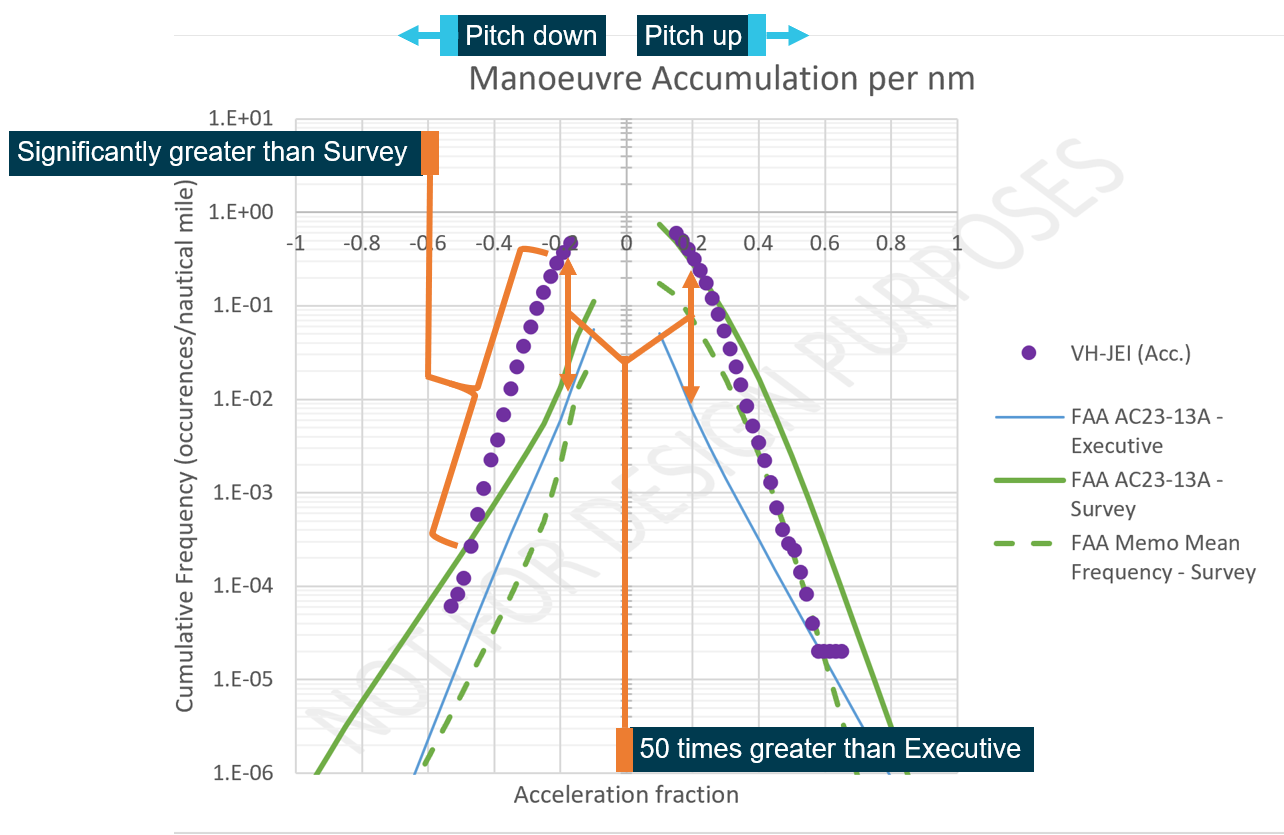

Figure 27: Recorded manoeuvre spectrum compared with executive and survey spectra

Figure 27: Recorded manoeuvre spectrum compared with executive and survey spectra

Note: FAA memo mean frequency refers to that defined in the FAA Memorandum and is that used to calculate the equivalent design curve in AC23-13A.

Source: ATSB

Gust loads

When assessed against the survey usage profile presented in AC 23-12A (Figure 28), positive gusts were generally found to be slightly higher than the design criteria for light gust (<1.8g), reducing to slightly below design criteria for more severe positive gusts (>1.8g) though remaining well above mean frequency. This data was collected in late autumn and did not contain summer data that would be expected to include more turbulence,[17] though this may be offset by winter data. For negative gusts, again the aircraft experienced light gusts around design criteria above +0.5g with the accumulation of more severe gust experiences dropping to about average by -0.5g and below average by -1.5g.

The gust loading experienced by JEI did not show an exceedance as severe as the manoeuvre loading, but greatly exceeded the executive aircraft assumptions.

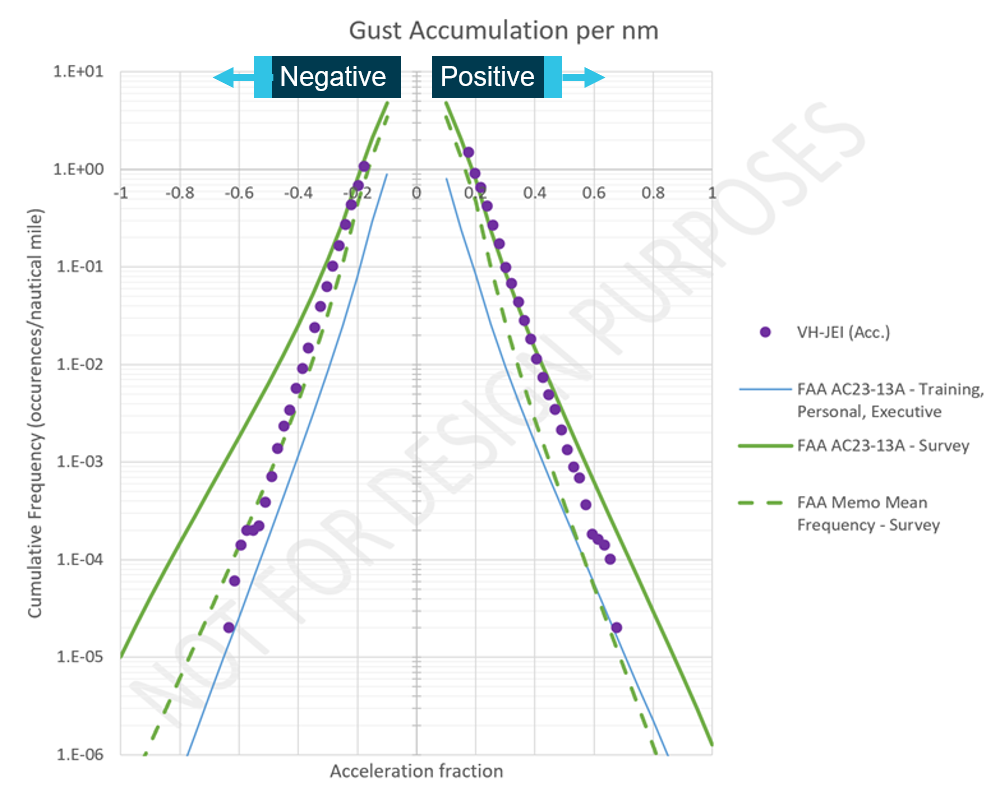

Figure 28: Recorded gust spectrum

Figure 28: Recorded gust spectrum

Note, FAA memo mean frequency refers to that defined in the FAA Memorandum associated with AC23-13A.

Source: ATSB

Similar occurrences

Fatal accidents due to metallic fatigue have occurred throughout aviation history and resulted in the introduction of specific fatigue design and maintenance requirements. Most of these accidents occurred in aeroplanes type certificated prior to specific fatigue requirements. Additionally, some of the accidents in aeroplanes with fatigue in their certification bases can be traced to excessive loading spectrum, beyond the assumptions used in the type design.

This accident was the first reported occurrence of a carry-through fatigue cracking or fracture in a Cessna 210 aircraft.

The ATSB identified two other accidents, detailed below, involving an undetected fatigue crack that led to a fracture and in‑flight wing separation. It is noted that they involved different aircraft types and operation to that associated with the VH‑SUX accident.

ATSB investigation AO-2013-187

On 24 October 2013, the pilot of a modified PZL Mielec M18A Dromader, registered VH-TZJ, was conducting a firebombing mission about 37 km west of Ulladulla, New South Wales. On approach to the target point, the left wing separated. The aircraft immediately rolled left and descended before impacting terrain, fatally injuring the pilot.

The ATSB found that the left wing separated because it had been weakened by a fatigue crack in the left wing’s lower attachment fitting. The fatigue crack originated at small corrosion pits in the fitting. These pits formed stress concentrations that accelerated the initiation of fatigue cracks.

National Transportation Safety Board investigation ERA18FA120

On April 4 2018, a Piper PA-28R-201, N106ER, collided with terrain following an in-flight separation of the left wing near the wing root during climb after a touch-and-go manoeuvre at Daytona Beach International Airport, Florida, United States. Both pilots were fatally injured, and the airplane was destroyed.

Metallurgical examination of the accident airplane's left-wing main spar lower cap found that it exhibited fracture features consistent with fatigue through more than 90 per cent of the cross‑section, almost completely reducing its residual strength capability.

__________

  1. Cloud cover: in aviation, cloud cover is reported using words that denote the extent of the cover – ‘broken’ indicates that more than half to almost all the sky is covered.
  2. Material strengths can be increased through a homogenising (solution) heat treatment followed by an artificial aging process; creating a distribution of micro-precipitates throughout the alloy that provides metallurgical strengthening effects. This solution-treated and artificially aged state is known as the T6 condition.
  3. Changes from L to M model included the relocation of some switches to the glareshield, provision for a weather radar screen, a new landing gear handle design and relocation of the fuel gauges to the cabin floor.
  4. A change to the design of a type-certificated aircraft, aircraft engine or propeller must be approved by an appropriate authority before it can be used. A supplemental type certificate is one method of obtaining such approval.
  5. The flight profile was known as ‘draping’ due to its similarity to the appearance of a thin sheet draped over objects on a flat surface.
  6. Mechanical turbulence is created by the movement of air across the terrain, vegetation, or any obstacles. The strength of the turbulence will increase with an increase in wind speed but will often be present even at light wind strengths. Thermal (convective) turbulence occurs when the sun heats the earth's surface unevenly. Certain surfaces, such as barren ground, rocky and sandy areas, are heated more rapidly than vegetation or water. Isolated convective currents are created leading to turbulence as an aircraft passes through.
  7. Critical crack size is the length at which a crack becomes unstable at certain applied stress. In an unstable crack, crack propagation, once started, continues spontaneously without an increase in magnitude of the applied stress. Overstress failure occurs very rapidly once an advancing crack reaches a critical size.
  8. Two types of inspection requirements were available (Typical and Severe) based on operating usage and environment.
  9. Eddy-current testing is an electromagnetic testing method used in non-destructive testing. This testing makes use of electromagnetic induction to detect and characterise surface and sub-surface flaws in conductive materials.
  10. The static strength of the material is the maximum strength the material can sustain if the load is applied slowly then held constant.
  11. FAA Memorandum Method of Establishing Flight Load Spectra for Safe-Life Fatigue Analysis, March 25, 2005.
  12. Pipeline patrol survey operations are typically conducted at higher level and do not involve the terrain following profile of geophysical survey flights.
  13. Differential GPS uses differential calculation techniques to improve the accuracy of GPS location data.
  14. Single-engine executive usage (non-pressurised, engine power output greater than 185 hp)
  15. Acceleration fraction is used in guidance material to cater for aircraft having different load limits. An acceleration fraction of +1 equates to either the maximum positive manoeuvre limit or maximum positive gust limit of the aircraft. An acceleration fraction of -1 equates to either the maximum negative manoeuvre limit or maximum negative gust limit. An acceleration fraction of zero is equal to ‘1g’ or level flight.
  16. Higher summer temperatures typically result in increased thermal turbulence.
Safety analysis

Introduction

On the afternoon of 26 May 2019, while undertaking a geophysical survey flight from Mount Isa, Queensland, the right wing of a Cessna T210M, registered VH-SUX (SUX) separated from the aircraft. The wing separation resulted in an immediate loss of control of the aircraft and collision with terrain, fatally injuring the two crewmembers.

A review of the recorded survey data and aircraft maintenance documentation indicated that the pilot did not manoeuvre the aircraft in a way that directly contributed to the in-flight break up. Furthermore, the failed structure was found to conform to required technical and material specifications. As such, this analysis focuses on the reasons for the failure of the structure and operational factors which led to the in-flight break up.

In-flight break up

The in-flight separation of the right wing was associated with an overstress fracture of the wing spar carry-through structure at an area of pre-existing fatigue cracking. The wing spar carry‑through spar represented a critical load path between the fuselage and wing section. Bending and shear loads during flight were transmitted from the wing and into the fuselage via attachment fittings to the carry-through structure. The loss in structural integrity resulting from the fatigue crack within the carry-through, in combination with normal operational loads, resulted in the overstress failure and separation of the wing.

The location of fatigue crack initiation and direction of crack progression indicated that the carry‑through spar cracking had developed and then, on the accident flight, fractured at a change in section thickness, in a region associated with increased tensile stresses. The underside surface of the spar was exposed to the loads imposed by upward bending of the wing (aerodynamic lift loads). Without any redundant load paths, the fracture of the spar led to the separation of the right wing and an immediate loss of control.

Crack initiation

Relatively minor corrosion damage, associated with the initiation of the fatigue cracking, was evident along the underside surface of the carry-through structure. An area of isolated corrosion pit damage to the alloy structure was identified as the crack initiator. This pitting created a localised stress concentration at a thickness transition between the wing lug base region and the central beam allowing the initiation of micro-cracking, reducing the fatigue endurance of the spar.

A fine network of shallow intergranular cracks was found to have developed at the base of the corrosion pitting. This intergranular cracking, in combination with the pitting damage, raised stresses at that location, further accelerating the fatigue damage. Intergranular cracking associated with corrosion pit damage was also found at other locations on the underside surface of the carry-through spar. However, no other fatigue cracking was identified.

The crack length along the underside surface was approximately 42 mm and penetrated upward into the material until reaching a critical depth of approximately 16 mm. The extent of fatigue cracking in the critical section of lower flange represented close to 38 per cent of the cross‑sectional area of the spar that was in tension, significantly reducing the strength of the structure.

Maintenance inspection requirements

Inspections required at the time of the accident

The last inspections of the area of the crack were undertaken 17 months (1,531.6 flight hours) and 19 months (1,746.4 flight hours) prior to the accident. Both inspections were visual inspections for corrosion detection. No defects were identified during either inspection.

After detailed metallurgical examination and analysis, the ATSB concluded that the fatigue crack (and therefore the initiating corrosion damage) was probably present within the structure for about 3,300 flight hours. The rate of corrosion growth is influenced by several factors, including the condition of the corrosion inhibiting surface treatment and the aircraft’s operating environment. Therefore, it could not be determined if the corrosion pitting present at the time of the last inspection was of a detectable size using the stipulated inspection method (visual).

A post-accident ATSB assessment of the corrosion damage depth indicated that it was not at a level that would be considered severe. At the time of the last inspections, for corrosion of a similar level to that found post-accident, the correct maintenance response would have included a request for an engineering assessment from the aircraft manufacturer. The manufacturer advised that had such an assessment occurred, given the relatively minor corrosion, it would not have resulted in the instruction of a non-destructive inspection (such as an eddy-current inspection) before returning the aircraft to service. Without a requirement for such an inspection, detection of any underlying crack was not assured.

Previous inspections

Introduced in 1992, Continued Airworthiness Program (CAP) inspection 57-10-08 required both visual and eddy-current inspections of the carry-through initially at 12,000 hours in-service, and then repeated at 6,000 hourly intervals. However, when an aircraft was operated in the low-level survey (including geophysical survey), or pipeline patrol flight profile these intervals were significantly reduced to 4,000 hours and 400 hours, respectively. The manufacturer could not provide historical information regarding the engineering justification for introducing this more stringent requirement for the low-level survey or pipeline patrol flight profile.

When creating the supplementary inspection documents for the C210 in 2011, the manufacturer reviewed the history of the aircraft’s structure. As no wing spar carry-through cracking had been identified prior to that time, including during the 19 years that CAP inspection 57-10-08 was in place, and with the knowledge that corrosion of the wing carry-through and surrounding structure was a known issue with the Cessna 210 aircraft, the manufacturer removed those inspections and replaced it with a visual corrosion inspection.

While SUX was undertaking survey operations in Australia, two visual inspections were required (four were completed). However, had CAP inspection 57-10-08 remained in place during that period, 15 visual and eddy-current inspections would have been required. Given how long the fatigue crack was probably present within the structure, inspections conducted in accordance with that program would almost certainly have detected the fatigue cracking prior to the accident.

Flight profile fatigue damage and guidance

Data recovered from the survey computer in SUX indicated that in-flight manoeuvring or gust loads may have been contributory to the development of the fatigue crack. However, limitations in the derivation of these loads prevented a robust analysis.

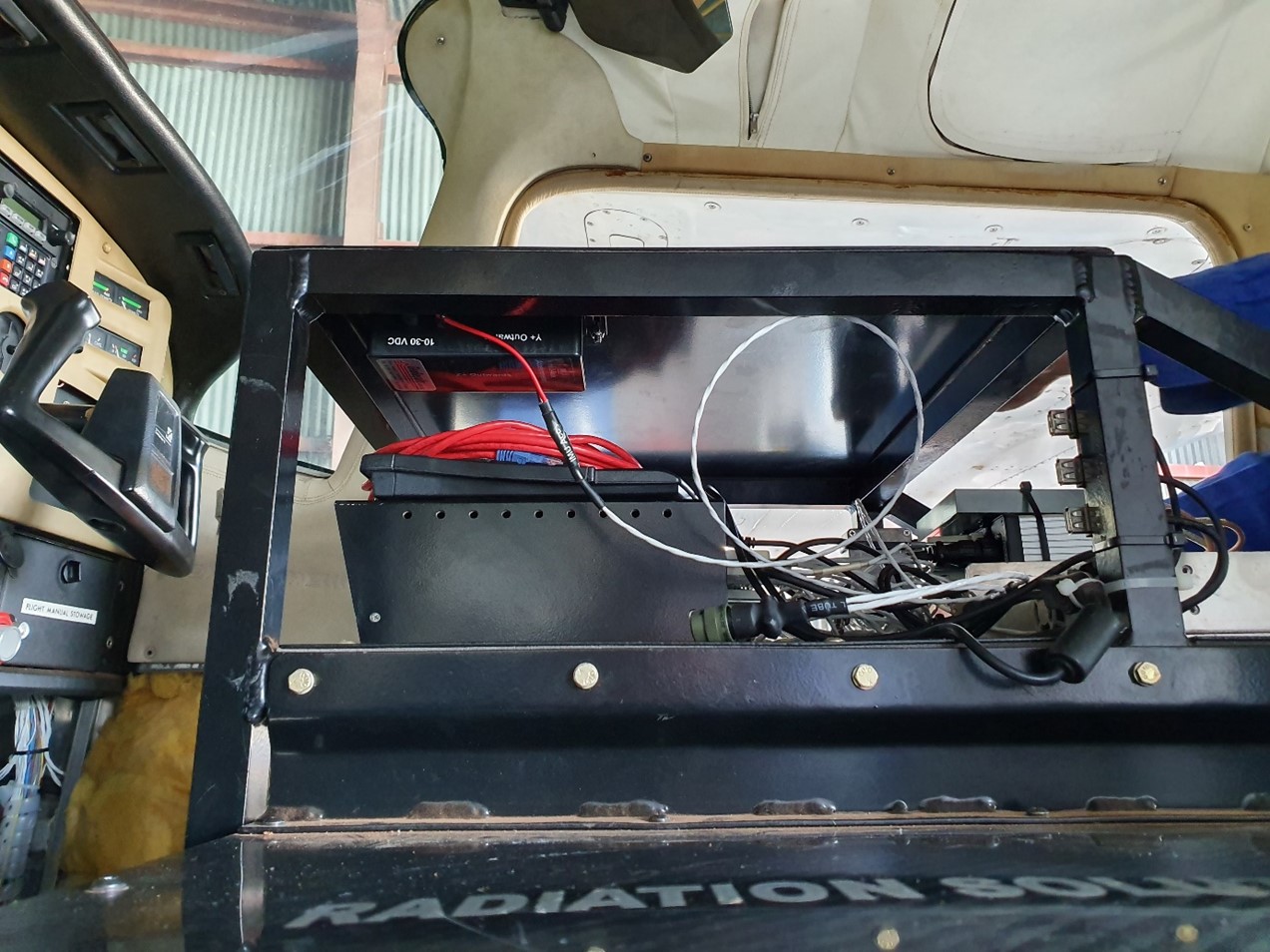

Therefore, another survey C210 (VH-JEI), was instrumented to gather data to determine the loads sustained by the aircraft during the low-level terrain following profile. Using this aircraft, data for 374.6 hours (95 flights and almost 50,000 NM) of survey operations was recorded.

The C210 was certified in 1957 under regulations which did not require specific fatigue damage analysis. Furthermore, no comparative data was available from that time. However, design fatigue spectra was provided in 2005 by the Federal Aviation Administration (FAA) in Advisory Circular AC 23-13A as guidance to designers and modifiers of aircraft.

The ATSB undertook a comparison of the flight data obtained from JEI to FAA guidance material on fatigue analysis. The fatigue spectra for an executive aircraft was used for the comparison as this spectra best reflected the operational profile for which the C210 are typically operated. Also used for comparison was the survey (pipeline patrol) spectra as this most closely aligned with the geophysical flight profile.

For JEI undertaking survey work, the comparison found that minor gust loads experienced during operations slightly exceeded those presented in AC 23-13A for survey aircraft, but more severe loadings were less than the design guidance. However, the repeated loading and unloading of the wing and carry-through structure associated with the intense pitch up and down manoeuvres was found to be more damaging.

The recorded data also showed that the flight profile exceeded, by an even greater amount, the design curves across the whole spectrum for gust and manoeuvres for the Executive profile (detailed in the section titled Data analysis findings). It was found that almost all manoeuvres were being conducted at a rate 10 times the guidance criteria for executive aircraft and for the pitch up and pitch down manoeuvres of the draping profile it was up to 50 times the assumed rate.

Fatigue profiles are used to determine the expected loads for aircraft structures designed in accordance with Federal Aviation Regulation Part 23. These loads determine the design of both structures and associated maintenance inspections. Any underrepresentation in these spectra may lead to inadequate structure and/or inspections with detrimental outcomes for aircraft safety. However, the ATSB assessed that once additional mitigating factors were also taken into account, the likelihood of the loss of an aircraft designed using this spectra did not meet the threshold criteria for a safety issue.

The C210 was designed and manufactured prior to the introduction of Part 23 and the release of the guidance contained in AC 23-13A. Therefore, the manufacturer was not required to determine a safe-life (fatigue profile) for the aircraft type. In that context, any underrepresentation of in‑flight loads, should they exist, and consequential fatigue damage could not reasonably be considered as contributory to the accident.

At the time of writing this report, there was no data available to determine the extent of the fatigue damage incurred by the C210 operating the geophysical survey flight profile and the extent to which the safe-life of the structure was reduced.

Aircraft modifications

Over the life of the aircraft, many modifications were incorporated into both the airframe and systems. In most part, these modifications were incorporated in a manner that should not have increased the fatigue life damage accumulation of the wing spar carry-through structure.

However, the modification increasing the aircraft’s maximum gross weight from 1,723 kg to 1,814 kg (detailed in the section titled Modifications), incorporated in March 2001 at 4,698.9 hours in service, would have resulted in an increase in the fatigue damage accumulation whenever the aircraft was operated above 1,723 kg. Records of the aircraft’s use (prior to its importation to Australia) were not available, therefore the investigation was unable to determine the extent to which the aircraft was operated above 1,723 kg while overseas.

In June 2013 (at 5,933.8 hours in service), the aircraft was imported into Australia. Its Australian operator was not aware of the incorporation of the modification increasing the maximum gross weight to 1,814 kg. All operator documentation relating to the aircraft listed a 1,723 kg maximum weight and, as normal loading for the survey flights resulted in a take-off weight below the 1,723 kg limit, the higher limit was not utilised.

Therefore, the use of the increase in maximum gross weight was most likely very limited. The other modifications were incorporated in a manner which did not increase fatigue damage to the wing spar carry-through structure. Consequently, the ATSB determined that the modifications incorporated into the airframe did not significantly increase the fatigue damage accumulated by the structure.

Findings

ATSB investigation report findings focus on safety factors (that is, events and conditions that increase risk). Safety factors include ‘contributing factors’ and ‘other factors that increased risk’ (that is, factors that did not meet the definition of a contributing factor for this occurrence but were still considered important to include in the report for the purpose of increasing awareness and enhancing safety). In addition ‘other findings’ may be included to provide important information about topics other than safety factors.

Safety issues are highlighted in bold to emphasise their importance. A safety issue is a safety factor that (a) can reasonably be regarded as having the potential to adversely affect the safety of future operations, and (b) is a characteristic of an organisation or a system, rather than a characteristic of a specific individual, or characteristic of an operating environment at a specific point in time.

These findings should not be read as apportioning blame or liability to any particular organisation or individual.

From the evidence available, the following findings are made with respect to the in-flight break-up involving Cessna 210, VH-SUX, 25 km north‑east of Mount Isa Airport, Queensland on 26 May 2019.

Contributing factors

  • During a low-level geophysical survey flight, a pre-existing fatigue crack in the aircraft’s wing spar carry-through structure propagated to a critical size resulting in an overstress fracture of the structure and separation of the right wing.
  • Relatively minor pitting corrosion near a highly stressed location on the lower surface of the wing spar carry-through progressed to inter-granular corrosion within the aluminium alloy structure. This increased stress concentration in this area that led to initiation and growth of a fatigue crack, significantly reducing the strength of the structure.
  • Following an assessment of historical data, the aircraft manufacturer replaced a flight hour‑based repetitive eddy current inspection for cracking of the carry‑through structure with a three-yearly visual corrosion inspection for all operation types. This significantly limited the opportunities to identify fatigue cracking within the carry‑through structure of low-level survey aircraft prior to a crack reaching a critical size. (Safety issue)

Other factors that increased risk

  • The cyclic loads induced by the low-level survey flight profile were significantly greater than those associated with the higher-level flight profile originally intended for the aircraft type. This probably increased the risk of a fatigue‑related structural failure.
  • While not contributory to this accident and not applicable to the Cessna 210, the current guidance to determine fatigue damage for survey aircraft designed in accordance with United States Federal Aviation Regulation Part 23 probably underrepresents the rate of damage accumulated by aircraft intended to be used for low‑level terrain following. This may reduce the airworthiness assurance for survey aircraft designed under Part 23.

Other finding

  • The airframe and system modifications incorporated into the aircraft did not significantly increase the fatigue damage accumulated by the wing spar carry-through structure.
Safety issues and actions

Central to the ATSB’s investigation of transport safety matters is the early identification of safety issues. The ATSB expects relevant organisations will address all safety issues an investigation identifies.

Depending on the level of risk of a safety issue, the extent of corrective action taken by the relevant organisation(s), or the desirability of directing a broad safety message to the aviation industry, the ATSB may issue a formal safety recommendation or safety advisory notice as part of the final report.

All of the directly involved parties were provided with a draft report and invited to provide submissions. As part of that process, each organisation was asked to communicate what safety actions, if any, they had carried out or were planning to carry out in relation to each safety issue relevant to their organisation.

Descriptions of each safety issue, and any associated safety recommendations, are detailed below. Click the link to read the full safety issue description, including the issue status and any safety action/s taken. Safety issues and actions are updated on this website when safety issue owners provide further information concerning the implementation of safety action.

Fatigue damage detection inspection requirements

Safety issue number: AO-2019-026-SI-02

Safety issue description: Following an assessment of historical data, the aircraft manufacturer, Textron Aviation, replaced a flight hour based repetitive eddy current inspection for cracking of the carry-through structure with a three-yearly visual corrosion inspection for all operation types. This significantly limited the opportunities to identify fatigue cracking within the carry-through structure of low-level survey aircraft prior to a crack reaching a critical size.

Glossary

AC

Advisory circular

AD

Airworthiness directive

AGL

Above ground level

AMSL

Above mean sea level

AWB

Airworthiness bulletin

CAP

Continuing airworthiness program

CASA

Civil Aviation Safety Authority

CASR

Civil Aviation Safety Regulations

FAA

Federal Aviation Administration

GPS

Global positioning system

IAS

Indicated airspeed

NDI

Non-destructive inspection

SEL

Service letter

SEM

Scanning electron microscopy

STC

Supplemental type certificate

Sources and submissions

Sources of information

The sources of information during the investigation included the:

  • Civil Aviation Safety Authority
  • Queensland Police Service
  • aircraft operator and manufacturer
  • United States Federal Aviation Administration
  • United States National Transportation Safety Board
  • maintenance organisation for VH-SUX
  • Bureau of Meteorology
  • recorded data from the survey computer from VH-SUX and VH‑JEI.

References

Burian BK, Barshi I & Dismukes K 2005, The challenge of aviation emergency and abnormal situations, National Aeronautics and Space Administration Technical Memorandum NASA/TM-2005-213462.

Cavanagh J & Shields K 1995, Standard catalog of Cessna single engine aircraft, Jones publishing, Wisconsin USA.

United States Federal Aviation Administration 2005, AC 23-13A, Fatigue, Fail-Safe, and Damage Tolerance Evaluation of Metallic Structure for Normal, Utility, Acrobatic, and Commuter Category Airplanes, Washington DC, USA.

United States Federal Aviation Administration 1993, DOT/FAA/CT-91/20 General Aviation Aircraft Normal Acceleration Data and Collection Project, Washington DC, USA.

United States Federal Aviation Administration 1999, DOT/FAA/AR-99/14 An Evaluation of Methods to Separate Maneuver and Gust Loads Factors from Measured Acceleration Time Histories, Washington DC, USA.

United States Federal Aviation Administration 1973, AFS-120-73-2 Fatigue Evaluation of Wing and Associated Structures on Small Airplanes, Washington DC, USA.

Submissions

Under section 26 of the Transport Safety Investigation Act 2003, the ATSB may provide a draft report, on a confidential basis, to any person whom the ATSB considers appropriate. That section allows a person receiving a draft report to make submissions to the ATSB about the draft report.

A draft of this report was provided to the following directly involved parties:

  • Civil Aviation Safety Authority (CASA)
  • United States National Transportation Safety Board (NTSB)
  • United States Federal Aviation Administration (FAA)
  • aircraft manufacturer
  • aircraft operator
  • aircraft maintainer
  • the pilot and observer’s next of kin

Submissions were received from:

  • CASA
  • NTSB
  • FAA
  • the observer’s next of kin

The submissions were reviewed and, where considered appropriate, the text of the report was amended accordingly.

Appendix A

Appendix A – Wing spar carry-through examination

Scanning electron microscopy of corrosion damage

Measurements indicated that the corrosion penetrated into the surface approximately 2.9 mm in length by 0.30 mm in depth (Figures A1 to A7). The pit damage that initiated the cracking was characterised by an amorphous corrosion product. Notably, the corroded region transitioned into an underlying zone of intergranular cracking at the base of the pit, before transitioning toward fatigue cracking. Other pits that were examined on the underside surface of the carry-through spar were also identified to have generated fine intergranular corrosion cracks that also penetrated into the base alloy.

Semi-quantitative chemical analysis of the corrosion product located at the fatigue crack origin (as well as other corroded regions) was completed using an energy dispersive spectrometer (EDS) attachment to the SEM. A plot of the EDS spectra is shown at Figure A8. Minor amounts of sodium and chlorine were identified within the corrosion product which suggests that the pitting damage was influenced by the accumulation of common chloride-containing salts on the underside surfaces of the spar.

From these observations it was apparent that the initiating defects were a combination of corrosion pit damage and intergranular attack of the base microstructure.

Figure A1: Scanning electron microscopy of the fracture surface, key features are identified at the fatigue crack origin

Figure A1: Scanning electron microscopy of the fracture surface, key features are identified at the fatigue crack origin

It was confirmed that the fatigue cracking initiated from a single corrosion pit cluster which then propagated through the structure from that location.

Source: ATSB

Figure A2: Scanning electron microscopy (back-scattered image) of the fracture surface at the fatigue crack origin

Figure A2: Scanning electron microscopy (back-scattered image) of the fracture surface at the fatigue crack origin

Source: ATSB

Figure A3: Scanning electron microscopy of the fracture surface close to the overstress boundary

Figure A3: Scanning electron microscopy of the fracture surface close to the overstress boundary

Well defined distinct load intervals (or crack arrest marks) and striations were identified along the entire fatigue portion of crack growth up until the overstress fracture.

Source ATSB

Figure A4: Scanning electron microscopy: closer view of the crack arrest marks near the overstress boundary

Figure A4: Scanning electron microscopy: closer view of the crack arrest marks near the overstress boundary

The distance between each distinct band indicates a distinct load interval that is probably a take-off and landing cycle.

Source ATSB

Figure A5: Scanning electron microscopy of the fatigue fracture surface

Figure A5: Scanning electron microscopy of the fatigue fracture surface

A combination of well-defined striations and arrest marks (major load cycles) were identified along the entire portion of the fatigue fracture.

Source: ATSB

Table A1: Unique load count measurements across the fracture surface

Crack Length
Distance from origin (mm)

Measured load cycles (n)

Unit Length (um)

Average Microns per Progression Band

1 / (striation spacing)

Incremental Distance
(mm)

Striations / Incremental Distance

5.26

5

68

13.6

0.074

4.913

361

5.57

3

53

18

0.057

0.310

18

7.94

3

56

19

0.054

2.364

127

9.41

6

113

19

0.053

1.477

78

11.25

3

63

21

0.048

1.836

87

11.43

4

29

7

0.138

0.178

25

12.86

2

30

15

0.067

1.432

95

13.18

3

80

27

0.038

0.315

12

13.67

2

87

44

0.023

0.495

11

14.34

3

59

20

0.051

0.668

34

14.75

6

63

11

0.095

0.417

40

15.41

8

135

17

0.059

0.654

39





















Total estimated number of unique load cycles

927

Figure A6: Scanning electron microscopy image near the crack origin identifying the intergranular and transgranular (fatigue) regions

Figure A6: Scanning electron microscopy image near the crack origin identifying the intergranular and transgranular (fatigue) regions

The corrosion pitting led to intergranular corrosion and the subsequent development of transgranular fatigue cracking.

Source: ATSB

Figure A7: Scanning electron microscopy of the underside surfaceThe corrosion pitting led to intergranular corrosion and the subsequent development of transgranular fatigue cracking. Source: ATSB Figure A7: Scanning electron microscopy of the underside surface

Intergranular corrosion/cracking has initiated from the corrosion pits.

Source: ATSB

Figure A8: EDS spectra of the corrosion product within the base of the corrosion pit at the fatigue crack origin

Figure A8: EDS spectra of the corrosion product within the base of the corrosion pit at the fatigue crack origin

Corrosion damage quantification

To assess the extent of pitting corrosion damage, the underside of the carry-through spar was divided into a grid array, with each square measuring 20 mm by 20 mm. There were 30 sites of corrosion damage selected for measurement. The datum reference point was the oblique centreline of the part. A low-viscosity replicating compound was cast to form a mold of the corrosion damage at each of the selected sites.

A digitally controlled optical microscope was used to scan the mold surface of each corrosion site. Although hundreds of very fine pits were identified on the surface of the fitting, only the very deepest pits at each site were selected for analysis. The mapping survey is presented in Figure A9 and the measurement results in Table A1. The deepest pit measured approximately 0.30 mm.

Several pit clusters were selected for metallographic sectioning to determine the morphology of the corrosion damage. The cross-section demonstrated the invasive nature of the intergranular corrosion and how a network of fine sub-surface cracks is likely to have had metallurgical stress‑raising effect on the initiation of fatigue cracking within the spar (Figures A10 to A12).

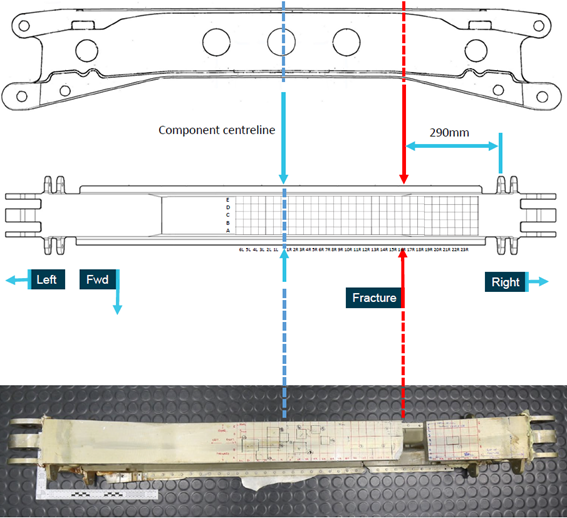

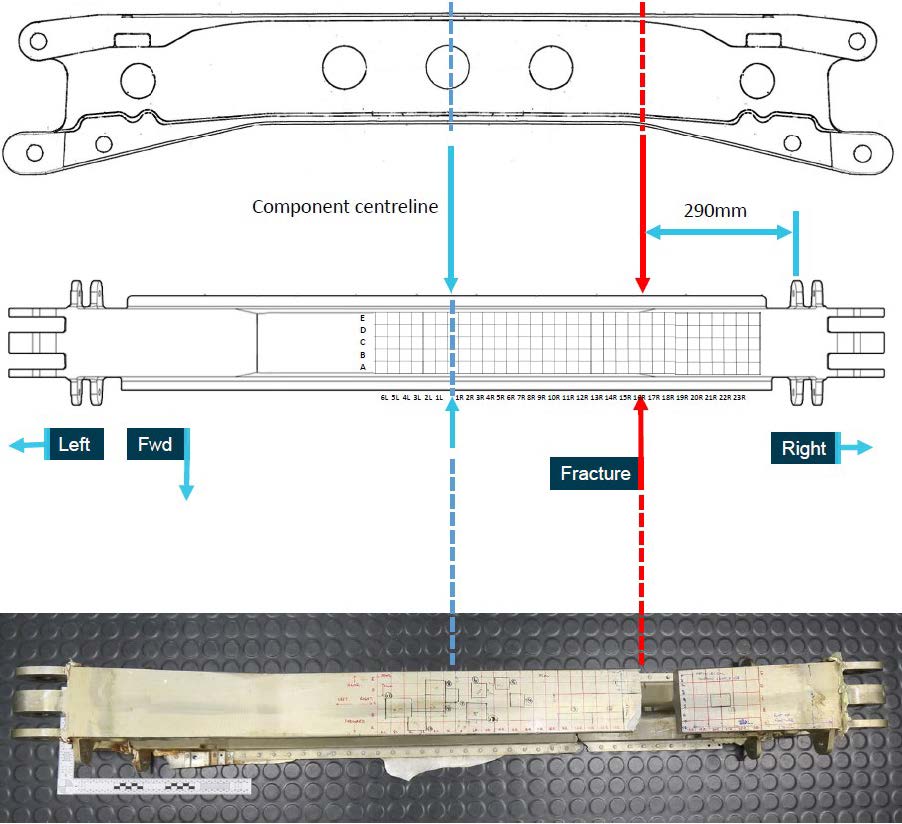

Figure A9: Mapping out and measuring the corrosion damage on the underside surface of the carry-through

Figure A9: Mapping out and measuring the corrosion damage on the underside surface of the carry-through

Table A2: Pit depth measurement from the underside of the carry-through indicated a range of corrosion damage with a maximum measured depth of 0.30mm

Corrosion Pit Depth Measurements





Corrosion Region #

Replicast #

Pit#

co-ord y

co-ord x

Pit Depth (mm)

1

1

E

13R

0.05

1

2

E

13R

0.04

1

3

E

13R

0.02

1

4

E

13R

0.02

2

1

A

13R

0.04

2

2

A

13R

0.03

3

1

A

10R

0.04

3

2

A

10R

0.04

4

1

D

4R

0.06

4

2

D

4R

0.06

5

1

D

4R

0.15

5

2

D

4R

0.17

5

3

D

4R

0.12

6

1

D

2R

0.21

6

2

D

2R

0.20

6

3

D

2R

0.30

6

4

D

2R

0.05

7

1

C

1L

0.04

7

2

C

1L

0.06

7

3

C

1L

0.03

8

1

D

2L

0.36

9

1

C

2L

0.36

10

1

A

4L

0.15

10

2

A

4L

0.05

10

3

A

4L

0.07

11

1

B

5L

0.03

Figure A10: Metallurgical cross-section through a region of pitting damage from the carry‑through spar

Figure A10: Metallurgical cross-section through a region of pitting damage from the carry‑through spar

The corrosion has progressed from the underside surface. Intergranular corrosion has then developed within alloy surrounding the surface pits

Source: ATSB

Figure A11: Close-up images of some of the corrosion damage identified on the underside surface of the component

Figure A11: Close-up images of some of the corrosion damage identified on the underside surface of the component

Source: ATSB

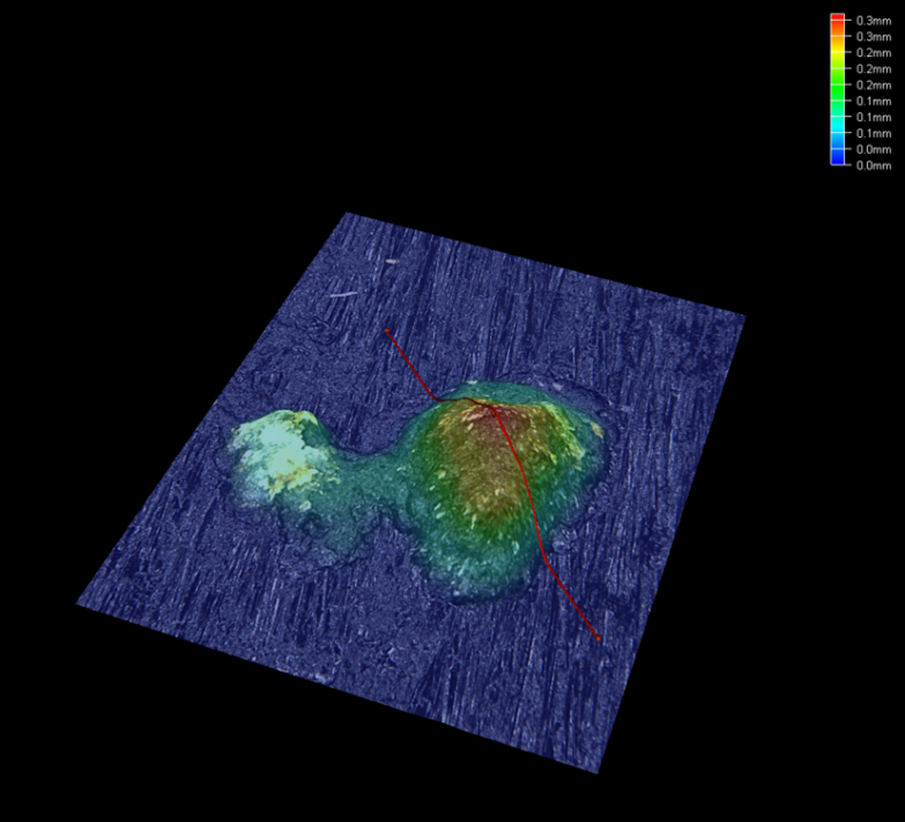

Figure A12: Depth map of a corrosion pit on the underside surface of the carry-through structure

Figure A12: Depth map of a corrosion pit on the underside surface of the carry-through structure

Metallurgical characterisation

Hardness

Hardness measurements were conducted on suitably prepared sections through the fatigue‑fractured carry-through structure. Samples were destructively sectioned near the fatigue crack plane on the carry-through spar underside.

Transverse Brinell hardness measurements were completed through the bulk of the lower carry‑through structure. A through-hardness Vickers micro hardness traverse was also completed to assess for variability in mechanical properties. The results were then compared to the standard QQ-A-367 for 2014 in the T6 heat treatment. As measured, the average bulk Brinell hardness results were higher than the prescribed value from the aircraft manufacturer (Tables A2 to A4). The Vickers micro-hardness traverse identified no significant difference in the through‑hardness of the carry-through, which showed uniform hardness (strength) levels through the web. Though heat treated to be within the correct strength range, the higher results correlate with an increase in tensile strength for the forging than was specified.

Table A3: Physical properties of carry-through structure from VH-SUX



Tensile Strength
(psi)

Tensile Strength
(MPa)



Brinell
Hardness
(minimum)









QQ-A-367 specification

65,000

-

125

MIL HDBK 694A (1966)

62,000

-



150

ASM Metals Handbook

70,000

483



147









VH-SUX carry-through

70,742

488

147

Cessna specify the carry-through spar to be manufactured in accordance with QQ-A-367 (December 1973). The mechanical properties of the forged spar were higher than that specified by Cessna in US Federal Standard QQ-A-367

Material chemistry

Quantitative chemical analyses of metallurgical samples taken from the spar (Figure A13) was completed using Inductively Coupled Plasma-Optical Emission Spectroscopy. The results of the that testing are contained in Table A5 and are displayed as elemental weight percentage. The carry-through spar from VH-SUX was found to conform to the chemical composition for aluminium alloy 2014, as specified in QQ-A-367.

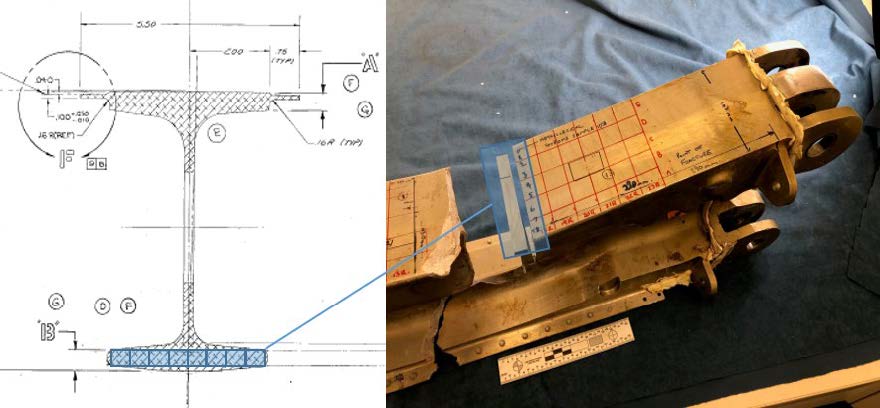

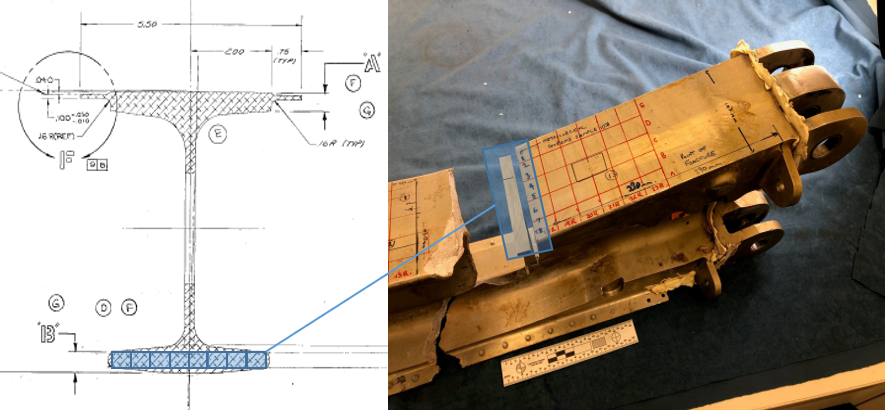

Figure A13: The section of carry-through structure adjacent the fracture plane removed for hardness testing and chemical characterization

Figure A13: The section of carry-through structure adjacent the fracture plane removed for hardness testing and chemical characterization

Table A4: Quantitative analysis findings of the bulk alloy



Method: Inductively Coupled Plasma-Optical Emission Spectroscopy











Al

Mg

Si

Ti

Mn

Fe

Cu

Zn

Cr

QQ-A-367

Remainder

0.20 - 0.80

0.50 - 1.20

0.15


0.40 - 1.20

0.7


3.90 -5.00

0.25


0.1






















VH-SUX

Remainder

0.41

0.80

0.05

0.72

0.29

4.30

0.16

0.02

Analysis confirmed the material to be within the range of QQ-A-367 for 2014 and was therefore manufactured from the specified alloy

Mechanical testing

Alloy sections from the carry-through were destructively sectioned and tensile samples machined and tested in accordance with ASTM E8[18] The results of those tests, presented in Table A6, indicated an average tensile of 70,742 psi, which exceeded the minimum strength requirements (65,000 psi) specified by Cessna in QQ-A-367.

Dimensional assessment

Measurements of the carry-through spar at the point of failure was conducted and compared with the Cessna engineering drawing, ‘Wing spar Assy Centre Section Cantilever’, Drawing Number 1210702, Sheet 3. The cross-sectional measurements of the carry-through spar from VH-SUX were found to meet or exceed the drawing requirements.

Table A5: Mechanical test results of tensile coupons machined from the upper and lower carry-through spar from VH-SUX

Tensile test results

Method: ASTM E8 / E8M

Coupon diameter: 12 mm

Gauge length: 50 mm

Sample #

Max Force
(lbf)



Ultimate Tensile Strength
(psi)

0.2 per cent Proof Stress
(psi)

Elongation
(per cent)



Upper Spar
sample 1

13,563

71,325

65,267

10

Upper Spar

Sample 2

13,536

71,188

65,267

10

Lower Spar

Sample 1

13,322

70,072

64,542

10

Lower Spar

Sample 2

13,383

70,385

65,267

10

QQ-A-367
2024-T6

-

56,000
(minimum)

56,000 (minimum)

4
(minimum)

__________

  1. ASTM E8 ‘Standard Test Methods for Tension Testing of Metallic Materials’.
Appendix B

Appendix B – In-flight fatigue load data gathering

Setup and Analysis of VH-JEI Survey Data

An Invensense MPU-6000 6 axis motion tracking surface mounted integrated circuit module (Figure B1) was installed in another Cessna 210, VH‑JEI. Three axis linear acceleration data was added to the channels being recorded by the survey computer.

Figure B1: Invensense MPU-6000

Figure B1: Invensense MPU-6000

Source: Aircraft operator, modified by the ATSB

The module was hard mounted in the existing survey computer rack, behind the pilot seats. The module was positioned close to the aircraft centreline, high in the rack and longitudinally close to the rear spar (Figure B2 and B3). This positioned the module close to the aircraft centre of gravity to minimise sensing of rotational accelerations.

Figure B2: The mounting location of the accelerometer within the survey equipment racks

Source: Aircraft operator, modified by the ATSB The module was hard mounted in the existing survey computer rack, behind the pilot seats. The module was positioned close to the aircraft centreline, high in the rack and longitudinally close to the rear spar (Figure B2 and B3). This positioned the module close to the aircraft centre of gravity to minimise sensing of rotational accelerations. Figure B2: The mounting location of the accelerometer within the survey equipment racks

Source: Textron Aviation, modified by the ATSB

Figure B3: Accelerometer mounted within the survey equipment rack

: Accelerometer mounted within the survey equipment rack

The survey equipment rack has been moved forward to the pilot seat location for access.

Source: Aircraft operator

Methodology

Spectra for any flight or taxi load in the aircraft is presented in a tabular and graphical format in such a way as to provide data in a normalised form. Thus, absolute acceleration data collected relative to a time base needs processing and conversion to a cumulative frequency based on distance. A large portion of sampling utilised to generate the United States Federal Aviation Administration guidance material was conducted using analogue processes which involved time consuming review to categorise. Thus, categories tended to be bigger but later digital methods used by United States National Aeronautics and Space Administration in the 1990s separated events into 0.05g blocks. This was the method used for the ATSB analysis.

As normal non-manoeuvring cruise flight in still air has an aircraft reacting to a 1g acceleration (gravity), and can be considered the static load, the fatigue calculations related to flight loads are measured around this state. Variations above and below 1g were recorded and categorised. For gusts, these are referred to as a positive (up) and negative (down) gusts. For manoeuvre, they are referred to as pitch up and pitch down manoeuvres. These variations/events were assessed for peak ‘g’ whether they be above or below ‘1g’. A tolerance was applied to cater for data noise and returning to the static condition. An event was not considered to have occurred and finished until the aircraft acceleration passed and then returned to either 1.05g or 0.95g. The peak over that event was counted as either a manoeuvre or gust depending on the length of the event and placed into the relevant 0.05g wide block. The data was turned into cumulative tables/graphs from each extreme of positive and negative or pitch up and pitch down events.

Once the data review was complete, the blocks for that aircraft were normalised into the form of an acceleration fraction. An acceleration fraction of +1 equates to either the maximum positive manoeuvre limit or maximum positive gust limit. An acceleration fraction of -1 equates to either the maximum negative manoeuvre limit or maximum negative gust limit. An acceleration fraction of zero is equal to ‘1g’. Thus, for different aircraft, the 0.05g block will be scaled differently depending on the aircraft’s manoeuvre and gust design limits. In fact, scaling can be different for positive and negative sides of the graph. For the Cessna 210, the design gust limits are -1.4g to 3.4g. Manoeuvre limits are -1.5g to +3.8g.

While the trigger for an event was 1.05g/0.95g and data blocks were recorded down to these, the data is only presented from 1.4g/0.6g. This equates to an acceleration fraction of approximately ±0.16. In the past, data was presented down to 1.4g/0.6g or 1.3g/0.7g due to the limitations of analogue recording and the excessive manpower to process it. Due to the cumulative nature of the data presentation, most events occur close to 1g. While data could have been shown down to 1.05g/0.95g, it is presented to 1.4g/0.6g for consistency and comparative purposes.

The data from the survey computer was processed by proprietary programs. The resulting files contained over 50 channels of data at a 20 Hz sampling rate and contained all or part of a flight.

Data verification

Qualitative assessment of the output revealed a smooth signal electrically. Figure B4 presents a sample coinciding with the aircraft taxying to a stop while simultaneously shutting down the engine. The rigid mounting of the accelerometer produced good sensing of the vehicle accelerations. Additional filtering or conditioning of the data was deemed not to be required. The assessment of signal post-processing during development was that peaks, particularly for gusts, were being retarded significantly and it was felt a non-processed output provided more accurate results. Mechanical airframe vibrations can be seen below, including the engine shutdown, but this accurately represented the movement in the vehicle.

Due to travel restrictions,[19] there was limited opportunity to calibrate the sensors. The operator’s surveying procedure did involve a calibration and zeroing procedure of their sensors during start‑up. Again, qualitative assessment of the data revealed some drift on start-up, however it was assumed that a warmup period was required. Assessment of the shutdown period revealed the z axis sensor could be seen to be returning 1.00g±0.01g. It was therefore deemed to be correctly orientated and zeroed. Assuming correct zeroing of the sensor, the specifications state a 3 per cent maximum error. This put the absolute error of the measured data at the aircraft’s flight load limits at no more than one 0.05g block. Additionally, most measured data was within 1g of static putting the maximum error within half a 0.05g block.

A variation to the script was written to check correct detection and categorisation of peak values. A sample 20 seconds of the output file is presented in Figure B5 over the top of the raw data. It shows peaks were being correctly identified.

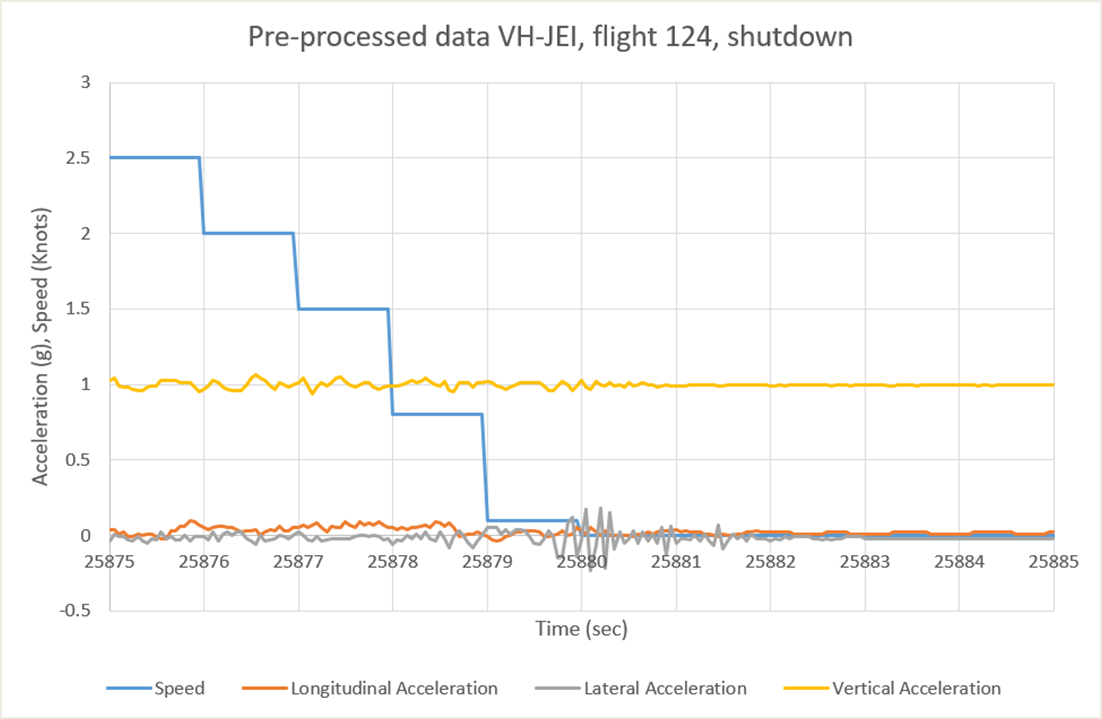

Figure B4: Graphical representation of accelerometer data captured during aircraft shutdown

Figure B4: Graphical representation of accelerometer data captured during aircraft shutdown

Source: ATSB

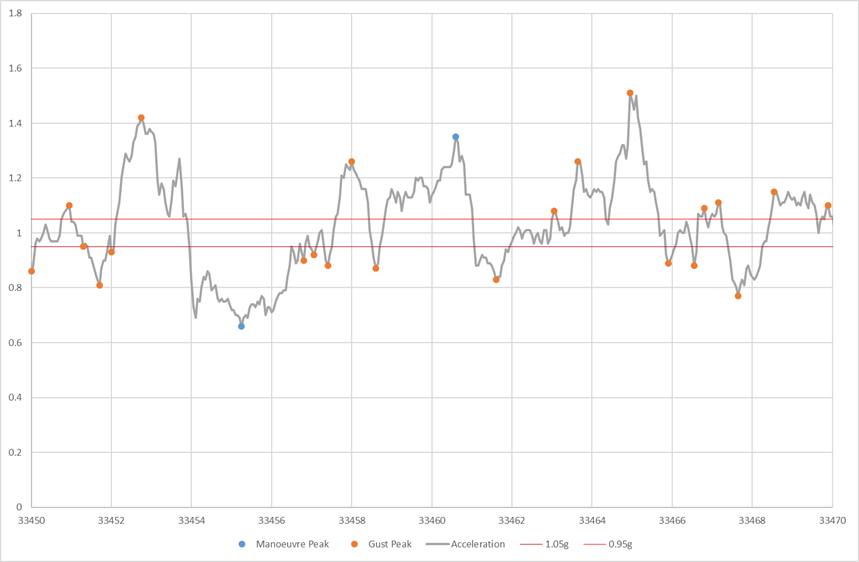

Figure B5: Graphical representation of scatter plot data

Figure B5: Graphical representation of scatter plot data

Source: ATSB

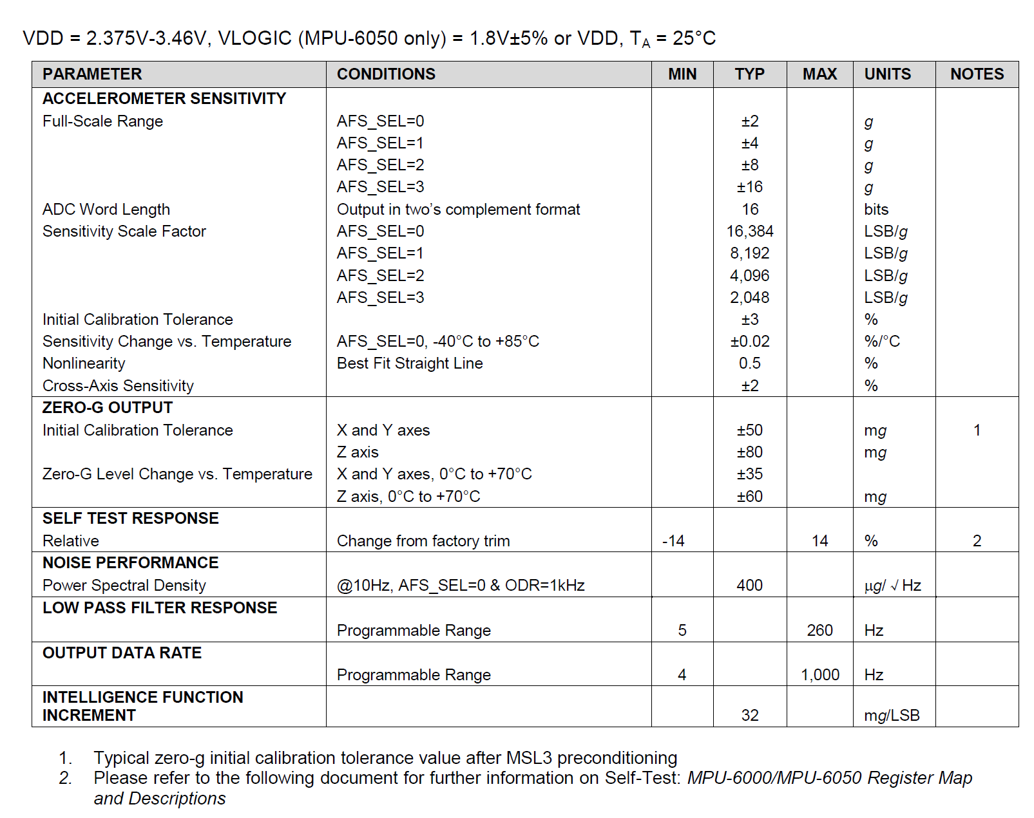

Accelerometer specifications

__________

  1. The data recording occurred during a period of Coronavirus related travel restrictions.
Appendix C

Appendix C – Maintenance inspection details

Supplemental Inspection 53-11-01

Wing spar carry-through corrosion inspection

The manufacturer directed supplemental inspection 53-11-01 which included the following requirements:

Inspection compliance

Inspection compliance for severe corrosion environment (IAW section 2A-30-01), initial inspection 10 years with a repeat inspection every 3 years.

Purpose

To ensure the integrity of the main spar carry-through structure.

Inspection instructions

Obtain access to the upper portion of the main spar carry-thru bulkhead. Refer to the applicable Model 210 Service Manual.

Clean areas before inspecting if grime or debris are present.

Inspect for corrosion on the carry-thru spar. Refer to Figure [6]. Pay particular attention to locations where support wires in the air ducts or upholstery pads contact the spar.

Inspect for corrosion at the wing attachment lugs and carry-thru spar attachment area.

Inspection method

Visual.

Repair/Modification

Replace or repair damaged root rib or carry-thru spar. Carefully remove corrosion, removing minimum material. Contact Cessna Customer Service for evaluation of corrosion damage.

Note, the inspection stipulates that no identified cracks are allowable.

Table C1 details the three times the inspection was carried out when the aircraft was on the Australian register. The last inspection was conducted about 18 months and 1,746.4 flight hours before the accident.

Table C1: Special inspection SID 53-11-01 conducted on VH-SUX

Date

Flight hours

Results

26 June 2013

5,933.8

Nil defects found

8 Nov 2016

9,088.2

Nil corrosion or defects evident

10 Nov 2017

10,428.5

Nil defects

Airworthiness Directive AD/C210/61 Amendment 2

Inspection of the wing spar carry-through for corrosion

This Civil Aviation Safety Authority (CASA)‑specific airworthiness directive mandated an inspection of the carry-through structure initially at a time when a mandatory inspection of the area did not exist if CASA maintenance schedule 5 was being utilised.

The original issue of this airworthiness directive became effective on 20 April 1989 as follows:

Applicability: All models with cantilever (unstrutted) wings.

Requirement: 1. Gain access to the upper and underside surfaces of the wing carry-through forging.

Requirement: 2. Inspect the whole wing carry-through forging for any indications of corrosion. Repairs to the wing carry-through forging shall be in accordance with a scheme approved by the Authority.

Compliance: For the initial inspection, upon accumulating 10 years’ time in service since manufacture. Thereafter at intervals not to exceed 6 years, or, if the spar carry-through has been subjected to an approved corrosion protection scheme, at intervals not to exceed 12 years.

Background: There have been reports of corrosion in the wing spar carry-through forging on a number of aircraft. In two cases the corrosion was sufficiently advanced to adversely affect the structural integrity of the wing.

Table C2 identifies that the last inspection was conducted six weeks and about 200 flight hours after it had previously been inspected under the previously mentioned SID 53-11-01. This represented the last detailed inspection of the main spar carry-through structure inboard of the wing attachment lugs. The last inspection was conducted about 17 months and 1,530.2 flight hours before the accident.

Table C2: AD/C210/61 AMDT 2 conducted on VH-SUX

Date

Flight hours

Results

22 Dec 2017

10,644.7

Nil defects evident



Purpose of safety investigations & publishing information

Purpose of safety investigations

The objective of a safety investigation is to enhance transport safety. This is done through:

  • identifying safety issues and facilitating safety action to address those issues
  • providing information about occurrences and their associated safety factors to facilitate learning within the transport industry.

It is not a function of the ATSB to apportion blame or provide a means for determining liability. At the same time, an investigation report must include factual material of sufficient weight to support the analysis and findings. At all times the ATSB endeavours to balance the use of material that could imply adverse comment with the need to properly explain what happened, and why, in a fair and unbiased manner. The ATSB does not investigate for the purpose of taking administrative, regulatory or criminal action.

Terminology

An explanation of terminology used in ATSB investigation reports is available here. This includes terms such as occurrence, contributing factor, other factor that increased risk, and safety issue.

Publishing information

Released in accordance with section 25 of the Transport Safety Investigation Act 2003

Published by:           Australian Transport Safety Bureau

© Commonwealth of Australia 2023

Ownership of intellectual property rights in this publication

Unless otherwise noted, copyright (and any other intellectual property rights, if any) in this report publication is owned by the Commonwealth of Australia.

Creative Commons licence

With the exception of the Coat of Arms, ATSB logo, and photos and graphics in which a third party holds copyright, this publication is licensed under a Creative Commons Attribution 3.0 Australia licence.

Creative Commons Attribution 3.0 Australia Licence is a standard form licence agreement that allows you to copy, distribute, transmit and adapt this publication provided that you attribute the work.

The ATSB’s preference is that you attribute this publication (and any material sourced from it) using the following wording: Source: Australian Transport Safety Bureau

Copyright in material obtained from other agencies, private individuals or organisations, belongs to those agencies, individuals or organisations. Where you wish to use their material, you will need to contact them directly.

Aircraft Details
Departure point
Mount Isa, Queensland
Destination
Mount Isa, Queensland
Model
T210M
Serial number
21061042
Sector
Piston
Registration
VH-SUX
Operation type
Aerial Work
Damage
Destroyed
Manufacturer
Cessna Aircraft Company
Aircraft Operator
Thomson Aviation
