Accident day
On 8 April 2019, at 0652 Eastern Standard Time,[1] a Cessna 182G aircraft, registered VH-DJN, departed Cloncurry aerodrome on a private flight to Mount Garnet, Queensland, under the visual flight rules (Figure 1).[2] On board were the pilot and one passenger, who was the aircraft owner.

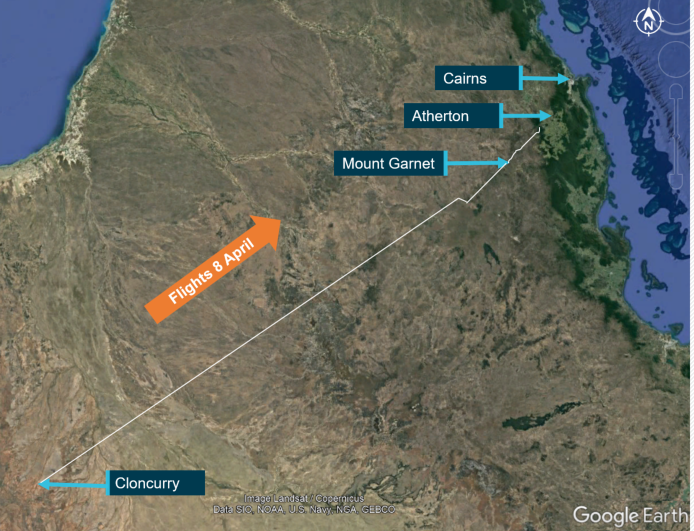

Figure 1: Map of Queensland locations relevant to the occurrence showing the approximate track of VH-DJN on the accident day
Source: Google Earth and aircraft GPS, annotated by ATSB
The aircraft landed at Mount Garnet aerodrome at 0920, where the passenger disembarked. The passenger left the aerodrome, intending to return at about 1500 for an onward flight to Charters Towers. In the interim, the pilot planned to fly to Atherton Airport to refuel and then return to Mount Garnet. Atherton Airport, elevation 2,460 ft above mean sea level (AMSL), was 63 km north-east of Mount Garnet aerodrome, elevation 2,156 ft AMSL. Between these locations lay the Herberton Range, where the highest peaks in the vicinity of the direct track reached about 4,000 ft AMSL.
The aircraft took off from Mount Garnet at 0934:31, with the pilot as the sole occupant. Based on the aircraft’s GPS data, it initially tracked directly towards Atherton Airport for about 4 minutes, before diverging east of the direct route (Figure 2).

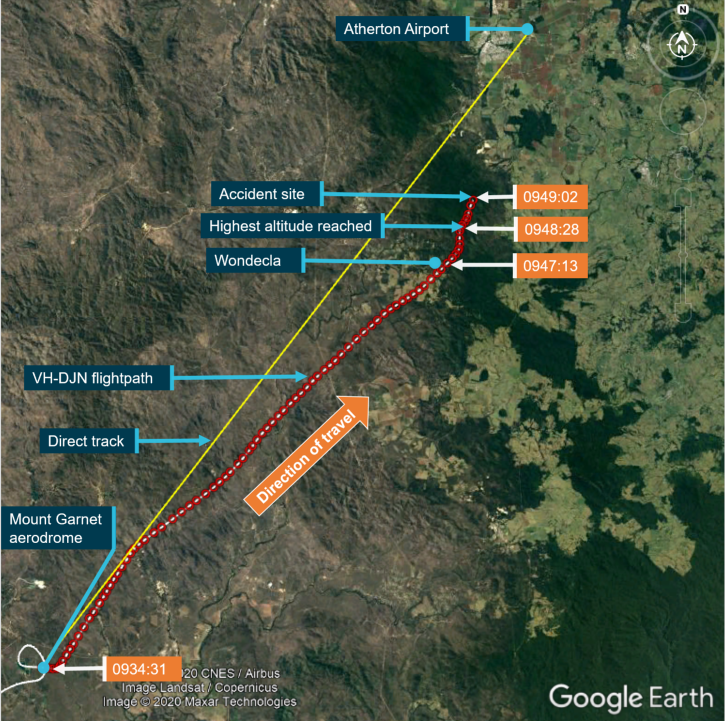

Figure 2: Recorded flightpath of VH-DJN (red) and direct track (yellow)
Source: Google Earth overlaid with aircraft’s recorded GPS track, annotated by ATSB
The aircraft made small deviations right and left as it tracked north-east and passed overhead Wondecla at 0947:13 climbing through 4,144 ft. Over the next 30 seconds, the aircraft climbed to about 4,400 ft, which was the maximum height reached, before starting to descend. As the aircraft descended about 500 ft over the next 76 seconds, small changes in direction and two short climbs were made (Figure 3).
The aircraft’s last recorded GPS position was at 0949:02 at an altitude of 3,916 ft and heading north-north-east. The terrain elevation at that position was 3,774 ft[3] and the terrain and GPS altitudes were each correct to within about 100 ft.
The aircraft impacted the tree canopy and subsequently terrain, fatally injuring the pilot. The 130 metre-long wreckage trail was consistent with significant forward speed at impact (about 240 km/h ground speed based on GPS data) and the aircraft was destroyed. No radio transmissions by the pilot were recorded on any available frequency

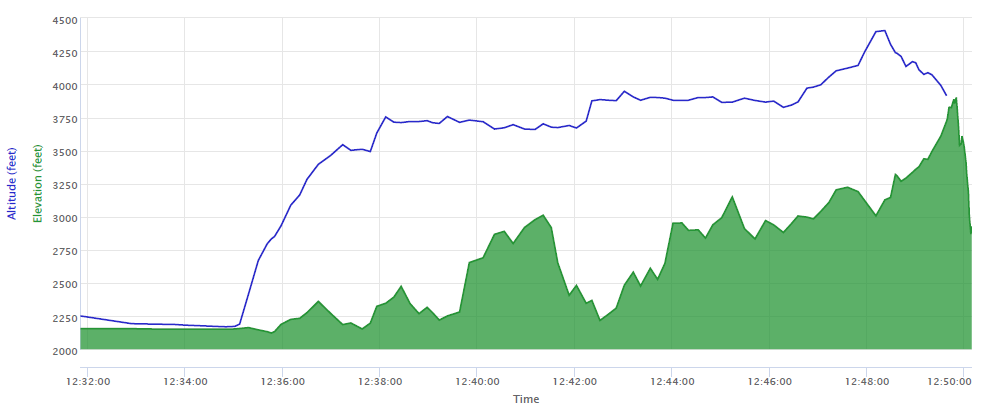

Figure 3: Terrain elevation (green) and VH-DJN GPS altitude (blue) for the accident flight
Source: Geoscience Australia and aircraft GPS recorded data
Previous day
The flights conducted on the day prior to the accident flight, 7 April, are depicted in Figure 4. The pilot operated VH-DJN alone from Townsville Airport, departing at 0557 and arriving at Charters Towers aerodrome at 0624. The (same) passenger joined the pilot at Charters Towers and after refuelling the aircraft, the pilot and passenger flew to Elrose Station, arriving at 0849. Later that day, the aircraft departed Elrose Station for a 27-minute flight to Cloncurry, where the pilot and passenger stayed overnight.

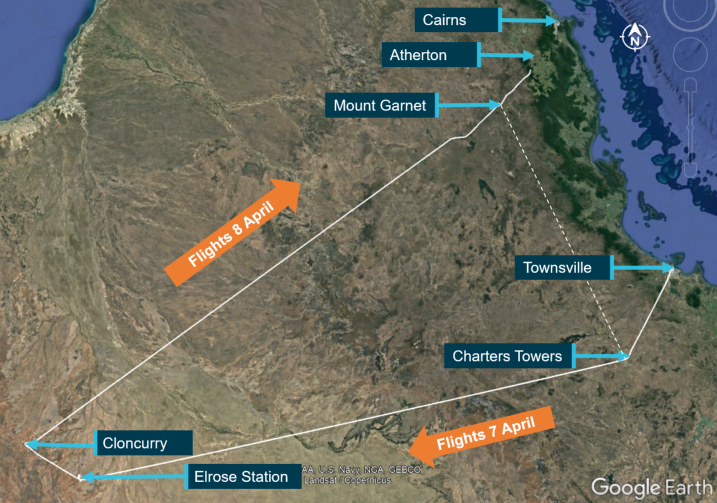

Figure 4: Map of Queensland locations relevant to the occurrence and previous day’s flights including the aircraft track
Source: Google Earth and aircraft GPS, annotated by ATSB
__________
Pilot information
Qualifications and experience
The pilot held a private pilot (aeroplane) licence that was issued under Civil Aviation Safety Regulations Part 61 in November 2014. The Civil Aviation Safety Authority (CASA) reported that the pilot’s original licence was issued in 1975. The ATSB was unable to obtain the pilot’s logbook after the accident. However, as at 8 July 2017, the pilot’s logbook had recorded 6,532 hours total aeronautical experience, at which time the pilot had recorded 3,967 hours on the Cessna 182 aircraft type.
The pilot’s last review was a night visual flight rules (VFR)[4] and single-engine aeroplane class rating fight review, conducted in April 2018 and valid until April 2020. Night VFR operations are based on visual procedures in visual meteorological conditions (VMC).[5] Additionally, the CASA advisory circular (AC) 61-05 Night VFR rating stated:
4.3.2 Night operations require proficiency in instrument flight (IF)…
4.3.3 Instrument flying skills are intrinsic to night flying; therefore, it is also desirable that IF proficiency be demonstrated before commencing actual night flying.
4.3.4 While NVFR flight must be conducted in VMC, a visual horizon is often not available and a sudden loss of visual reference is also possible (i.e. when turning away from a well-lit area, reduced visibility or even following inadvertent entry into cloud). Night flying training should therefore emphasise the importance of flying the aircraft by reference to the flight instruments integrated with visual flying, even in conditions where external lighting provides adequate visual reference.
The pilot had previously held a multi-engine aeroplane instrument flight rules (IFR) [6] rating, with the last renewal recorded in the logbook conducted in October 2010.
Medical and pathological information
The 73-year-old pilot held a Class 2 Medical Certificate, valid until September 2020. The certificate required the pilot to wear distance vision correction and a headset while flying and have vision correction available for reading.
The autopsy report identified that the pilot had coronary artery atheroma of a severity that could have led to a cardiac event. This was consistent with the general practitioner’s assessment that the pilot had a history of moderately high cardiovascular risk. However, it could not be determined whether this had occurred or had any influence on the pilot’s actions.
Post-mortem toxicological examination of the pilot’s blood revealed the presence of a benzodiazepine, a hypnotic sedative medication, consistent with a therapeutic dosage and a blood alcohol concentration (BAC) of 0.03 per cent. The pilot’s BAC reading may have been due at least in part to post-mortem alcohol production and no alcohol was detected in the urine. The pilot was reported to have consumed two alcoholic drinks with dinner the previous evening. This was not in accordance with patient guidelines for the sedative medication. Additionally, in some people, alcohol intake could increase the effects of the medication and make it harder for the body to break it down, but it was not known whether this was the case for the pilot.
The medication, which had been prescribed for the pilot, was listed by CASA as being ‘hazardous in aviation’ as it had effects and side-effects that could impair pilot performance. It was therefore not to be used without clearance by CASA or the pilot’s designated aviation medical examiner (DAME). Under the clinical practice guidelines for DAMEs, risk assessment protocols allowed consideration of a pilot’s need for medication use. That assessment involved reviewing the condition, symptoms, compliance with medications and treatments, and any relevant side effects.
The prescribed medication had not been disclosed by the pilot in the self-declaration required for medical certification or at any time subsequent to the pilot’s last CASA medical. The DAME was unaware of the pilot’s use of the medication and had therefore not conducted an aeromedical risk assessment.
Aircraft information
The Cessna 182G is an all-metal, four-seat, externally-braced high-wing single-engine aircraft equipped with tricycle landing gear and designed for utility purposes. VH-DJN was manufactured in the United States and registered in Australia in 1964.
The aircraft was powered by a six-cylinder, normally-aspirated, horizontally-opposed and air-cooled engine. In such engines, fuel and air are mixed via a carburettor before flowing to the cylinders for ignition. Auxiliary fuel tanks were installed in the wing tips in 1991, in accordance with a Supplemental Type Certificate, which increased the usable fuel capacity from 270 to 358 L.
The pilot had owned and operated the aircraft from about 1985, until the registration was changed to the current owner (at the time of the accident) in March 2018. Following the change of registration, the pilot had continued to operate the aircraft for the owner and organise its maintenance.
The last maintenance release was issued following a periodic aircraft inspection conducted on 5 December 2018 at 9,392.1 aircraft hours. The last recorded engine maintenance was on 8 March 2019 at 9,422.7 aircraft hours, when the time-expired carburettor was replaced, and ground runs, idle adjustment and a test flight were conducted. While inconsistent recording of aircraft hours had previously been identified by CASA, there was no evidence of current issues with the maintenance of the aircraft.
The aircraft had previously been operated in the IFR category, but was no longer approved for operations under IFR. This ceased when the pilot advised the maintainer that it was no longer required and the necessary maintenance for IFR approval had been discontinued. As such, it was still equipped with vacuum-driven instrumentation to allow a suitably qualified and experienced pilot to control the aircraft with reference to these instruments, such as in the case of inadvertent entry into instrument meteorological conditions (IMC).[7] The calibration and accurate functioning of these instruments however, could not be assured by pre-accident maintenance or confirmed by post-accident inspection. The aircraft was also fitted with an autopilot.
Accident site and aircraft wreckage information
The accident site was located at an elevation of approximately 3,800 ft above mean sea level (AMSL) in the Herberton Range National Park. This was about 200 ft below the highest peak in the vicinity.
The aircraft wreckage was distributed in a linear pattern 130 m long, on a heading of 030 degrees. The debris trail started with the wheel faring then the lower section of the right wing; consistent with the aircraft being upright on first impact with the tree canopy. As the aircraft passed through the trees, the wings and fuselage had progressively disintegrated.
The distribution of the wreckage indicated that there was no pre-impact damage or in-flight breakup prior to the initial collision with the tree canopy. The wreckage trail and aircraft damage were consistent with significant forward inertia at the time of impact. Additionally, damage to the propeller was indicative of the engine delivering power when the aircraft entered the trees. Disruption to the aircraft limited complete flight control continuity checks, however, continuity was established where access was possible. Further, there was no evidence of the aircraft being in a stall condition, nor was there evidence of pre- or post-impact fire or a major oil leak.
The accident site and wreckage was consistent with a controlled flight into terrain. That is, the aircraft was under the control of the pilot when it impacted terrain, with no defect or unserviceability that would have otherwise prevented the normal operation of the aircraft.
Meteorological information
Graphical area forecast
The Bureau of Meteorology (BoM) provides aviation weather forecasts for ten graphical forecast areas in Australia. Weather areas and sub areas are used to highlight differing conditions within a graphical forecast area. Cloud heights in area forecasts are AMSL.
The flight from Cloncurry to Mount Garnet and the accident flight from Mount Garnet were in the Queensland – North (QLD-N) area. The BoM provided ATSB with area forecasts valid from 0300 to 0900 and from 0900 to 1500 EST. The flight from Cloncurry to Mount Garnet spanned the two validity periods and the accident flight was in the later period.
Within the QLD-N area, for both validity periods, there were weather areas A and B and sub areas A1 and A2 within area A. About the first half of the flight from Cloncurry to Mount Garnet was in area B, the aircraft then entered area A and the final segment to Mount Garnet was in sub area A2 (Figure 5). The entire accident flight from Mount Garnet was within sub area A2.

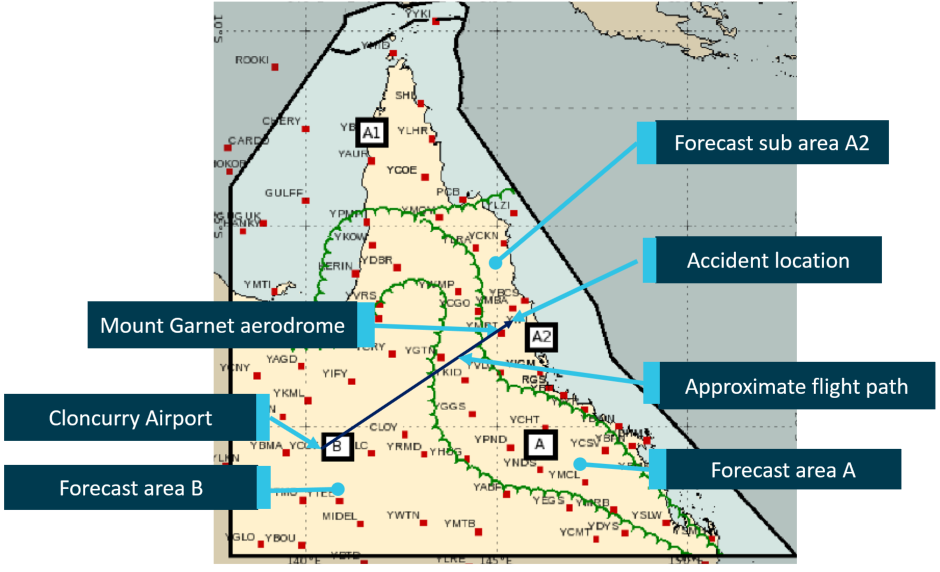

Figure 5: Image from the graphical area forecast for area QLD-N issued at 0831 and valid from 0900 to 1500 EST
Source: Bureau of Meteorology, annotated by ATSB
Areas B and A (but not sub area A1 or A2)
The forecast weather was similar for areas B and A (but not sub area A1 or A2), with visibility greater than 10 km and scattered[8] cumulus/stratocumulus cloud with bases between 5,000 and 6,000 ft (AMSL), and tops at 9,000 ft. In the earlier forecast period only (valid until 0900), area A (but not sub area A1 or A2) additionally had scattered stratus clouds forecast, with bases at 1,500 ft and tops at 3,000 ft.
Sub area A2
The forecast for sub area A2, valid for, and relevant to the vicinity of the accident flight, included:
- scattered to broken stratus clouds, with bases at 1,500 ft and tops at 3,000 ft
- scattered to broken cumulus and stratocumulus clouds, with bases at 2,000-2,500 ft and tops at 8,000-9,000 ft.
The forecast visibility was greater than 10 km, reducing to 2,000-3,000 m in isolated[9] to scattered[10] moderate showers of rain. Moderate turbulence below 6,000 ft was also forecast for the sub area.
Grid-point wind and temperature forecast
Grid-point wind and temperature forecasts were obtained for the relevant period. Due to the terrain elevation in the area of the accident flight, the lowest grid-point wind and temperature data was for 5,000 ft AMSL. The forecast valid from 0700 to 1000 included wind from 090° True (easterly) at 26 kt and temperature 14 °C.
Aerodrome forecasts
The aerodrome forecast (TAF) for Cloncurry Airport valid for the morning’s departure, was south-easterly winds at 10 kt, CAVOK,[11] temperature 22 °C and the QNH[12] 1016.
There was no TAF for Mount Garnet or Atherton airports. Cairns and Innisfail are coastal airports close to sea level and located about 60 km north-east and south-east respectively, from the accident site. Those airports were also located in the graphical forecast sub area A2.
The TAF for Cairns Airport included 10 kt south-easterly winds, visibility greater than 10 km, light showers of rain, scattered cloud at 2,500 ft above aerodrome elevation (AAE) and broken cloud at 3,500 ft.
Innisfail TAF included 8 kt south-easterly winds, visibility greater than 10 km, scattered cloud at 2,000 ft AAE, broken cloud at 4,000 ft AAE. Between 0600 and 1200 for intermittent periods of up to 30 minutes, visibility was forecast to reduce to 3,000 m in showers of rain, with few cloud at 1,000 ft AAE and broken cloud at 1,800 ft AAE.
Bureau of Meteorology observations
Weather observations nearest the accident site were recorded at Mareeba Airport, about 35 km to the north-east. At 0900, the temperature at Mareeba Airport was 23.1 °C, the dew point temperature was 18.4 °C, wind south-easterly at 10 kt and the QNH was 1018.4 hPa.
Aerodrome weather observation reports for Innisfail and Cairns airports at 0930 and 1000 were consistent with the forecast, with two to three layers of cloud.
Weather radar images from Cairns (Saddle Mountain) radar between 0934 and 0957 showed light rain in Atherton (Figure 6).

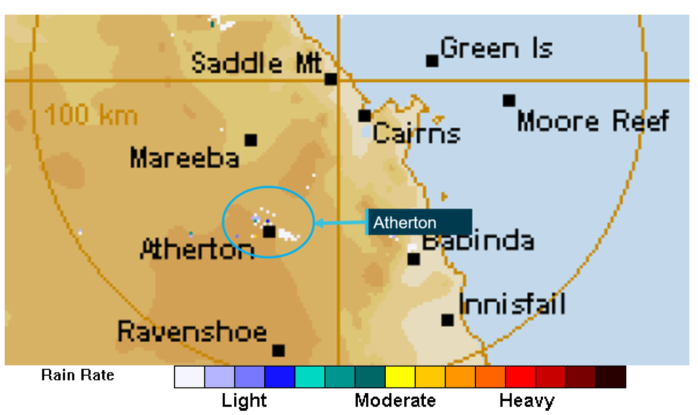

Figure 6: Weather radar image from Cairns at 0951 showing light rain in Atherton
Source: Bureau of Meteorology, annotated by ATSB
Satellite imagery
Satellite imagery showed scattered to broken cloud coverage at the time of the accident flight, moving from the south-east. Based on the cloud top infrared satellite temperatures, the cloud base was likely at ground level in the vicinity of the accident site. Figure 7 depicts the aircraft track overlaid on colour satellite images taken at 0940 and 0950. Within the limitations of the depicted cloud positions, these images show that the aircraft tracked along areas of more broken cloud until the top of descent. Between the top of descent and the accident site at 0950, the cloud appears as an unbroken cell.

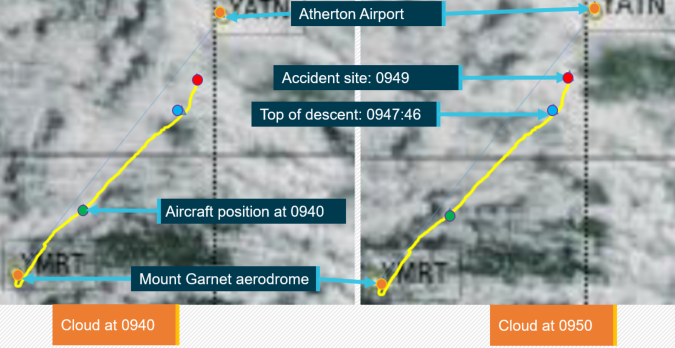

Figure 7: Aircraft track overlaid on satellite imagery at 0940 and 0950 EST
Source: Bureau of Meteorology, annotated by ATSB
Witness observations
The passenger reported that on the approach to Mount Garnet from Cloncurry, the pilot made minor deviations around and under scattered cloud.
Several pilots operating near Atherton Airport on the morning of 8 April 2019 reported low cloud and drizzle over the range. A flight instructor on a training flight tracking south-east towards Atherton around the time of the accident observed thick cloud to the ground on the range and assessed that there was no way to maintain VMC, so changed course to remain to the north, clear of the weather.
Another training aircraft approached Atherton Airport from Mareeba Airport at the time of the accident and the flight instructor on board reported low cloud and rain with reduced visibility moving in from the south. Shortly after landing, they experienced a very heavy rain downpour, which lasted for about 15 minutes.
Carburettor icing
The atmospheric conditions recorded at the Bureau of Meteorology Mareeba station (the closest station) at the time of the accident were applied to the Civil Aviation Safety Authority Carburettor icing probability chart. Based on this chart, the likelihood of carburettor icing[13] was ‘moderate icing for cruise or serious icing for descent’. A reduction in power that could result from carburettor icing was inconsistent with the aircraft damage sustained at impact. Therefore, it was concluded that carburettor icing was not a factor.
Pre-flight planning
Visual flight rules
VFR flights are required to be conducted in visual meteorological conditions (VMC) that ensure sufficient visibility to fly the aircraft while maintaining visual separation from terrain and other aircraft. Additionally, when operating at or below 2,000 ft above the ground (or water), the pilot was required to be able to navigate by visual reference to the ground (or water).
The VMC criteria, including minimum flight visibility and distance from cloud, were specified in the Airservices Australia Aeronautical Information Publication (AIP). Relevant to this flight, the AIP En Route 1.2 Section 2.5 Non-Controlled Airspace – Class G stipulated that, for aeroplanes operating at or below 3,000 ft AMSL or 1,000 ft above ground level (whichever is higher), a minimum flight visibility of 5,000 m must be maintained, including a requirement to remain clear of cloud and in sight of the ground or water.
No flight plan or search and rescue time[14] were lodged with air traffic services for the accident flight, nor were they required to be for VFR flights.
Weather planning
The pilot had a National Aeronautical Information Processing System (NAIPS) user identification to allow access to the NAIPS briefing and flight notification functions including access to weather information. NAIPS was able to be remotely accessed, including from electronic flight planning software OzRunways,[15] which was installed on the pilot’s iPad. Information provided by Airservices indicated that the pilot’s last logon to NAIPS was on 2 April 2019 (six days before the accident). However, although the pilot did not use NAIPS for weather planning close to the accident flight, this does not preclude the pilot having accessed weather forecast information through another means.
Fuel planning
On the morning of the accident flight, as neither the pilot nor the passenger had a fuel account self-service card, they were unable to refuel the aircraft in Cloncurry. Therefore, the pilot planned to fly from Mount Garnet to Atherton Airport, refuel the aeroplane and then return, while the passenger conducted business in Mount Garnet. The pilot had flown to Atherton to refuel on previous occasions, including from Mount Garnet.
Fuel records for the time the aircraft was on the ground in Charters Towers on April 7, show that 165 L of fuel was pumped from the bowser. The passenger reported that this had filled the main and auxiliary tanks to their 358 L capacity. Since refuelling, the aircraft had been airborne for 4 hours and 58 minutes and travelled 1,209 km (653 NM) before landing at Mount Garnet.
The passenger estimated there would have been 60 to 90 minutes of fuel remaining after landing in Mount Garnet; sufficient for the return flight to Atherton. Due to disruption of the fuel tanks and cockpit instruments, the amount of fuel on board at the time of the accident could not be determined. Fuel exhaustion was not considered probable given the aircraft’s forward speed at impact and propeller damage.
Visual flight into instrument meteorological conditions
Adverse weather conditions and reduced visual cues
By definition and legislation, flight under the VFR requires sufficient visual reference for a pilot maintain geographical, situational and spatial orientation. In less than VMC, pilots must be qualified, proficient and well-prepared to operate by reference to the aircraft instruments and under the instrument flight rules and the aircraft must be equipped and maintained to the required standard. Significant risks face VFR pilots flying into IMC. Research for the ATSB Avoidable Accidents publication Accidents involving Visual Flight Rules pilots in Instrument Meteorological Conditions found that about 10 per cent of VFR into IMC occurrences reported to the ATSB between 2009 and 2019 resulted in a fatal outcome. The resulting collision with terrain following VFR into IMC events have occurred in both controlled and uncontrolled flight.
Controlled flight into terrain
The ATSB (2007) has defined a controlled flight into terrain (CFIT) as one in which:
- the aircraft is under the control of the pilot(s) and collides with terrain, water or obstacles
- there is no defect or unserviceability that would prevent the otherwise normal operation of the aircraft
- the pilot(s) have little or no awareness of the impending collision.
The aviation community has invested considerable time and resources in an attempt to reduce the risk of CFIT, particularly in the commercial sector. Measures such as terrain awareness warning systems have substantially reduced these types of accidents.
In the 10 year period up to the accident flight, 32 CFIT occurrences involving VH-registered aircraft were recorded in the ATSB database. Seventeen of those were classified as accidents, six of which involved fatal injuries to occupants. The fatal accidents occurred during general aviation operations, five of which were private flights and one was a passenger-carrying charter operation.
The ATSB Aviation Research and Analysis Report CFIT: Australia in context 1996 to 2005 found that CFIT accidents occur most often in conditions of reduced visibility and mountainous terrain. Loss of situational awareness has been identified as a key contributing factor, particularly a loss of vertical situational awareness or ‘altitude error’.
Spatial disorientation and loss of control
Although not consistent with the accident site and wreckage or flight profile in this accident, the other risk associated with VFR into IMC is a loss of control due to spatial disorientation. Spatial disorientation occurs when the brain receives conflicting or ambiguous information from the body’s sensory systems. It is likely to happen in conditions in which visual cues are poor or absent, such as in cloud. Gibb and others (2010) explain that seeing the horizon is ‘crucial for orientation of the pilot’s sense of pitch and bank of the aircraft.’ In conditions of low visibility, the horizon may not be visible to the pilot, which can lead rapidly to disorientation.
Spatial disorientation presents a danger to pilots, as the resulting confusion can often lead to incorrect control inputs resulting in a loss of aircraft control. Gibb and others (2010) stated that ‘spatial disorientation accidents have fatality rates of 90–91 percent, which indicates how compelling the misperceptions can be.’
Factors contributing to VFR into IMC
A study by Wiegmann and Goh (2000) identified factors that may contribute to instances of VFR flight into adverse weather conditions. These included:
- situation assessment – an inaccurate assessment by a pilot of the conditions
- risk perception – a pilot may not appreciate the risks involved with continuing the flight
- motivational factors – ‘get-home-itis’ or personal/social pressures to complete the flight.
In particular, the study found that, during the conduct of a simulated cross-country flight, a significant proportion of participants overestimated the visibility and cloud base. That is, they perceived the conditions to be better than what they actually were and continued into IMC rather than turning back.
Related occurrences
The ATSB has investigated numerous fatal accidents resulting from VFR into IMC occurrences that resulted in either spatial disorientation and associated loss of control, or controlled flight into terrain. Three of these are summarised here.
ATSB investigation AO-2015-131: Collision with terrain involving Airbus Helicopters EC135 T1, VH-GKK, 10 km NNW of Cooranbong, New South Wales, 7 November 2015
On 7 November 2015, the owner-pilot of an Airbus Helicopters EC135 T1, departed on a private flight from Breeza Terrey Hills, New South Wales. The flight was conducted under the visual flight rules and there were two passengers on board. About 40 km south-west of the Liddell mine in the Hunter Valley, the pilot diverted towards the coast, probably after encountering adverse weather conditions. Witnesses observed the helicopter overfly the Watagan Creek valley in the direction of higher terrain, then return and land in a cleared area in the valley. After 40 minutes on the ground, the pilot departed to the east towards rising terrain in marginal weather conditions. About 7 minutes later and approximately 9 km east of the interim landing site, the helicopter collided with terrain. The pilot and two passengers were fatally injured. The pilot likely encountered reduced visibility conditions leading to loss of visual reference leading to the collision with terrain.
ATSB investigation AO-2013-186: Collision with terrain involving Cessna 182, VH-KKM, 19 km WSW of Mount Hotham Airport, Victoria, 23 October 2013
On 23 October 2013, the pilot of a Cessna 182Q aircraft, operating under the visual flight rules, departed Moruya Airport, New South Wales on a private flight to Mangalore Airport, Victoria. The pilot was qualified for visual flight rules and had minimal total and recent flying experience. The flight route encompassed the Alpine National Park, where the forecast and actual weather included extensive thick cloud and severe turbulence. It was very likely that these conditions were encountered while flying over the Alpine National Park, shortly after passing Mount Hotham Airport. The pilot likely experienced reduced visibility to the extent that terrain avoidance could not be assured, resulting in the aircraft colliding with terrain in controlled flight. The pilot sustained fatal injuries and the aircraft was destroyed.
ATSB investigation AO-2012-130: VFR flight into IMC involving de Havilland DH-84 Dragon VH-UXG, 36 km SW of Gympie, Qld, 1 October 2012
On 1 October 2012, a de Havilland DH-84 Dragon Mk 2 aircraft took off on a private flight from Monto to Caboolture, Queensland. The pilot was not qualified for, and the aircraft was not equipped for instrument flight. About 2 hours after departure, the pilot contacted ATC and advised that the aircraft was in cloud. Over the next 50 minutes ATC provided assistance to the pilot but it was apparent that he was unable to navigate clear of the cloud. The aircraft wreckage was located on 3 October in high terrain; there were no survivors. The ATSB found that:
With no or limited visual references available in and near cloud, it would have been very difficult for the pilot to maintain control of the aircraft. After maintaining control in such conditions for about an hour, and being unable to navigate away from the mountain range, the pilot most likely became spatially disoriented and lost control of the aircraft before it impacted the ground.
