Investigation number
AO-2016-135
Occurrence date
Location
near San Francisco International Airport, USA
State
International
Report release date
Report status
Final
Investigation level
Defined
Investigation type
Occurrence Investigation
Investigation status
Completed
Aviation occurrence category
Airframe - Other
Occurrence class
Incident
Highest injury level
None

What happened

On 6 October 2016, a Boeing 747-438 ER, registered VH-OEH and operated by Qantas International, departed San Francisco International Airport, United States, for a flight to Sydney, Australia. Soon after departure and during the climb, the crew became aware of an abnormal vibration in the area of the left over-wing door. There were no cockpit indications or associated procedures to manage the observed vibration. Consequently, the flight crew were required to use their professional judgement to assess its impact on the flight. The crew utilised available crew resources and maintenance expertise to troubleshoot and assess that the flight could safely continue to Sydney.

What the ATSB found

The ATSB found that during departure from San Francisco International airport, and unbeknown to the flight crew, the aircraft sustained impact damage from a birdstrike. The birdstrike sheared a landing gear door strut resulting in the door not closing. That in turn led to turbulent airflow and in‑cabin vibration.

What’s been done as a result

While the birdstrike resulted in a landing gear door not closing, the overall impact on the flight was minimal. Larger doors that have the potential to cause damage have warning systems to indicate if they have not operated as selected.

There was no additional wear or damage to any of the landing gear components. The landing gear door strut was replaced and the aircraft returned to service.

Safety message

This occurrence highlights that, even with the assistance of sophisticated technology and systems, flight crew may experience situations that can only be managed using their professional judgement.

In this case, the flight crew utilised the support of both on-ground maintenance personnel and cabin crew to methodically troubleshoot the source of the vibration and assess that the flight could be safely continued to the destination airport.

The occurrence

At about 2335 local time on 6 October 2016, a Boeing 747-438 ER, registered VH-OEH and operated by Qantas International, departed San Francisco International Airport, United States, for a flight to Sydney, Australia. The flight crew reported that the night departure was uneventful.

Soon after take-off, the cabin services manager (CSM) was contacted via the aircraft interphone system by a cabin crew supervisor seated near door L3 (Figure 1). The supervisor advised the CSM that there was vibration and louder than normal cabin noise in their area. The CSM recalled that following receipt of that advice from the supervisor, they also became aware of the increased noise.

A training captain seated in the flight deck, also reported being aware of a louder than normal noise during the climb. The captain under training was new to the aircraft type and therefore did not notice the additional noise.

As the aircraft approached top of climb, and after the flight crew had turned off the fasten seatbelts sign, the CSM contacted the flight crew to report the additional noise/vibration. As indications on the flight deck were normal, the second officer was sent to investigate the source of the vibration.

The second officer inspected several sections of the cabin in consultation with the CSM and other flight attendants. They concluded the magnitude of the vibration was largest near door L3 (rows 47-49, seats ABC) and that it was considerably noisier than normal. The CSM recalled that the second officer suspected the vibration may have been due to a landing gear door seal. Unlike other large passenger aircraft, VH‑OEH did not have installed video cameras that permitted the crew to view external parts of the aircraft. In any event, the night conditions may have hampered visual examination of the landing gear area on this occasion. The second officer returned to the flight deck and briefed the other flight crew.

About 2 hours into the flight, the flight crew contacted the company’s maintenance operational control (MOC) centre via satellite phone seeking technical assistance to identify the source of vibration. The flight crew relayed the relevant information to the duty manager, a senior aircraft engineer, who then asked additional questions to assist with the diagnosis. The MOC duty manager advised the crew that it could be a gear door seal or wing-to-body seal as they were located in that area.

The MOC duty manager subsequently checked the:

  • aircraft history for any similar faults/reports, of which there were none
  • relevant aircraft system diagrams to ascertain what systems were located near door L3 and capable of generating the reported vibration/noise
  • relevant maintenance manual section covering possible sources of airframe vibrations.

The flight crew, in consultation with the MOC duty manager and cabin crew, then systematically went through a process of trying to isolate the source of the vibration/noise.

That process included isolation and/or consideration of:

  • the aircraft air-conditioning packs
  • the air recirculation fans
  • re-selection of the landing gear handle to the UP position
  • checking toilets for possible vacuum leaks.

That troubleshooting was unable to isolate the source of vibration and noise. The flight crew requested that the cabin crew continue to monitor the vibration/noise and to advise them of any change. As the aircraft was otherwise performing normally, the flight was continued.

About 4.5 hours into the flight and with no reported change to the vibration/noise levels, the training captain left the flight deck to personally assess the vibration and assessed that it was still quite noisy. Consequently, the flight crew again made contact with the MOC to seek further technical input. They asked the duty manager what other aircraft systems were in the L3 door area. The duty manager advised that there were hydraulics and centre fuel tank transfer pumps. While the crew could not isolate the hydraulics, the transfer pumps were OFF.

The duty manager advised the crew that maintenance services were available at the now nearby Honolulu Airport, Hawaii and enquired if the crew wished to divert. The crew advised the MOC that they did not intend to divert at that stage. The training captain reported to the ATSB that, as the aircraft was otherwise performing normally, it was not considered necessary to divert from the original destination.

The flight crew, with the assistance of the cabin crew, continued to monitor the vibration (which remained constant) and the flight continued to Sydney. They also remained in contact with the MOC.

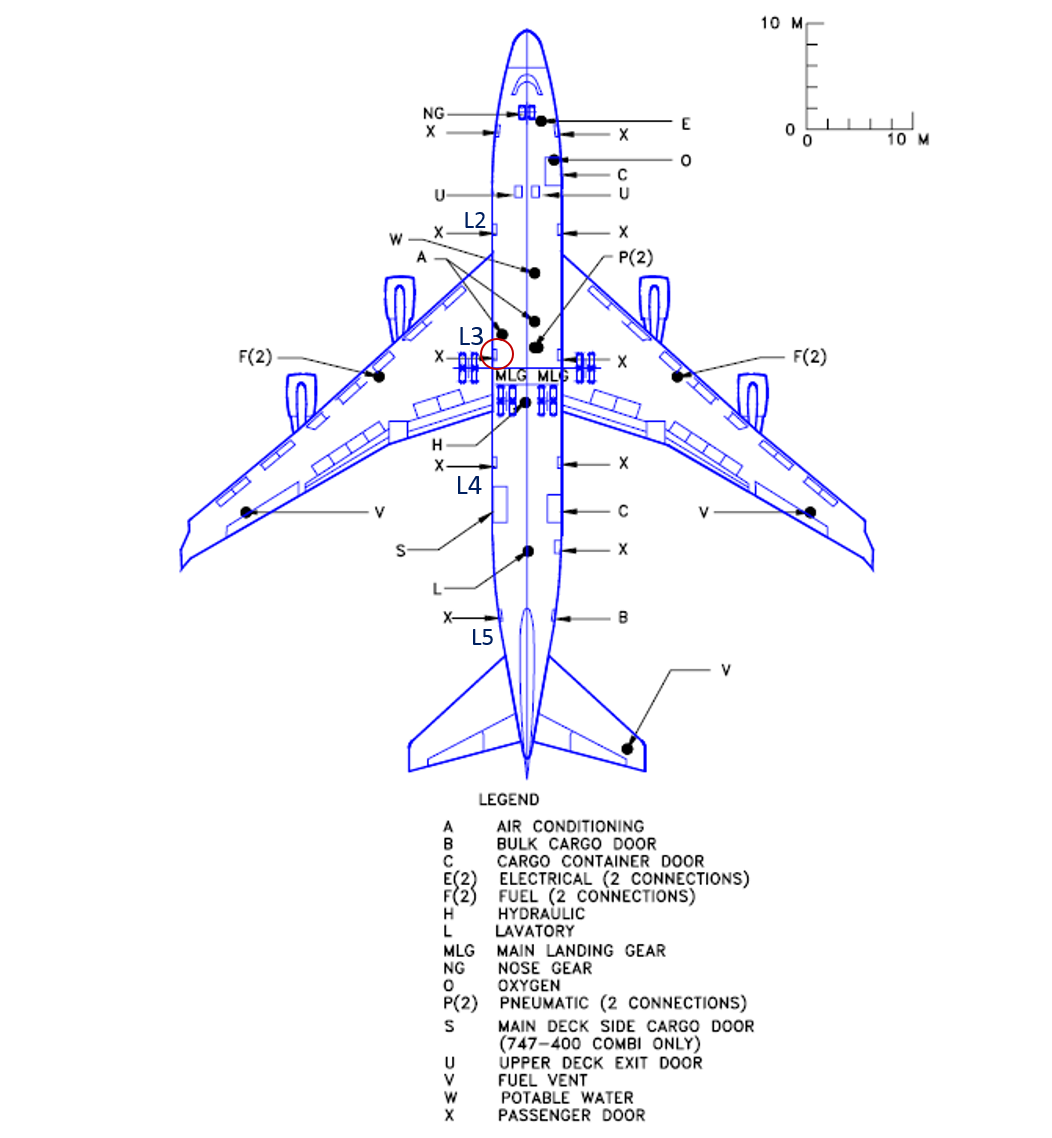

Figure 1: Aircraft schematic showing location of door L3 (circled red) and other services

Figure 1: Aircraft schematic showing location of door L3 (circled red) and other services

Source: Boeing Commercial Airplanes

The CMS reported that the vibration and noise persisted up until the landing gear was extended during the approach into Sydney. The cabin crew did not receive any comments about the vibration or noise from the passengers.

After landing, ground engineers inspected the aircraft and immediately identified a protruding landing gear seal and initially thought this was the source of the vibration. On closer examination they observed that a rod, which normally attaches a small outboard landing gear door to the body landing gear shock strut (Figure 2), was sheared at the door attachment point as a result of a birdstrike.

Despite the door not being closed during the flight, there was no additional wear or damage. The attach rod was replaced, and the aircraft returned to normal service, with no further vibration or noise reported.

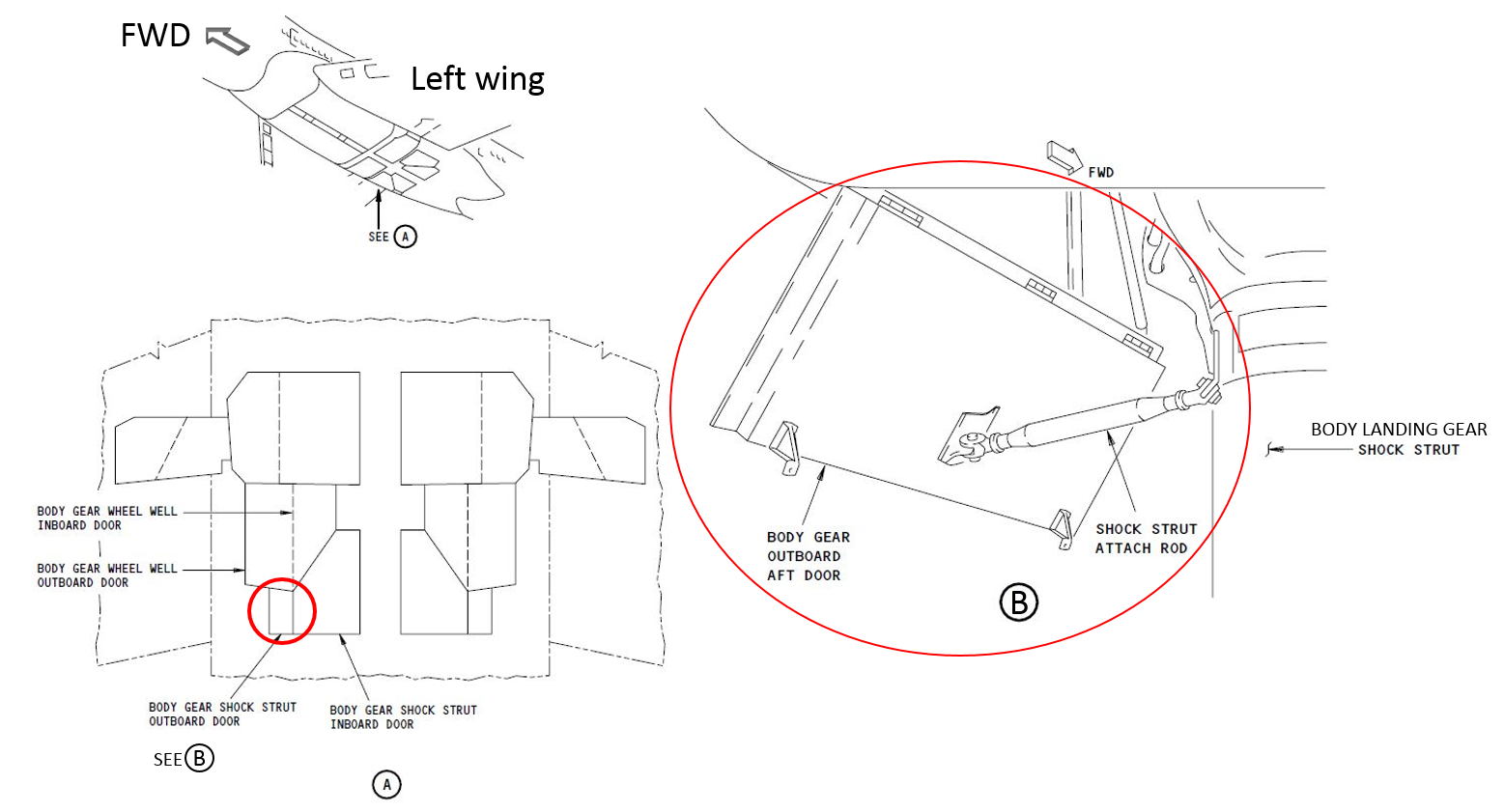

Figure 2 Main landing gear doors showing location of affected door and attach rod.

Figure 2 Main landing gear doors showing location of affected door and attach rod.

Source: Boeing Commercial Airplanes

Safety analysis

Due to the physical size of the aircraft and the night departure, the birdstrike was not detected by the flight crew or ground personnel. Given the vibration was first noticed following retraction of the landing gear, it could be argued that the vibration was therefore directly related to the landing gear. However, all indications were that the landing gear had retracted normally. In addition, as there is significant additional noise and vibration while the landing gear is extended, it is equally plausible that this noise may have been masking something unrelated to the landing gear.

While the training captain was aware of some additional noise during the climb, all flight deck indications were normal including those for the landing gear. Due to sterile cockpit procedures, that limited other than emergency communications during critical phases of flight, the first indication that there was something abnormal was when the cabin services manager contacted the flight deck.

Once the nature and location of the vibration had been established, the flight crew proceeded to make use of all available resources to try and identify the source of the vibration and its implication for the continuation of the flight. In consultation with both maintenance operational control and cabin crew, the crew systematically isolated systems capable of generating the vibration. While they were unable to identify the source of the vibration, the flight crew established that it was constant and that the aircraft was otherwise performing normally. In the absence of any abnormal flight deck indications or relevant checklist, the decision to continue the flight was therefore at the discretion of the flight crew based on their professional judgement.

The landing gear system on the Boeing 747 uses a combination of hydraulics and attach rods to extend/retract both the landing gear and the associated doors. Proximity switch sensors located on both the landing gear and the hydraulically operated doors provide the flight crew with indications of both normal and abnormal operation. Small doors that are attached by rods directly to the landing gear, do not have proximity sensors as they normally open and close with the landing gear.

The discovery of the sheared attach rod, evidence of a birdstrike, and the reported in-flight vibration, is consistent with the aircraft having sustained a birdstrike during the departure and while the landing gear was extended. Due to the sheared attach rod, the associated landing gear door would not have closed resulting in residual turbulence and vibration being generated in the area of door L3. The lack of an associated proximity sensor meant that the flight crew were unaware that the door was not closed.

Findings

From the evidence available, the following findings are made with respect to the birdstrike and inflight vibration involving Boeing 747, registered VH-OEH near San Francisco International Airport, United States on 6 October 2016. These findings should not be read as apportioning blame or liability to any particular organisation or individual.

Contributing factors

  • During departure from San Francisco International airport, and unbeknown to the flight crew, one of the main landing gear door struts sustained impact damage from a birdstrike that resulted in the associated landing gear door not closing.

Other findings

  • The noise and vibration experienced in the cabin was due to turbulent airflow associated with the un-closed landing gear door.
  • The absence of cockpit indications and/or associated procedures to manage the observed vibration meant that the flight crew were required to use their professional judgement to assess its impact on the flight. The crew utilised available crew resources and maintenance expertise to troubleshoot and assess that the flight could safely continue to the destination airport.
Sources and submissions

Sources of information

The sources of information during the investigation included the:

  • flight crew
  • cabin crew
  • maintenance personnel
  • aircraft operator and manufacturer.

Submissions

Under Part 4, Division 2 (Investigation Reports), Section 26 of the Transport Safety Investigation Act 2003 (the Act), the ATSB may provide a draft report, on a confidential basis, to any person whom the ATSB considers appropriate. Section 26 (1) (a) of the Act allows a person receiving a draft report to make submissions to the ATSB about the draft report.

A draft of this report was provided to the aircraft operator, flight crew, cabin services manager, maintenance operational control duty manager and the Civil Aviation Safety Authority (CASA).

Submissions were received from CASA, the aircraft operator and maintenance personnel. The submissions were reviewed and where considered appropriate, the text of the report was amended accordingly.

Purpose of safety investigations & publishing information

Purpose of safety investigations

The objective of a safety investigation is to enhance transport safety. This is done through:

  • identifying safety issues and facilitating safety action to address those issues
  • providing information about occurrences and their associated safety factors to facilitate learning within the transport industry.

It is not a function of the ATSB to apportion blame or provide a means for determining liability. At the same time, an investigation report must include factual material of sufficient weight to support the analysis and findings. At all times the ATSB endeavours to balance the use of material that could imply adverse comment with the need to properly explain what happened, and why, in a fair and unbiased manner. The ATSB does not investigate for the purpose of taking administrative, regulatory or criminal action.

Terminology

An explanation of terminology used in ATSB investigation reports is available here. This includes terms such as occurrence, contributing factor, other factor that increased risk, and safety issue.

Publishing information

Released in accordance with section 25 of the Transport Safety Investigation Act 2003

Published by: Australian Transport Safety Bureau

© Commonwealth of Australia 2017

Ownership of intellectual property rights in this publication

Unless otherwise noted, copyright (and any other intellectual property rights, if any) in this report publication is owned by the Commonwealth of Australia.

Creative Commons licence

With the exception of the Coat of Arms, ATSB logo, and photos and graphics in which a third party holds copyright, this publication is licensed under a Creative Commons Attribution 3.0 Australia licence.

Creative Commons Attribution 3.0 Australia Licence is a standard form licence agreement that allows you to copy, distribute, transmit and adapt this publication provided that you attribute the work.

The ATSB’s preference is that you attribute this publication (and any material sourced from it) using the following wording: Source: Australian Transport Safety Bureau

Copyright in material obtained from other agencies, private individuals or organisations, belongs to those agencies, individuals or organisations. Where you wish to use their material, you will need to contact them directly.

Aircraft Details
Manufacturer
The Boeing Company
Model
747-438
Registration
VH-OEH
Aircraft Operator
Qantas Airways
Serial number
32912
Operation type
Air Transport High Capacity
Sector
Jet
Departure point
San Francisco, USA
Destination
Sydney, NSW
Damage
Minor
