What happened
On 7 February 2016, the pilot of a Kavanagh G-450 balloon, registered VH-RUW, conducted a 30-minute scenic flight from Mareeba, Queensland with 18 passengers on board.
Shortly before 0627 Eastern Standard Time (EST), the balloon approached the target landing area. The pilot referred to his iPad, which showed the location of the balloon and a set of powerlines strung across the paddock. The balloon was then about 30 ft above ground level, travelling at a ground speed of 7 kt, with a descent rate of 50 ft per minute. The pilot confirmed that all the passengers were in the correct landing position.
The pilot sighted two power poles either side of the landing area, but was unable to see the wires. The pilot estimated where the wires would be based on the crossbars on the poles, and assessed that the balloon had sufficient height to pass over the powerlines. The pilot then sighted the powerlines, about half a metre ahead of and below the basket. The pilot applied all four burners to try to climb and avoid the powerlines, but the left side of the basket contacted one wire, breaking it. The pilot heard a loud fizzing noise and immediately realised they had struck a powerline.
The pilot checked that the passengers were all ok and still in the landing position, and checked that there was no evidence of fire. Due to the amount of heat in the balloon, the balloon was climbing. The pilot then conducted a normal controlled descent and landing into a paddock about 500 m beyond the original planned landing site. The balloon landed without further incident and no one was injured. The wicker basket sustained scorching (Figure 1) and a stainless steel cable fixed to the underside of the basket sustained arc damage.

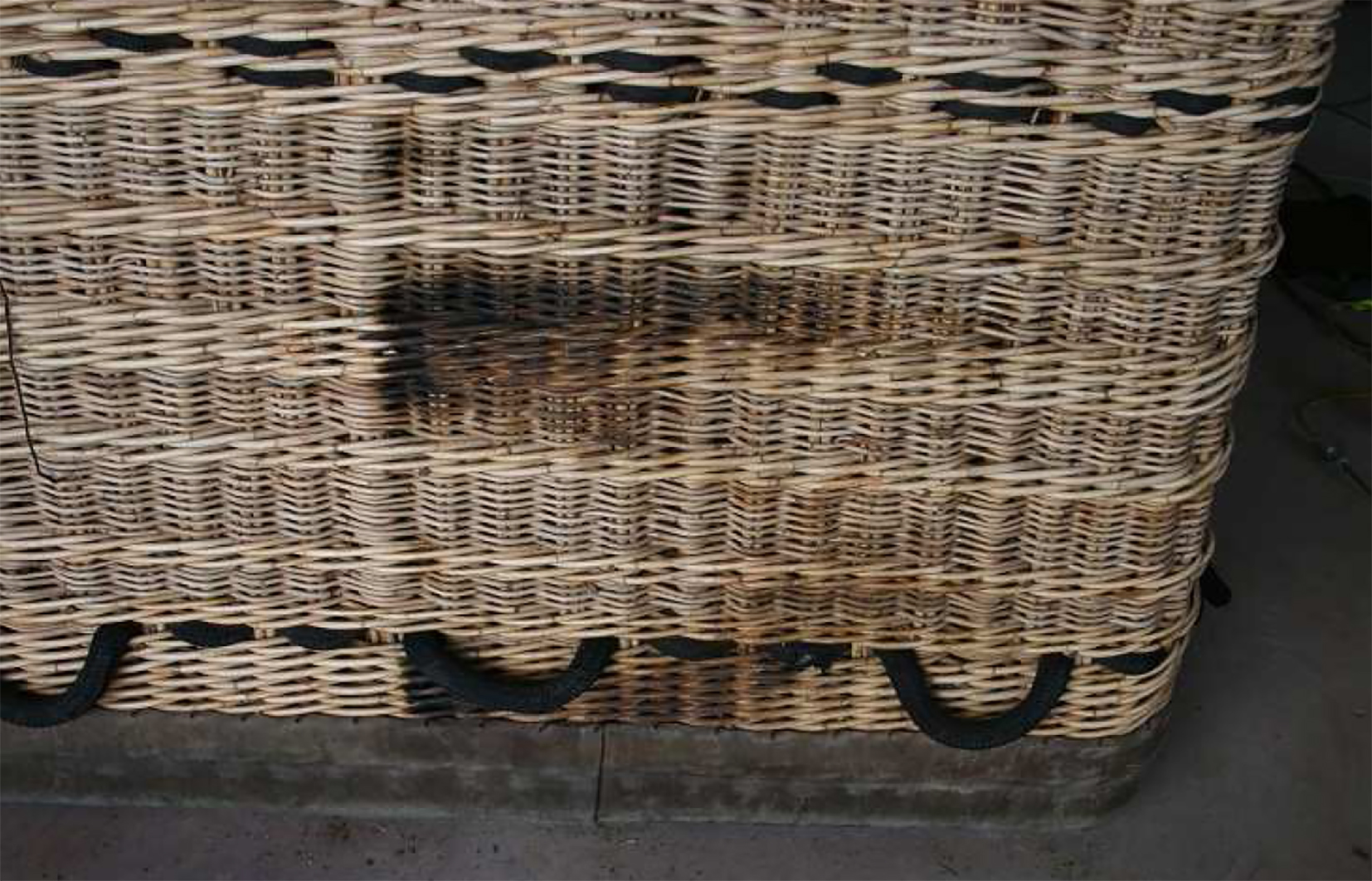

Figure 1: Scorch marks on wicker basket
Source: Balloon operator
Landing site
The balloon operator and the pilot had used the paddock on many occasions for both launching and landing.
The balloon’s track crossed the powerlines at an angle (Figure 2). As the balloon approached the wires, the pilot lost sight of the pole to the left and used the pole on the right to gauge their height. However, the left pole was situated on a hill and higher than the right pole, and the wires sloped upwards from the right pole to the left. The pilot’s assessment of sufficient height was based on the lower pole; consequently, the left side of the basket struck the wires to the high side.
The powerlines were difficult to see as the area was heavily vegetated. The sun was to the right of the balloon and did not affect the pilot’s vision of the wires.

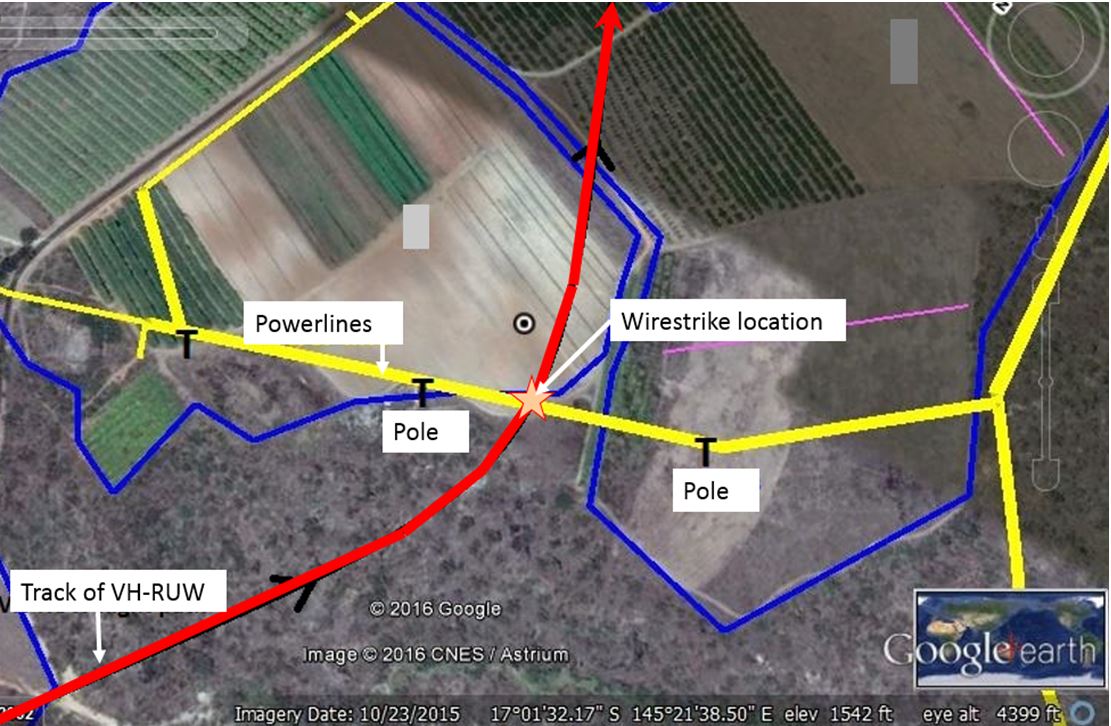

Figure 2: Balloon track and location of powerlines
Source: Balloon operator
Powerlines and markings
The balloon operator used the following strategies to improve powerline awareness:
- The operator had developed an iPad application which pilots used in-flight as an early powerline warning system, which showed all of the powerlines on a google earth map, and the balloon’s current location. The energy company provided updates to the location of the powerlines at six monthly intervals.
- The operator maintained a map of powerlines identified by the company pilots to be of low visibility. These were highlighted on the application to draw pilots’ attention.
- Company pilots were required to visit the site of identified low-visibility powerlines to familiarise themselves with the location of the lines.
- In addition, ground personnel were expected to identify from the ground any powerlines in the balloon’s flight path, which may pose a risk to the balloon on approach to land, and to confirm that the pilot was aware of the lines and their location.
- The balloon operator had designated the powerlines at the site to be low-visibility, and had paid the energy provider to fit white marker flags with a reflective green centre to the wires to increase the pilot’s ability to see the lines (or flags). Despite being clearly visible from the ground, the pilot was unable to see the flags. This may have been due to the effect of the wind deflecting the flags at an angle, and possibly their colour.
Pilot comments
Two other balloons had already landed in the paddock. The pilot elected to fly on rather than conduct an emergency descent after the wirestrike, because a high rate of descent from that height carried a risk of injury to the pilot and passengers, and to avoid a collision with the balloons that had landed ahead.
Safety action
Balloon operator
As a result of this occurrence, the balloon operator has advised the ATSB that they are taking the following safety actions:
Review of powerline markings
The operator is investigating the installation of more visible three-dimensional powerline markings such as balls.
Communication to company pilots
The operator will circulate a copy of their investigation report and findings to all company pilots. Pilots are reminded to consider the possibility of sloping powerlines and apply an appropriate clearance margin when overflying them.
Safety message
The ATSB research report, Wirestrikes involving known wires: A manageable aerial agriculture hazard, explains a number of strategies to assist pilots manage the risk of wirestrikes. These include:
- ensure you are fit to fly
- prioritise safety
- conduct thorough pre-flight planning
- avoid unnecessary distractions
- don’t rely on your ability to react in time to avoid a wire
- have a systematic approach to safely managing wires.
The Australian Ballooning Federation produced safety advisory notice pilot circular number 18 in 2012, detailing strategies to avoid wirestrikes.
