Rail worksite near hit highlights importance of suitable procedures when developing safeworking rules

Rail worksite near hit highlights importance of suitable procedures when developing safeworking rules

Key points:

  • A relief signaller who was working on two signal panels at once directed a train through a protected section of track;
  • Operator’s relevant rule and procedure for Absolute Signal Blocking did not provide sufficient description for using protecting signals for an alternative route around a protected section of track;
  • Signaller’s recent work schedule failed to meet operator’s fatigue management principles.


A relief signaller who was working on two signal panels at once when they routed a train through a protected worksite was possibly experiencing the effects of cumulative fatigue as well as being under a high workload, a transport safety investigation report details.

On the evening of 15 October 2019, two Sydney Trains workers and a Protection Officer (PO) were conducting track work between Parramatta and Westmead stations, in Sydney’s west.

Absolute Signal Blocking (ASB) was being used to protect the worksite, with the PO arranging with the signaller for a pair of signals to be set to stop to prevent trains from entering the section.

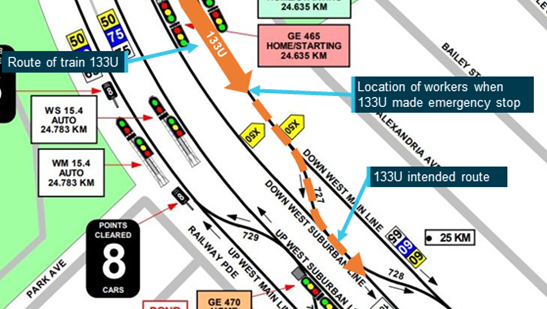

However, the signaller directed an approaching passenger train to enter the section by removing the blocking for the two signals, with the intention of routing the train through a set of points to take it onto the adjacent track, to go around the track workers.

After passing the signals, the train driver saw the workers on the track in front of them, sounded the train whistle, and applied the emergency brakes.

The workers were able to vacate the track and danger zone, as the train came to a stop near where the workers had been.

An investigation into the incident was undertaken by the Office of Transport Safety Investigations (OTSI), which conducts rail safety investigations in NSW on behalf of the Australian Transport Safety Bureau.

“The investigation found the relief signaller at Granville signal box had mistakenly believed the workers were further away from the location that was provided in the agreed arrangements for Absolute Signal Blocking,” OTSI Chief Investigator Dr Natalie Pelham said.

“This mistaken belief led to the signal protection for the worksite being removed to allow a train to go around the workers using an alternative route.”

The signaller and the PO had discussed the need to divert trains around the worksite, but neither had correctly comprehended the implications of doing this.

“The relief signaller was possibly experiencing the effects of cumulative fatigue due to rostering issues as well as experiencing a high workload,” Dr Pelham said.

The rostered signaller at the Granville signal panel was absent from their workstation at the time of the incident and the relief signaller was operating both the Granville and Westmead signal panels.

“Sydney Trains did not provide suitable management arrangements for supervision at Granville signal box to ensure there was adequate coverage on both signalling panels,” Dr Pelham said.

“Signallers are safety critical workers who perform work which is vital to the safe performance of the rail network.

“These workers require supervision and should be subject to suitable management arrangements to ensure compliance to relevant work instructions and requirements.”

The relevant Network Rules and Procedures for ASB had very little direction and guidance to workers about how to manage the risk of clearing a protecting signal for an alternative route in order to run a train, the investigation notes.

“Railway safeworking rules are in place to achieve safe rail operations and should be developed so that the desired outcomes are supported by suitable procedures,” Dr Pelham noted.

Sydney Trains temporarily prohibited the practice of signallers being permitted to clear any signals used for ASB protection in order to run trains via an alternative route.

Subsequent changes to the ASB rule and procedure were implemented in December 2020 to prohibit the clearing of the signal immediately protecting a worksite in order to run a train via an alternative route.

The investigation also found there were inconsistences with Sydney Trains’ application of their fatigue management system, in particular the use of a bio-mathematical model to predict individual fatigue risk.

Read the report: RO-2019-018: Near hit with workers on track using Absolute Signal Blocking, Westmead, New South Wales, on 15 October 2019

Last update 20 December 2021

Final report

Near hit with workers on track using Absolute Signal Blocking, Westmead, New South Wales, on 15 October 2019
