Technical Assistance to RAAus - Collision with terrain involving BRM Aero Bristell, 24-8555, Kanangra-Boyd National Park, NSW, on 16 December 2019

Investigation number:
Status: Completed
Investigation completed


On 16 December 2019, a BRM Aero Bristell aircraft, recreational registration 24-8555, collided with terrain in Kanangra-Boyd National Park, near Oberon, New South Wales. The pilot was fatally injured.

In response, Recreational Aviation Australia (RAAus) commenced an investigation into the occurrence and requested technical assistance from the ATSB in the recovery of flight data from two instrumentation units – a Dynon SV-D1000 and Garmin aera 795; both of which were subsequently provided by NSW Police.

The ATSB successfully downloaded data from both devices, including flight path information and aircraft operational parameters. Figures 1 and 2 summarise this information.

Both instrumentation units were returned to NSW Police on 23 June 2020 and a technical report and all recovered data provided to RAAus on 24 June 2020.

With the completion of this work, the ATSB has concluded its involvement in the investigation of this accident. Any further enquiries in relation to the investigation should be directed to Recreational Aviation Australia.

The information contained in this update is released in accordance with section 25 of the Transport Safety Investigation Act 2003.

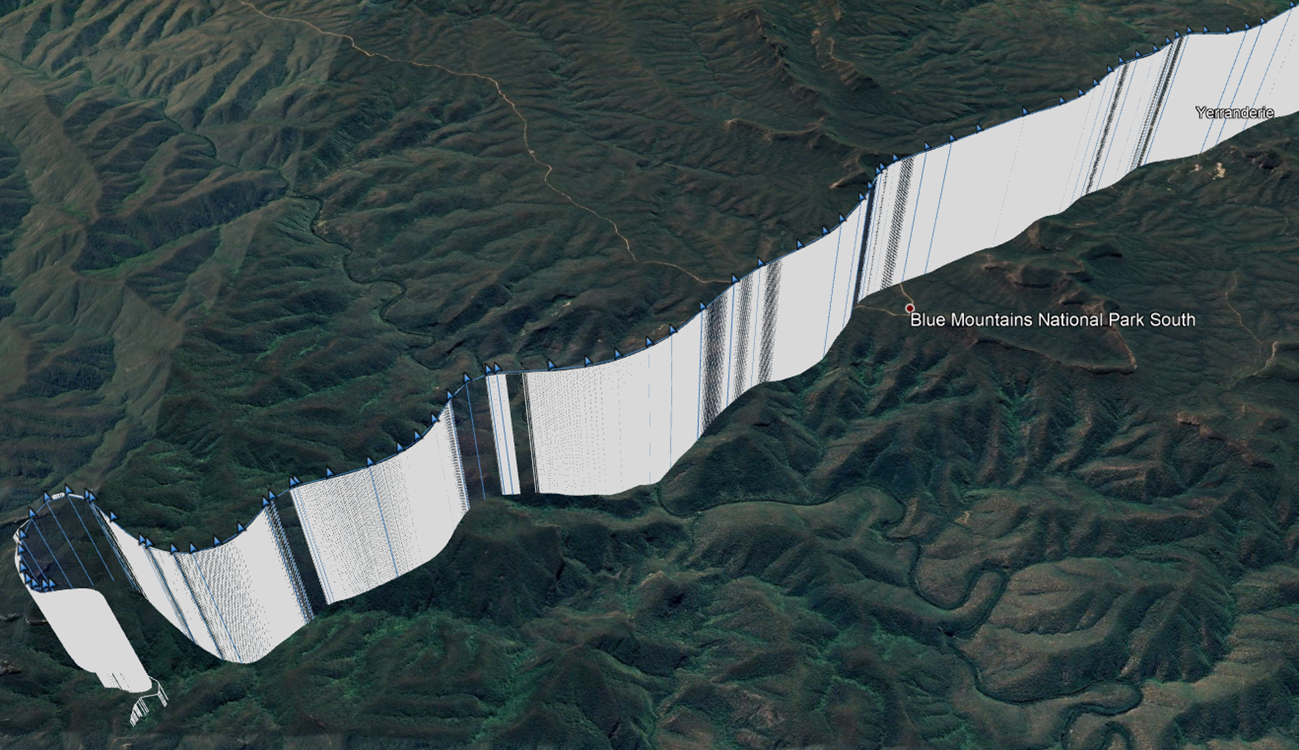

Figure 1: Flight paths from Garmin and Dynon units

Figure 1: Flight paths from Garmin and Dynon units.
Source: Google Earth, GPS points by ATSB

Source: Google Earth, GPS points by ATSB

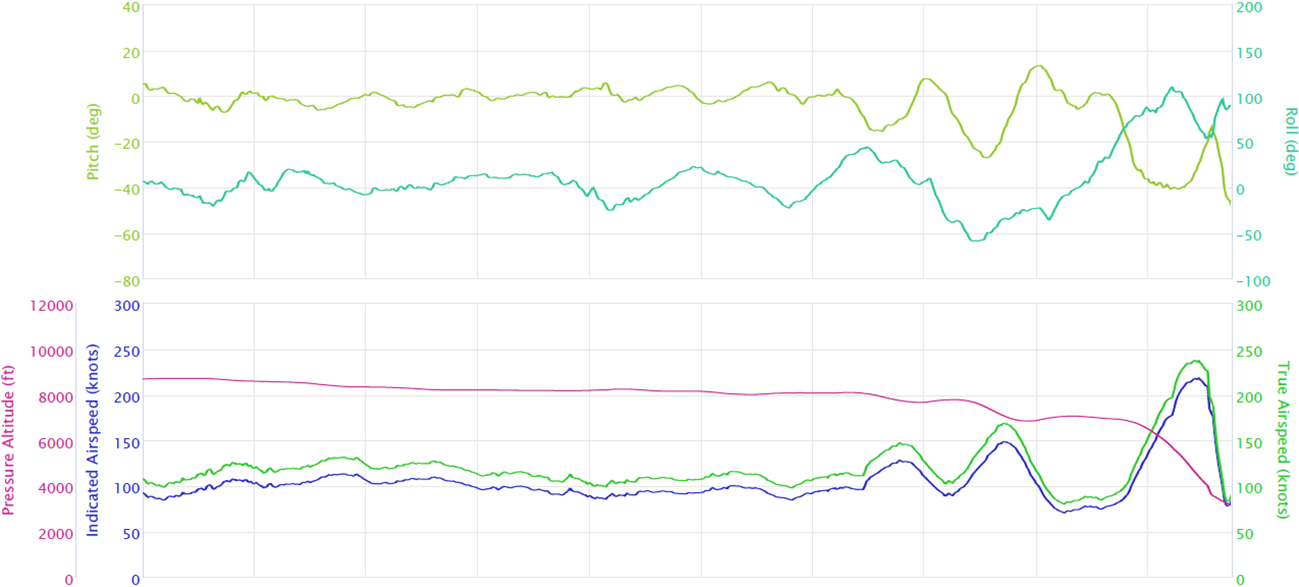

Figure 2: Selected flight parameters

Figure 2: Selected flight parameters.
Source: ATSB

Source: ATSB


General details
Date: 16 December 2019   Investigation status: Completed
Time: 1151 AEDT
Location: Kanangra-Boyd National Park
State: New South Wales   Occurrence type: Collision with terrain
Release date: 03 July 2020   Occurrence category: Accident
Report status: Final   Highest injury level: Fatal

Aircraft details

Aircraft details
Aircraft manufacturer BRM Aero S.R.O.
Aircraft model Bristell
Aircraft registration 24-8555
Serial number 040/2012
Type of operation Sports Aviation
Sector Piston
Damage to aircraft Substantial
Departure point Shellharbour, New South Wales
Destination Bathurst, New South Wales
Last update 06 July 2020
