At about 0730 Eastern Daylight-saving Time on the 14 December 2016, a Pelican Airlines British Aerospace Jetstream 32 aircraft, registered VH-OTQ, departed Newcastle Airport for Dubbo, New South Wales. Two flight crew and six passengers were on board the regular public transport flight.
Just after the aircraft reached the cruising altitude of FL 160, the captain who was the pilot monitoring, noticed the right engine exhaust gas temperature (EGT) gauge was indicating just outside the top of the green arc. The captain reduced the power to the right engine, but there was no corresponding reduction in the EGT.
The flight crew conducted the quick reference handbook (QRH) emergency checklist for the lack of response to power lever movement, the power lever was checked after about 5 minutes and was found to still be unresponsive.
The crew advised the controller of their situation and requested a new clearance to return to Newcastle. The crew also advised the controller that as a precaution they might conduct an in-flight engine shut down. The controller gave them a clearance to descend and track direct to Newcastle. The controller initiated an alert phase and the airport emergency services were requested to be on standby.
The flight crew conducted the QRH engine in-flight shutdown checklist and shutdown the right engine prior to commencing their descent to Newcastle.
On descent, passing through about 8,000 ft the captain became the flying pilot and the first officer the monitoring pilot. The crew conducted a visual approach and landed without further incident. The two crew and six passengers were not injured and the aircraft was not damaged.
It is important when time permits to broadcast a ‘pan’ or ‘mayday’, whichever is applicable, to air traffic control to alert the controller and remove any uncertainty about the severity of the situation.
At about 0730 Eastern Daylight-saving Time (EDT) on the 14 December 2016, a Pelican Airlines British Aerospace Jetstream 32 aircraft, registered VH-OTQ (OTQ), departed Newcastle (Williamtown) Airport for Dubbo, New South Wales (NSW). Two flight crew and six passengers were on board the regular public transport flight.
Just after the aircraft reached the cruising altitude of FL 160, the captain who was the pilot monitoring, noticed the right engine exhaust gas temperature (EGT) gauge was indicating just outside the top of the green arc (650 °C) and was indicating about 655 °C in the yellow arc. The captain reduced the power to the right engine, but there was no corresponding reduction in the EGT.
The flight crew conducted the quick reference handbook (QRH) emergency checklist for the lack of response to power lever movement, which included the engine ignition selected to continuous operation and the engine and airframe ice protection turned on. In accordance with the checklist, the power lever was checked after about 5 minutes and was found to still be unresponsive. The captain indicated that this was very unusual and turned off the engine computers to try to isolate the fault, but this made little difference and so they turned the computers back on. The captain then moved the power lever further back and noticed a momentary increase in EGT, by about 8 °C to 10 °C, as well as an increase in torque.
At this stage of the flight, the aircraft was at a position where they would ordinarily change frequency to a different air traffic controller. However, the flight crew decided to remain on this frequency and return to Newcastle Airport. When the controller instructed the crew to change frequency, the crew advised the controller of their situation and requested a new clearance to return to Newcastle. The crew also advised the controller that as a precaution they might conduct an in-flight engine shut down. The controller gave them a clearance to descend and track direct to Newcastle and subsequently confirmed with the crew that the airport emergency services were required to be available. The controller initiated an alert phase and the airport emergency services were requested to be on standby.
The flight crew followed the guidance in the QRH checklist to continue to operate the engine and noted that an engine shut down may be necessary for the approach and landing. As the aircraft was lightly loaded, the captain believed that there would be no issues operating on one engine. The crew conducted the QRH engine in-flight shutdown checklist and shutdown the right engine prior to commencing their descent to Newcastle. The captain briefed the passengers through the aircraft’s public address (PA) system about the precautionary engine shut down and instructed them to familiarise themselves with the passenger safety card.
At about 50 km from Newcastle and on descent passing through about 8,000 ft, the captain became the pilot flying and the first officer the pilot monitoring. They reviewed the QRH abnormal checklist for landing with one engine inoperative. The crew conducted a visual approach and landed on runway 30 without further incident. The two crew and six passengers were not injured and the aircraft was not damaged.
The captain reported that they were flying at a level where icing conditions may be encountered and from previous experience, flying in a different country, it was not uncommon to have an unresponsive power lever control in icing conditions.
The captain reported that they had adequate time to assess the unresponsive power lever, evaluate the performance of the aircraft with only one engine operating and plan for the landing. The workload was not high as they were flying in visual meteorological conditions with adequate time and no other traffic.
On reflection, the captain indicated that although the situation did not appear like an emergency, making a PAN PAN call to the controller would have eliminated any uncertainty.
The captain indicated that they had only conducted engine shut downs in a training environment and this was the first time landing with one engine inoperative.
The operator reported that the aircraft had been in storage in Australia from 2007 to March 2016. Since March, the aircraft had undergone major maintenance at an aircraft maintenance facility. The right engine involved in the incident had undergone maintenance at an engine overhaul facility and had been preserved during its time of inactivity, prior to its installation on OTQ. The aircraft was released to service 11 days (about 26 flight hours) prior to the incident occurring.

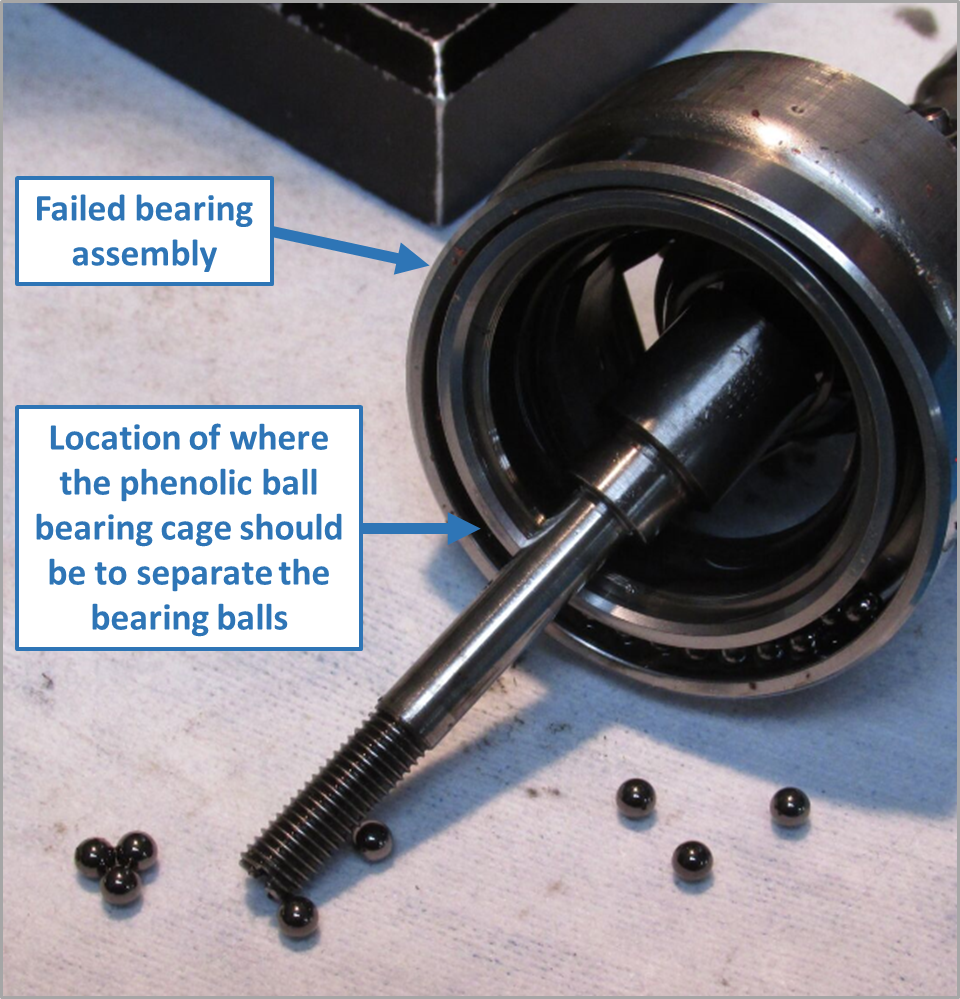

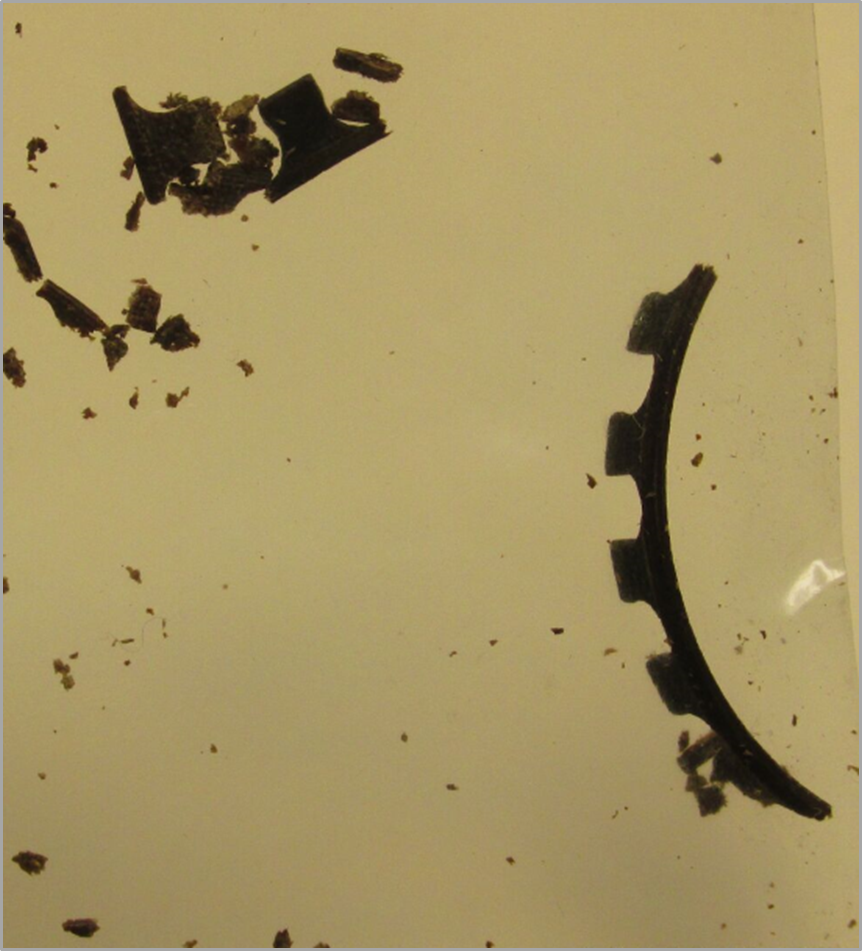

Aircraft maintenance personnel inspected the right engine after the flight and found that the engine’s fuel control unit was at fault. An examination of the fuel control unit at a component overhaul facility found that the input drive shaft was not free to move. The fuel control unit was inspected and a bearing was found to have failed (Figure 1). The phenolic bearing cage that separates the bearings was found broken (Figure 2) with many small fragments found to be interfering with the operation of the fuel control unit in that area.
Source: Aircraft operator
Source: Aircraft operator
These findings should not be read as apportioning blame or liability to any particular organisation or individual.
The engine issue related to a failed fuel control unit bearing, where fragments of the bearing cage interfered with the unit’s operation.
It is important when time permits to broadcast a ‘pan’ or ‘mayday’, whichever is applicable, to air traffic control to alert the controller and remove any uncertainty about the severity of the situation. If controllers receive a ‘pan’ or ‘mayday’ broadcast, they will organise (depending on the situation) a priority landing to allow an aircraft that might have a problem to land as soon as possible. A situation that seems relatively innocuous can deteriorate quickly. Hesitating or not broadcasting the situation can result in help being delayed.
Airservices Australia defines the two levels of emergency notifications as:
- MAYDAY: My aircraft and its occupants are threatened by grave and imminent danger and/or I require immediate assistance.
- PAN PAN: I have an urgent message to transmit concerning the safety of my aircraft or other vehicle or of some person on board or within sight but I do not require immediate assistance.
Additional information is provided in the following publications:
Airservices Australia In-flight emergencies, is available from the Airservices website.
Airservices Australia Safety Bulletin 18 July 2016 What happens when I declare an emergency, is available from the Airservices website.
- Flight level: at altitudes above 10,000 ft in Australia, an aircraft’s height above mean sea level is referred to as a flight level (FL). FL 160 equates to 16,000 ft.
- Pilot Flying (PF) and Pilot Monitoring (PM): procedurally assigned roles with specifically assigned duties at specific stages of a flight. The PF does most of the flying, except in defined circumstances; such as planning for descent, approach and landing. The PM carries out support duties and monitors the PF’s actions and the aircraft’s flight path.
- Alert Phase (ALERFA): an emergency phase declared by the air traffic services when apprehension exists as to the safety of the aircraft and its occupants.
- PAN PAN: an internationally recognised radio call announcing an urgency condition which concerns the safety of an aircraft or its occupants but where the flight crew does not require immediate assistance.
- The fuel control unit governs the engine fuel supply in accordance with pilot engine control inputs and selections, ambient conditions, and engine limitations.
- The phenolic bearing cage is manufactured from fibre-reinforced phenolic resin. The cage retains the ball bearings, to maintain a specific separation between all the bearing assembly parts.
To download, click the link, then right-click and select Save As.
Copyright in material obtained from other agencies, private individuals or organisations, belongs to those agencies, individuals or organisations and should be credited accordingly.
|Date:||14 December 2016||Investigation status:||Completed|
|Time:||07:48 ESuT||Investigation level:||Short - click for an explanation of investigation levels|
|Location:||60 km WNW of Newcastle Airport|
|State:||New South Wales||Occurrence type:||Engine failure or malfunction|
|Release date:||27 April 2017||Occurrence class:||Infrastructure|
|Report status:||Final||Occurrence category:||Incident|
|Highest injury level:||None|
|Aircraft manufacturer||British Aerospace PLC|
|Aircraft model||Jetstream 32|
|Type of operation||Air Transport Low Capacity|
|Damage to aircraft||Nil|
|Departure point||Williamtown, NSW|
