At about 1113, Central Daylight-saving Time on the 6 November 2016, a Cessna 172S aircraft, registered VH-USL (USL), departed Parafield Airport, South Australia, for a local flight in the western training area. The pilot was the only person on board the private flight.
After passing the outbound reporting point, the pilot initiated a climb to 2,500 ft and navigated along the VFR route towards Dublin. In the cruise, the pilot attempted to get the autopilot to engage but it did not responded as they expected. The pilot reported that they made regular checks and would look from inside the cockpit to outside to check the aircraft was maintaining a direction to Dublin and that no other aircraft were in the vicinity.
During this time, a Cessna 206 (C206) aircraft departed Lower Light aircraft landing area (ALA) for parachute operations. They were on climb to flight level (FL) 120 where four parachutists planned to exit the aircraft overhead the Lower Light ALA.
At about 1123, the pilot broadcast on the area frequency advising traffic in the Lower Light area that in about three minutes they would be at FL 120 and would conduct a parachute drop.
Shortly after the pilot of USL looked out and observed parachutes just below and to the left of the aircraft at a distance of about 200 m. After checking that it was all clear, the pilot turned the aircraft left to manoeuvre away from Lower Light ALA.
The pilot of USL disconnected the autopilot, navigated to Dublin, returned to Parafield via the inbound VFR route, and landed without further incident. The parachutists landed without further incident.
This incident highlights the importance to maintain situational awareness through active navigation and active listening to radio communications.
At about 1113, Central Daylight-saving Time (CDT) on the 6 November 2016, a Cessna 172S aircraft, registered VH-USL (USL), departed Parafield Airport, South Australia for a local flight in the western training area. The pilot was the only person on board the private flight.
The pilot reported that the aircraft has a ‘glass cockpit’ and they had only flown it once before with an instructor. The purpose of this flight was to become more familiar with the ‘glass cockpit’ and specifically the autopilot. Prior to taxi with the engine running, the pilot reviewed the operation of the autopilot. In addition, as preparation the pilot had read the auto pilot manual and watched some videos on the operation of the autopilot.
During the initial climb, the pilot engaged the autopilot. As the aircraft started to climb at a faster rate than expected, the pilot disconnected the autopilot and continued on to St Kilda (Figure 1).

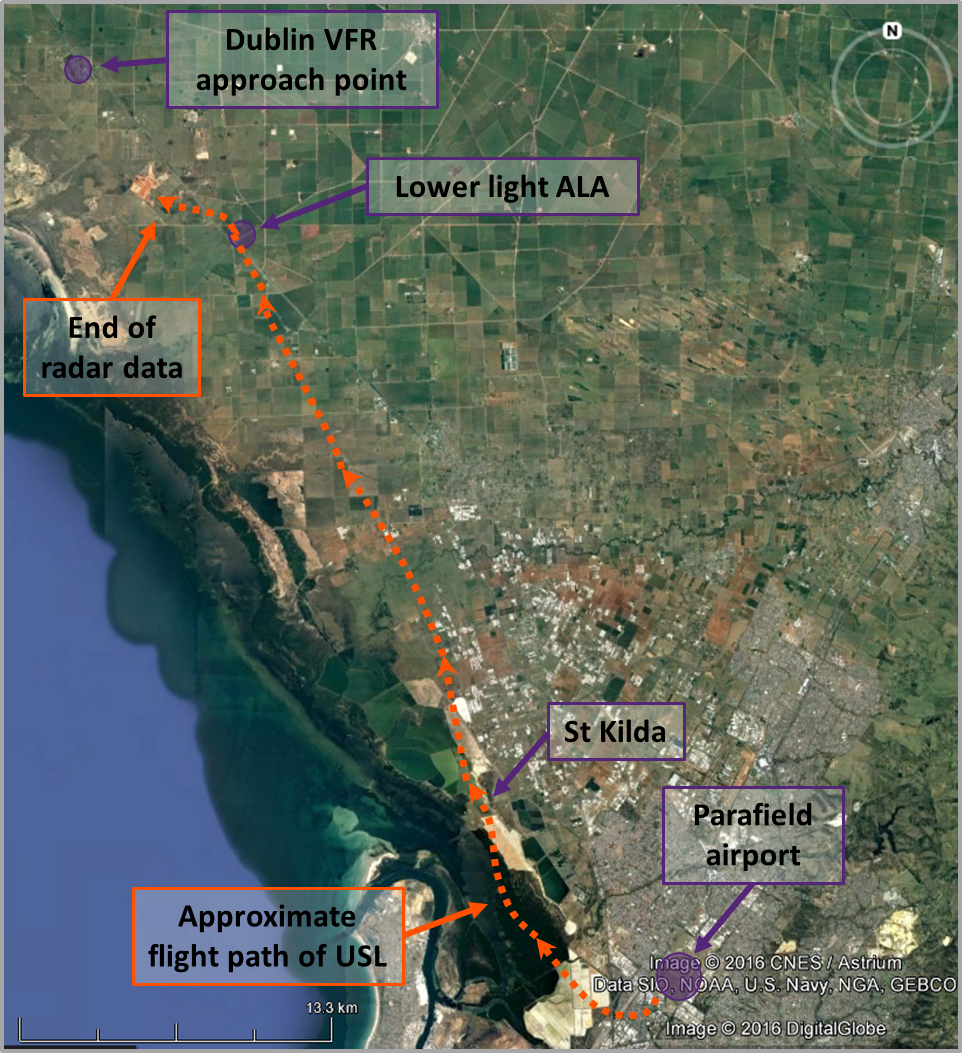

Source: Google earth, modified by the ATSB
When the aircraft reached 1,000 ft, the pilot again engaged the autopilot and the autopilot again started to change the attitude of the aircraft, not as expected, and the pilot disconnected the autopilot. After passing St. Kilda, the pilot initiated a climb to 2,500 ft and navigated along the VFR route towards Dublin (Figure 2). In the cruise, the pilot continued to attempt to get the autopilot to engage but it did not respond as they expected. The pilot reported that they made regular checks and would look from inside the cockpit to outside to check the aircraft was maintaining a direction to Dublin and that no other aircraft were in the vicinity.

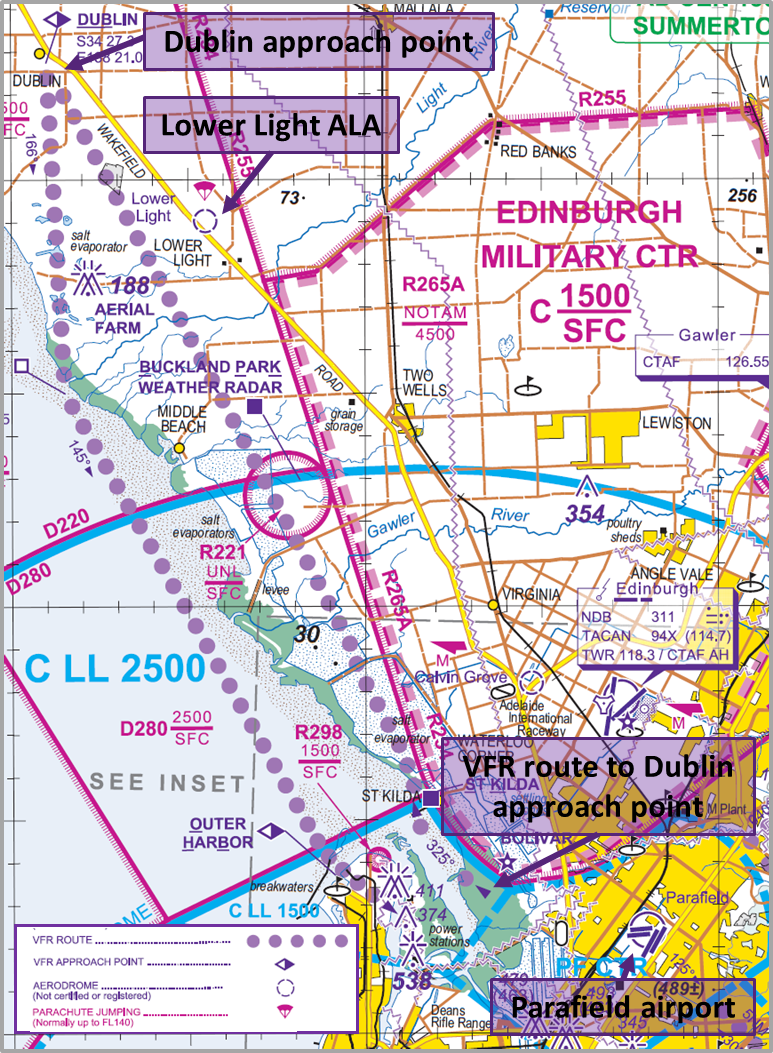

Source: Airservices Australia: Visual Terminal Chart, modified by the ATSB
During this time, a Cessna 206 (C206) aircraft departed Lower Light aircraft landing area (ALA) for parachute operations. They were on climb to flight level (FL) 120 where four parachutists planned to exit the aircraft overhead the Lower Light ALA. The aircraft planned to then continue to climb to FL 140 where two other parachutists in tandem were to exit the aircraft.
The pilot contacted the Adelaide Approach controller and received a clearance to climb initially to FL 120. Approaching FL 120, the pilot received a clearance to drop the first parachutists and then climb to FL 140. The controller also advised them that there was an unverified aircraft (USL) about 3 NM to the south of Lower Light ALA at 2,500 ft. At about 1123, the pilot broadcast on the area frequency advising traffic in the Lower Light area that in about three minutes they would be at FL 120 and would conduct a parachute drop. The pilot of USL reported that they heard this broadcast but no subsequent broadcasts from the aircraft.
The parachute operator’s safety officer was listening on the radio frequencies (parachute operation frequency, area frequency and Adelaide Approach frequency) and was standing in front of the operator’s hangar. The safety officer reported that they heard the broadcast made that the four parachutists had exited the aircraft (this was not recorded on the area or Adelaide approach frequencies). At about the same time, the safety officer saw a Cessna 172 (C172) aircraft (USL) fly directly over the hangar from the south, heading towards where the safety officer expected to see the four parachutes open. The safety officer contacted the C206 pilot on the radio to let the pilot know that there was an aircraft flying directly towards the parachutists. The safety officer observed the parachutes open near the C172 and observed the C172 aircraft turn to the right slightly and then make a left turn away from Lower Light ALA.
At about the same time, the pilot looked out and observed parachutes just below and to the left of the aircraft at a distance of about 200 m. After checking that it was all clear, the pilot turned the aircraft to the left to manoeuvre away from Lower Light ALA.
At about 1126, the C206 pilot broadcast that the traffic adjacent to Lower Light ALA to depart the area immediately, as there were parachutists in the air. However, the pilot heard no response from the pilot of USL. The C206 pilot contacted Adelaide Approach and advised that an aircraft had interfered with the parachutists. The controller replied that the traffic was outside controlled airspace and they did not have any details on the aircraft. As the C172 was heading away from the area, the controller approved the C206 to drop the remaining parachutes and then descend from FL140.
The pilot of USL disconnected the autopilot, navigated to Dublin, returned to Parafield via the inbound VFR route, and landed without further incident. The six parachutists landed without further incident.
The pilot reported that they were distracted while trying to operate the autopilot and were not aware that they had flown close to the Lower Light ALA. They heard the broadcast from the C206 pilot but they did not realise that they were that close to the ALA and did not take any action. When the parachutes were sighted, the pilot checked the area before turning, to ensure they were not about to turn into another parachute which was taking action to avoid his aircraft.
After the incident, the pilot reported they informed the flying school where the pilot hired the aircraft about the incident and that they believed the autopilot had a problem.
The pilot reported that the weather was clear and the wind was about 8 knots from the west.
The maintenance release for USL contained an endorsement that the autopilot roll servo was unserviceable in August 2016 and another roll servo was installed. On 26 October 2016, the autopilot roll servo was replaced with an exchange servo. There were no other endorsements on the maintenance release about the autopilot.
The aircraft owner reported that apart from the replacement of the autopilot servo there had been no defects recorded about the serviceability of the autopilot. Subsequent to the incident, the operator conducted a full test in flight of the autopilot on USL and no fault was found with the autopilot or with any of its functions.
The parachute operator reported that in the past they have contacted flying schools in the area notifying them of the frequencies that their pilot will use to notify that there are parachute operations. The parachute operator indicated that there have been other ‘close calls’ reported but this was the closest that an aircraft has come to a collision with a parachutist.
A search of the ATSB database confirmed three other notifications from 2006 to 2016 where an aircraft was near parachutists at the Lower Light ALA.
These findings should not be read as apportioning blame or liability to any particular organisation or individual.
- The pilot of the Cessna 172 was distracted by the operation of the aircraft autopilot and as a result, had reduced awareness of the aircraft’s position and flew in close proximity to four parachutists.
This incident highlights the importance to maintain situational awareness through active navigation and active listening to radio communications. Ensuring you are listening to the correct frequencies and communicating on the correct frequencies helps to maintain your situational awareness but also that of other pilots flying in your area.
The Civil Aviation Safety Authority (CASA) has developed the Look out! Situational awareness DVD and video for pilots to learn more about the safety-critical skills that makes up situational awareness. There is a strong emphasis on the need to prepare and plan for every flight. The DVD gives a definition of situational awareness as “what’s happened, what’s happening and what might happen”.
- A glass cockpit is an aircraft cockpit that features electronic (digital) flight instrument displays, typically large liquid-crystal display (LCD) screens, rather than the traditional style of analog dials and gauges. A glass cockpit uses several displays driven by flight management systems, that can be adjusted (multi-function display) to display flight information as needed.
|Date:||06 November 2016||Investigation status:||Completed|
|Time:||11:20 CSuT||Investigation level:||Short - click for an explanation of investigation levels|
|Location:||Lower Light (ALA)|
|State:||South Australia||Occurrence type:||Near collision|
|Release date:||17 January 2017||Occurrence class:||Operational|
|Report status:||Final||Occurrence category:||Serious Incident|
|Highest injury level:||None|
|Aircraft manufacturer||Cessna Aircraft Company|
|Type of operation||Private|
|Damage to aircraft||Nil|
|Departure point||Parafield, SA|
