On 8 November 2017, at about 1508 Eastern Standard Time, the pilot of a Robinson R44 helicopter, registered VH-WRR and operated by Whitsunday Air Services, ditched about 49 km north of Hamilton Island Airport, Queensland. In addition to the pilot, there were three passengers on board.
Prior to the flight, the passengers received a safety briefing and were instructed to wear seatbelts and life jackets. At about 1430, the helicopter departed Hamilton Island for a 1 hour scenic (charter) flight over Whitehaven Bay and the Great Barrier Reef.
When about 40 minutes into the flight, on return to Hamilton Island, the pilot heard the engine sound decrease and noted that the helicopter was unable to maintain the cruise altitude of 1,000 ft. The pilot checked the manifold pressure gauge and noted it was at 22 inches Hg, however, it was set at 24.5 inches Hg when leaving the reef between 500 and 1,000 ft. In response to the reduction in power, the pilot raised the collective to increase power and maintain altitude, but the manifold pressure did not change. The pilot reported that the indicated main rotor revolutions per minute (RPM) decreased and the low rotor RPM horn activated. The engine RPM indication was also oscillating throughout the range.
In response to the low RPM horn, the pilot increased throttle and again raised the collective. The rotor RPM initially spiked and then decreased with associated re-activation of the low rotor RPM horn. The engine RPM gauge continued to oscillate and the helicopter could not maintain altitude. The pilot noticed the engine noise was changing with the fluctuations in the indications. However, there were no further indications that suggested a problem with the helicopter.

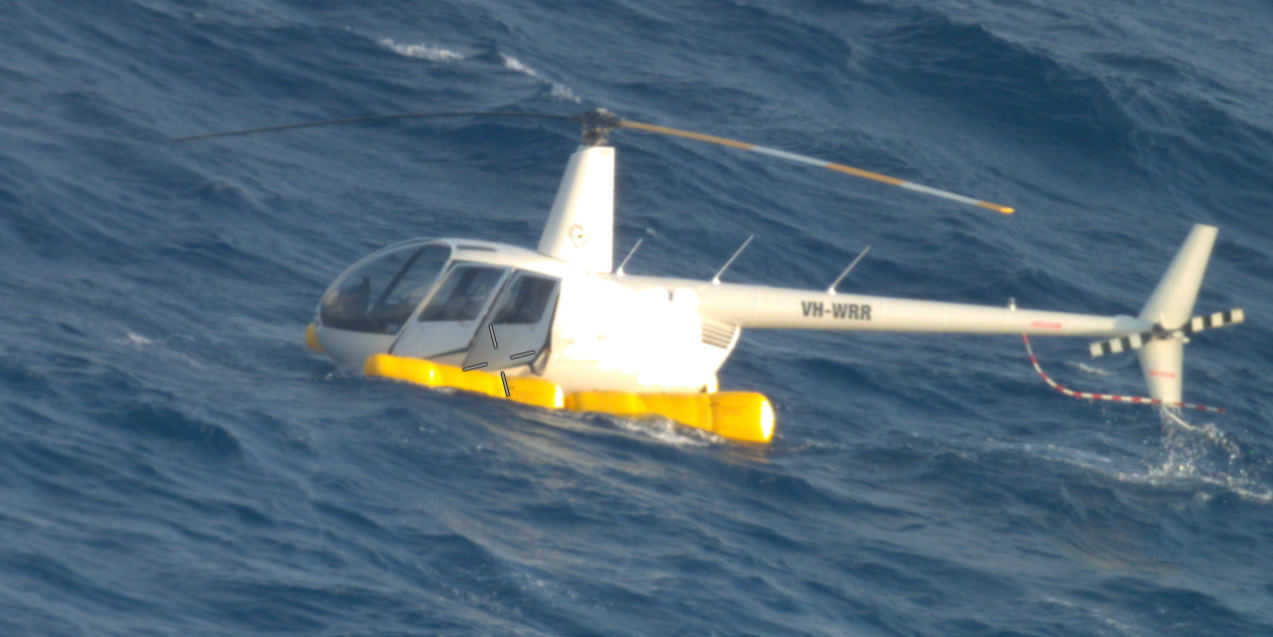

Consequently, when at 700 ft, the pilot elected to conduct an autorotation onto the water. The pilot activated the emergency flotation system and broadcast a MAYDAY call on the common traffic advisory frequency. The engine RPM gauge continued to provide erratic readings and the low engine sound continued during the landing. About 30 seconds later, the helicopter landed on the water with the emergency floats deployed (Figure 1).
The pilot contacted another company pilot who was operating in the area and informed them of the situation and their location. The pilot shut down the engine and applied the rotor brake. The pilot activated the emergency locator transmitter and instructed the passengers to prepare to inflate their life jackets and undo their seatbelts in readiness to exit the helicopter.
About 10 to 15 minutes later, the company aircraft was circling overhead. The pilot and passengers remained in the helicopter until they were rescued by the crew of a local vessel about 1 hour later. All occupants were uninjured. While there appeared to be no observable damage sustained to the helicopter, it later sank and was unable to be recovered.
Source: Australian Maritime Safety Authority, modified by the ATSB
The following additional comments were made with regard to the accident:
- The pilot reported refuelling the helicopter prior to the flight and conducting a check for contaminants, none of which was found. After the helicopter had landed on the water, the fuel gauges indicated that the tanks were half full.
- A review of the meteorological conditions around the time of the accident indicated they were conducive to serious carburettor icing conditions with descent power selected.
- The Civil Aviation Safety Authority noted the partial power loss described in this accident may be consistent with a magneto/governor failure, which has reported to have occurred on other R44 helicopters.
- A maintenance log book entry around 2 weeks prior to the accident noted that the helicopter had intermittent tachometer/governor fluctuations. The right magneto points were found to be out-of-tolerance and adjusted. A ground run to test the adjusted magneto was completed satisfactorily. Robinson Helicopter Company had issued Service Letter 62, which stated that the throttle governor signal source was ‘the tachometer breaker contact (points) assembly located within the engine-right magneto…excessive wear causing insufficient point gap…(that) could cause an erratic tachometer indication.’
- Post-accident discussions between the manufacturer, operator and maintenance provider resulted in a consensus of opinion that the power reduction was associated with either a governor control failure and or a compromised engine RPM signal from poor tachometer points.
A search of the ATSB’s database found the following occurrences involving an engine power loss followed by a ditching in helicopters:
- On 3 January 2011, a Robinson R44 helicopter, departed Cairns Airport, Queensland for a 30 minute charter flight (ATSB investigation AO-2011-001). About 25 minutes into the flight, when at about 400 ft above mean sea level, the engine failed and the rotor low RPM horn sounded. The pilot broadcast a MAYDAY and entered autorotation. During the descent, he deployed the emergency floatation system, however, the right float did not fully inflate. When at about 50 ft above the sea, the helicopter entered an uncommanded 360⁰ yaw to the left. The pilot was unable to control the yaw and the helicopter impacted the water heavily and turned onto its right side. The pilot assisted the passengers to egress and inflated their life jackets. A post-occurrence engine strip and examination found no fault that would give reason for the engine to fail in flight.
- On 26 January 2011, a Robinson R44 helicopter departed the Knuckle Reef helipad, Queensland, for a 20 minute charter flight (ATSB investigation AO-2011-008). On board the helicopter were the pilot and three passengers. While returning to the helipad 15 minutes later, at about 950 ft above sea level, the helicopter experienced engine problems, including a sudden loss of cylinder head temperature indication and variations in the engine manifold pressure. The helicopter was unable to maintain altitude and began to descend at 200 ft per minute. The pilot inflated the emergency floatation system, commenced an autorotation and landed on the sea. Following the safe recovery of the occupants, the helicopter was unable to be recovered.
These findings should not be read as apportioning blame or liability to any particular organisation or individual.
- During the cruise, for undetermined reasons, the helicopter experienced a partial engine power loss. After unsuccessful attempts to increase power, the pilot manually deployed the emergency floatation system and performed a successful ditching.
Without the recovery of the helicopter, the reasons for the partial engine power loss could not be conclusively determined. However, the indications were consistent with a magneto/governor failure, which Robinson Helicopter Company have published a revised service letter Governor troubleshooting / magneto maintenance describing how the failure occurs and the compliance procedure.
The pilot commented that this was the first time he had been involved in an emergency situation and the training he received prepared him well for executing the autorotation and managing the situation after landing on the water.
The United States Federal Aviation Administration Helicopter Flying Handbook stated that, when rotor RPM begins to decrease, it is essential to recover and maintain RPM. Low rotor RPM and ensuing blade stall can result in a total loss of rotor lift, allowing the helicopter to fall to the surface and possibly resulting in blade strikes to the tail boom and other airframe damage. Low rotor RPM during an autorotation may result in a less than successful result.
This accident highlights the importance of being adequately prepared for an emergency situation such as a ditching. In this case, the helicopter was fitted with an emergency floatation system, the passengers were wearing life jackets, and the pilot’s post-landing actions resulted in a positive outcome where no injuries occurred. Without a floatation system the risk of the helicopter sinking with the occupants on board would be greatly increased.
- Eastern Standard Time is Coordinated Universal Time (UTC) + 10 hours.
- Manifold pressure: Pressure in the inlet manifold of a piston engine, normally local atmospheric, measured in inches of mercury (Hg).
- Collective: a primary helicopter flight control that simultaneously affects the pitch of all blades of a lifting rotor. Collective input is the main control for vertical velocity.
- Autorotation is a condition of descending flight where, following engine failure or deliberate disengagement, the rotor blades are driven solely by aerodynamic forces resulting from rate of descent airflow through the rotor.
- Emergency floatation system: inflatables fitted to the aircraft to provide water buoyancy in an emergency.
- MAYDAY: an internationally recognised radio call announcing a distress condition where an aircraft or its occupants are being threatened by serious and/or imminent danger and the flight crew require immediate assistance.
- The rotor brake is a device used to stop the rotor blades during shutdown.
|Date:||08 November 2017||Investigation status:||Completed|
|Time:||15:08 EST||Investigation level:||Short - click for an explanation of investigation levels|
|Location:||49 km N of Hamilton Island||Investigation phase:||Final report: Dissemination|
|Release date:||20 March 2018||Occurrence class:||Operational|
|Report status:||Final||Occurrence category:||Accident|
|Highest injury level:||None|
|Aircraft manufacturer||Robinson Helicopter Co|
|Operator||Whitsunday Air Services|
|Type of operation||Charter|
|Damage to aircraft||Destroyed|
|Departure point||Hamilton Island, Qld|
|Destination||Hamilton Island, Qld|
