Collision with terrain involving Robinson R44, VH-HBV, Julatten, Queensland, on 15 August 2017

Investigation number:
AO-2017-083
Status: Completed
Investigation completed
Phase: Final report: Dissemination Read more information on this investigation phase

Final Report

Download final report
[Download  PDF: 293KB]


What happened

On 15 August 2017, the pilot of a Robinson R44 helicopter, registered VH-HBV (HBV), conducted a private ferry flight from Cooktown to Mossman, Queensland. After refuelling in Mossman, the helicopter departed for a short ferry flight to Julatten, Queensland. The pilot was the sole occupant of the helicopter.

At about 1520 Eastern Standard Time,[1] the helicopter approached the landing site in a northerly direction. The pilot conducted an orbit at about 300–500 ft above the site to assess the conditions and then commenced the approach.

Just prior to touchdown, the pilot pulled back on the cyclic.[2] As a result, the tail rotor struck the ground behind the helicopter. The pilot felt the tail contact the ground through the airframe and pedals. The helicopter shuddered violently and yawed[3] rapidly to the right.

As the helicopter completed a 360 degree turn with the skids about 3–5 ft above the ground, the pilot lowered the collective[4] in an attempt to land on the helipad. The helicopter was still yawing as the skids contacted the helipad. It rolled over, the main rotor blades struck the ground and the helicopter came to rest on its left side.

The pilot was uninjured and the helicopter sustained substantial damage (Figure 1).

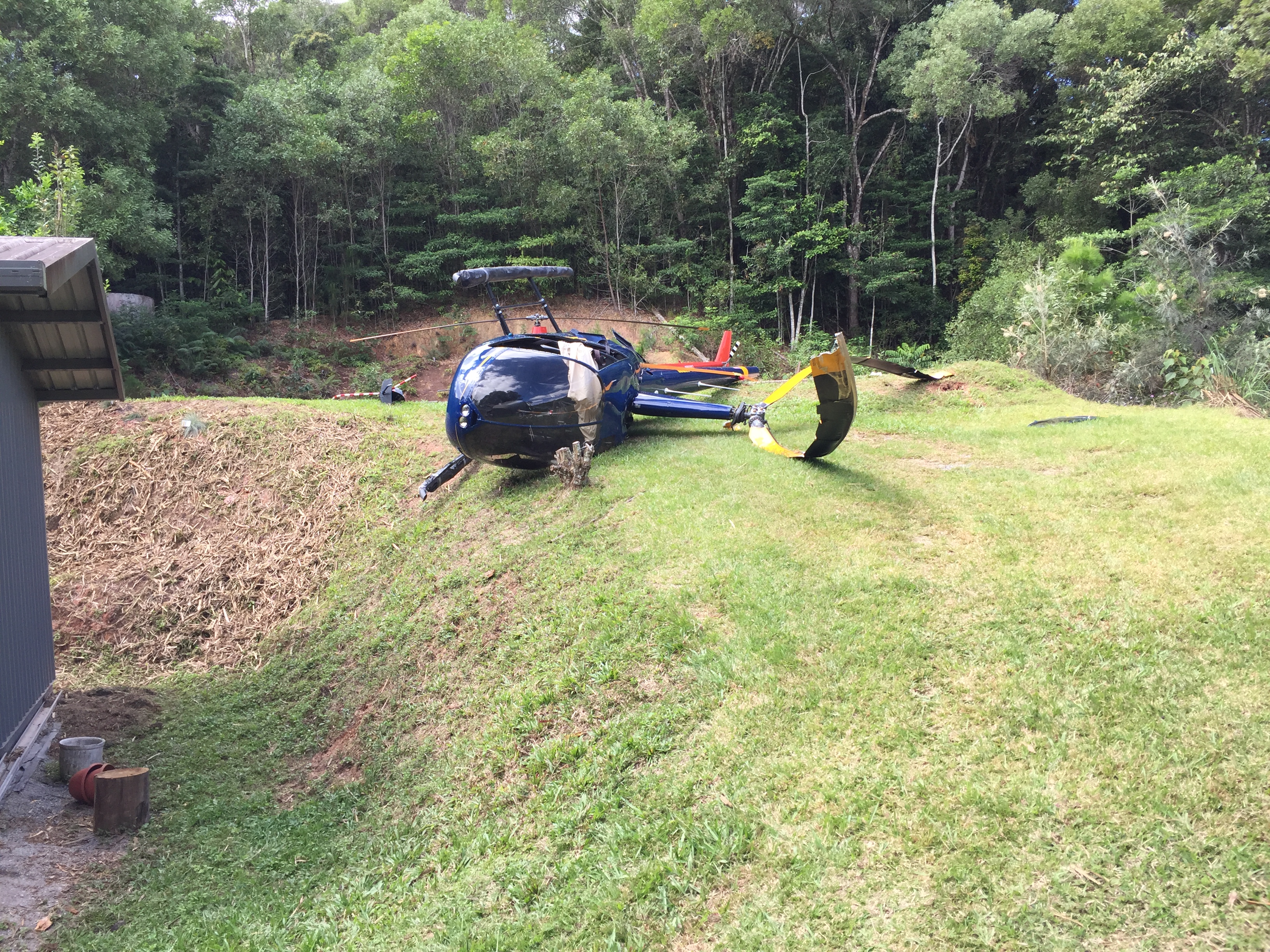

Figure 1: Accident site showing damage to VH-HBV
Figure 1: Accident site showing damage to VH-HBV. Source: CASASource: CASA

Pilot comments

The pilot commented that there were trees along the approach to the landing site, but it did not require a steep approach path and consequently he conducted a shallow approach. The wind at the time was from the south-east at 10 to 15 kt, but, due to the sheltered location, there was no wind at the landing site.

A company helicopter had landed shortly before HBV, and was parked on the front of the pad. The pilot commented that he may have looked at that helicopter as he touched down, which led to pulling back on the cyclic. HBV was an older model R44 helicopter than the pilot had flown previously and he reported that when the cyclic was in the neutral position, it sat slightly further forward than he was accustomed to. The pilot also commented that had he rolled off the throttle immediately after the tail rotor struck the ground, it would have reduced the helicopter’s rate of rotation and potentially prevented the rollover. He stated, however, that he did not recognise the developing situation, and roll off the throttle, before the helicopter began yawing. He also reported being unable to land the helicopter until it had rotated through 360° due to concern about terrain contact. Finally, the pilot recalled that he rolled off the throttle upon lowering the collective but the yaw did not stop completely prior to the skids contacting the ground.

The chief pilot, who witnessed the accident, indicated that the helicopter came in with the tail a bit lower than normal, the tail rotor struck a small mound of dirt, and the tail rotor and gear box detached. He commented that the pilot only weighed about 65 to 70 kg and, without any passengers or gear on board, the centre of gravity of the R44 is quite aft and the tail is therefore lower than when more heavily loaded. He further stated that the fuel tank was about three-quarters full, and the helicopter was within weight and balance limitations.

Safety analysis

The pilot applied aft cyclic just prior to touchdown, which resulted in a slightly tail-low attitude for landing. The tail stinger would normally contact the ground and prevent a tail rotor strike. However, because the ground sloped away behind the concrete landing pad, the stinger was over the slope, allowing the tail rotor to strike the ground and detach without prior warning (Figure 2).

Following separation of the tail rotor and gearbox, the helicopter yawed rapidly to the right through 360° in response to the torque associated with the still‑powered main rotor. As the pilot did not roll the throttle off quickly enough to reduce the rate of yaw of the helicopter prior to lowering the collective, the helicopter was still yawing when the skids contacted the ground. Consequently, it rolled over and the main rotor blades struck the ground.

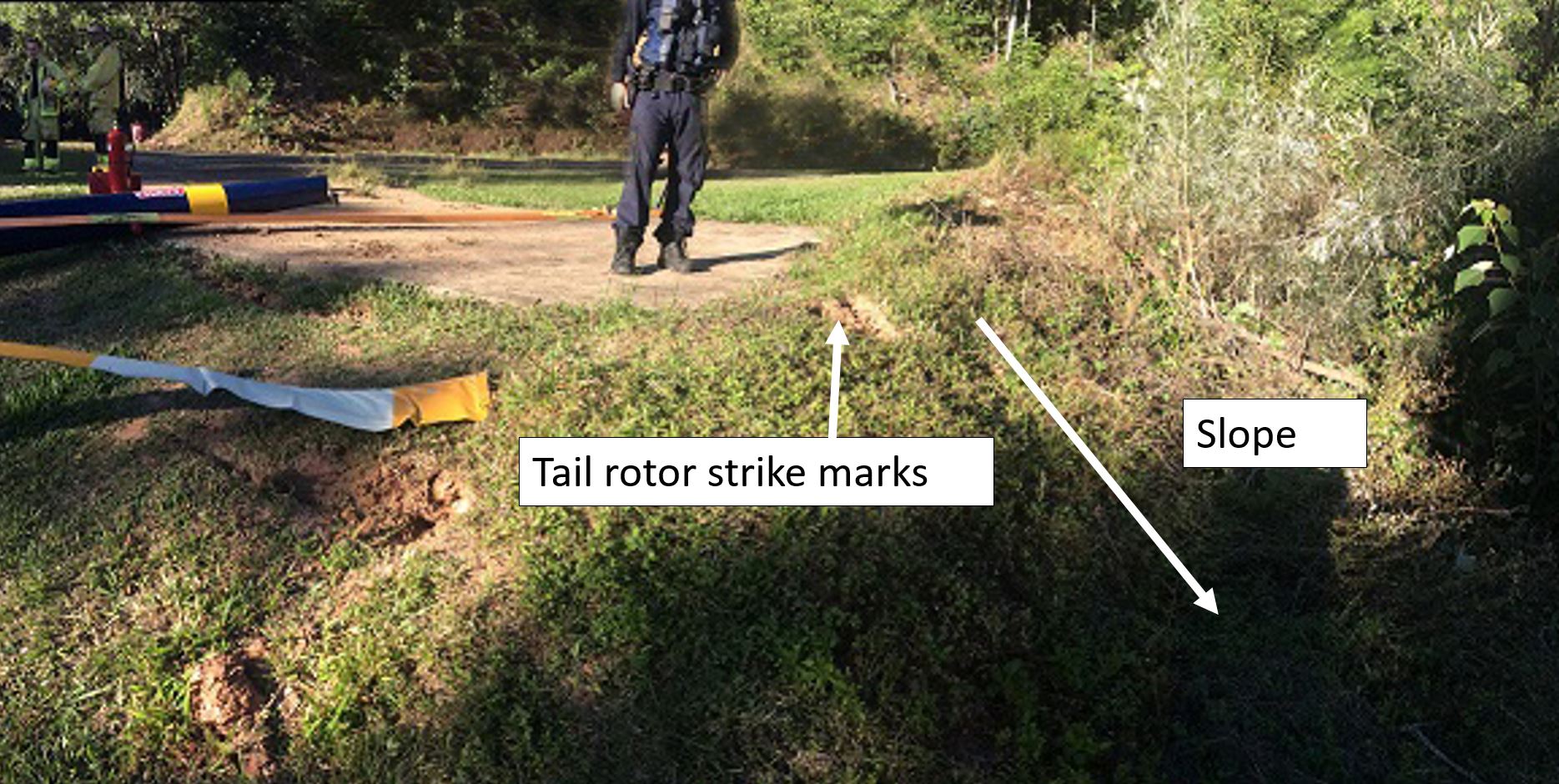

Figure 2: Sloping ground away from helipad and tail rotor strike marks

Figure 2: Sloping ground away from helipad and tail rotor strike marks. Source: Queensland Police
Source: Queensland Police

Findings

These findings should not be read as apportioning blame or liability to any particular organisation or individual.

  • The pilot applied aft cyclic just prior to touchdown, resulting in a tail-low attitude.
  • The ground sloped downwards away from the landing pad and as a result, the tail stinger did not protect the tail rotor from ground contact.
  • The tail rotor struck the ground and detached, resulting in the helicopter yawing rapidly to the right. The pilot did not roll off throttle to reduce the yaw rate prior to lowering the collective, which probably led to the helicopter rolling over as the skids contacted the ground.

Safety action

Whether or not the ATSB identifies safety issues in the course of an investigation, relevant organisations may proactively initiate safety action in order to reduce their safety risk. The ATSB has been advised of the following safety action in response to this occurrence.

Helicopter operator

As a result of this occurrence, the helicopter operator has taken the following safety actions:

  • Company pilots were briefed immediately following the accident, and subsequently trained, with regard to flying alone or with very little cargo. R44s are inclined to have a nose-high attitude when light, which often results in tail and stinger encroaching too close to terrain.
  • The company hazard register was updated to highlight the issue and company pilots were required to read the updated register. Pilots were advised that higher flare and slower approaches can mitigate the hazard.
  • Company pilots were briefed regarding hazards associated with helicopter landing sites and bush landing sites with sloping terrain and any obstacle that may come into contact with tail rotor or helicopter.
  • Retraining of company pilots in special procedures, including the conduct of hovering autorotations was conducted between October and November 2017. The operator assessed that use of this technique would have reduced the damage to the helicopter.

Safety message

This occurrence highlights that a loss of tail rotor thrust at low speed and low height above the ground requires an immediate and correct response to maintain control of the helicopter. It is therefore important that pilots are primed for this emergency, particularly during the approach and departure phases of flight.

The United States National Transportation Safety Board Safety Alert Loss of tail rotor effectiveness in helicopters states that due to safety concerns, training for loss of tail rotor effectiveness (LTE) is rarely conducted in an actual helicopter. While this incident involved the detachment of the tail rotor rather than aerodynamic LTE, the stated pilot responses to LTE are applicable here and consistent with the manufacturer’s emergency procedures.

The US Federal Aviation Authority Advisory Circular 90-95 stated under effective recovery techniques (for LTE), that collective pitch reduction will aid in arresting yaw rate but may cause an increase in the rate of descent. If the rotation cannot be stopped and ground contact is imminent, an autorotation (i.e. rolling off throttle) may be the best course of action. While the pilot’s action in lowering the collective during this occurrence may have reduced the yaw rate, following the manufacturer’s emergency procedure for a loss of tail rotor thrust during hover will provide the best outcome when close to the ground. That is, if uncommanded yaw is experienced that cannot be stopped by application of opposing tail rotor pedal:

  • fully roll off the throttle and allow the helicopter to settle while controlling any drift
  • raise the collective just before touchdown to cushion the landing.

__________

  1. Eastern Standard Time (EST): Coordinated Universal Time (UTC) + 10 hours.
  2. Cyclic: a primary helicopter flight control that is similar to an aircraft control column. Cyclic input tilts the main rotor disc, varying the attitude of the helicopter and hence the direction of movement.
  3. Yawing: the motion of an aircraft about its vertical or normal axis.
  4. Collective: a primary helicopter flight control that simultaneously affects the pitch of all blades of a lifting rotor. Collective input is the main control for vertical velocity.
Download final report
[Download  PDF: 293KB]




Photos

To download, click the link, then right-click and select Save As.

Copyright in material obtained from other agencies, private individuals or organisations, belongs to those agencies, individuals or organisations and should be credited accordingly.

General details
Date: 15 August 2017   Investigation status: Completed
Time: 15:05 EST   Investigation phase: Final report: Dissemination
Location   (show map): Brooklyn (ALA), E 22 km, Julatten   Investigation type: Occurrence Investigation
State: Queensland   Occurrence type: Collision with terrain
Release date: 22 March 2018   Occurrence class: Operational
Report status: Final   Occurrence category: Accident
  Highest injury level: None

Aircraft details

Aircraft details
Aircraft manufacturer Robinson Helicopter Co
Aircraft model R44
Aircraft registration VH-HBV
Serial number 0052
Type of operation Private
Sector Helicopter
Damage to aircraft Substantial
Departure point Mossman, Qld
Destination Julatten, Qld
Last update 14 November 2018
