Loading event involving Avions de Transport Régional ATR42, VH-TOX, Sydney Airport, NSW, on 27 September 2016

Investigation number:
Status: Completed
Investigation completed

Final Report

Download Final Report
[Download  PDF: 117KB]

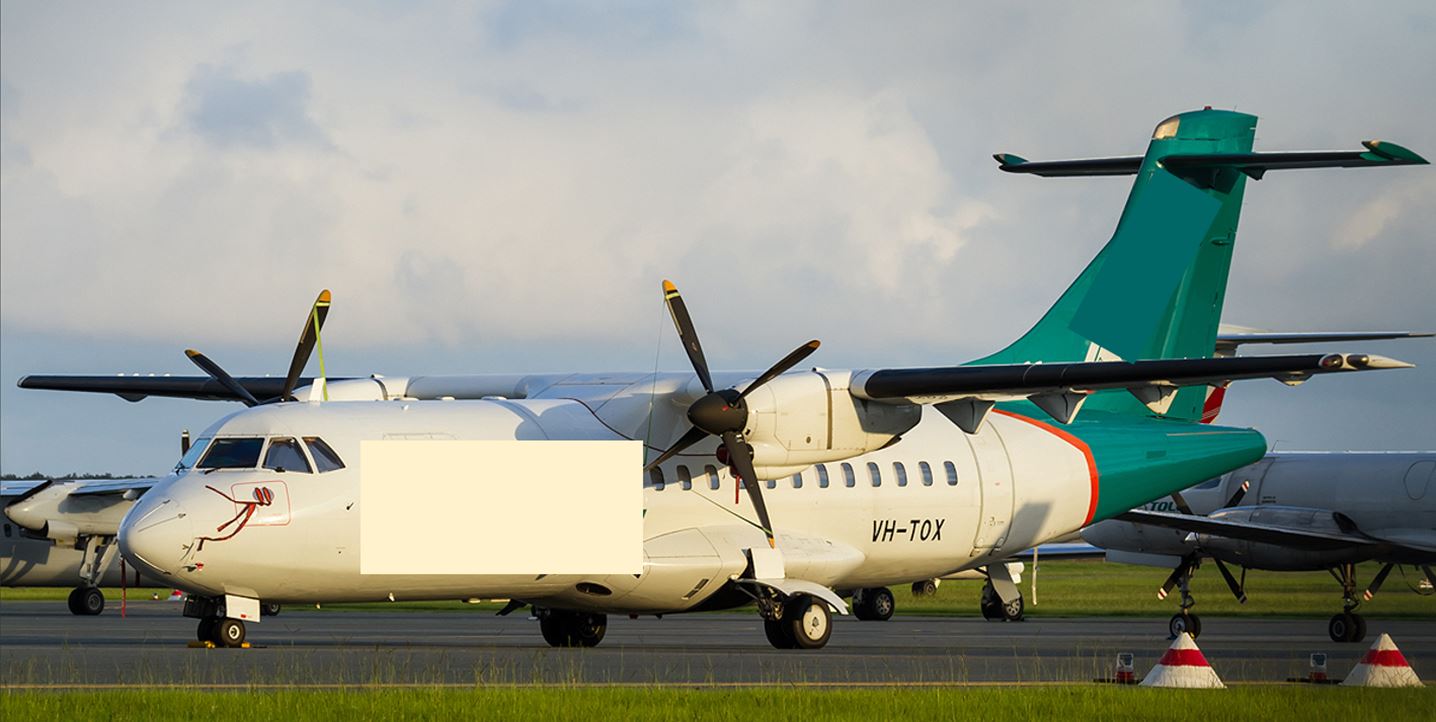

On 27 September 2016, at about 0030 Eastern Standard Time, an Avions de Transport Regional ATR42-300 aircraft, registered VH-TOX, was being loaded at Sydney Airport, New South Wales, for a freight charter flight to Brisbane, Queensland.

The freight had arrived from a freight facility where it had been weighed and a load plan completed, with a total freight weight of 2,281 kg.

Prior to loading the freight, a representative from the aircraft operator was unsure of the accuracy of the provided weights and requested ground staff reweigh the freight using calibrated scales at the airport. The measured total weight was 3,215 kg, which was 934 kg more than stated on the load plan.

The flight crew, consisting of a captain and first officer, completed the trim sheet using the actual weights, and the aircraft was within its weight limitations and the allowable centre of gravity envelope. The aircraft operated to Brisbane without incident.

Accurate aircraft weight and balance information is vital for the safety of flight, particularly during take-off. Inaccurate weight of freight items can lead to incorrect flight management selections such as power and trim settings. Discrepancies in these can result in reduced take-off performance and incidents such as tail strikes and runway overruns.


Short Investigations Bulletin - Issue 55

Download Final Report
[Download  PDF: 117KB]

Read report


To download, click the link, then right-click and select Save As.

Copyright in material obtained from other agencies, private individuals or organisations, belongs to those agencies, individuals or organisations and should be credited accordingly.

General details
Date: 27 September 2016   Investigation status: Completed
Time: 01:30 EST   Investigation level: Short - click for an explanation of investigation levels
Location   (show map): Sydney Airport
State: New South Wales   Occurrence type: Loading related
Release date: 14 December 2016   Occurrence category: Incident
Report status: Final   Highest injury level: None
Anticipated completion: 4th Quarter 2016

Aircraft details

Aircraft details
Aircraft manufacturer ATR-Gie Avions de Transport Régional
Aircraft model ATR42-300
Aircraft registration VH-TOX
Serial number 024
Type of operation Charter
Sector Turboprop
Damage to aircraft Nil
Departure point Sydney, NSW
Destination Brisbane, Qld
Last update 14 November 2018
