Aviation safety investigations & reports

Loss of separation assurance involving Airbus A330, 9V-STQ and Airbus A320, VH-VFH near Tindal, NT on 24 April 2014

Investigation number:
AO-2014-074
Status: Completed
Investigation completed

Final Report

Download Final Report
[Download  PDF: 4.16MB]


What happened

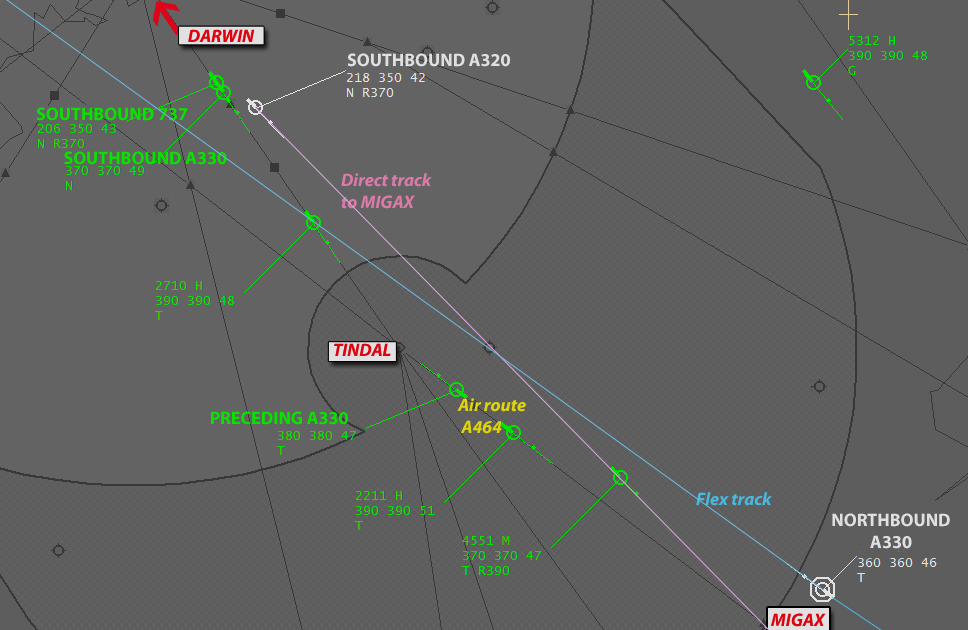

On 24 April 2014, an Airbus A330 en route from Brisbane, Queensland to Singapore was maintaining 36,000 ft when the air traffic controller cleared an Airbus A320 on a reciprocal track en route from Darwin, Northern Territory (NT) to Brisbane, to climb through the A330's level. This resulted in a loss of separation assurance about 73 km east-south-east of Tindal, NT.

Recorded data from the two aircraft showed that the minimum vertical separation was 224 ft at 0249:04 Eastern Standard Time, when the two aircraft were 9.96 NM (18.45 km) apart horizontally. The minimum horizontal separation was 2.21 NM (4 km) at 0249:40, when the aircraft were 1,720 ft apart vertically. There was no loss of separation as the surveillance separation standard of 5 NM (9.26 km) was maintained when the 1,000 ft vertical separation standard did not exist. In addition, the vertical separation standard re-established before the surveillance separation standard was compromised.

What the ATSB found

The ATSB determined that the en route controller did not identify the potential confliction and assigned direct tracking and climb to the southbound A320 aircraft. The controller had occupied an active air traffic control position for a period of about 3 hours and 55 minutes during a night shift, without a formal rest break, and was likely experiencing the effects of fatigue at the time of the occurrence.

The ATSB identified safety issues relating to Airservices Australia’s utilisation of shift sharing practices for the Tops controllers resulting in them sustaining a higher workload over extended periods without a break, during a time of day known to reduce performance capability. The requirement for skills-based training for effective compromised separation recovery actions was also identified.

What's been done as a result

Airservices Australia has undertaken a number of safety actions relating to compromised separation recovery training. In addition, Airservices reported that they were reviewing the application of published fatigue risk management system guidelines for air traffic control staff undertaking night shift duties.

Safety message

This occurrence is a reminder of the potential for errors to occur when experienced personnel are working for extended periods during periods of circadian low without effective risk mitigators to manage fatigue induced error or consideration of traffic volume and complexity.

Download Final Report
[Download  PDF: 4.16MB]




The occurrence

Context

Safety analysis

Findings

Safety issues and actions

Sources and submissions

Safety Issues

Go to AO-2014-074-SI-01 - Go to AO-2014-074-SI-02 -

Air traffic control shift management practices

The utilisation of  shift sharing practices for the Tops controllers resulted in them sustaining a higher workload over extended periods without a break, during a time of day known to reduce performance capability.

Safety issue details
Issue number: AO-2014-074-SI-01
Who it affects: All Airservices Australia air traffic controllers operating on night shifts
Status: Safety action pending

Compromised separation recovery training

Airservices Australia had not provided en route air traffic controllers with effective simulator-based refresher training in identifying and responding to compromised separation scenarios, at intervals appropriate to ensure that controllers maintained effective practical skills.

Safety issue details
Issue number: AO-2014-074-SI-02
Who it affects: All Airservices Australia en route air traffic controllers
Status: Adequately addressed
General details
Date: 24 April 2014   Investigation status: Completed
Time: 0249 EST   Investigation level: Defined - click for an explanation of investigation levels
Location   (show map): near Tindal
State: Northern Territory   Occurrence type: Loss of separation assurance
Release date: 13 May 2016   Occurrence category: Incident
Report status: Final   Highest injury level: None

Aircraft 1 details

Aircraft 1 details
Aircraft manufacturer Airbus
Aircraft model A330-343
Aircraft registration 9V-STQ
Serial number 1149
Operator Singapore Airlines
Type of operation Air Transport High Capacity
Sector Jet
Damage to aircraft Nil
Departure point Brisbane, Qld
Destination Singapore

Aircraft 2 details

Aircraft 2 details
Aircraft manufacturer Airbus
Aircraft model A320-232
Aircraft registration VH-VFH
Serial number 5211
Operator Jetstar Airways
Type of operation Air Transport High Capacity
Sector Jet
Damage to aircraft Nil
Departure point Darwin, NT
Destination Brisbane, Qld
Last update 14 November 2018
