What happened

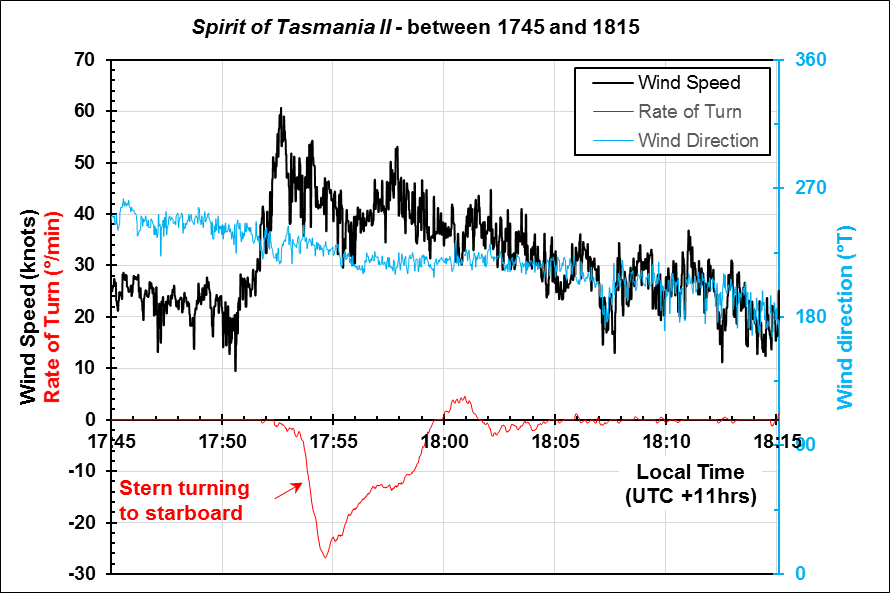

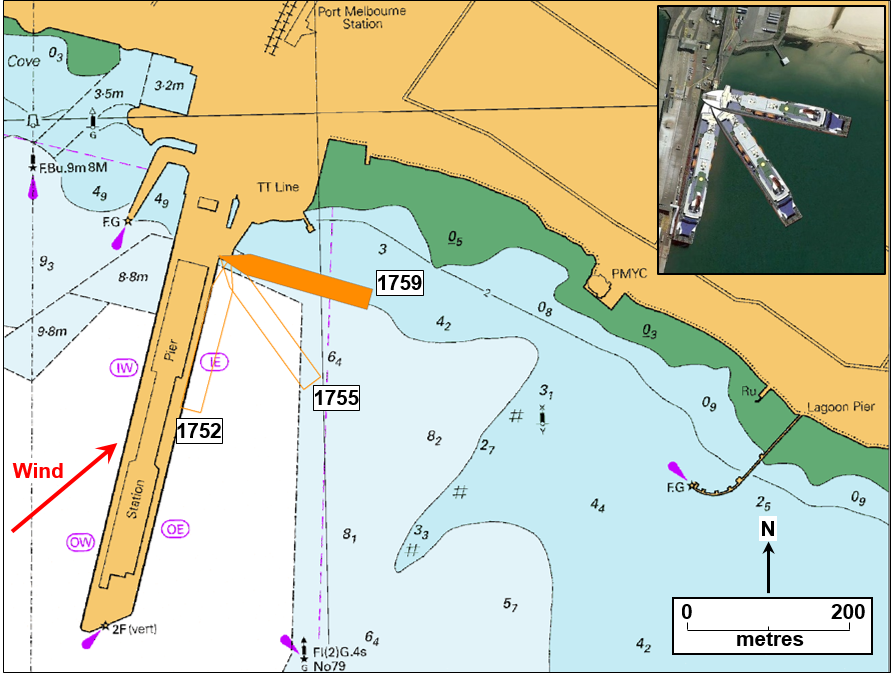

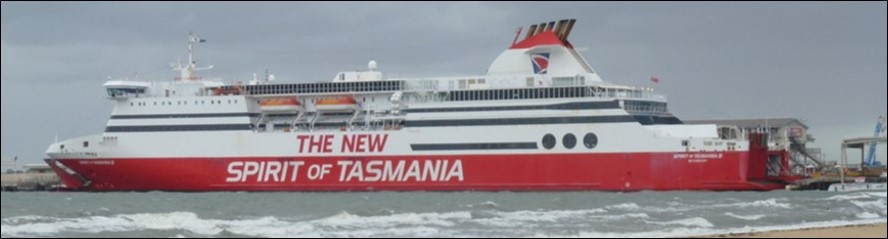

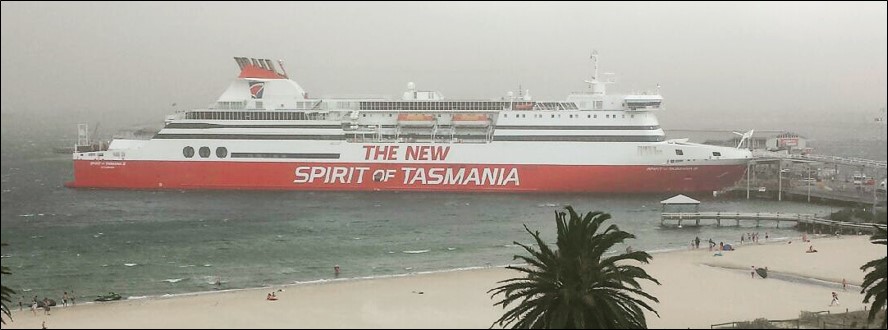

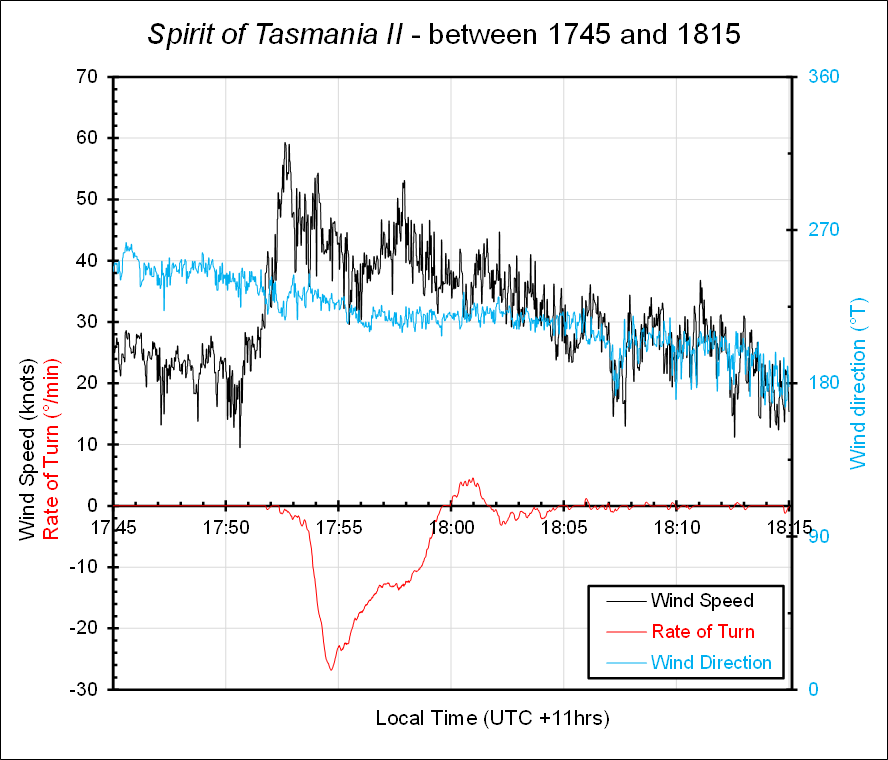

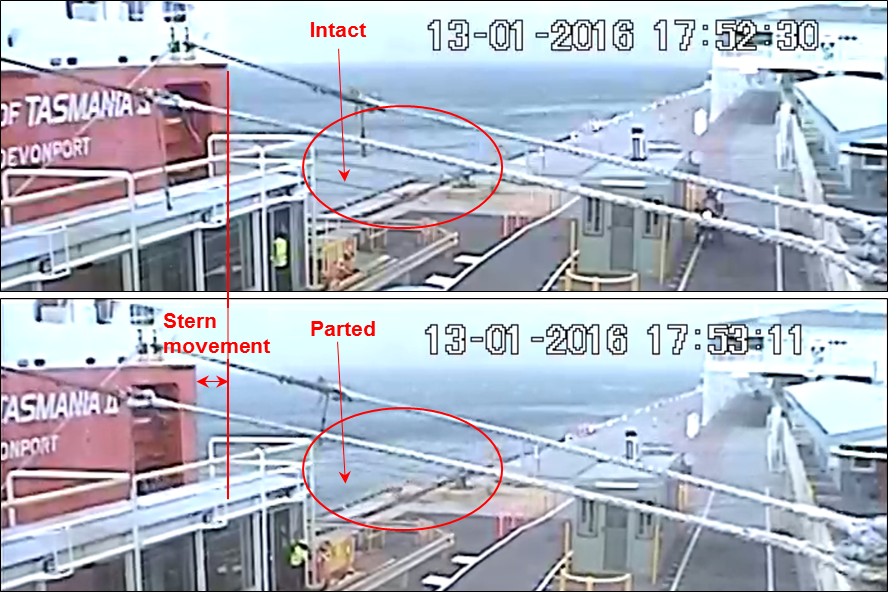

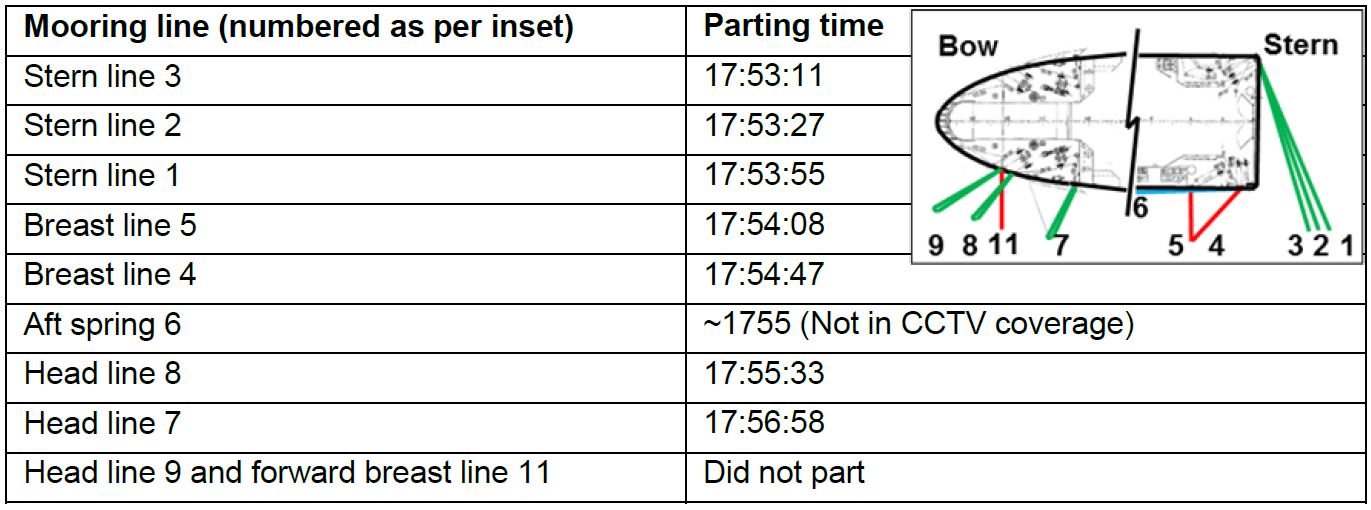

On the afternoon of 13 January 2016, the roll-on/roll-off passenger ship Spirit of Tasmania II was loading cargo, vehicles and passengers at Station Pier, Melbourne. At 1752, strong wind gusts blew the ship off the wharf and all but two of the ship’s mooring lines (on the bow) parted. After breaking away, the stern swung around until the ship was 90 degrees to the wharf, parallel to nearby Port Melbourne Beach and in danger of grounding. While waiting for tugs to assist, the ship’s propulsion and thrusters were used to maintain its position and prevent grounding. By 1905, the ship was back alongside the wharf, assisted by two tugs.

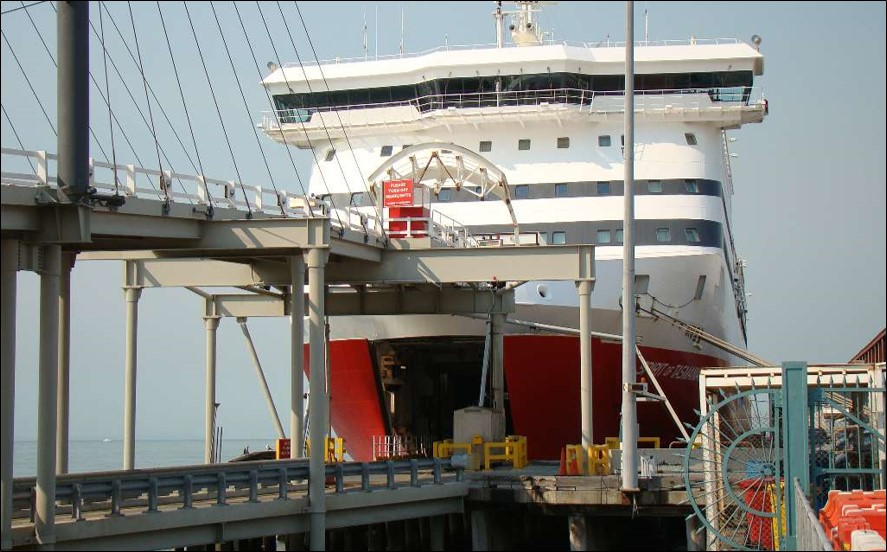

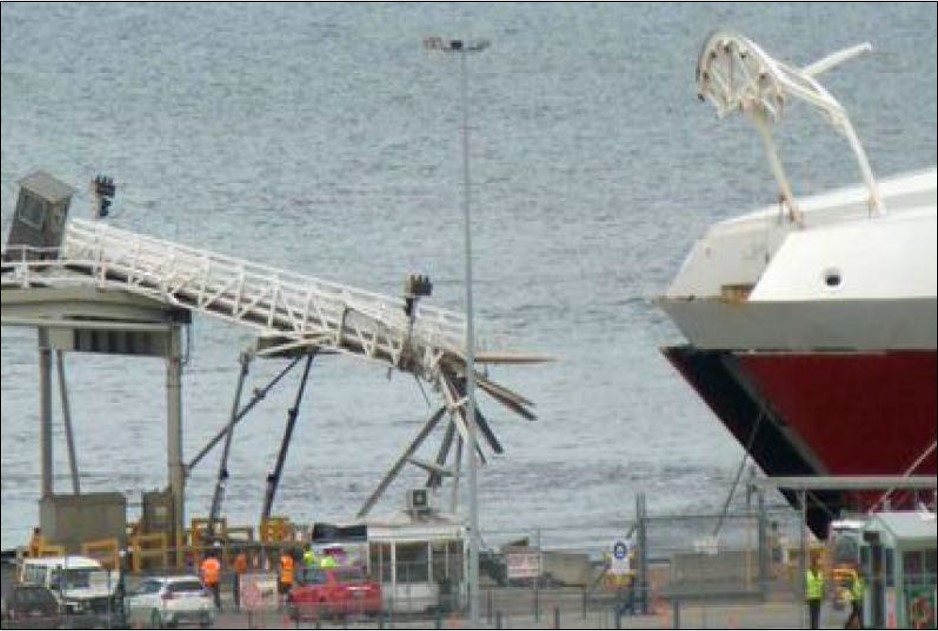

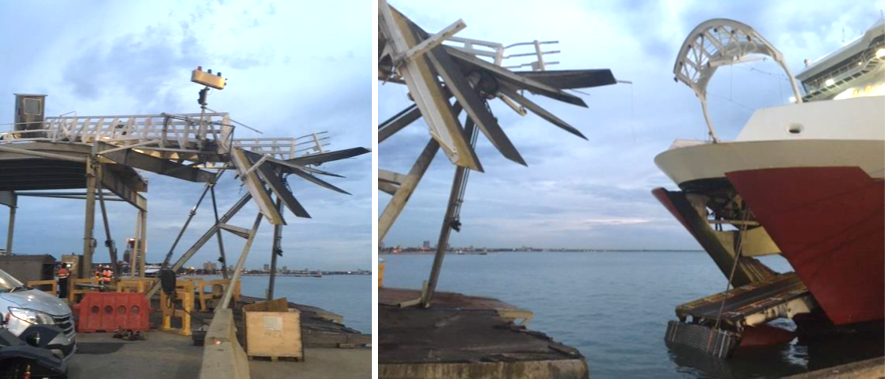

The ship suffered minor damage to its lower bow ramp and bow doors. Shore infrastructure suffered extensive damage to the elevated roadway and ramp arrangement on the wharf and minor damage to wharf structures. No one was injured.

What the ATSB found

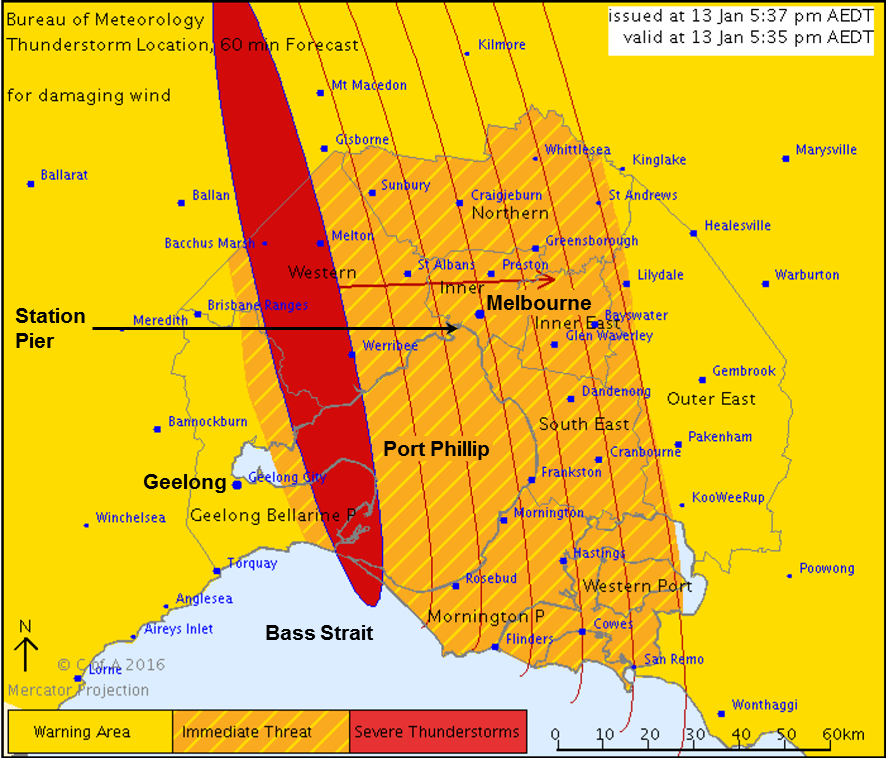

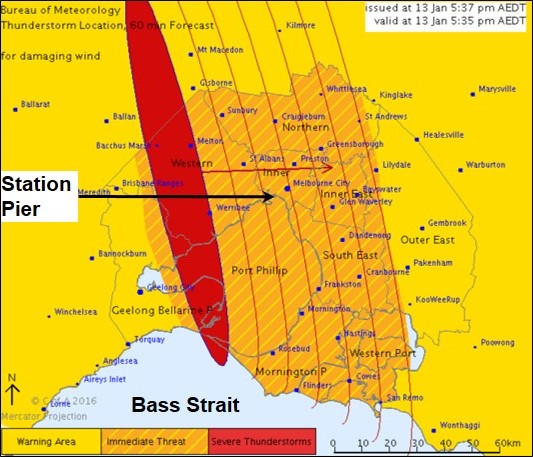

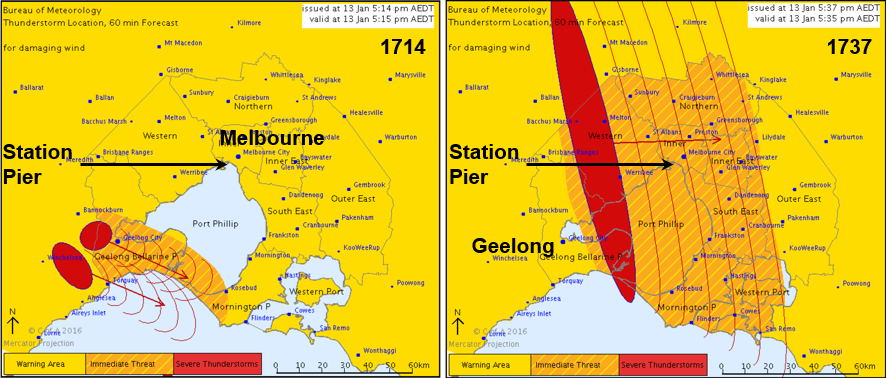

During the afternoon of 13 January, a band of severe thunderstorms passed across the location of Spirit of Tasmania II, with little warning. As the ship’s bridge was unattended throughout the port stay, none of its crew saw indicators of the approaching storm until just before the breakaway.

The ship’s crew responded swiftly. The bridge was manned and machinery was operational by the time the ship had turned 90 degrees to the wharf. The ship’s movement was then controlled using its thrusters and main propulsion until, with tug assistance, it was returned to the wharf.

What's been done as a result

The ship’s managers, TT-Line Company, advised the ATSB that it has implemented immediate changes to shipboard weather monitoring and notification arrangements along with changes to heavy weather and mooring procedures. These changes include: weather triggers for increased shipboard readiness; immediate notification of weather warnings; access to the Bureau of Meteorology (BoM) website from the bridge; changes to the wind speed alarm settings and; requiring all mooring lines to be held on the winch brakes.

TT-Line also engaged external marine consultants to complete extensive investigations and analyses into the mooring requirements and design for Station Pier. The consultants have completed mathematical modelling and incident replication simulations. Subsequent analyses will be used to identify and define operational parameters and recommend any alterations to berthing arrangements and infrastructure. The ATSB has issued one recommendation to TT-Line to complete safety action to adequately address the safety issue with respect to moorings.

The Victorian Ports Corporation (Melbourne) advised the ATSB that Melbourne vessel traffic service will broadcast BoM weather warnings on VHF channel 12. All masters of ships in port waters, including at berth or anchorage, are to ensure a listening watch is maintained at all times.

The BoM advised the ATSB that in addition to verifying the subscription service with the Victorian Ports Corporation (Melbourne) it continues to upgrade its marine weather services. This includes a one-stop webpage on its website for improved education, information and accessibility to marine and ocean services.

Safety message

All ships, especially those with high windage, are prone to breaking away from moorings during short-term events such as thunderstorms and squalls. The risks this presents to ships with large numbers of people on board mean that weather monitoring, mooring systems and procedures need to be regularly checked and verified for changing weather conditions.

Download final report
[ Download PDF: 1.96MB]




The occurrence

Context

Safety analysis

Findings

Safety issues and actions

Sources and submissions

Appendices





To download an image click the download link then right-click the image and select save image as.

Copyright in material obtained from other agencies, private individuals or organisations, belongs to those agencies, individuals or organisations. Where you want to use their material you will need to contact them directly.


Download Preliminary report
[ Download PDF: 1.24MB]




Preliminary report published: 18 April 2016

The information contained in this Preliminary report is released in accordance with section 25 of the Transport Safety Investigation Act 2003 and is derived from the ongoing investigation of the occurrence. Readers are cautioned that new evidence will become available as the investigation progresses that will enhance the ATSB's understanding of the accident as outlined in this Preliminary report. As such, no analysis or findings are included in this report.

What happened

On the afternoon of 13 January 2016, the roll-on roll-off ship Spirit of Tasmania II was loading passengers and vehicles in Melbourne. At 1752, strong wind gusts blew the ship off the wharf and all but one of the ship’s mooring lines (on the bow) parted. As it broke away, the stern swung around until the ship was 90 degrees to the wharf and parallel to the nearby public beach, in danger of grounding. Action was taken to arrest the swing and the ship was returned to the wharf without touching bottom.

Wharf cargo and vehicle loading infrastructure was seriously damaged. The ship suffered minor bow damage. No one was injured.

What the ATSB has found so far

Based on the preliminary information that ATSB obtained, it was apparent that a band of severe thunderstorms passed across the area, including the location of Spirit of Tasmania II, with comparatively little notice. As the ship’s bridge was unattended throughout the port stay, none of the crew saw indicators of an approaching storm until immediately before the breakaway.

The ship’s crew responded swiftly. The bridge was manned and machinery was operational by the time the ship had turned 90 degrees to the wharf. The ship’s movement was then controlled using its thrusters and propulsion until it could be turned, with the assistance of a harbour tug, away from the beach and returned to the wharf.

Investigation direction

The investigation is ongoing and will focus on weather events in the Port of Melbourne area, and how the port and port users prepare for such events. This will include:

  • The ship’s managers’ (TT Line Company) preparations and procedures
  • Spirit of Tasmania II preparations and procedures for port stays and weather events, including mooring arrangements and equipment
  • Port of Melbourne procedures and actions
  • Bureau of Meteorology weather forecasting and warnings
  • distribution of weather information and warnings to and amongst port users.
Download Preliminary report
[ Download PDF: 1.24MB]




The occurrence

Context

Sources and submissions



Safety issues

MO-2016-001-SI-01 - MO-2016-001-SI-02 - MO-2016-001-SI-03 -

TT-Line Company procedures

The adverse weather procedures for TT-Line Company ships when alongside did not take into account all the necessary factors to provide effective defences against significant, short-term weather events such as thunderstorms and squalls.

Safety issue details
Issue number:MO-2016-001-SI-01
Who it affects:All ship masters and deck officers
Status:Adequately addressed




Melbourne vessel traffic service procedures

The Port of Melbourne vessel traffic service (VTS) procedures for adverse weather were not comprehensive and, hence, its response on 13 January was only partially effective. One important consequence was that VTS’s advance warning of storm force winds did not reach all relevant parties, including Spirit of Tasmania II’s master.

Safety issue details
Issue number:MO-2016-001-SI-02
Who it affects:Port of Melbourne vessel traffic service and all users of the port
Status:Adequately addressed




Mooring at Station Pier

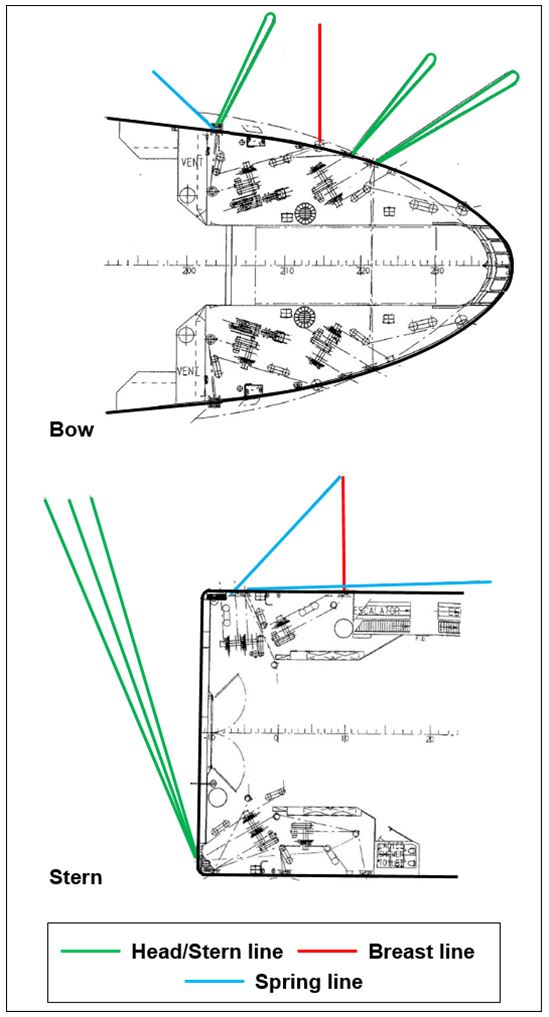

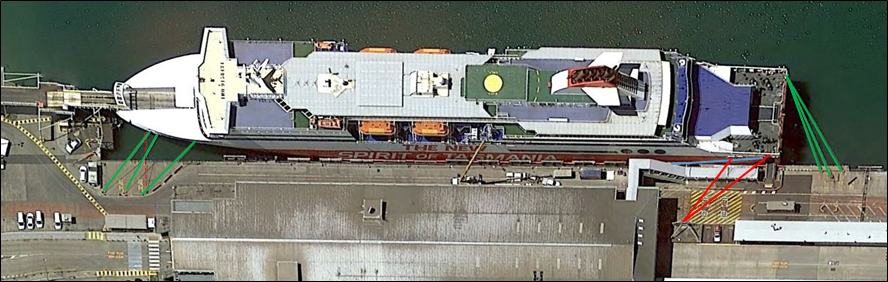

While TT-Line Company’s standard mooring line pattern for ships at Station Pier had been successfully used for many years, the breakaway indicated the risk could have been further reduced to better prepare for such unusual circumstances.

Safety issue details
Issue number:MO-2016-001-SI-03
Who it affects:All ship masters and deck officers
Status:Partially addressed


General details
Date: 13 January 2016 Investigation status: Completed
Time: 17:50 EDST (UTC +11) Investigation type: Occurrence Investigation
Location   (show map):Station Pier, Port Melbourne
State: Victoria
Release date: 11 May 2017 Occurrence category: Incident
Report status: Final Highest injury level: None

Vessel details
Operator: TT Line Company
Vessel: Spirit of Tasmania II
Flag: Australia
IMO: 9158434
Sector: Passenger
Type of Operation: Berthed
Damage to Vessel: Minor
Departure point:Devonport, Tasmania
Destination:Station Pier in the Port of Melbourne, Victoria
