On 28 February 2016, at about 1642 Eastern Daylight-saving Time (EDT), a Cessna 150 aircraft, registered VH-RZP (RZP), departed from King Island Airport, Tasmania, for a flight to Barwon Heads Airport, Victoria. On board were a pilot and passenger.
The pilot in RZP made all the required common traffic advisory frequency (CTAF) calls, while still on climb to 5,500 ft above mean sea level. At about the same time, two regular public transport (RPT) aircraft (‘Aircraft 2’ and VH-MYI) were on descent from flight levels and inbound to King Island.
At 1646, the crew of Aircraft 2 made an inbound broadcast when 30 NM from King Island Airport. The pilot of RZP responded, and mutually arranged separation with Aircraft 2. The crew of Aircraft 2 limited their descent to 6,500 ft until they obtain confirmation that RZP has passed beneath.
At around 14-15 NM north of the airport, the pilot of RZP changed the only radio fitted from the CTAF to the Melbourne Centre air traffic control (ATC) frequency.
At 1650, the flight crew of the second RPT aircraft, Sharp Airlines Fairchild SA227, registered VH-MYI (MYI), made a 30 NM inbound broadcast on the King Island CTAF. At the same time, the pilot in RZP contacted ATC to arrange overwater scheduled reporting.
After receiving this call, ATC checked that the crew of both RPT aircraft had heard the details, and were therefore aware of the pilot of RZP’s intentions. The crew of Aircraft 2 responded that they had, and when ATC asked again, the crew of MYI (who at the time had been broadcasting on the CTAF) advised that they had also heard the broadcast. Air traffic control then checked with the pilot of RZP that they were aware of the position and details of both RPT aircraft. They confirmed that they were and that Aircraft 2 had just passed above them.
The crew of both RPT aircraft unsuccessfully tried several times to make contact with the pilot of RZP on the CTAF, unaware that this aircraft had only one radio and the pilot was now primarily on the Melbourne Centre frequency.
The pilot of RZP briefly switched back to CTAF to confirm with the pilot of Aircraft 2 that they had seen them pass over.
The crew of MYI unsuccessfully tried again, on the CTAF, to establish the position and altitude of RZP. Not obtaining a response from RZP (as the pilot of RZP had switched the radio frequency back to Melbourne Centre) and unable to determine RZP’s exact position, the crew of MYI elected to temporarily stop their descent at 5,300 ft.
Shortly after, the passenger of RZP alerted the pilot of RZP to the approaching aircraft (MYI) on a reciprocal heading. About the same time, the crew of MYI reported seeing RZP ‘on a reciprocal heading and within a 100 ft of their altitude and about 200–300 m away’. The pilot of RZP quickly manoeuvred to the right, but the aircraft had passed MYI before the crew of MYI were able to react. There was a further radio exchange between the two crews after the pilot of RZP momentarily switched back to the CTAF.
This serious incident highlights the continued issue of the mix of aircraft in the vicinity of non-controlled airports. The ATSB is currently working on an update of the research report into safety in the vicinity of non-controlled aerodromes (previously published in 2010). The ATSB is also compiling a special aviation short investigation bulletin involving several recent near collisions in the vicinity of non-controlled aerodromes.
On 28 February 2016 at about 1642 Eastern Daylight-saving Time (EDT), a Cessna 150 aircraft, registered VH-RZP (RZP), departed from King Island Airport, Tasmania, for a flight to Barwon Heads Airport, Victoria (Figure 1). On board were a pilot and passenger.
The pilot had elected not to submit a flight plan for the visual flight rules private flight. They planned to remain outside controlled airspace but make scheduled reports to air traffic control (ATC) on the Melbourne Centre frequency during the overwater component of the flight.
At 1645, when passing through 1,600 ft above mean sea level, the pilot broadcast a departure call on the King Island common traffic advisory frequency (CTAF) using the only radio in the aircraft.

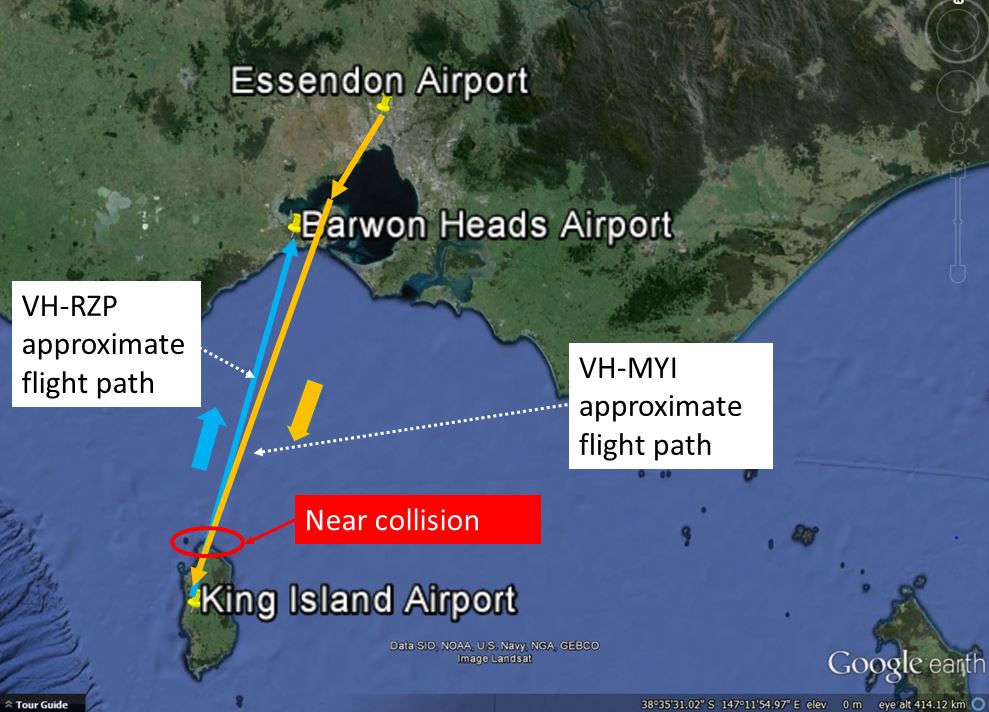

Source: Google earth annotated by the ATSB
About two minutes later, the crew of a regular public transport (RPT) aircraft (’Aircraft 2’) also broadcast on the CTAF. The crew advised that they were at 30 NM inbound to King Island and on descent through FL 115. The pilot of RZP responded to this broadcast, and reported RZP’s position and their intentions. After a brief radio discussion, the pilot of RZP agreed to advise the crew of Aircraft 2 when RZP was close to the northern coast of the island (Figure 1). The crew of Aircraft 2 had temporarily stopped their descent at 6,500 ft until they could confirm that they had safely passed RZP.
At 1650 the crew of a RPT Sharp Airlines Fairchild SA227 aircraft, VH-MYI (MYI), also made a 30 NM inbound broadcast on the CTAF. The pilot in command (PIC) was the pilot monitoring for this sector, and handling the radio calls using two radios, one on the CTAF, and one on the Melbourne Centre frequency. At the time, MYI was on descent from FL 110. The crew of Aircraft 2 responded to this broadcast, with an update of their position and current intentions.
At the same time as the pilot in MYI was broadcasting on the CTAF, the pilot in RZP contacted ATC to arrange the overwater component of their flight. RZP was now about 17 NM from the King Island Airport and had selected the Melbourne Centre frequency on their radio. Therefore, the pilot of RZP did not hear the inbound broadcast by the pilot of MYI. The call to ATC included details of RZP’s current position, the current passing altitude of 4,400 ft, and the intention to continue the climb to 5,500 ft. As they were still in the climb, the aircraft had a relatively high nose attitude, which restricted the pilot’s forward vision.
Air traffic control (on Melbourne Centre frequency) confirmed with the crew of both inbound RPT aircraft (still monitoring both frequencies) that they had heard RZP’s radio call. The crew of Aircraft 2 responded that they had, and when ATC asked again, the crew of MYI (who at the time had been broadcasting on the CTAF) advised that they had also heard the broadcast.
Air traffic control then confirmed with the pilot of RZP that they had heard both inbound RPT aircraft’s broadcasts. The pilot of RZP (still in the climb) advised ATC that they were aware of both aircraft and that Aircraft 2 had just passed above them.
Almost concurrently, the flight crew in both Aircraft 2 and MYI were calling the pilot of RZP on the CTAF, attempting to establish RZP’s current position. The pilot in RZP then momentarily switched back to the CTAF and contacted Aircraft 2 to inform them that they had just passed above RZP.
The crew of MYI unsuccessfully tried again, on the CTAF, to establish the position and altitude of RZP. MYI did not have a traffic alert and collision avoidance system (TCAS) installed so although RZP was transponder equipped, the crew in MYI had to rely on radio transmissions to ascertain the other aircraft’s position.
Not obtaining a response from RZP (as the pilot of RZP had switched the radio frequency back to Melbourne Centre) and unable to determine RZP’s exact position, the crew of MYI elected to temporarily stop their descent at 5,300 ft.
Shortly after, as RZP had reached the top of climb and the pilot was reconfiguring the aircraft, the passenger alerted the pilot to the approaching aircraft (MYI) on a reciprocal heading. About the same time, the crew of MYI reported seeing RZP ‘on a reciprocal heading and within a 100 ft of their altitude and about 200–300 m away’. The pilot of RZP quickly manoeuvred to the right, but the aircraft had passed MYI before the crew of MYI were able to react. There was a further radio exchange between the two crews after the pilot of RZP momentarily switched back to the CTAF.
Both RZP and MYI continued to their respective destinations and landed safely. Aircraft 2 had already landed some minutes earlier.
Table 1 below provides a summary of the radio calls made on both the King Island CTAF and the Melbourne Centre frequency.
|Calls made on King Island CTAF||Time||Calls made on Melbourne Centre|
|RZP makes a departure call advising traffic on their current altitude, the altitude they were climbing to and tracking intentions||1644:58||MYI contacts Melbourne Centre with altitude|
|1645:47||ATC contacts MYI to pass IFR traffic to them|
|Aircraft 2 makes an inbound call at 30 NM and then arranges with RZP to report when they cross the northern end of King Island||1646:41|
|1648:38||MYI advises they have begun their descent|
|MYI makes an inbound call at 30 NM||1650:07||RZP contacts Melbourne Centre to arrange their overwater sector. They advise that they are on climb to 5,500 ft.|
|1650.35||ATC contact both MYI and Aircraft 2 to ensure they have heard RZP’s call|
|1650:49||Aircraft 2 confirms they have|
|Aircraft 2 makes a broadcast advising of their distance from King Island Airport and requesting a distance from King Island Airport from RZP||1650 .56|
|1651:04||ATC contacts MYI to confirm they are aware of RZP|
|1651:07||MYI has to be contacted a second time and then confirms they have heard RZP|
|MYI requests that RZP broadcast their altitude||1651:10||ATC contacts RZP to ensure they are aware of both Aircraft 2 and MYI on descent to King Island with an indication of where each aircraft is in relation to the coast of King Island|
|1651.26||RZP confirms they have heard all traffic and that Aircraft 2 has just passed above them|
|RZP contacts Aircraft 2 Aircraft 2 requests that RZP advise them of their distance from King Island AirportRZP advises Aircraft 2 has just passed above their aircraft||1651.53|
|MYI attempts to contact RZP advising their position and requesting their altitude||1652.14|
|1652:49||ATC contacts Aircraft 2 to advise them they are no longer being monitored on frequency|
|MYI attempts to contact RZP again||1652.32|
|1652:50||Aircraft 2 responds|
|1652:52||ATC attempts to contact MYI to advise them they are no longer being monitored on frequency|
|1652:57||ATC again contacts MYI to cancel contact|
|MYI attempts to contact RZP again||1653.08|
|RZP contacts MYI advising them that they have just passed them||1653.38|
The King Island Terminal Aerodrome Forecast (TAF) valid from 1300 to 0100 the next day included a south-westerly wind of 15 kts, visibility of 10 km or greater, and showers of light rain with 6–7 okta of cloud at 3,000 ft.
One of the King Island automated weather station reports (METAR) released during this period, reported a wind from the south-west at 14 kts, greater than 10 km of visibility and overcast cloud at 1,900 ft.
Cessna 150, VH-RZP - Pilot experience and comments
The pilot held a Private Pilot Licence and had about 640 hours of total aeronautical experience.
The pilot reported the following:
- They were familiar with King Island and regularly flew from Barwon Heads to King Island and return in this aircraft.
- The pilot’s recollection of the flight was that they had made all the appropriate radio calls both on the CTAF and on the Melbourne Centre frequency.
- The pilot recalled being advised by ATC that there were two inbound RPT aircraft, but did not have a full understanding of the position of MYI in relation to RZP.
- The pilot was unaware of MYI until they had switched to Melbourne Centre frequency to commence the overwater reporting segment.
- The pilot advised that although there was cloud around the King Island Airport, they were able to remain clear of cloud during the climb to 5,500 ft, and that it was clear blue sky above the cloud from about 3,000 ft.
- RZP was fitted with one radio, therefore could only be tuned to one frequency at a time (in this case, either Melbourne Centre or the CTAF). The pilot felt that this had probably contributed to the communication breakdown.
- The transponder in RZP was on and working. The pilot was under the impression that an RPT aircraft would be able to ‘see’ RZP on TCAS, or similar equipment.
- They used an iPad with a popular navigation application, and were able to maintain the flight-planned track far more accurately than relying on navigating using a map. There was no traffic awareness facility on this software application.
- The pilot commented that in future they would not fly an almost reciprocal track to the inbound IFR aircraft. Instead, they intend to track a coastal route once departing King Island and then track to a position west of Barwon Heads in order to provide sufficient separation.
Fairchild SA227, VH-MYI – Pilot experience and comments
The pilot in command (PIC) had almost 4,000 hours total aeronautical experience with just over 1,700 hours on SA227 aircraft. The PIC advised the following:
- Due to the forecast and in flight conditions of overcast layers of cloud for the descent, the crew had elected to conduct a Global Navigation Satellite System (GNSS) arrival, with a circling approach on to runway 28.
- As per the company standard operating procedures, all communication with company ground personnel at King Island was completed prior to the top of descent.
- The crew had incorrectly assumed that because RZP was a VFR aircraft, they would therefore be staying below the extensive layers of cloud and commencing the overwater segment well below MYI’s descent profile. The crew reported that the inflight conditions they were experiencing of layers of overcast cloud had only re-enforced the belief that RZP, being VFR, would be under the layers of cloud and therefore not a conflict.
- This particular SA227 had yet to be fitted with ADS-B. The pilot advised that much of the operator’s fleet had already been fitted with this technology, but MYI was scheduled for fitment in the near future. This aircraft was also not fitted with TCAS.
- The pilot commented that King Island is a very busy airport, with an increasing number of commercial flights operating there. To date, the pilot had not had an issue operating there as the self-separation required was predominantly between other IFR commercial aircraft, and the system had worked well.
This serious incident highlights the issues with different performance aircraft operating in the vicinity of non-controlled airports. Although the crew in all three aircraft were making all the required broadcasts, in this occurrence, the broadcasts were being made within seconds of each other on different frequencies. This meant that the crew of both RZP and MYI had missed the opportunity to gain a full appreciation of the other’s position, resulting in a near collision.
In the last five years, the ATSB has received almost 100 reports of near collisions, where the pilots have reported that they were in the vicinity of a non-controlled airport. The ATSB is currently working on an update of the research report into safety in the vicinity of non-controlled aerodromes (previously published in 2010). A revised iteration is expected to be released in the 2016/17 financial year.
The ATSB is also compiling a special aviation short investigation bulletin involving several recent near collisions in the vicinity of non-controlled aerodromes.
Much of the information the ATSB has gathered through the reporting process and through related investigations points to a lack of understanding between pilots of different operation types operating to and from non-controlled aerodromes. Although broadcasting and reporting on the radio often occurs, the situational appreciation of the other aircraft’s performance and positions has not occurred.
Situational awareness around high traffic routes in Class G airspace and non-controlled airports remains the responsibility of the pilot in command. The ATSB encourages pilots to consider other operations in a shared facility such as non-controlled aerodromes. The use of all available resources to confirm the intent of other aircraft by questioning transmissions which had not been fully heard or understood, as in this case, may avert a serious incident such as this.
Whether or not the ATSB identifies safety issues in the course of an investigation, relevant organisations may proactively initiate safety action in order to reduce their safety risk. The ATSB has been advised of the following proactive safety action in response to this occurrence, bearing in mind the VH-RZP was a private operations aircraft.
As a result of this occurrence, Sharp Airlines has advised the ATSB that they are taking the following safety actions:
To highlight human factors issues and the risks associated with operating into and out of King Island Airport, the details of the incident will be included in the company’s quarterly newsletter.
Future flight crew human factors training courses will include the human factors associated with this occurrence.
The ATSB’s Avoidable Accident series includes a publication, A Pilot’s Guide to safety in the vicinity of non-towered aerodromes.This publication captures many issues that occur around non-controlled aerodromes.
Section 4 of CASA’s Civil Aviation Advisory Publication (CAAP 166-1(3)) encourages pilot’s to consider issues surrounding the traffic mix in the vicinity of non-controlled aerodromes. Although the definition used for CTAF in this publication indicates a lateral dimension of 10 NM, Table 2 notes that higher performance aircraft will be making broadcasts earlier than this 10NM boundary. It is therefore important for all CTAF users, particularly pilots of those aircraft in the lower performance category, to understand this information.
The Airservices Australia Aeronautical Information Package (AIP) GEN 2.2-6, defines a CTAF as:
‘A designated frequency on which pilots make positional broadcasts when operating in the vicinity of a non-controlled aerodrome.’
This definition may provide a more useful way for pilots to understand operations in and around non-controlled aerodromes.
- Visual flight rules are a set of regulations which allow a pilot to only operate an aircraft in weather conditions generally clear enough to allow the pilot to see where the aircraft is going.
- Scheduled reports are an option to meet search and rescue requirements for aircraft who do not meet the normal CAR 258 requirements for overwater flight. Information available in the Aeronautical Information Publication ENR 1.1.100.
- At altitudes above 10,000 ft in Australia, an aircraft’s height above mean sea level is referred to as a flight level (FL). FL 370 equates to 37,000 ft.
- Pilot flying (PF) and pilot monitoring (PM) are procedurally assigned roles with specifically assigned duties at specific stages of a flight. The PF does most of the flying, except in defined circumstances; such as planning for descent, approach and landing. The PM carries out support duties and monitors the PF’s actions and aircraft flight path.
- Traffic collision avoidance system (TCAS) is an aircraft collision avoidance system. It monitors the airspace around an aircraft for other aircraft equipped with a corresponding active transponder and gives warning of possible collision risks.
- A meteorological unit of measurement giving the amount of cloud present at any one location.
- Overcast means a total sky coverage of this cloud (100%).
- ADS-B, or automatic dependent surveillance – broadcast, automatically broadcasts the precise location of the aircraft via a digital data link. The data can be used by other aircraft and ATC to show the aircraft’s position and altitude on display screens without the need for radar.
- At the time of this publication, these aerodromes were known as non-towered. CASA have since updated this definition to include all aerodromes/airports where a control service is not currently in place. This can apply to Class C or D airports when Tower is not operating.
|Date:||28 February 2016||Investigation status:||Completed|
|Time:||1650 EDT||Investigation level:||Short - click for an explanation of investigation levels|
|Location:||31 km north of King Island Airport|
|State:||Tasmania||Occurrence type:||Near collision|
|Release date:||27 July 2016||Occurrence category:||Serious Incident|
|Report status:||Final||Highest injury level:||None|
Aircraft 1 details
|Aircraft manufacturer||Cessna Aircraft Company|
|Type of operation||Private|
|Damage to aircraft||Nil|
|Departure point||King Island, Tas.|
|Destination||Barwon Heads, Vic.|
Aircraft 2 details
|Aircraft manufacturer||Fairchild Industries Inc|
|Type of operation||Air Transport Low Capacity|
|Damage to aircraft||Nil|
